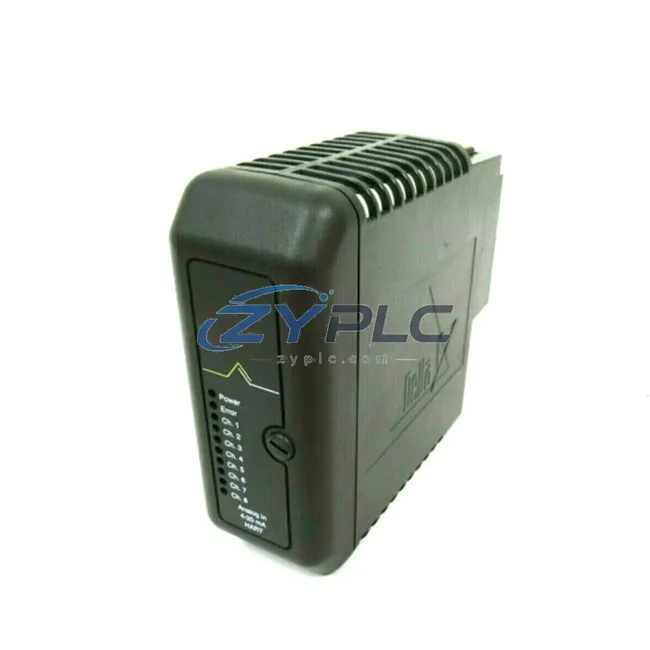

Emerson DeltaV KJ3002X1-BA1 12P0680X122 Analog Input Module for KJ Series

Emerson DeltaV KJ3002X1-BA1 12P0680X122 Analog Input Module for KJ Series

The Emerson DeltaV KJ3002X1-BA1 12P0680X122 is a precision-engineered analog input module designed for seamless integration within the DeltaV distributed control system (DCS) architecture. As a core I/O layer component in the KJ Series platform, this module serves as the critical signal acquisition interface between field instrumentation and the DeltaV controller network. Its role extends beyond simple signal conversion — it is a foundational element that determines the accuracy, reliability, and scalability of the entire control loop from sensor to supervisory system.

In modern industrial automation, the integrity of the I/O layer directly governs the performance of every upstream and downstream system component. The KJ3002X1-BA1 12P0680X122 is engineered to meet the demanding signal fidelity requirements of process industries including oil & gas, petrochemical refining, power generation, water treatment, mining, metallurgy, and advanced manufacturing. Its compatibility with the DeltaV KJ Series backplane and controller ecosystem ensures that engineers can deploy, commission, and maintain this module with full confidence in system-wide consistency.

Backed by a warranty terms confirmed during quotation and full system integration support, this module is available in tested, shipment arranged after confirmation condition — minimizing procurement lead times and supporting both greenfield installations and brownfield system expansions.

Product Specification Table

System Compatibility Notes

The KJ3002X1-BA1 12P0680X122 does not operate in isolation — it is one node in a tightly coordinated DeltaV control architecture. Understanding its position within the full system hierarchy is essential for engineers designing reliable, scalable, and maintainable automation solutions.

At the controller layer, the DeltaV MD Plus Controller (KJ3221X1-BA1) or the DeltaV MD Controller (KJ3001X1-BA1) serves as the processing core, executing control strategies and communicating with I/O subsystems via the DeltaV internal bus. The KJ3002X1-BA1 12P0680X122 feeds real-time analog process values directly into these controllers, enabling closed-loop PID control, cascade strategies, and advanced process control (APC) algorithms.

At the I/O layer, this analog input module is typically installed alongside complementary modules such as the DeltaV KJ3003X1-BA1 Analog Output Module for control signal delivery, the KJ3011X1-BA1 Discrete Input Module for digital status acquisition, and the KJ3012X1-BA1 Discrete Output Module for actuator command outputs. Together, these modules populate the KJ Series I/O carrier and backplane assembly, forming a complete field interface subsystem.

At the network layer, the DeltaV system leverages a redundant Ethernet control network — typically implemented with managed industrial switches — to ensure uninterrupted communication between controllers, I/O subsystems, workstations, and historian servers. The HART pass-through capability of the KJ3002X1-BA1 12P0680X122 further extends network intelligence to field devices, enabling remote diagnostics and device health monitoring without additional wiring infrastructure.

At the power layer, the DeltaV Power Supply (KJ3204X1-BA1 or equivalent) provides regulated bus power to the KJ Series backplane, ensuring stable operation of all installed I/O modules including the KJ3002X1-BA1 12P0680X122. Redundant power supply configurations are strongly recommended for critical process applications to eliminate single points of failure.

At the human-machine interface (HMI) layer, DeltaV Operate workstations and DeltaV Live HMI platforms consume the analog process data acquired by this module, presenting real-time trends, alarm states, and process graphics to operators. The seamless data path from field sensor through the KJ3002X1-BA1 12P0680X122 to the HMI display is what enables operators to make informed, timely control decisions.

At the execution layer, the analog output signals generated in response to the input data processed through this module drive final control elements such as control valves, variable frequency drives (VFDs), and positioners — completing the closed-loop control architecture that defines modern DCS-based process automation.

Industrial Application Notes

Oil & Gas and Petrochemical: In upstream and downstream hydrocarbon processing, the KJ3002X1-BA1 12P0680X122 acquires critical process variables including flow rates, pressures, temperatures, and level measurements from field transmitters. Its HART communication capability allows engineers to perform remote calibration and diagnostics on smart field devices without interrupting process operations — a significant advantage in hazardous area installations where physical access is restricted.

Power Generation: In thermal, hydro, and combined-cycle power plants, this analog input module integrates with turbine control systems, boiler management systems, and balance-of-plant (BOP) automation. Its high-resolution 16-bit A/D conversion ensures that subtle process variations are captured accurately, supporting precise load control and efficiency optimization.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog monitoring of pH, dissolved oxygen, turbidity, chlorine residual, and flow. The KJ3002X1-BA1 12P0680X122 provides the reliable signal acquisition backbone for these multi-parameter monitoring systems, supporting regulatory compliance and process optimization.

Mining and Metallurgy: In mineral processing, smelting, and refining operations, this module supports the acquisition of temperature, pressure, and flow signals from harsh process environments. Its robust design and compatibility with the DeltaV platform’s redundancy features make it well-suited for continuous, high-availability operations where unplanned downtime carries significant financial consequences.

Packaging and Discrete Manufacturing: In high-speed packaging lines and assembly systems, analog input modules like the KJ3002X1-BA1 12P0680X122 monitor tension, force, speed, and position feedback signals, enabling precise machine control and quality assurance. Integration with the broader DeltaV architecture allows production data to flow seamlessly into MES and ERP systems for enterprise-wide visibility.

Product Compatibility FAQ

Q1: Is the KJ3002X1-BA1 12P0680X122 compatible with existing DeltaV KJ Series backplanes and carriers already installed in my control cabinet?
Yes. The KJ3002X1-BA1 12P0680X122 is designed for direct installation into standard DeltaV KJ Series carriers and backplanes. No additional adapters or interface hardware are required. Engineers should verify the carrier revision and firmware version of the host controller to confirm full feature compatibility, particularly for HART pass-through functionality. ZYPLC provides pre-shipment testing to confirm module operability prior to delivery.

Q2: How does this module support system redundancy and high-availability architecture requirements?
The KJ3002X1-BA1 12P0680X122 supports DeltaV’s inherent I/O redundancy architecture when paired with redundant controller configurations (e.g., dual MD Plus Controllers) and redundant power supplies. In redundant I/O configurations, a secondary module can be installed in a mirrored carrier slot, with the DeltaV system automatically managing switchover in the event of a primary module fault — ensuring continuous process data acquisition without operator intervention. This architecture is particularly critical in safety-instrumented and high-availability process applications.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for commissioning and long-term maintenance?
ZYPLC’s warranty terms confirmed during quotation covers hardware defects and operational failures under normal operating conditions from the date of shipment. All modules are tested prior to dispatch to verify signal accuracy, channel integrity, and bus communication. For commissioning support, ZYPLC’s technical team is available to assist with module configuration, DeltaV system integration, and troubleshooting. For long-term maintenance planning, ZYPLC maintains inventory of KJ Series modules to support rapid replacement needs, minimizing system downtime and supporting lifecycle management of installed DeltaV architectures. Contact: +86 19859288691 | plc.sales@zyplc.com
