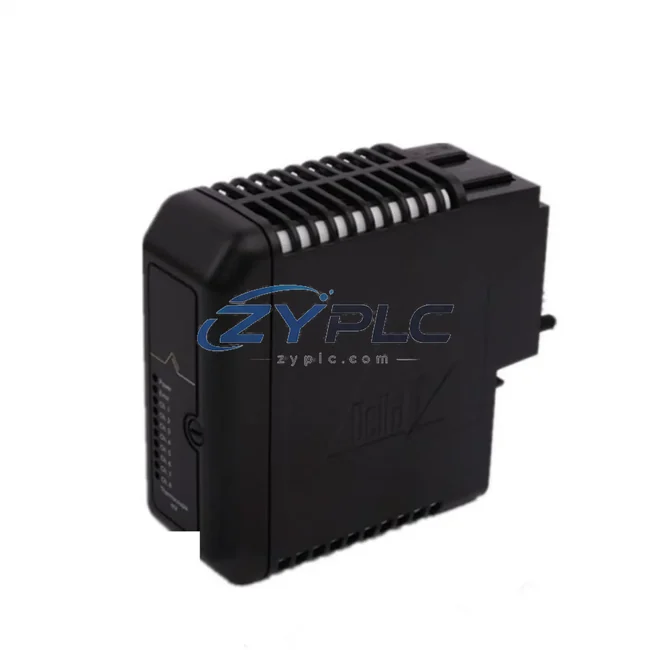

The Emerson ES0350.M1A05L.27N0 is a high-performance HART Output Module engineered for the DeltaV distributed control system platform. Designed to meet the rigorous demands of modern industrial process environments, this module delivers precise analog output control with built-in HART communication capability, enabling real-time field device diagnostics and maintenance-focused process management. Whether deployed in oil and gas, chemical processing, power generation, or advanced manufacturing, the ES0350.M1A05L.27N0 plays a central role in reducing unplanned downtime risk, improving equipment utilization rates, and supporting predictive maintenance strategies that minimize unplanned downtime.
In today’s industrial landscape, energy efficiency is no longer a secondary consideration — it is a core operational metric. The ES0350.M1A05L.27N0 addresses this directly by providing stable, low-drift analog output signals that eliminate control loop oscillation, a common source of wasted actuator energy and premature valve wear. By maintaining tight output accuracy across the full operating range, this module ensures that control valves, positioners, and variable-speed drives receive precisely the signal they need — no more, no less — reducing unplanned downtime at every point in the control loop.
Product Specification Table
| Parameter |
Specification |
| SKU |
ES0350.M1A05L.27N0 |
| Brand / Series |
Emerson / DeltaV |
| Module Type |
HART Analog Output Module |
| Output Channels |
8-channel (typical DeltaV M-Series configuration) |
| Output Signal |
4–20 mA HART |
| Power Consumption |
Low-power design; optimized for DeltaV carrier bus efficiency |
| Operating Efficiency |
High-accuracy output minimizes control loop unplanned downtime |
| Compatible Systems |
Emerson DeltaV M-Series I/O, DeltaV S-Series controllers |
| Communication Protocol |
HART (Highway Addressable Remote Transducer) |
| Application Environment |
Process industries: Oil & Gas, Chemical, Power, Pharma, Water Treatment |
| Maintenance Value |
Eliminates loop oscillation; reduces actuator wear and excess energy draw |
| Origin |
USA |
| Warranty |
warranty terms confirmed during quotation |
| Inventory Status |
RFQ Available – Tested & shipment arranged after confirmation |
System Compatibility and Application
The ES0350.M1A05L.27N0 does not operate in isolation — it is a precision component within a broader DeltaV automation architecture designed for energy-conscious industrial control. When integrated with the Emerson DeltaV M-Series Controller (such as the MD Plus or MD Controller), the module benefits from deterministic scan cycles that prevent unnecessary output updates, reducing both signal noise and downstream actuator micro-cycling. This directly translates to lower operating load at the field device level.
On the input side, pairing the ES0350.M1A05L.27N0 with Emerson DeltaV HART Analog Input Modules (such as the ES0350.M1A01 series) creates a closed-loop condition monitoring architecture. Field transmitters — including flow meters, pressure sensors, and temperature transmitters — feed real-time process data back through the input modules, allowing the DeltaV controller to dynamically adjust output signals and avoid over-driving actuators during low-demand periods.
For motor-driven applications, the HART output from the ES0350.M1A05L.27N0 can interface directly with Emerson Control Techniques variable frequency drives (VFDs) or third-party drives via HART-to-analog signal conditioning. This enables precise speed reference delivery to pump and fan motors, replacing fixed-speed operation with demand-responsive control — one of the highest-impact operational-efficiency strategies available in process plants. When combined with a DeltaV Power Monitor Module or an external energy metering device on the same HART network, operators gain full visibility into motor load at the loop level.
The module also integrates seamlessly with Emerson AMS Device Manager, the asset management platform that leverages HART secondary variables to monitor field device health without interrupting process control. Through AMS, maintenance teams can track valve signature data, detect actuator degradation, and schedule interventions before failures occur — eliminating the energy spikes and production losses associated with emergency shutdowns. The DeltaV Operate HMI provides operators with real-time dashboards that surface energy KPIs alongside process variables, enabling informed decisions about setpoint adjustments and load balancing across production lines.
For facilities pursuing IEC 62443 cybersecurity compliance or ISA-88 batch control standards, the ES0350.M1A05L.27N0 fits within the DeltaV ecosystem’s structured I/O architecture, supporting DeltaV Electronic Marshalling (CHARM I/O) for flexible, software-defined channel assignment. This reduces physical wiring complexity, lowers installation energy overhead, and simplifies future system expansions without rewiring. The DeltaV SIS Safety Instrumented System modules can also share the same physical infrastructure, enabling a unified safety and control architecture that minimizes redundant hardware and associated power loads.
Maintenance and Replacement Notes
In a typical continuous process plant, analog output modules like the ES0350.M1A05L.27N0 are responsible for commanding hundreds of control valves, dampers, and variable-speed drives simultaneously. When output accuracy degrades — due to aging hardware, poor calibration, or signal interference — control loops begin to hunt, causing actuators to cycle unnecessarily. Each unnecessary valve stroke or motor speed change consumes energy and accelerates mechanical wear. The ES0350.M1A05L.27N0’s stable, low-drift output eliminates this hunting behavior, directly reducing actuator operating load and extending mean time between maintenance (MTBM).
In batch manufacturing environments, production line throughput (takt time) is directly influenced by the responsiveness and accuracy of analog output control. Slow or inaccurate output signals cause process variables to overshoot setpoints, triggering corrective actions that extend batch cycle times and increase operating load per unit produced. By delivering fast, accurate 4–20 mA HART signals, the ES0350.M1A05L.27N0 supports tighter setpoint adherence, shorter batch cycles, and higher overall equipment effectiveness (OEE).
From a predictive maintenance perspective, the HART communication capability of the ES0350.M1A05L.27N0 enables continuous field device diagnostics without process interruption. Operators can poll connected HART devices for secondary variables — including valve travel accumulation, drive temperature, and transmitter self-diagnostics — and feed this data into condition monitoring platforms. Early detection of developing faults allows maintenance to be scheduled during planned downtime windows, avoiding the energy-intensive restart sequences and production losses that follow unplanned failures.
Every unit shipped undergoes full functional testing prior to dispatch, verifying output accuracy, HART communication integrity, and channel isolation. Combined with a warranty terms confirmed during quotation, this ensures that replacement modules perform to specification from day one, with no hidden energy penalties from substandard components. Fast global shipping and maintained inventory levels mean that critical spare modules are available when needed, minimizing the duration of any forced production slowdown.
Product Sourcing FAQ
Q1: How does the ES0350.M1A05L.27N0 contribute to measurable operational stability in a process plant?
By delivering stable, high-accuracy 4–20 mA output signals, the module eliminates control loop oscillation — a primary cause of unnecessary actuator cycling and excess energy draw. When paired with variable frequency drives and demand-responsive control strategies within the DeltaV system, facilities typically observe reductions in motor load and improved process efficiency across pump, fan, and compressor applications.
Q2: Is the ES0350.M1A05L.27N0 compatible with existing DeltaV M-Series and S-Series infrastructure?
Yes. The ES0350.M1A05L.27N0 is designed for the Emerson DeltaV platform and is compatible with M-Series I/O carriers and DeltaV controllers including the MD Plus and MD Controller variants. It supports standard DeltaV configuration tools and integrates with AMS Device Manager for HART diagnostics without requiring additional hardware.
Q3: What is the recommended replacement and testing process for this module?
All units are pre-tested for output accuracy, HART communication, and channel isolation before shipment. For in-plant replacement, the DeltaV hot-swap capability (where supported by the carrier configuration) allows module exchange without full system shutdown. Post-installation, loop checks should be performed using the DeltaV commissioning tools or a HART communicator to verify signal integrity and field device response.
Q4: What does the warranty terms confirmed during quotation cover, and what support is available?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and expedited replacement dispatch to minimize production impact. For urgent requirements, availability confirmed by RFQ availability ensures same-day or next-day shipment in most cases.
