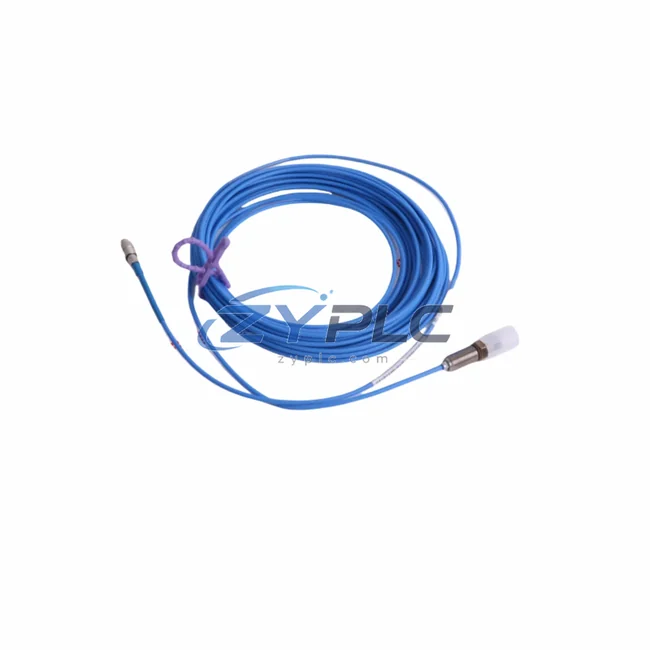

Emerson EZ1080-RM-00-100 Eddy Current Sensor for CSI 2600

Emerson EZ1080-RM-00-100 Eddy Current Sensor for CSI 2600: Control System Coordination and Upstream-Downstream Synergy

In modern industrial automation, no sensor operates in isolation. The Emerson EZ1080-RM-00-100 eddy current sensor is engineered as a precision measurement node within the broader CSI 2600 machinery protection and condition monitoring architecture. Its role extends far beyond simple proximity detection — it serves as a critical data acquisition point that feeds real-time shaft displacement and vibration data into the control layer, enabling coordinated decision-making across the entire automation hierarchy.

Understanding the EZ1080-RM-00-100 requires viewing it through the lens of system architecture: how it interfaces with signal conditioning modules, how its output integrates with protection relay logic, how it communicates with higher-level SCADA and DCS platforms, and how it supports long-term predictive maintenance strategies across rotating machinery assets.

Product Specification Table

System Compatibility Notes

The EZ1080-RM-00-100 is designed to function as part of a tightly integrated machinery protection ecosystem. In a typical CSI 2600 deployment, the sensor probe is paired with a compatible driver/oscillator module — such as the Emerson A6560 driver — which conditions the raw eddy current signal into a calibrated analog voltage output. This conditioned signal is then routed to a CSI 2600 monitor card, where it is processed against configurable alarm and trip setpoints for shaft radial vibration, axial position, or differential expansion.

At the protection relay layer, the CSI 2600 monitor integrates with the plant’s safety instrumented system (SIS) or emergency shutdown (ESD) logic. The Emerson AMS 6500 ATG platform can aggregate multiple EZ1080-series sensor channels, providing a unified view of rotating machinery health across an entire train — compressor, gearbox, and driven equipment — within a single rack-mounted enclosure.

For facilities running the Epro MMS 6350 or Epro CON021 signal conditioning modules alongside CSI hardware, the EZ1080-RM-00-100 maintains signal compatibility through standardized -24 VDC eddy current driver interfaces, enabling cross-platform integration without signal recalibration. This is particularly valuable in brownfield upgrades where legacy Epro infrastructure coexists with newer Emerson CSI 2600 monitor cards.

At the network and communication layer, analog outputs from the CSI 2600 monitor are converted to digital process values via Modbus RTU or HART gateways, feeding into the plant DCS — typically a Emerson DeltaV or third-party SCADA system. The CSI 2130 portable analyzer can also interface directly with the sensor loop for on-site route-based data collection, enabling technicians to validate live readings against the continuous monitoring baseline without interrupting production.

Power distribution to the sensor and driver assembly is managed through the CSI 2600 rack’s internal power supply module. In redundant configurations, dual power feeds from separate 24 VDC UPS-backed power rails ensure that sensor excitation is maintained even during a primary power supply fault — a critical requirement in API 670-compliant machinery protection systems for turbomachinery applications.

Terminal connections between the EZ1080-RM-00-100 cable assembly and the monitor card are made through Emerson A3120-series terminal blocks or equivalent DIN-rail mounted terminal modules, ensuring secure, vibration-resistant connections in high-ambient-vibration control cabinet environments. Proper cable routing and shielding practices, as specified in the CSI 2600 installation manual, are essential to maintaining signal integrity across long cable runs in electrically noisy industrial environments.

Industrial Application Notes

The EZ1080-RM-00-100 finds its most critical applications in industries where rotating machinery reliability is directly tied to production continuity and safety compliance.

Power Generation: In gas turbine and steam turbine protection systems, the EZ1080-RM-00-100 monitors shaft radial vibration and axial thrust position in real time. Integrated with the CSI 2600 monitor and plant DCS, it provides the early warning data necessary to prevent catastrophic bearing failures and unplanned outages. API 670 compliance is maintained through the sensor’s calibrated output and the monitor’s configurable alarm/trip logic.

Petrochemical and Refining: Centrifugal compressors and process pumps in refinery applications demand continuous, high-accuracy shaft displacement monitoring. The EZ1080-RM-00-100’s non-contact measurement principle eliminates mechanical wear, ensuring consistent performance across years of continuous operation in hydrogen, hydrocarbon, and corrosive gas environments.

Mining and Minerals Processing: Large grinding mills, ball mills, and conveyor drive systems benefit from the EZ1080-RM-00-100’s robust construction and wide operating temperature range. Integration with the AMS Suite predictive maintenance platform enables condition-based maintenance scheduling, reducing unplanned downtime in remote and harsh operating environments.

Water and Wastewater Treatment: Pump stations and blower systems in municipal water infrastructure rely on continuous vibration monitoring to detect impeller imbalance, bearing wear, and cavitation events. The EZ1080-RM-00-100 provides the measurement foundation for automated alarm escalation and maintenance dispatch workflows.

Packaging and Process Manufacturing: High-speed rotating equipment in food, beverage, and pharmaceutical production lines requires precise shaft monitoring to maintain product quality and regulatory compliance. The EZ1080-RM-00-100’s fast response time and high measurement resolution support both protection and quality assurance functions within integrated automation architectures.

Product Compatibility FAQ

Q1: Is the EZ1080-RM-00-100 compatible with existing CSI 2600 monitor cards and Epro signal conditioning modules in a mixed-platform architecture?
Yes. The EZ1080-RM-00-100 outputs a standard eddy current analog signal (-24 VDC bias) that is compatible with CSI 2600 monitor input cards and Epro MMS 6350 / CON021 signal conditioners. No signal recalibration is required when integrating into mixed Emerson/Epro architectures, provided the driver module is matched to the probe’s gap range and sensitivity specification. Always verify the driver-probe pairing using the CSI 2600 system configuration guide before installation.

Q2: How does the EZ1080-RM-00-100 support long-term maintenance efficiency in a multi-train rotating machinery protection system?
The sensor’s non-contact measurement principle eliminates mechanical wear, extending service intervals significantly compared to contact-type transducers. When integrated with the AMS Suite condition monitoring platform and CSI 2130 portable analyzer, the EZ1080-RM-00-100 enables route-based and continuous monitoring data fusion — allowing maintenance teams to trend shaft behavior over months and years, identify developing faults early, and plan corrective maintenance during scheduled outages rather than responding to emergency trips. The warranty terms confirmed during quotation provides additional assurance of component reliability from the date of installation.

Q3: What installation and commissioning steps are critical for ensuring accurate measurement and system compatibility?
Proper installation of the EZ1080-RM-00-100 requires precise gap setting between the probe tip and the target shaft surface — typically 1.0 mm (40 mil) for a 100 mil range probe, verified using a calibrated gap voltage measurement at the driver output. Cable routing must follow CSI 2600 shielding and grounding guidelines to prevent electromagnetic interference from adjacent power cables or variable frequency drives. After installation, a full system calibration check — including alarm and trip setpoint verification on the CSI 2600 monitor card — should be performed before returning the machine to service. Our technical team provides pre-shipment testing documentation and commissioning support for all EZ1080-RM-00-100 units supplied under the warranty terms confirmed during quotation program.
