Emerson FP20-6TX2TX Industrial Network Interface for DeltaV Systems

Emerson FP20-6TX2TX Industrial Network Interface for DeltaV Systems: The Data Backbone of Smart Factory Connectivity

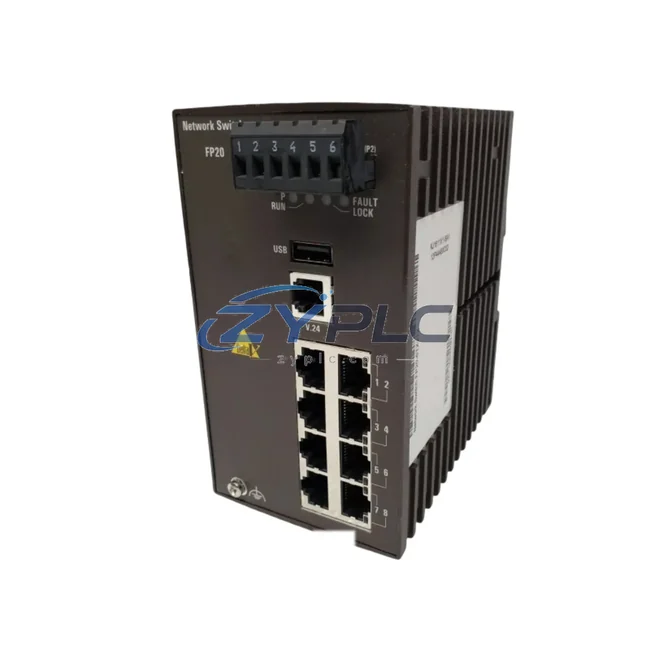

In modern process automation environments, reliable and deterministic network communication is not optional — it is the foundation upon which every control decision, alarm response, and remote diagnostic action depends. The Emerson FP20-6TX2TX (also referenced as KJ1611X1-BA1 / 12P4448X032) is an industrial-grade Ethernet network switch module purpose-built for the Emerson DeltaV Distributed Control System (DCS). Featuring six 10/100BASE-TX copper ports and two additional TX uplink ports, this module delivers the switching capacity, redundancy support, and deterministic latency that mission-critical process plants demand.

From oil and gas refineries and chemical processing plants to pharmaceutical batch systems and power generation facilities, the FP20-6TX2TX serves as the communications hub that connects field devices, controllers, and supervisory systems into a unified, transparent data network. Whether you are commissioning a new DeltaV system or expanding an existing control network, this switch module provides the port density, industrial hardening, and DeltaV ecosystem compatibility required for long-term operational stability.

Compatibility & Integration Notes

Connected Automation Data Flow

The FP20-6TX2TX sits at the heart of the DeltaV control network, managing Ethernet traffic across every node in the automation hierarchy — from signal acquisition at the field edge to real-time visualization at the supervisory layer. Understanding this data flow reveals why a reliable, low-latency network interface is the single most critical infrastructure component in any smart factory deployment.

At the field level, Emerson DeltaV CHARM I/O modules continuously collect analog and digital signals from pressure transmitters, flow meters, thermocouples, and valve positioners installed throughout the process unit. These raw signals are conditioned and forwarded to DeltaV MD Plus Controllers and DeltaV M5Plus Controllers via the control network. The FP20-6TX2TX acts as the switching fabric that routes this I/O data with microsecond-level forwarding latency, ensuring that controller scan cycles receive fresh process variable values on every execution cycle — a prerequisite for stable PID loop performance and sequence logic execution.

As data moves up the automation pyramid, DeltaV Operate HMI workstations and DeltaV Live operator interfaces receive continuous process variable updates through the FP20-6TX2TX’s switched ports. Operators can monitor loop performance, acknowledge alarms, and execute setpoint changes in real time, with the confidence that the network interface is not introducing latency or packet loss that could delay critical alarm notifications. The auto-negotiating 10/100BASE-TX ports ensure that both legacy 10 Mbps DeltaV nodes and modern 100 Mbps workstations coexist on the same network segment without collision domains or bandwidth contention.

For plants running Emerson AMS Device Manager for intelligent field device diagnostics, the FP20-6TX2TX provides the Ethernet gateway pathway through which HART-over-IP and Foundation Fieldbus HSE diagnostic data travels from field instruments to the asset management server. This enables predictive maintenance workflows — identifying valve stiction, sensor drift, or transmitter failures before they escalate into unplanned shutdowns. The communication link established by the FP20-6TX2TX between AMS and field devices is what transforms raw HART diagnostic data into actionable maintenance intelligence.

In redundant network configurations, the FP20-6TX2TX works alongside a paired switch module to form a fault-tolerant dual-star or ring topology. Should a primary network path experience a fault — whether from a cable break, port failure, or upstream switch outage — the DeltaV system automatically reroutes traffic through the secondary path, maintaining controller-to-I/O communication without operator intervention. This redundancy architecture is particularly critical in safety-instrumented environments where the DeltaV SIS Logic Solver must maintain uninterrupted communication with safety I/O modules to preserve SIL-rated protection functions.

At the SCADA and enterprise integration layer, the Emerson DeltaV OPC Server bridges the DeltaV control network to third-party SCADA platforms, MES systems, and historian databases such as OSIsoft PI. The FP20-6TX2TX carries this OPC-DA and OPC-UA data traffic across the plant network, ensuring that production KPIs, batch records, energy consumption data, and quality metrics reach enterprise systems in real time. Remote engineering access via DeltaV Remote Client also traverses this switch, allowing process engineers to tune PID loops, download controller configurations, and review alarm histories from off-site locations — a capability that has become essential for multi-site operations and remote support contracts.

Solving Data Isolation in Industrial Sites

Many process plants still operate with fragmented network architectures — islands of automation where DCS controllers, safety systems, drive networks, and historian servers cannot exchange data efficiently. Protocol incompatibility, aging hub-based infrastructure, and ad hoc network expansions create data silos that undermine production transparency, delay fault response, and prevent the implementation of smart factory analytics. The FP20-6TX2TX directly addresses these data isolation challenges within the DeltaV ecosystem.

Protocol Fragmentation and Mixed-Speed Networks: Older DeltaV installations may include a mix of 10 Mbps legacy nodes and 100 Mbps modern workstations. The FP20-6TX2TX’s auto-negotiation capability eliminates the need for separate network segments, allowing all devices to communicate on a single switched Ethernet fabric without speed mismatches or duplex conflicts. This protocol-transparent switching ensures that legacy field devices and next-generation edge gateways coexist without requiring costly infrastructure replacement.

Network Bottlenecks and Deterministic Latency: In high-density I/O environments where hundreds of CHARM modules and remote I/O nodes simultaneously report process data, unmanaged hubs create collision domains that degrade network performance and introduce variable latency. The FP20-6TX2TX’s full-duplex switched architecture eliminates collisions, reduces forwarding latency to microsecond levels, and ensures that time-critical control messages from DeltaV controllers reach I/O modules within deterministic timeframes — a non-negotiable requirement for fast-loop control and safety system communication.

Remote Monitoring and Diagnostics: Without a reliable Ethernet backbone, remote access to DeltaV controllers and field devices is unreliable or impossible. The FP20-6TX2TX provides the stable network foundation that enables DeltaV Remote Client sessions, AMS Device Manager remote diagnostics, and SCADA historian data collection to operate concurrently without network congestion. This remote connectivity capability reduces the need for on-site engineering visits, lowers maintenance costs, and accelerates fault resolution across geographically distributed plant assets.

Production Line Transparency and Smart Factory Analytics: Modern smart factory initiatives require real-time visibility into every process unit — from raw material intake to finished product packaging. By ensuring reliable Ethernet connectivity between DeltaV controllers, HMI workstations, OPC servers, and historian databases, the FP20-6TX2TX enables the continuous data flow that powers production dashboards, OEE reporting, digital twin applications, and AI-driven process optimization. Data that was previously trapped in isolated control loops becomes accessible to plant-wide analytics platforms.

System Expansion Without Infrastructure Redesign: As production capacity grows, new DeltaV controller nodes, remote I/O cabinets, HMI stations, and edge computing gateways must be integrated into the existing control network. The FP20-6TX2TX’s eight-port architecture — six standard TX ports plus two uplink ports — provides the connection density needed to accommodate network expansion without requiring a complete infrastructure redesign. New nodes can be added to available ports, and uplink ports can connect to upstream distribution switches as the network scales.

Industrial Connectivity FAQ

Q1: What communication latency can I expect from the FP20-6TX2TX in a DeltaV control network?
The FP20-6TX2TX operates as a store-and-forward Ethernet switch with full-duplex 10/100BASE-TX ports. In typical DeltaV control network configurations, frame forwarding latency is measured in microseconds, well within the deterministic communication requirements of DeltaV controller scan cycles. For time-critical safety applications, Emerson recommends dedicated network segments for DeltaV SIS traffic, which the FP20-6TX2TX supports through its uplink port architecture. Network stability is further enhanced by the elimination of collision domains inherent in switched vs. hub-based topologies.

Q2: Is the FP20-6TX2TX compatible with both legacy and current DeltaV system versions, and does it support protocol conversion?
Yes. The FP20-6TX2TX is designed for the Emerson DeltaV DCS platform and is compatible with DeltaV S-Series and M-Series controllers across multiple DeltaV software versions. Its standard IEEE 802.3 Ethernet compliance ensures interoperability with all DeltaV network components, including CHARM I/O carriers, DeltaV Operate workstations, and AMS Device Manager servers. As a gateway-capable network interface, it also supports OPC-DA and OPC-UA data bridging to third-party SCADA and MES systems. For specific version compatibility, consult the Emerson DeltaV hardware compatibility matrix.

Q3: How does the FP20-6TX2TX support network redundancy and system expansion in a growing DeltaV installation?
The FP20-6TX2TX is designed to operate in redundant DeltaV network configurations. By deploying paired switch modules in a dual-star or ring topology, the DeltaV system can automatically failover to the secondary network path if the primary path experiences a fault, maintaining controller-to-I/O communication and HMI data updates without operator intervention. For system expansion, the eight-port design (six TX + two uplink) allows new DeltaV nodes, remote I/O cabinets, and edge gateways to be added to available ports, with uplink ports providing connectivity to upstream distribution switches as the network scales.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the FP20-6TX2TX?
Every FP20-6TX2TX unit supplied by ZYPLC undergoes comprehensive functional testing prior to shipment to verify port connectivity, switching performance, auto-negotiation behavior, and hardware integrity. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a hardware fault within the warranty period, ZYPLC provides replacement or repair support with minimal lead time. Our global inventory ensures fast order fulfillment for both single-unit and volume requirements, and our technical team is available to assist with installation, configuration, network topology design, and compatibility verification.
