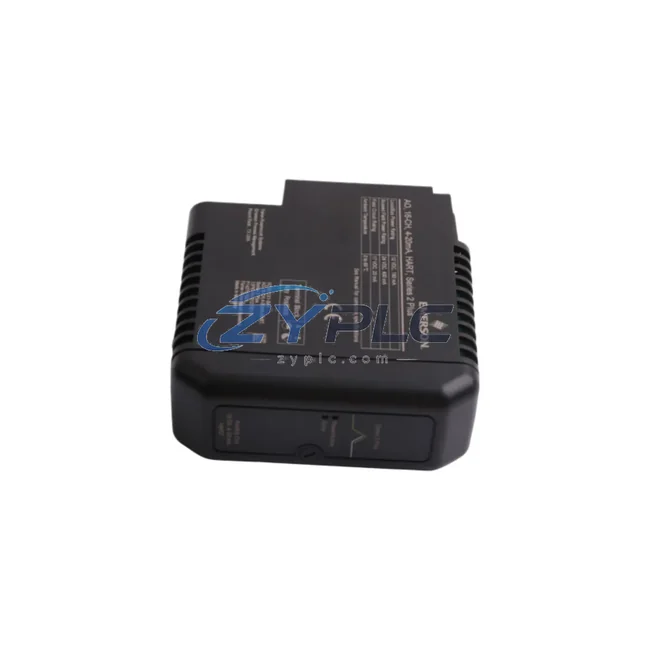

The Emerson KC3011X1-BA1 (also referenced as 12P6749X012 / VE4035S2B5) is a high-integrity terminal block engineered for the DeltaV distributed control system. Designed to serve as a reliable signal interface between field instrumentation and DeltaV I/O subsystems, this component plays a critical role in reducing wiring losses, minimizing signal degradation, and supporting the kind of lean, industrial automation system that modern process plants demand. Whether deployed in chemical processing, oil and gas, power generation, or pharmaceutical manufacturing, the KC3011X1-BA1 contributes directly to measurable improvements in equipment utilization and energy efficiency across the production line.
Product Specification Table
| Parameter |
Specification |
| SKU |
KC3011X1-BA1 / 12P6749X012 / VE4035S2B5 |
| Brand |
Emerson |
| Series |
DeltaV Distributed Control System |
| Product Type |
Terminal Block |
| Application Environment |
Process Automation, Industrial Control Panels, DCS Field Wiring |
| Compatible Systems |
Emerson DeltaV S-Series, M-Series I/O, DeltaV SIS |
| Signal Interface |
Analog / Digital Field Termination |
| Maintenance Value |
Reduces signal loop resistance losses; supports low-power I/O modules |
| Origin |
USA |
| Warranty |
warranty terms confirmed during quotation |
| Stock Status |
RFQ Available — Ships within 1–3 business days |
| Outgoing Test |
Full functional test prior to shipment |
System Compatibility and Application
In a well-optimized DeltaV control environment, every component in the signal chain contributes to overall system energy performance. The KC3011X1-BA1 terminal block serves as the field-side termination point for DeltaV I/O cards, ensuring that analog and digital signals from transmitters, sensors, and actuators are cleanly routed into the control system with minimal resistance and zero signal loss from poor termination.
When paired with Emerson DeltaV M-Series I/O modules such as the VE4001S2T1B2 analog input card, the KC3011X1-BA1 enables precise 4–20 mA loop monitoring that feeds real-time process data into the DeltaV controller. This data is essential for maintenance-focused PID control loops that regulate pump speeds, valve positions, and compressor loads — all of which directly impact operating load on the plant floor.
For drive-level maintenance planning, the KC3011X1-BA1 integrates seamlessly into control architectures that include Emerson Control Techniques variable frequency drives (VFDs), where accurate I/O termination ensures that speed reference signals and feedback signals are transmitted without distortion. Paired with a DeltaV SIS logic solver and CHARM I/O modules (such as the VE6006S2T1B1), the terminal block supports safety-rated control loops that protect high-energy equipment from inefficient or unsafe operating conditions.
The KC3011X1-BA1 also works in conjunction with Emerson Rosemount 3051 pressure transmitters and Rosemount 644 temperature transmitters, which feed process variables into DeltaV for continuous condition monitoring. When these transmitters are correctly terminated via the KC3011X1-BA1, the DeltaV system can execute advanced process control (APC) strategies that reduce steam consumption, optimize heat exchanger performance, and lower compressed air usage — all without additional hardware investment.
For facilities using Emerson AMS Device Manager alongside DeltaV, the KC3011X1-BA1 supports HART pass-through communication, enabling remote diagnostics of field devices without interrupting the process. This capability reduces the need for manual field inspections, cutting maintenance labor costs and the energy overhead associated with unplanned shutdowns.
In multi-loop control panels, the KC3011X1-BA1 is often deployed alongside DeltaV I/O carrier assemblies and Emerson DeltaV power supplies (PS2), forming a compact, energy-efficient termination infrastructure that minimizes panel footprint and heat dissipation — both of which contribute to lower HVAC loads in control rooms.
Maintenance and Replacement Notes
On a typical continuous process line — such as a refinery distillation unit or a pharmaceutical batch reactor — the KC3011X1-BA1 terminal block is installed at the marshalling cabinet level, where hundreds of field signals converge before entering the DeltaV I/O subsystem. A poorly terminated signal at this junction can cause control loop instability, forcing the DeltaV controller to increase scan rates or trigger unnecessary actuator movements — both of which waste energy and accelerate equipment wear.
By providing a secure, low-resistance termination point, the KC3011X1-BA1 ensures that the DeltaV system receives clean, stable signals from field instruments. This stability allows PID controllers to operate with tighter tuning parameters, reducing overshoot and undershoot in temperature, pressure, and flow control loops. Tighter control directly translates to lower operating load: less steam vented, fewer pump starts, and reduced compressor cycling.
In production lines where Emerson DeltaV Batch is used to manage recipe-driven processes, the KC3011X1-BA1 supports the precise sequencing of energy-intensive steps — heating, mixing, and transfer — by ensuring that all I/O signals are reliably terminated and available to the batch executive. Missed or noisy signals at the terminal block level can cause batch holds or aborts, resulting in wasted energy from reheating or re-processing.
For predictive maintenance programs, the KC3011X1-BA1’s compatibility with HART-enabled field devices means that condition monitoring data — vibration signatures from Emerson AMS Machinery Manager, valve diagnostics from Fisher FIELDVUE DVC6200 positioners, and pump efficiency curves — can be continuously streamed through the DeltaV system without additional wiring. This data-driven approach to maintenance scheduling reduces unplanned downtime, which is one of the largest sources of unplanned downtime in process manufacturing.
Every KC3011X1-BA1 unit shipped by ZYPLC undergoes a full functional test to verify terminal integrity, insulation resistance, and signal continuity before dispatch. Combined with a warranty terms confirmed during quotation, this ensures that your control system investment is protected and that your maintenance planning programs are not disrupted by component failures.
Product Sourcing FAQ
Q1: How does the KC3011X1-BA1 contribute to operational stability in a DeltaV system?
The KC3011X1-BA1 provides a low-resistance, high-integrity termination point for field signals entering the DeltaV I/O subsystem. Clean signal termination enables tighter PID control loop tuning, which reduces unnecessary actuator movements, minimizes process variability, and lowers overall operating load in heating, pumping, and compression applications.
Q2: Is the KC3011X1-BA1 compatible with both DeltaV S-Series and M-Series I/O?
Yes. The KC3011X1-BA1 is designed for use within the Emerson DeltaV ecosystem and is compatible with DeltaV M-Series and S-Series I/O architectures. It supports standard analog and digital field termination requirements across both platforms. For CHARM-based I/O, consult the DeltaV CHARM I/O carrier documentation for termination compatibility.
Q3: Can this terminal block be used as a direct replacement for an existing DeltaV termination assembly?
The KC3011X1-BA1 (12P6749X012 / VE4035S2B5) is a genuine Emerson DeltaV component. Before installation, verify the I/O card type, channel count, and signal type (AI, AO, DI, DO) to confirm compatibility with your existing marshalling configuration. ZYPLC’s technical team can assist with cross-referencing your current BOM.
Q4: What is the warranty and testing process for this product?
All KC3011X1-BA1 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes a full outgoing functional test — including terminal continuity, insulation resistance verification, and visual inspection — before dispatch. This ensures that every component arrives ready for installation and meets Emerson’s original performance specifications.
