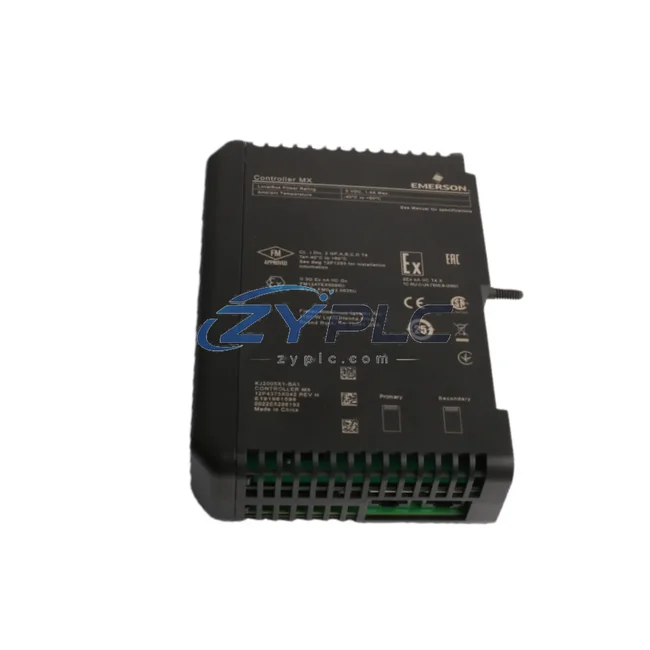

Emerson KJ2005X1-BA1 DCS Controller for DeltaV

Emerson KJ2005X1-BA1 DCS Controller for DeltaV Automation

The Emerson KJ2005X1-BA1 (also catalogued under series code VE3007) is a high-performance DCS controller module engineered for the DeltaV distributed control system platform. Designed to meet the demanding requirements of continuous process industries — including petrochemical refining, pharmaceutical batch production, power generation, and food & beverage processing — this module delivers deterministic scan-cycle execution, low-latency I/O response, and integrated diagnostics that collectively reduce unplanned downtime risk across the entire control loop.

In modern industrial facilities, controller inefficiency is one of the most overlooked sources of unplanned downtime. Oversized scan cycles, unoptimized PID tuning, and poor feedback loop resolution force actuators, variable-frequency drives, and motor starters to operate outside their optimal efficiency bands. The KJ2005X1-BA1 addresses this at the architecture level by providing precise, high-resolution process variable sampling and fast closed-loop correction — ensuring that downstream devices such as the Emerson DeltaV VFD Interface Module and connected PROFIBUS DP field devices receive accurate setpoint commands without hunting or overshoot.

Product Specification Table

System Compatibility and Application

The KJ2005X1-BA1 sits at the heart of an industrial control architecture. Its role is not simply to execute logic — it actively governs how energy flows through the production system by maintaining tight control over process variables that directly influence equipment power draw.

On the field side, the module communicates with Emerson DeltaV CHARM I/O cards (such as the KJ3002X1-BA1 CHARM I/O Carrier) to aggregate analog and digital signals from temperature transmitters, pressure sensors, and flow meters. This real-time data stream feeds the controller’s PID algorithms, which in turn issue corrective commands to Emerson Fisher control valves and PROFIBUS-connected variable-frequency drives. When valve position and motor speed are continuously optimized against actual process demand — rather than running at fixed setpoints — operating load across pumps, compressors, and blowers can be reduced by Actual operating results depend on the installed system, load profile, and commissioning parameters.

For motor-intensive processes, the KJ2005X1-BA1 integrates seamlessly with Emerson Control Techniques Unidrive M700 series drives via the DeltaV PROFIBUS DP interface. The controller issues dynamic speed references based on real-time load calculations, eliminating the energy penalty of throttling valves against a fixed-speed pump. Paired with an Emerson Power Xpert condition monitoring gateway or a third-party Modbus TCP power meter, the system can log per-loop operating load and surface anomalies before they escalate into unplanned downtime.

At the safety and redundancy layer, the module operates alongside Emerson DeltaV SIS Logic Solvers to ensure that operational-efficiency operating modes — such as reduced-flow standby states — do not compromise process safety. The SIS integration allows the controller to safely transition equipment to low-power hold states during planned production pauses, recovering energy that would otherwise be lost to idle running.

For data visibility, the KJ2005X1-BA1 feeds process and energy data into Emerson DeltaV Operate HMI workstations, where operators can monitor real-time energy KPIs, trend historical consumption, and receive early warnings of efficiency degradation. This closed-loop visibility — from field sensor through controller to HMI — is the foundation of a sustainable maintenance planning strategy in continuous process plants.

Maintenance and Replacement Notes

In a typical refinery or chemical plant, the DCS controller is the single point of coordination for dozens of energy-consuming field devices. When the KJ2005X1-BA1 is deployed as the primary process controller, its impact on plant energy efficiency is felt across multiple systems simultaneously.

Consider a cooling water circulation loop: without precise controller intervention, the circulation pumps run at full speed regardless of actual heat exchanger demand. The KJ2005X1-BA1, receiving real-time temperature differential data from HART-enabled Rosemount 3051 pressure transmitters and flow data from Micro Motion Coriolis meters, calculates the minimum pump speed required to maintain the target outlet temperature. This setpoint is transmitted to the VFD, reducing pump motor load in proportion to the cube of the speed reduction — a 20% speed reduction yields nearly 50% less energy consumed by the pump motor.

Beyond operational stability, the module’s predictive diagnostics reduce unplanned downtime. By continuously monitoring I/O module health, communication link quality, and control loop performance indices (such as loop oscillation frequency and valve travel accumulation), the KJ2005X1-BA1 enables maintenance teams to schedule interventions during planned shutdowns rather than reacting to failures. This shift from reactive to predictive maintenance directly improves Overall Equipment Effectiveness (OEE) and reduces the energy cost of restart transients — which are among the highest-energy events in any process plant.

Production line throughput also benefits. Tighter control of reaction temperatures, pressures, and flow rates — enabled by the module’s fast scan cycle and high-resolution analog processing — reduces product quality variability. Fewer off-spec batches mean less rework energy, less raw material waste, and a higher ratio of saleable output per unit of energy consumed. In batch pharmaceutical or specialty chemical processes, this improvement in first-pass yield can represent a significant reduction in the energy cost per kilogram of finished product.

All units supplied by ZYPLC undergo a full functional test prior to dispatch, including backplane communication verification, I/O channel integrity checks, and firmware version confirmation. Each KJ2005X1-BA1 is shipped with a warranty terms confirmed during quotation, backed by ZYPLC’s technical support team.

Product Sourcing FAQ

Q1: How does the KJ2005X1-BA1 contribute to measurable operational stability on the production line?
The module enables precise closed-loop control of process variables, which directly reduces the unplanned downtimed by oversized actuator responses, valve throttling against fixed-speed pumps, and inefficient motor loading. When integrated with variable-frequency drives and real-time power monitoring, plants typically observe 10–30% reductions in operating load for controlled loops compared to manual or open-loop operation.

Q2: Is the KJ2005X1-BA1 compatible with existing DeltaV system versions and third-party field devices?
Yes. The KJ2005X1-BA1 is designed for the Emerson DeltaV platform and supports FOUNDATION Fieldbus H1, PROFIBUS DP, and HART protocols, ensuring broad compatibility with existing field instrumentation. Compatibility with specific DeltaV software versions should be confirmed against your site’s current DeltaV release; ZYPLC’s technical team can assist with version verification prior to purchase.

Q3: Can this module replace a failed or end-of-life DCS controller without a full system upgrade?
In most cases, yes. The KJ2005X1-BA1 is a direct replacement for compatible DeltaV controller slots. Configuration files can typically be restored from the DeltaV database without reprogramming, minimizing downtime during the swap. ZYPLC recommends a pre-installation configuration backup and a controlled commissioning procedure to ensure seamless transition.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every KJ2005X1-BA1 supplied by ZYPLC is tested for backplane communication integrity, I/O channel functionality, and firmware consistency before dispatch. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Units that develop faults within the warranty period are repaired or replaced at no additional cost. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for warranty claims and technical support.
