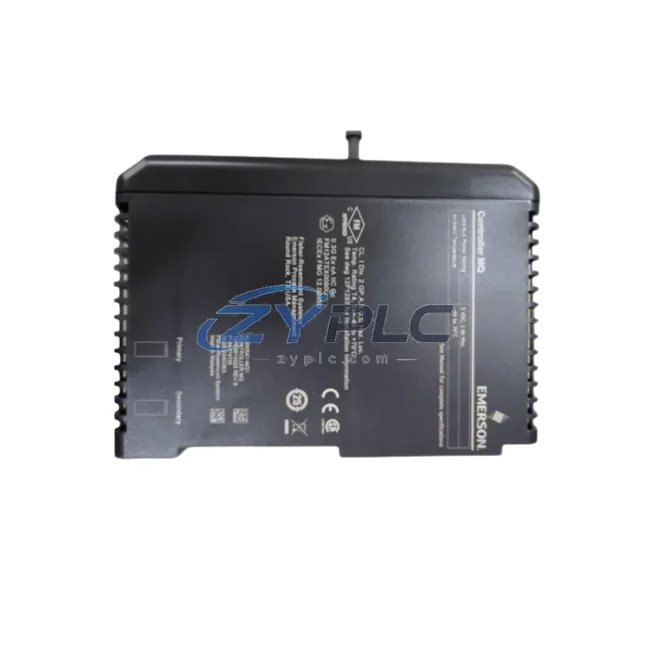

Emerson KJ2005X1-MQ1 DCS Controller Module for DeltaV Systems

Emerson KJ2005X1-MQ1 12P6381X022 VE3008: Industrial Data Link for DeltaV Smart Factory Networks

The Emerson KJ2005X1-MQ1 (part numbers 12P6381X022 / VE3008) is a high-performance MQ Controller module engineered for the Emerson DeltaV Distributed Control System platform. Designed to serve as the central intelligence node within a DeltaV control network, this module manages real-time data acquisition, protocol translation, and deterministic communication across field devices, I/O subsystems, and supervisory systems in process-critical industrial environments.

In modern smart factory and process plant architectures, the KJ2005X1-MQ1 acts as the backbone of the automation data chain — bridging field-level signals from sensors, transmitters, and actuators through to SCADA platforms, historian servers, and enterprise MES layers. Its role in ensuring uninterrupted, low-latency data flow makes it indispensable in industries including oil & gas, chemical processing, power generation, pharmaceuticals, and pulp & paper.

Compatibility & Integration Notes

Connected Automation Data Flow

The KJ2005X1-MQ1 sits at the heart of a layered industrial communication architecture. At the field level, it interfaces directly with Emerson Rosemount 3051 pressure transmitters and Fisher FIELDVUE DVC6200 digital valve controllers via the HART protocol, enabling two-way digital communication over existing 4–20 mA wiring. This eliminates the need for costly rewiring while unlocking device diagnostics, loop calibration data, and predictive maintenance signals — all flowing in real time to the DeltaV controller.

Moving up the data chain, the KJ2005X1-MQ1 communicates with Emerson DeltaV KJ1501X1-BA2 I/O cards and KJ3001X1-BA1 remote I/O modules across the DeltaV I/O bus, aggregating analog and discrete signals from hundreds of field points into a unified process data model. For Foundation Fieldbus segments, the module coordinates with Emerson DeltaV FF-H1 interface cards to manage segment scheduling, link active scheduler (LAS) functions, and ensure deterministic data delivery from FF-capable field instruments.

At the supervisory layer, the KJ2005X1-MQ1 feeds real-time process values, alarm states, and control outputs to Emerson DeltaV Operate HMI workstations via the DeltaV application station network. Operators gain live visibility into loop performance, setpoint deviations, and equipment health — with alarm management fully integrated into the DeltaV alarm philosophy. Simultaneously, the controller module exports time-stamped process data to OSIsoft PI System or Emerson DeltaV Continuous Historian servers via OPC DA/UA, building the long-term process database essential for performance benchmarking and regulatory compliance.

For plants running hybrid architectures, the KJ2005X1-MQ1 can be paired with Emerson Smart Wireless THUM adapters and WirelessHART gateway modules to extend connectivity to wireless field devices — sensors in hard-to-reach locations, rotating equipment monitors, and temporary measurement points — without additional cabling infrastructure. This wireless data is seamlessly merged into the DeltaV data fabric alongside wired I/O, giving engineers a single unified view of the entire process.

In safety-instrumented system (SIS) environments, the KJ2005X1-MQ1 operates alongside Emerson DeltaV SIS Logic Solvers and KJ3221X1-BA1 SIS I/O modules, sharing process data across the DeltaV safety network while maintaining strict IEC 61511 separation between the basic process control system (BPCS) and the safety layer. This integrated yet segregated architecture reduces engineering complexity while preserving functional safety integrity.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid process plants is data isolation — where field devices, control systems, and enterprise platforms operate in disconnected silos, making real-time visibility and coordinated control impossible. The Emerson KJ2005X1-MQ1 directly addresses this challenge through its multi-protocol communication architecture and native DeltaV integration.

Protocol Fragmentation: Many industrial sites run a mix of HART, Foundation Fieldbus, Modbus, and proprietary device protocols across different generations of equipment. The KJ2005X1-MQ1, as part of the DeltaV ecosystem, provides a unified protocol gateway that normalizes these diverse signals into a single process data model — eliminating the need for standalone protocol converters and reducing network complexity.

Data Islands and Production Transparency: Without a capable controller module, field data often remains trapped at the device level, invisible to operators and engineers at the supervisory layer. The KJ2005X1-MQ1 ensures that every measured variable, device status, and alarm condition is propagated upward through the DeltaV network in real time, enabling full production line transparency and data-driven decision-making.

Remote Monitoring and Diagnostics: In geographically distributed plants or unmanned remote stations, the KJ2005X1-MQ1 supports remote diagnostics through DeltaV’s built-in device health monitoring and AMS Device Manager integration. Maintenance teams can interrogate field device health, perform loop checks, and acknowledge alarms from a central control room — reducing the need for costly site visits and minimizing unplanned downtime.

System Scalability: As production capacity grows, the DeltaV architecture supported by the KJ2005X1-MQ1 scales horizontally by adding controller nodes, I/O cards, and network segments without disrupting existing control logic. This modular expansion model protects capital investment and allows phased automation upgrades aligned with production schedules.

Pre-Shipment Testing and Inventory Assurance: Every KJ2005X1-MQ1 unit is subject to rigorous pre-shipment functional testing, verifying communication bus integrity, I/O channel performance, and firmware compatibility before dispatch. availability subject to RFQ confirmation is maintained for rapid fulfillment, with global shipping via DHL and FedEx to minimize lead times for urgent maintenance and project requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Emerson KJ2005X1-MQ1 support, and is it compatible with non-DeltaV systems?
The KJ2005X1-MQ1 natively supports HART, Foundation Fieldbus H1, OPC DA/UA, and the DeltaV proprietary controller bus. While it is optimized for the DeltaV DCS platform, OPC UA connectivity allows data exchange with third-party SCADA systems, MES platforms, and historian servers from vendors such as Wonderware, Ignition, and OSIsoft PI — enabling integration into mixed-vendor automation architectures.

Q2: What is the typical communication latency, and how does the module handle network stability in high-demand process environments?
The KJ2005X1-MQ1 is designed for deterministic, real-time control with scan cycle times configurable from 100 ms to 1 second depending on I/O load and control strategy complexity. The DeltaV controller bus employs redundancy protocols to maintain network stability during single-point failures, with automatic failover to redundant controller pairs ensuring continuous process control without operator intervention.

Q3: Can the KJ2005X1-MQ1 be used in a redundant controller configuration, and how does it support system expansion?
Yes. The KJ2005X1-MQ1 supports DeltaV controller redundancy when paired with a matching redundancy module, providing bumpless transfer between primary and secondary controllers in the event of a hardware fault. System expansion is achieved by adding DeltaV I/O cards, remote I/O nodes, and additional controller modules to the existing network — all configurable through DeltaV Explorer without requiring changes to existing control strategies.

Q4: What does the warranty terms confirmed during quotation cover, and what pre-shipment testing is performed?
All KJ2005X1-MQ1 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering hardware defects, communication bus failures, and firmware-related malfunctions under normal operating conditions. Prior to shipment, each unit undergoes functional verification including controller bus communication testing, I/O channel integrity checks, and firmware version confirmation. Units are shipped in anti-static protective packaging with full traceability documentation.
