Emerson KJ3001X1-BA1 Analog Input Module DeltaV

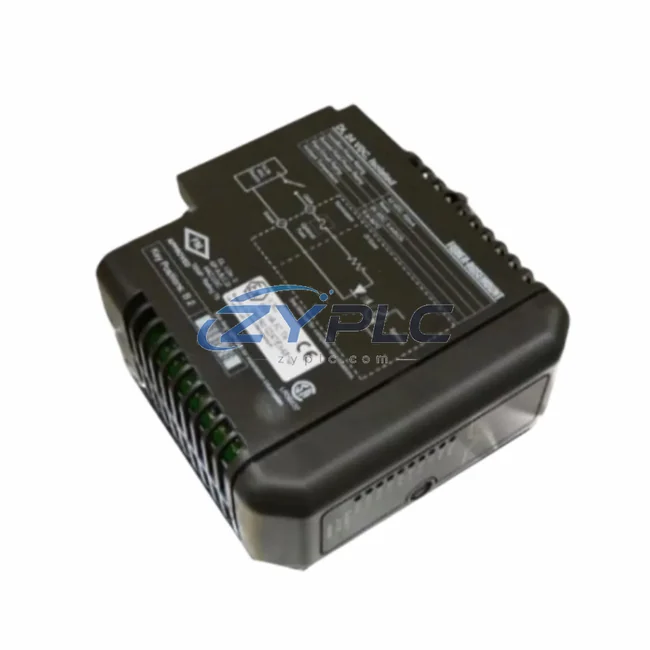

Emerson KJ3001X1-BA1 Analog Input Module for DeltaV Automation

The Emerson KJ3001X1-BA1 (12P0549X112) is a high-performance analog input module engineered for the DeltaV M-Series distributed control system. Designed to meet the rigorous demands of modern industrial automation, this module plays a pivotal role in process control — enabling facilities to capture real-time field data with precision, reduce unplanned downtime risk, and optimize the operational rhythm of production lines. Every unit shipped from ZYPLC undergoes full functional testing and is backed by a warranty terms confirmed during quotation, ensuring confidence in both performance and supply continuity.

In today’s industrial landscape, energy efficiency is no longer a secondary consideration — it is a core engineering objective. The KJ3001X1-BA1 addresses this directly by providing accurate, low-latency analog signal acquisition that feeds the DeltaV controller with the data it needs to make precise, energy-conscious control decisions. Whether managing flow rates, temperature gradients, pressure differentials, or motor load feedback, this module ensures that the control loop operates on clean, reliable data — eliminating the unplanned downtime caused by control drift, sensor noise, or delayed feedback.

Product Specification Table

System Compatibility and Application

The KJ3001X1-BA1 does not operate in isolation — it is a critical node within a broader industrial automation system. In a typical DeltaV-based control system, this analog input module works in concert with the DeltaV M-Series Controller (MD Plus), which processes the incoming analog signals and executes control strategies that govern downstream actuators and drives. The controller’s ability to make fast, accurate decisions depends entirely on the quality of the input data — and the KJ3001X1-BA1 delivers exactly that.

On the output side, the control signals generated by the DeltaV MD Plus are routed through DeltaV M-Series Analog Output modules (KJ3002X1-BA1) to modulate control valves, dampers, and variable-speed drives. When paired with Emerson AMS Device Manager, the system gains predictive diagnostics capability — identifying valve stiction, actuator wear, or sensor degradation before they cause energy-wasting control anomalies.

For motor-driven loads — pumps, fans, compressors — the analog input data from the KJ3001X1-BA1 feeds directly into the speed reference logic of variable frequency drives (VFDs) such as the Emerson Control Techniques Unidrive M700 or third-party drives integrated via HART or FOUNDATION Fieldbus. By providing accurate process feedback (flow, pressure, level), the module enables the VFD to run motors at precisely the speed required — eliminating the energy penalty of fixed-speed operation and reducing mechanical wear.

The module also integrates seamlessly with DeltaV CHARM I/O (CIOC) architectures in hybrid configurations, and communicates over the DeltaV internal bus with full diagnostics transparency. For facilities implementing energy sub-metering, the KJ3001X1-BA1 can be configured to monitor power transducer outputs alongside process variables — feeding data into Emerson Operational Certainty dashboards for energy KPI tracking. In HART-enabled configurations, it supports communication with smart field instruments such as the Emerson Rosemount 3051 pressure transmitter and Rosemount 644 temperature transmitter, enabling device-level diagnostics without additional wiring infrastructure.

For facilities running Emerson DeltaV Batch or DeltaV Continuous Historian, the analog input data captured by the KJ3001X1-BA1 is archived at configurable scan rates, enabling post-process energy analysis, batch-to-batch efficiency comparison, and regulatory compliance reporting — all without additional data acquisition hardware.

Maintenance and Replacement Notes

In real production environments, unplanned downtime rarely comes from a single source — it accumulates through thousands of small inefficiencies: a control valve hunting due to noisy input signals, a pump running at full speed when 70% would suffice, a heater cycling on and off because the temperature feedback is delayed by 500 milliseconds. The KJ3001X1-BA1 addresses these inefficiencies at the source — the analog input layer.

Consider a chemical processing plant where eight process streams feed into a central reactor. Each stream has its own flow transmitter, and the DeltaV controller must balance feed ratios to maintain optimal reaction conditions. If any one of those analog inputs drifts or introduces noise, the controller compensates by over-actuating control valves — wasting both energy and raw materials. The KJ3001X1-BA1’s 16-bit resolution and channel isolation ensure that each signal is captured cleanly, allowing the controller to make precise, minimal-energy corrections rather than aggressive, energy-intensive adjustments.

In HVAC and utilities management within large manufacturing facilities, the module monitors chilled water supply/return temperatures, compressed air pressure, and steam flow — feeding this data to the DeltaV controller, which in turn adjusts VFD-driven pump and fan speeds in real time. Facilities that have implemented this closed-loop approach report energy reductions of Actual operating results depend on the installed system, load profile, and commissioning parameters.

From a maintenance perspective, the KJ3001X1-BA1 supports predictive maintenance workflows by providing continuous, high-resolution process data that can be trended and analyzed for early signs of equipment degradation. A gradual shift in a pump’s discharge pressure curve, for example, can indicate impeller wear — and catching this early allows maintenance to be scheduled during planned downtime rather than responding to an unplanned failure that disrupts production and wastes energy through emergency restarts and process re-stabilization.

ZYPLC maintains ready inventory of the KJ3001X1-BA1 and related DeltaV M-Series I/O modules, with all units tested prior to shipment and covered by a warranty terms confirmed during quotation. Fast dispatch — typically within 1–3 business days — minimizes production downtime for facilities requiring urgent replacement or system expansion.

Product Sourcing FAQ

Q1: How does the KJ3001X1-BA1 contribute to operational stability in a DeltaV control system?
The module provides high-resolution, low-noise analog input data that enables the DeltaV controller to execute precise, minimal-energy control actions. By eliminating signal noise and drift, it reduces unnecessary actuator movement, valve cycling, and motor over-speed — directly cutting operating load in process and utility systems.

Q2: Is the KJ3001X1-BA1 compatible with both HART and conventional 4–20 mA field instruments?
Yes. The KJ3001X1-BA1 supports both conventional 4–20 mA analog signals and HART communication protocol, allowing it to interface with a wide range of smart field instruments including Rosemount pressure and temperature transmitters, Micro Motion flow meters, and Fisher valve positioners — without requiring additional signal conditioning hardware.

Q3: Can this module replace a faulty DeltaV analog input card without a full system reconfiguration?
In most cases, yes. The KJ3001X1-BA1 is a direct replacement for compatible DeltaV M-Series analog input slots. Channel configuration is stored in the DeltaV database and is automatically downloaded to the replacement module upon insertion, minimizing reconfiguration time and production downtime. ZYPLC recommends verifying firmware compatibility with your DeltaV system version prior to installation.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover, and what is the testing process?
Every KJ3001X1-BA1 unit supplied by ZYPLC undergoes pre-shipment functional testing that verifies channel accuracy, HART communication integrity, backplane communication, and power draw within specification. The warranty terms confirmed during quotation covers functional failure under normal operating conditions. Units are shipped with test documentation upon request. For warranty claims or technical support, contact ZYPLC directly.
