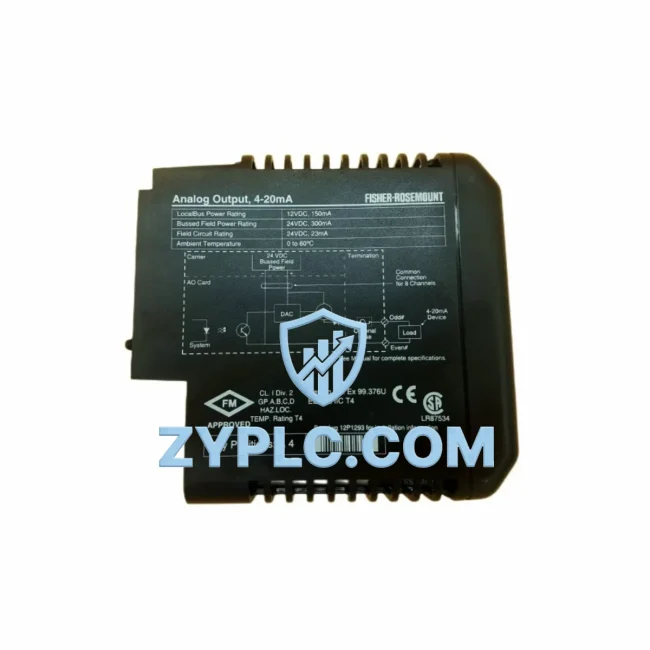

Emerson KJ3002X1-BB1 12P0683X092 HART Analog Output Module: Industrial Data Link for DeltaV Smart Factory Networks
The Emerson KJ3002X1-BB1 12P0683X092 is a HART-enabled Analog Output Module engineered for the DeltaV distributed control system platform. Designed to serve as a critical node in the industrial data chain, this module bridges the gap between the DeltaV controller backplane and field-level instrumentation — enabling precise 4–20 mA analog signal transmission with superimposed HART digital communication. In smart factory environments where data integrity, real-time responsiveness, and protocol interoperability are non-negotiable, the KJ3002X1-BB1 12P0683X092 delivers the connectivity backbone that modern process automation demands.
From signal acquisition at the sensor level through protocol conversion, network transmission, SCADA visualization, and remote diagnostics, this module participates in every layer of the industrial communication stack. Its native HART support allows simultaneous analog control and digital device management, making it indispensable for facilities transitioning toward IIoT-ready architectures without replacing existing field wiring infrastructure.
Compatibility & Integration Notes
| Parameter |
Specification |
| Communication Protocol |
HART (Highway Addressable Remote Transducer) |
| Signal Type |
4–20 mA Analog Output with HART Digital Overlay |
| Interface Type |
DeltaV S-Series Controller Backplane I/O Bus |
| Channel Count |
8 Channels (isolated analog outputs) |
| Transmission Capability |
Simultaneous analog + HART digital communication per channel |
| Network Compatibility |
Emerson DeltaV S-Series, MD-Series, SD-Series Controllers |
| System Application |
DCS, SCADA, HMI Integration, Remote I/O, Field Device Management |
| Operating Voltage |
Powered via DeltaV I/O Bus (no external supply required) |
| Isolation |
Channel-to-channel and channel-to-bus isolation |
| Warranty |
12-Month Warranty | Pre-shipment functional testing included |
Connected Automation Data Flow
In a fully integrated DeltaV automation architecture, the KJ3002X1-BB1 12P0683X092 sits at the intersection of field instrumentation and supervisory control. At the field level, HART-compatible transmitters — such as Emerson Rosemount 3051 pressure transmitters or Fisher FIELDVUE DVC6200 digital valve controllers — communicate device health, calibration data, and process variables back through the analog output channel. This bidirectional HART communication eliminates the need for separate diagnostic wiring, reducing installation complexity while expanding real-time visibility.
The module connects directly to the DeltaV S-Series controller backplane, where the DeltaV MD Plus Controller or DeltaV SD Plus Controller processes the I/O data and executes control logic. Upstream, the DeltaV workstation running DeltaV Operate HMI software receives live process data, alarm states, and device diagnostics — enabling operators to monitor output status, loop integrity, and field device health from a centralized interface.
For facilities running multi-network architectures, the DeltaV system integrates with SCADA platforms via OPC DA/UA gateways, allowing the KJ3002X1-BB1 12P0683X092’s output data to flow into historian databases, MES layers, and enterprise ERP systems. In parallel, the Emerson AMS Device Manager software leverages the HART channel to perform remote calibration, predictive maintenance scheduling, and device configuration — all without interrupting the live analog control loop.
Where remote I/O expansion is required, the DeltaV CHARM I/O system or traditional DeltaV I/O subsystems can be deployed alongside the KJ3002X1-BB1 12P0683X092 to extend the network reach across large process units or geographically distributed plant sections. Industrial Ethernet switches — such as those in the Cisco IE3000 series or Hirschmann MACH series — provide the backbone network infrastructure that carries DeltaV controller-to-workstation traffic, ensuring deterministic data delivery across the control network.
For drive and motor control integration, Emerson Control Techniques variable frequency drives equipped with HART or fieldbus interfaces can receive setpoint commands routed through the DeltaV system, with the KJ3002X1-BB1 12P0683X092 providing the analog output signal that governs speed reference or torque demand. This creates a seamless data flow from the SCADA operator command, through the DeltaV controller, across the analog output module, and into the drive — closing the loop on fully automated motor management.
Solving Data Isolation in Industrial Sites
One of the most persistent challenges in legacy process plants is protocol fragmentation — where field devices, PLCs, DCS controllers, and SCADA systems each speak different communication languages, creating data silos that impede real-time decision-making and predictive maintenance. The Emerson KJ3002X1-BB1 12P0683X092 directly addresses this by providing native HART protocol support within the DeltaV ecosystem, allowing older 4–20 mA field devices to participate in digital communication networks without hardware replacement.
For facilities struggling with remote monitoring limitations, the HART digital channel embedded in each analog output enables continuous device diagnostics — loop resistance monitoring, output current verification, and field device status reporting — all transmitted back to the DeltaV controller and surfaced in the AMS Device Manager or DeltaV Operate interface. This transforms previously opaque field loops into transparent, data-rich communication channels.
Production line transparency is further enhanced through integration with SCADA and MES platforms. By routing DeltaV process data through OPC UA servers to higher-level systems, plant managers gain access to real-time KPIs, batch records, and alarm histories — enabling data-driven decisions that reduce unplanned downtime and optimize throughput. The KJ3002X1-BB1 12P0683X092’s role in this architecture is foundational: it ensures that every analog output channel is not just a control signal, but a live data stream contributing to plant-wide intelligence.
System expansion is equally straightforward. The modular DeltaV I/O architecture allows additional KJ3002X1-BB1 12P0683X092 modules to be added to existing carrier assemblies without controller reconfiguration, supporting phased capacity growth as production demands evolve. Each module ships pre-tested and verified against Emerson factory specifications, with a 12-month warranty covering parts and workmanship from the date of shipment.
Industrial Connectivity FAQ
Q: Does the KJ3002X1-BB1 12P0683X092 support simultaneous analog control and HART communication?
A: Yes. Each channel supports concurrent 4–20 mA analog output and HART digital communication, allowing real-time control signals and device diagnostics to share the same two-wire loop without interference.
Q: Which DeltaV controllers and I/O carriers are compatible with this module?
A: The KJ3002X1-BB1 12P0683X092 is designed for use with DeltaV S-Series I/O carriers and is compatible with DeltaV MD, MD Plus, SD, and SD Plus controllers. It integrates natively with the DeltaV I/O bus without additional adapters or gateways.
Q: How does this module support remote diagnostics and predictive maintenance?
A: Via the HART digital channel, the module enables Emerson AMS Device Manager to remotely access field device parameters, perform loop tests, read device alerts, and schedule calibration — all without interrupting the live analog control loop. This capability is central to IIoT-ready predictive maintenance strategies.
Q: What warranty and pre-shipment testing does this module include?
A: Every KJ3002X1-BB1 12P0683X092 unit is covered by a 12-month warranty from the date of shipment. Pre-shipment functional testing is performed to verify output accuracy, HART communication integrity, and backplane interface compliance before dispatch.
—
