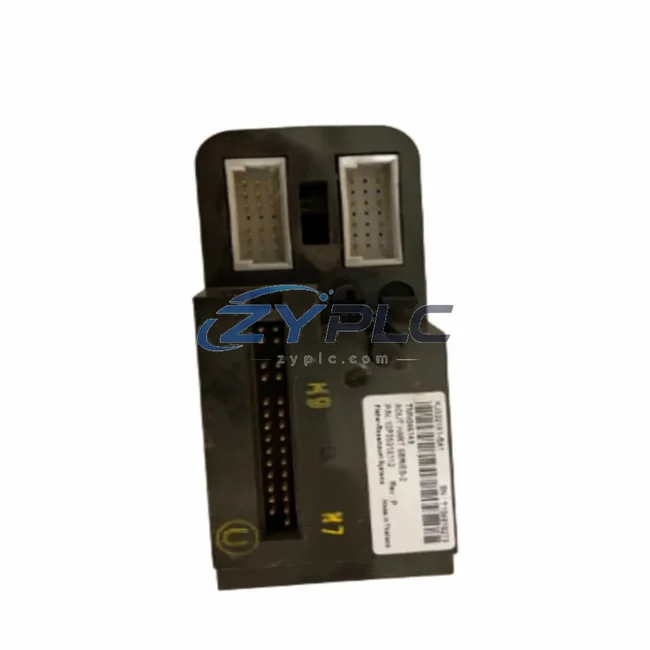

Emerson KJ3002X1-BD1 12P1033X102 Analog Input for DeltaV

Emerson KJ3002X1-BD1 12P1033X102 Analog Input for DeltaV

The Emerson KJ3002X1-BD1 12P1033X102 is a high-precision analog input module engineered for seamless integration within the Emerson DeltaV distributed control system (DCS) architecture. Designed to operate as a critical signal acquisition node within multi-layer automation environments, this module bridges the physical process layer and the digital control layer with exceptional accuracy and reliability. Whether deployed in continuous process manufacturing, power generation, petrochemical refining, or water treatment facilities, the KJ3002X1-BD1 12P1033X102 delivers consistent signal fidelity that underpins safe and efficient plant operations.

In a fully realized DeltaV control architecture, the KJ3002X1-BD1 12P1033X102 does not function in isolation. It is an integral component of a coordinated system that spans the controller layer, I/O subsystem, network infrastructure, power distribution, human-machine interface, and field execution layer. Its role is to receive analog signals—typically 4–20 mA or 1–5 V DC—from field transmitters such as pressure sensors, temperature transmitters, and flow meters, and to convert these signals into digital values that the DeltaV controller can process in real time. This signal chain is the foundation of closed-loop process control, and the integrity of the KJ3002X1-BD1 12P1033X102’s input channels directly affects the quality of every control decision made upstream.

From a system architecture perspective, the module is mounted on a DeltaV I/O carrier or marshalling cabinet, where it interfaces with the controller subsystem via the DeltaV I/O bus. Its plug-and-play design supports hot-swap capability, allowing maintenance teams to replace or reconfigure the module without interrupting the broader control system—a critical advantage in continuous-process industries where unplanned downtime carries significant operational and financial consequences. The module’s built-in diagnostics continuously report channel health, wiring faults, and signal out-of-range conditions to the DeltaV operator workstation, enabling proactive maintenance and reducing mean time to repair.

The KJ3002X1-BD1 12P1033X102 supports the DeltaV Electronic Marshalling concept, which eliminates the need for traditional hardwired marshalling panels and allows I/O assignment to be performed in software. This dramatically reduces engineering time during project commissioning and simplifies future system expansions or process modifications. When combined with the DeltaV CHARM (Characterization Module) infrastructure, the module contributes to a flexible, scalable I/O architecture that can adapt to evolving process requirements without significant hardware changes.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have undergone functional testing prior to shipment. Our inventory is sourced from verified supply chains, and each module is inspected to confirm firmware compatibility and physical integrity before dispatch. This commitment to quality assurance ensures that the KJ3002X1-BD1 12P1033X102 you receive is ready for immediate integration into your DeltaV control environment.

Product Specification Table

System Compatibility Notes

The KJ3002X1-BD1 12P1033X102 achieves its full potential when deployed as part of a coordinated DeltaV system architecture. At the controller layer, it works in conjunction with the Emerson DeltaV MD Plus Controller (KJ2003X1-BA1), which processes the digitized analog signals and executes the control algorithms that govern process behavior. The controller communicates with the I/O subsystem via the DeltaV I/O bus, and the KJ3002X1-BD1 12P1033X102 is one of several I/O modules that populate the I/O carrier assembly.

Power integrity across the I/O subsystem is maintained by the Emerson DeltaV Power Supply (KJ4001X1-BC1), which provides regulated DC power to the carrier backplane and all installed I/O modules. Redundant power configurations are supported, ensuring that a single power supply failure does not compromise the availability of the analog input channels. This redundancy is particularly important in safety-instrumented systems and high-availability process control applications.

At the network layer, the DeltaV system relies on a dedicated control network—typically a redundant Ethernet infrastructure—to connect controllers, I/O subsystems, and operator workstations. The Emerson DeltaV Network Interface Card (KJ3232X1-BA1) facilitates this connectivity, ensuring that process data acquired by the KJ3002X1-BD1 12P1033X102 is transmitted to the operator workstation with minimal latency. For field device integration, the Emerson HART Multiplexer or CHARM I/O modules can be used alongside the analog input module to enable HART communication with smart field instruments, providing access to device diagnostics and configuration data without additional wiring.

The human-machine interface layer is served by Emerson DeltaV Operate running on dedicated operator workstations, where process variables acquired by the KJ3002X1-BD1 12P1033X102 are displayed in real time on process graphics, trend displays, and alarm management screens. Engineering workstations running Emerson DeltaV Explore provide the configuration environment where I/O channel assignments, scaling parameters, and alarm limits are defined and downloaded to the controller.

For applications requiring redundant I/O, the KJ3002X1-BD1 12P1033X102 can be paired with a redundant I/O module on a dual-carrier assembly, ensuring that a single module failure does not result in loss of process visibility. Terminal blocks and field wiring terminations are managed through Emerson DeltaV CHARM Baseplates or traditional marshalling panels, depending on the project’s I/O architecture strategy. The overall system also integrates with Emerson AMS Device Manager for asset management, predictive maintenance scheduling, and field device health monitoring across the entire instrument population.

Industrial Application Notes

In petrochemical and refining facilities, the KJ3002X1-BD1 12P1033X102 is deployed to monitor critical process variables such as reactor temperatures, column pressures, and flow rates. Its high-resolution analog input channels ensure that small process deviations are detected promptly, enabling the DeltaV controller to make precise adjustments before conditions escalate to alarm or trip states. The module’s HART pass-through capability allows operators to interrogate smart transmitters directly from the control room, reducing the need for field visits during routine calibration checks.

In power generation plants—including thermal, combined-cycle, and renewable energy facilities—the module supports turbine control, boiler management, and emissions monitoring applications. Its ability to operate reliably in electrically noisy environments, combined with the DeltaV system’s redundant network architecture, makes it well-suited for applications where continuous availability is a regulatory and operational requirement.

In water and wastewater treatment plants, the KJ3002X1-BD1 12P1033X102 acquires signals from flow meters, level transmitters, and analytical instruments monitoring parameters such as pH, dissolved oxygen, and turbidity. The module’s diagnostic capabilities help maintenance teams identify sensor drift or wiring degradation before they affect treatment process quality or regulatory compliance.

In mining and metallurgical operations, the module is used in ore processing, flotation control, and smelting applications where robust signal acquisition under harsh environmental conditions is essential. Its compatibility with the broader DeltaV ecosystem ensures that process data from remote field locations can be integrated into a centralized control architecture without compromising data integrity or system response time.

In pharmaceutical and food and beverage manufacturing, the KJ3002X1-BD1 12P1033X102 supports batch process control applications where precise measurement of temperature, pressure, and flow is critical to product quality and regulatory compliance. The DeltaV system’s audit trail and electronic batch record capabilities complement the module’s accurate signal acquisition to support 21 CFR Part 11 and GMP compliance requirements.

Product Compatibility FAQ

Q1: Is the KJ3002X1-BD1 12P1033X102 compatible with all DeltaV controller generations, and can it be integrated into an existing DeltaV system without a full system upgrade?
A: The KJ3002X1-BD1 12P1033X102 is designed for the Emerson DeltaV I/O subsystem and is compatible with DeltaV MD, MD Plus, and SD Plus controllers, subject to the firmware version installed on the controller and I/O carrier. In most cases, the module can be added to an existing DeltaV system by installing it on an available I/O carrier slot and performing the channel configuration in DeltaV Explore. No full system upgrade is required for standard expansion scenarios. We recommend verifying the DeltaV system version and I/O carrier compatibility before installation, and our technical team can assist with compatibility confirmation prior to order placement.

Q2: What redundancy options are available for the KJ3002X1-BD1 12P1033X102, and how does the system handle a module failure in a live process environment?
A: The DeltaV architecture supports redundant I/O configurations where a second analog input module is installed on a redundant carrier assembly. In the event of a primary module failure, the system automatically switches to the redundant module without interrupting process control or data acquisition. The hot-swap design of the KJ3002X1-BD1 12P1033X102 also allows the failed module to be replaced online while the redundant module maintains system operation. The DeltaV controller generates an alarm notification when a module fault is detected, and the fault is logged in the system event journal for maintenance records and root cause analysis.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation, commissioning, and long-term maintenance of the KJ3002X1-BD1 12P1033X102?
A: The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform as specified within the warranty period, ZYPLC will provide a replacement unit at no additional cost. Our technical support team is available to assist with installation guidance, DeltaV configuration support, and troubleshooting throughout the warranty period and beyond. For long-term maintenance planning, we recommend maintaining a spare module in your site inventory to minimize downtime risk, and we can support ongoing spare parts supply agreements to ensure continued availability of the KJ3002X1-BD1 12P1033X102 for the operational life of your DeltaV system.
