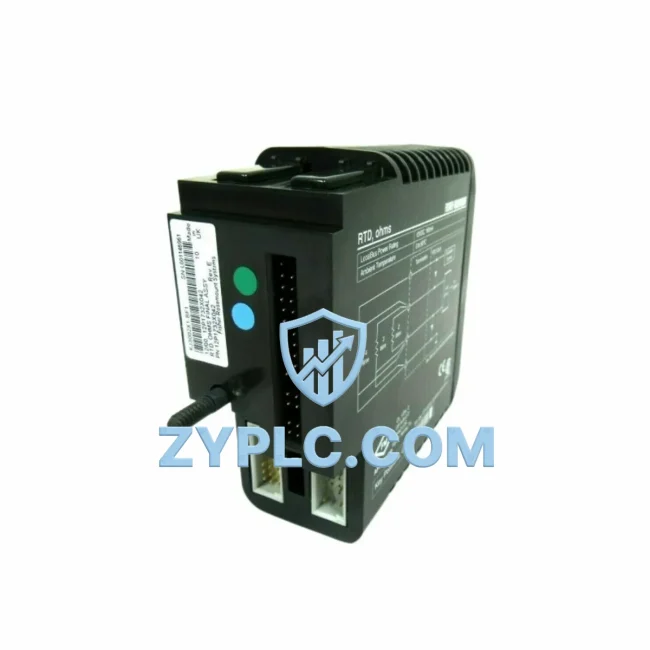

Emerson KJ3002X1-BF1 12P1732X042 RTD Input Module for DeltaV Systems

Emerson KJ3002X1-BF1 12P1732X042: Industrial Data Link for DeltaV Smart Factory Networks

The Emerson KJ3002X1-BF1 12P1732X042 is a high-precision RTD Input Module engineered for seamless integration within the Emerson DeltaV Distributed Control System (DCS). Designed to serve as a critical node in the industrial data chain, this module bridges field-level temperature sensing devices and the upper-layer control and monitoring infrastructure — enabling real-time signal acquisition, protocol-compliant data transmission, and continuous process visibility across complex manufacturing environments.

In modern smart factory architectures, the integrity of the data link between field instruments and supervisory systems is paramount. The KJ3002X1-BF1 fulfills this role by accepting RTD (Resistance Temperature Detector) inputs from thermocouples, Pt100 sensors, and other resistive temperature devices installed on process equipment, and converting those analog signals into digital process values that flow directly into the DeltaV controller network. This signal path — from sensor to module to controller to SCADA — forms the backbone of real-time thermal monitoring, alarm management, and closed-loop control in industries ranging from oil and gas to pharmaceuticals and power generation.

Compatibility & Integration Notes

Connected Automation Data Flow

The KJ3002X1-BF1 sits at the heart of a layered industrial communication architecture. At the field level, Pt100 RTD sensors and resistance-based temperature transmitters installed on reactors, heat exchangers, pipelines, and storage tanks feed analog signals directly into the module’s 12 input channels. These signals are digitized and transmitted via the DeltaV I/O backplane to the Emerson DeltaV MD Plus Controller or DeltaV MQ Controller, where process logic executes in real time.

From the controller layer, process data propagates upward through the DeltaV workstation network to DeltaV Operate HMI stations, where operators monitor temperature trends, configure alarm setpoints, and initiate control actions. Simultaneously, the DeltaV OPC server publishes live process values to OSIsoft PI System or third-party SCADA platforms such as Wonderware InTouch or Ignition SCADA, enabling plant-wide data aggregation and historian logging.

For remote I/O architectures, the KJ3002X1-BF1 can be deployed in Emerson DeltaV Remote I/O Carriers connected via redundant fiber-optic or copper Ethernet links back to the main controller cabinet. This topology is particularly valuable in hazardous area installations where the controller must be located in a safe room while I/O modules are mounted close to field devices. The Emerson CIOC (Charm I/O Card) and DeltaV CHARMS architecture further extends this capability, allowing individual channel-level isolation and hot-swap replacement without process interruption.

In drive and motor control applications, temperature data from the KJ3002X1-BF1 feeds into interlock logic that protects Emerson Control Techniques variable frequency drives (VFDs) and motor control centers from thermal overload conditions. When RTD readings exceed configured thresholds, the DeltaV controller issues trip commands or speed reduction signals to the drive, preventing equipment damage and unplanned downtime. This closed-loop thermal protection chain — sensor → KJ3002X1-BF1 → DeltaV controller → VFD command — exemplifies the module’s role in integrated safety and process control.

Edge connectivity is achieved through Emerson Edge Gateways or third-party industrial IoT gateways that subscribe to OPC UA data feeds from the DeltaV server, packaging real-time temperature data for transmission to cloud analytics platforms or MES (Manufacturing Execution Systems). This enables predictive maintenance algorithms to analyze RTD trend data and flag anomalies before they escalate into failures — a key capability in Industry 4.0 smart factory deployments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — the condition where field instruments generate valuable process data that never reaches the control room, historian, or enterprise systems due to protocol incompatibilities, aging wiring infrastructure, or fragmented control architectures. The Emerson KJ3002X1-BF1 12P1732X042 directly addresses this challenge within DeltaV-based environments.

By standardizing RTD signal acquisition across 12 channels on a single module, the KJ3002X1-BF1 eliminates the need for standalone signal conditioners or protocol converters between field sensors and the DCS. All temperature data is captured, digitized, and made available on the DeltaV network in a unified format, ready for consumption by HMI, SCADA, historian, and alarm management systems without additional middleware.

For facilities undergoing digital transformation, the module supports phased migration strategies. Existing RTD wiring from legacy control systems can be re-terminated to the KJ3002X1-BF1 without replacing field sensors, preserving capital investment while upgrading the control layer to modern DeltaV infrastructure. This approach dramatically reduces migration risk and project cost compared to full greenfield installations.

Remote monitoring and diagnostics are enabled through DeltaV’s built-in module health reporting. The KJ3002X1-BF1 continuously reports its own diagnostic status — including channel-level open-circuit detection, out-of-range alerts, and communication health — to the DeltaV controller, which surfaces these diagnostics in the DeltaV Operate HMI and can trigger maintenance work orders in connected CMMS platforms. This transparency eliminates the need for technicians to physically inspect I/O cabinets to diagnose field wiring faults, reducing mean time to repair (MTTR) and improving overall plant availability.

For multi-unit or multi-site operations, the KJ3002X1-BF1’s compatibility with DeltaV’s batch and continuous control frameworks means that temperature data from multiple production lines or geographic sites can be consolidated into a single SCADA view, enabling centralized production monitoring, cross-site benchmarking, and enterprise-level reporting — all without custom integration work.

Industrial Connectivity FAQ

Q1: What communication protocols does the KJ3002X1-BF1 support, and is it compatible with non-DeltaV systems?
The KJ3002X1-BF1 communicates natively via the DeltaV I/O backplane protocol and is designed for use within Emerson DeltaV DCS architectures. Integration with non-DeltaV systems (such as Siemens PCS 7, ABB 800xA, or third-party SCADA platforms) is achieved through the DeltaV OPC DA/UA server, which publishes process values to any OPC-compliant client. Direct fieldbus connectivity to FOUNDATION Fieldbus or PROFIBUS segments requires appropriate gateway modules within the DeltaV system.

Q2: How does the module handle communication latency in time-critical control loops?
The KJ3002X1-BF1 is optimized for deterministic data delivery within the DeltaV controller scan cycle. RTD conversion and digital transmission are completed within the module’s internal processing cycle, ensuring that temperature values are updated in the controller at each scan interval — typically 100ms to 1 second depending on controller configuration. For safety instrumented systems (SIS) requiring faster response, Emerson’s SIS-specific I/O modules should be evaluated alongside the standard DeltaV I/O portfolio.

Q3: Can the KJ3002X1-BF1 be hot-swapped during live plant operation, and what is the impact on the control loop?
The DeltaV S-Series I/O architecture supports online module replacement with appropriate system configuration. When a module is removed, the DeltaV controller transitions affected channels to their configured fault state (hold last value, go to safe output, or generate alarm), maintaining process safety during the replacement procedure. Module insertion triggers automatic re-commissioning and channel restoration without requiring a controller restart, minimizing process disruption.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every KJ3002X1-BF1 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including channel-level RTD simulation, backplane communication validation, and diagnostic status confirmation. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, configuration, and troubleshooting queries.
