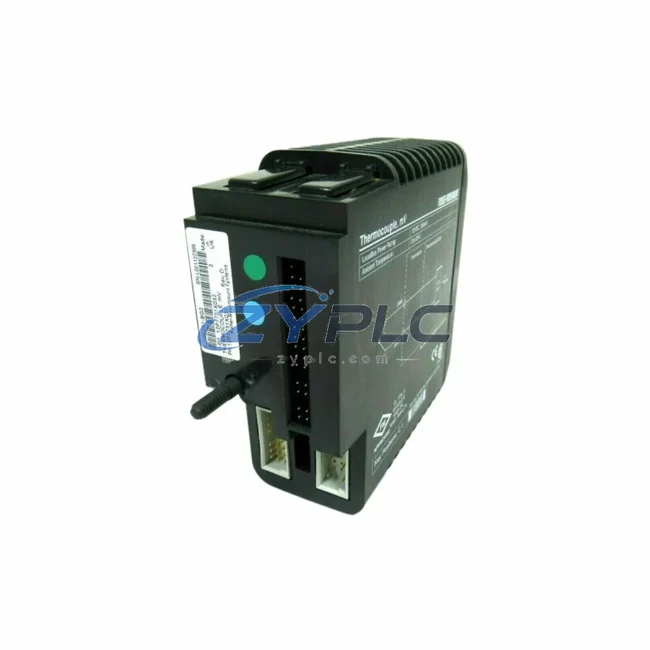

Emerson KJ3002X1-BG2 12P1731X032 TC Input for DeltaV

Emerson KJ3002X1-BG2 12P1731X032 TC Input for DeltaV

The Emerson KJ3002X1-BG2 12P1731X032 Thermocouple Input Module is a precision-engineered field I/O component designed for seamless integration within the Emerson DeltaV distributed control system architecture. Rather than functioning as a standalone device, this module occupies a critical position within the layered automation hierarchy — bridging the gap between field-level thermocouple sensors and the DeltaV controller layer, enabling accurate temperature signal acquisition, real-time data transmission, and system-wide process visibility.

In a fully realized DeltaV control architecture, the KJ3002X1-BG2 operates in close coordination with upstream and downstream components. At the controller layer, it interfaces directly with DeltaV MD or MX Series Controllers, which handle logic execution, PID loop management, and inter-system communication. The module is mounted on a DeltaV I/O carrier card and installed within a DeltaV I/O subsystem enclosure, where it shares backplane communication with adjacent I/O modules such as the KJ3001X1-BA1 Analog Input Module and the KJ3221X1-BA1 Discrete Output Module. This co-location on a shared carrier ensures deterministic scan cycles and minimizes signal latency across the process control network.

From a signal flow perspective, the KJ3002X1-BG2 accepts thermocouple inputs from Type J, K, T, E, R, S, B, and N sensors, converting raw millivolt signals into engineering unit values that are transmitted over the DeltaV FOUNDATION Fieldbus or standard I/O bus to the controller. Cold junction compensation is handled internally, ensuring measurement accuracy without additional external hardware. This makes the module particularly well-suited for high-density temperature monitoring applications in process industries where dozens of thermocouple loops must be managed within a single control cabinet.

At the network layer, the DeltaV system leverages Ethernet-based communication between controllers and workstations, with the KJ3002X1-BG2 contributing clean, validated temperature data to the DeltaV Operate HMI environment. Operators viewing the DeltaV Operate graphics can monitor real-time thermocouple readings, configure alarm thresholds, and trend historical data — all without leaving the unified DeltaV environment. This system integration capability ensures that the module’s data is not siloed but is instead fully embedded within the plant-wide control narrative.

For redundancy-critical applications, the KJ3002X1-BG2 can be deployed alongside redundant DeltaV controller pairs and redundant power supplies such as the KJ1501X1-BF2 Power Supply Module, ensuring that a single point of failure at the power or controller layer does not interrupt temperature monitoring. In safety-instrumented systems, the module’s readings can be cross-validated against SIS logic solvers, providing an additional layer of process protection in compliance with IEC 61511 functional safety standards.

Installation and commissioning of the KJ3002X1-BG2 follow standard DeltaV I/O subsystem procedures. The module is hot-swappable within a powered carrier, allowing field engineers to replace or add modules without shutting down the control system — a significant advantage in continuous process environments such as refineries, chemical plants, and power generation facilities. DeltaV’s auto-sensing I/O architecture automatically recognizes the module upon insertion, reads its electronic marshalling configuration, and applies the pre-assigned channel parameters without manual re-configuration.

Long-term maintenance of the KJ3002X1-BG2 is simplified by DeltaV’s integrated diagnostics. The module continuously self-monitors for open thermocouple faults, out-of-range signals, and communication errors, reporting diagnostic status directly to the DeltaV Operate alarm management system. Maintenance teams can schedule predictive replacements based on module health data rather than reactive failures, reducing unplanned downtime and extending the operational life of the control system as a whole.

From an inventory and supply chain perspective, the KJ3002X1-BG2 12P1731X032 is stocked and available for shipment arranged after confirmation. All units undergo functional testing prior to shipment, verifying channel accuracy, communication integrity, and physical condition. Each module is covered by a warranty terms confirmed during quotation, providing engineering teams and procurement managers with the confidence needed for long-term project planning and spare parts management.

Product Specification Table

System Compatibility Notes

The KJ3002X1-BG2 achieves its full potential when deployed as part of a coordinated DeltaV control system rather than as an isolated component. In a typical DeltaV architecture, the module shares its I/O carrier with complementary modules such as the KJ3001X1-BA1 Analog Input Module for 4–20mA process variable acquisition and the KJ3221X1-BA1 Discrete Output Module for valve and actuator control signals. Together, these modules provide a complete I/O profile for a process unit — temperature, pressure, flow, and discrete control — all managed from a single DeltaV controller node.

At the controller layer, the DeltaV MD Plus Controller or DeltaV MX Controller processes the thermocouple data from the KJ3002X1-BG2 in real time, executing PID control algorithms and passing setpoint commands to output modules. For high-availability applications, a DeltaV Redundant Controller Pair ensures bumpless transfer in the event of a primary controller fault, with the KJ3002X1-BG2 continuing to supply temperature data to the standby controller without interruption.

Power integrity across the I/O subsystem is maintained by the KJ1501X1-BF2 DeltaV Power Supply Module, which provides regulated DC power to the carrier backplane. In critical applications, dual power supplies with automatic failover are installed to eliminate power-related single points of failure. The DeltaV I/O Subsystem Enclosure houses all carrier cards, power supplies, and communication interfaces in a structured, DIN-rail-mounted assembly that meets industrial environmental ratings.

At the human-machine interface layer, the DeltaV Operate Workstation displays real-time thermocouple readings from the KJ3002X1-BG2 on process graphics, trend displays, and alarm summary screens. Engineering workstations running DeltaV Explorer allow configuration engineers to assign channel parameters, calibration offsets, and alarm limits directly to the module’s I/O tags without physical access to the field cabinet. This software-defined I/O approach, enabled by DeltaV’s Electronic Marshalling architecture, dramatically reduces commissioning time and simplifies future system modifications.

For inter-system communication, the DeltaV network layer employs DeltaV OPC DA/UA Servers to share thermocouple data with third-party historian platforms, MES systems, and enterprise data lakes. This ensures that the temperature measurements captured by the KJ3002X1-BG2 contribute not only to real-time process control but also to long-term production analytics, maintenance planning, and regulatory compliance reporting.

Industrial Application Notes

The KJ3002X1-BG2 is deployed across a wide range of process industries where precise temperature measurement is fundamental to product quality, safety, and regulatory compliance.

In oil refining and petrochemical processing, the module monitors reactor temperatures, distillation column profiles, and heat exchanger performance. Its ability to handle multiple thermocouple types within a single module simplifies the instrumentation of complex process units where different temperature ranges and sensor types coexist. The module’s hot-swap capability is particularly valued in continuous refinery operations where scheduled shutdowns are infrequent and unplanned downtime is costly.

In power generation facilities — including coal, gas, and biomass plants — the KJ3002X1-BG2 monitors boiler temperatures, turbine exhaust profiles, and flue gas temperatures. Its integration with DeltaV’s redundant controller architecture ensures that temperature data remains available even during controller maintenance windows, supporting continuous compliance with emissions monitoring requirements.

In pharmaceutical and food processing environments, the module supports FDA 21 CFR Part 11 and GMP compliance by providing validated, audit-trailed temperature records through the DeltaV Operate historian. Batch process control applications rely on the module’s accuracy to maintain critical temperature profiles during sterilization, fermentation, and drying cycles.

In mining and metallurgical operations, the KJ3002X1-BG2 monitors furnace temperatures, smelting process profiles, and cooling system performance. Its rugged design and wide operating temperature range make it suitable for installation in control rooms adjacent to high-temperature process areas, while its DeltaV integration ensures that metallurgical engineers have real-time visibility into thermal process conditions from centralized control rooms.

In water and wastewater treatment facilities, the module monitors temperature across biological treatment processes, chemical dosing systems, and sludge processing units. Its low-maintenance design and remote diagnostic capability reduce the need for frequent field inspections, supporting lean maintenance strategies in geographically distributed water utility networks.

Product Compatibility FAQ

Q1: Is the KJ3002X1-BG2 12P1731X032 compatible with both legacy DeltaV S-Series and current DeltaV S+ Series architectures?
The KJ3002X1-BG2 is designed for the DeltaV S-Series I/O subsystem and is compatible with DeltaV MD, MX, and SD Series controllers operating within the S-Series I/O architecture. For integration with DeltaV S+ Series or Electronic Marshalling (CHARM) architectures, compatibility should be verified against the specific DeltaV system version and carrier configuration. ZYPLC’s technical team can assist with architecture compatibility assessments prior to procurement to ensure seamless system integration within your existing control system.

Q2: Can the KJ3002X1-BG2 be installed and replaced without shutting down the DeltaV system?
Yes. The KJ3002X1-BG2 supports hot-swap installation within a powered DeltaV I/O carrier. DeltaV’s auto-sensing I/O architecture automatically detects the module upon insertion and applies pre-configured channel parameters without requiring a system restart or manual re-commissioning. This capability is essential for continuous process environments where control system availability is a primary operational requirement. Field engineers should follow DeltaV’s standard hot-swap procedures and verify channel status in DeltaV Operate following module installation.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term spare parts management?
All KJ3002X1-BG2 12P1731X032 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects, functional failures, and communication faults identified under normal operating conditions. Each unit is functionally tested prior to dispatch to verify channel accuracy and backplane communication integrity. For long-term spare parts management, ZYPLC supports RFQ sourcing for DeltaV I/O modules to support planned maintenance programs, emergency replacements, and system expansion projects. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 to discuss volume pricing, consignment stock arrangements, and extended support agreements.
