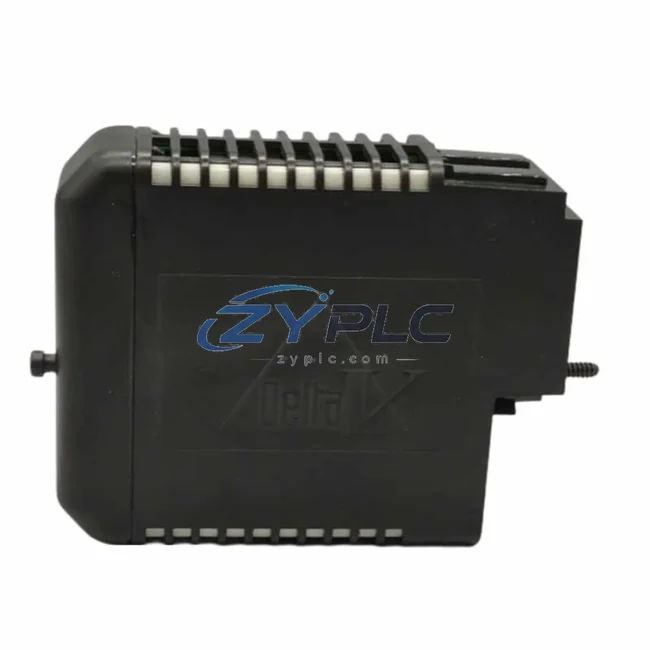

Emerson KJ3002X1-BG2 12P1731X082 TC Input for DeltaV

Emerson KJ3002X1-BG2 12P1731X082 TC Input for DeltaV: Compatibility and Replacement Notes

The Emerson KJ3002X1-BG2 12P1731X082 is a high-integrity thermocouple input module engineered specifically for deployment within the Emerson DeltaV distributed control system architecture. Rather than functioning as a standalone measurement device, this module is designed from the ground up to operate as a coordinated node within a layered automation hierarchy — contributing to signal fidelity, system redundancy, and long-term maintainability across the full control loop. In process-critical environments such as oil refining, chemical processing, power generation, and pharmaceutical manufacturing, the reliability of temperature signal acquisition at the I/O layer directly determines the stability of the entire control strategy. The KJ3002X1-BG2 12P1731X082 addresses this requirement with precision-engineered thermocouple conditioning, native DeltaV bus compatibility, and a form factor optimized for carrier-based installation within standard DeltaV I/O subsystems.

Within the DeltaV architecture, this module occupies the field I/O layer, receiving thermocouple signals from process instrumentation and converting them into digitized engineering values that are passed upstream to the DeltaV controller — typically a KJ2003X1 or MD-Plus series controller node — via the DeltaV I/O bus. The module’s system integration capability ensures that it participates fully in the DeltaV diagnostic framework, reporting channel-level health, cold junction compensation status, and out-of-range conditions directly to the DeltaV operator workstation without requiring additional configuration middleware. This system integration architecture reduces engineering overhead during commissioning and simplifies fault isolation during plant operations, making the KJ3002X1-BG2 12P1731X082 a preferred choice for both greenfield DeltaV installations and brownfield system expansions.

From a system architecture perspective, the module is mounted on a DeltaV I/O carrier — such as the KJ3001X1 series carrier — which in turn is installed within a DeltaV I/O subsystem enclosure. Power is supplied through the carrier from a DeltaV power supply module, such as the KJ4001X1 or PS6 series, ensuring that field I/O power distribution is managed at the subsystem level rather than at the individual module level. This architecture simplifies cabinet wiring, reduces single-point power failure risk, and supports hot-swap module replacement without interrupting adjacent channel operation — a critical feature in continuous process plants where scheduled shutdowns are infrequent.

The signal flow from field device to control output follows a well-defined path: thermocouple sensors in the field connect to the KJ3002X1-BG2 12P1731X082 via marshalling terminals or direct carrier wiring, where the module performs cold junction compensation, linearization, and analog-to-digital conversion. The resulting process variable is transmitted over the DeltaV I/O bus to the assigned controller, where it is processed by control modules — PID, cascade, ratio, or advanced regulatory strategies — before generating output signals that drive final control elements such as control valves, variable frequency drives, or electric actuators. The integrity of this signal chain depends on the consistent performance of each I/O module, and the KJ3002X1-BG2 12P1731X082 is rated for continuous operation in industrial environments, supporting thermocouple types including J, K, T, E, R, S, and B across the full DeltaV-specified temperature range.

For system architects designing redundant control strategies, the DeltaV platform supports controller redundancy through paired controller nodes, and I/O redundancy through redundant I/O subsystem configurations. While the KJ3002X1-BG2 12P1731X082 operates in a standard (non-redundant) I/O configuration, it is fully compatible with redundant controller architectures, ensuring that controller failover does not interrupt temperature measurement continuity. In applications where I/O-level redundancy is required, the module can be paired with a redundant I/O interface module and a secondary carrier assembly, providing channel-level fault tolerance for the most critical measurement loops.

Engineering teams responsible for DeltaV system maintenance benefit from the module’s plug-and-play replacement capability. Because module configuration is stored within the DeltaV controller database rather than on the module itself, a replacement KJ3002X1-BG2 12P1731X082 can be installed and brought online without re-engineering the channel configuration — the DeltaV system automatically downloads the stored configuration to the new module upon insertion. This feature, combined with the module’s diagnostic transparency and the availability of factory-tested replacement units with a warranty terms confirmed during quotation, significantly reduces mean time to repair (MTTR) for temperature measurement faults in production environments.

Procurement and inventory planning for DeltaV I/O modules requires attention to revision compatibility. The KJ3002X1-BG2 12P1731X082 designation includes both the base module part number (KJ3002X1-BG2) and the firmware/hardware revision identifier (12P1731X082), ensuring that replacement units are fully compatible with the installed DeltaV system version. Maintaining a strategic spare inventory of this module — alongside related components such as the KJ3001X1 carrier, KJ4001X1 power supply, and KJ2003X1 controller — supports a comprehensive DeltaV spare parts strategy that minimizes unplanned downtime risk across the asset lifecycle.

Product Specification Table

System Compatibility Notes

The KJ3002X1-BG2 12P1731X082 achieves its full performance potential when deployed as part of a coordinated DeltaV system architecture. At the controller layer, the module interfaces with DeltaV MD-Plus or KJ2003X1 controller nodes, which execute the regulatory control strategies that consume the thermocouple measurements. These controllers communicate with the DeltaV workstation network via the DeltaV control network — a dedicated Ethernet-based network segment that carries controller-to-workstation traffic, historian data, and alarm management information to DeltaV operator workstations and engineering stations running DeltaV Operate and DeltaV Explorer.

At the I/O layer, the KJ3002X1-BG2 12P1731X082 is installed alongside complementary I/O modules within the same DeltaV I/O subsystem. A typical subsystem may include analog input modules such as the KJ3221X1 (4–20 mA input), analog output modules such as the KJ3222X1, and discrete I/O modules such as the KJ3001X1-series discrete input and output modules — all mounted on shared carriers and powered from a common KJ4001X1 power supply. This co-location of I/O types within a single subsystem minimizes cabinet footprint, simplifies cable routing from the marshalling panel, and allows the DeltaV controller to manage all field signals through a single I/O bus segment.

For applications requiring HART communication from field instruments, the DeltaV HART multiplexer or CHARM I/O architecture can be integrated alongside the KJ3002X1-BG2 12P1731X082, enabling simultaneous thermocouple measurement and HART device management within the same control cabinet. In larger DeltaV installations, the system may also incorporate a DeltaV SIS (Safety Instrumented System) controller — such as the KJ2003X1-BA1 SIS controller — operating in parallel with the regulatory DCS, with the KJ3002X1-BG2 12P1731X082 providing temperature inputs to the regulatory layer while dedicated SIS I/O modules handle safety-critical temperature measurements independently. This separation of regulatory and safety I/O is a fundamental principle of IEC 61511-compliant process safety architecture.

At the human-machine interface layer, DeltaV Operate provides the operator display environment where thermocouple measurements from the KJ3002X1-BG2 12P1731X082 are presented as real-time process variables, trend displays, and alarm annunciations. The system integration capability of the module ensures that diagnostic alerts — such as thermocouple open-circuit or cold junction failure — are surfaced directly in the DeltaV alarm management system without requiring custom alarm configuration, reducing the engineering effort required to achieve ISA-18.2-compliant alarm rationalization.

Industrial Application Notes

The Emerson KJ3002X1-BG2 12P1731X082 is deployed across a wide range of process industries where accurate, reliable temperature measurement is fundamental to process control and safety. In petroleum refining, the module provides thermocouple inputs for reactor temperature monitoring, distillation column profile measurement, and heat exchanger control — applications where measurement accuracy directly affects product quality, energy efficiency, and equipment protection. In chemical manufacturing, the module supports exothermic reaction temperature control, where precise thermocouple measurement is essential for both process optimization and runaway reaction prevention.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the KJ3002X1-BG2 12P1731X082 provides thermocouple inputs for boiler temperature monitoring, turbine exhaust temperature measurement, and heat recovery steam generator (HRSG) control. The module’s compatibility with Type K and Type R thermocouples makes it suitable for high-temperature measurement applications in combustion and steam generation systems. In water and wastewater treatment plants, the module supports temperature monitoring for biological treatment processes, sludge digestion, and chemical dosing systems, where DeltaV-based automation provides centralized SCADA integration and remote monitoring capability.

In pharmaceutical and biotechnology manufacturing, the KJ3002X1-BG2 12P1731X082 supports FDA 21 CFR Part 11-compliant temperature measurement for bioreactor control, sterilization validation, and clean-in-place (CIP) systems. The DeltaV platform’s built-in batch management and electronic records capabilities make it the preferred DCS platform for pharmaceutical applications, and the KJ3002X1-BG2 12P1731X082’s native DeltaV integration ensures that temperature measurement data is captured with full audit trail integrity. In mining and minerals processing, the module provides thermocouple inputs for furnace temperature control, flotation cell monitoring, and conveyor drive thermal protection — applications where the module’s industrial-grade construction and hot-swap capability support continuous operation in harsh environments.

Product Compatibility FAQ

Q1: Is the KJ3002X1-BG2 12P1731X082 compatible with all DeltaV system versions, and what carrier is required for installation?
The KJ3002X1-BG2 12P1731X082 is designed for installation on DeltaV I/O carriers compatible with the KJ3001X1 series carrier platform. It is compatible with DeltaV system versions that support the KJ3002X1 module family, which encompasses the majority of DeltaV installations from version 10.x onward. Before procurement, engineers should verify the installed DeltaV system version and carrier revision against Emerson’s module compatibility matrix to confirm full interoperability. The 12P1731X082 revision identifier should be matched to the system’s qualified hardware list (QHL) to ensure firmware compatibility with the installed controller version.

Q2: Can this module be replaced online without shutting down adjacent I/O channels, and how is configuration restored after replacement?
Yes. The KJ3002X1-BG2 12P1731X082 supports hot-swap replacement within the DeltaV I/O subsystem. Removing the module from its carrier does not interrupt the operation of adjacent modules on the same carrier, as each module operates independently on the DeltaV I/O bus. Upon insertion of a replacement module, the DeltaV controller automatically detects the new module and downloads the stored channel configuration from the controller database — including thermocouple type selection, engineering unit scaling, and alarm limits — without requiring manual re-entry of configuration parameters. This plug-and-play replacement capability, combined with the warranty terms confirmed during quotation on replacement units, minimizes both planned and unplanned maintenance downtime.

Q3: What long-term maintenance and spare parts strategy is recommended for DeltaV installations using the KJ3002X1-BG2 12P1731X082?
For DeltaV installations with multiple KJ3002X1-BG2 12P1731X082 modules, a recommended spare parts strategy includes maintaining at least one spare module per ten installed units, with a minimum of two spares per site regardless of installed quantity. Spares should be stored in anti-static packaging in a temperature-controlled environment and rotated into service on a scheduled basis to prevent long-term storage degradation. Procurement of spare modules with a verified warranty terms confirmed during quotation ensures that replacement units are factory-tested and ready for immediate deployment. Complementary spares — including KJ3001X1 carriers, KJ4001X1 power supplies, and controller modules — should be included in the site spare parts inventory to support a comprehensive DeltaV maintenance strategy that minimizes mean time to repair across all system layers.
