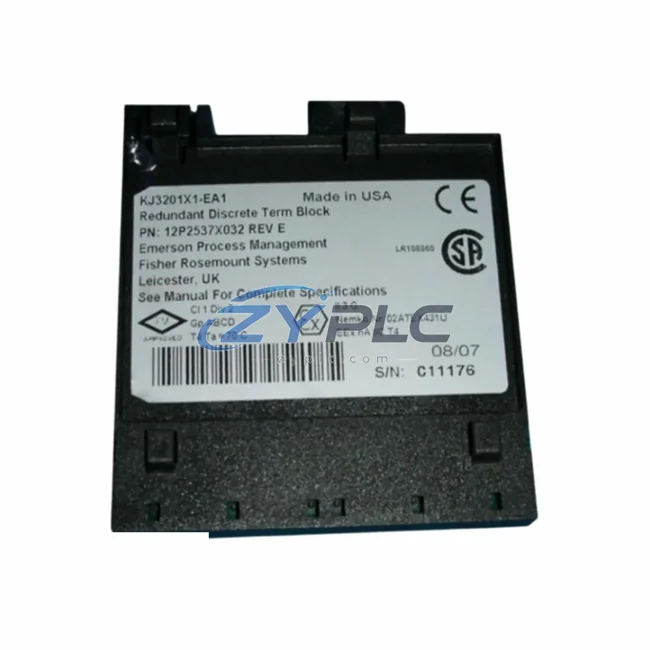

Emerson KJ3201X1-EA1 I/O Terminal for DeltaV

Emerson KJ3201X1-EA1 I/O Terminal for DeltaV: Compatibility and Replacement Notes

The Emerson KJ3201X1-EA1 is a discrete I/O terminal block engineered for seamless integration within the DeltaV KJ3000 distributed control system platform. Rather than functioning as a standalone component, this terminal block occupies a critical position within the layered automation hierarchy — bridging field-level signal termination with the DeltaV controller subsystem and enabling consistent, reliable data flow across the entire control architecture. In modern process automation environments, the integrity of the I/O layer directly determines the responsiveness of the control layer, the accuracy of operator displays, and the reliability of safety interlocks. The KJ3201X1-EA1 is designed to meet these demands across a wide range of industrial applications.

Within a complete DeltaV system architecture, the KJ3201X1-EA1 terminal block connects directly to the KJ3000 series I/O subsystem, providing the physical termination point for discrete field signals. These signals — sourced from limit switches, solenoid valves, motor starters, digital transmitters, and other field devices — are routed through the terminal block into the corresponding I/O card, processed by the DeltaV controller module, and ultimately reflected in the operator workstation or DeltaV Live HMI environment. This signal chain, from field device through terminal block to controller to HMI, represents the foundational data pathway of any DCS-based automation system, and the KJ3201X1-EA1 ensures that pathway remains stable, traceable, and maintainable over the full lifecycle of the installation.

Product Specification Table

System Compatibility Notes

The KJ3201X1-EA1 does not operate in isolation. Its value is realized through its coordination with the broader DeltaV system architecture, where each layer — from the field device to the enterprise network — depends on the reliability of the components beneath it. In a typical DeltaV installation, the KJ3201X1-EA1 terminal block is mounted on a KJ3000 series I/O carrier, which in turn interfaces with a DeltaV MD or MD Plus controller module. The controller processes the discrete signals terminated at the KJ3201X1-EA1 and executes the associated control logic, whether that involves simple on/off sequencing, interlock management, or complex state-machine-based process control.

Power distribution to the I/O subsystem is managed through the DeltaV power supply modules, such as the KJ1501X1-BA2 or equivalent redundant power supply units, which ensure that the I/O carriers and terminal blocks receive stable, conditioned DC power even during utility fluctuations. In redundant power architectures — common in critical process industries — dual power supply modules feed the same I/O bus, and the KJ3201X1-EA1 terminal block benefits from this redundancy without requiring any additional configuration.

On the network side, the DeltaV system communicates via the DeltaV Control Network, a dedicated Ethernet-based network that connects controllers, I/O subsystems, workstations, and the DeltaV Application Station. The KJ3201X1-EA1, as part of the I/O layer, contributes its field data to this network through the controller, where it becomes available to the DeltaV Live HMI, historian, and advanced control applications. In larger installations, the DeltaV SIS (Safety Instrumented System) may operate in parallel, with its own dedicated I/O modules and terminal blocks, while sharing the same physical marshalling infrastructure.

For installations requiring high-density I/O, the KJ3201X1-EA1 can be deployed alongside other KJ3000 series I/O modules — including analog input modules such as the KJ3002X1-BA1, analog output modules, and HART-enabled I/O cards — all mounted on the same carrier system and managed through a unified DeltaV configuration environment. This modularity allows engineers to design I/O subsystems that precisely match the signal requirements of each process unit, without over-provisioning hardware or creating unnecessary complexity.

In marshalling cabinet designs, the KJ3201X1-EA1 terminal block is typically installed adjacent to conventional terminal strips, junction boxes, and cable management systems. Its compact form factor and standardized mounting interface simplify cabinet layout and reduce wiring labor during commissioning. When paired with DeltaV Electronic Marshalling (CHARM) technology in hybrid architectures, the KJ3201X1-EA1 provides a cost-effective termination solution for discrete signals that do not require the flexibility of characterization modules.

Industrial Application Notes

The KJ3201X1-EA1 is deployed across a broad spectrum of industrial sectors where the DeltaV platform is the control system of choice. In oil and gas processing facilities, the terminal block provides reliable termination for discrete signals associated with wellhead controls, separator level switches, emergency shutdown valves, and compressor motor starters. The harsh electrical environment of these facilities — characterized by long cable runs, ground loops, and high-energy switching transients — demands terminal blocks that maintain signal integrity under adverse conditions, and the KJ3201X1-EA1 is engineered to meet these requirements.

In power generation and utilities, the KJ3201X1-EA1 supports discrete I/O for boiler management systems, turbine auxiliary controls, and balance-of-plant automation. The ability to integrate seamlessly with the DeltaV controller and communicate status to the DeltaV Live operator workstation in real time is essential for operators managing complex, interdependent systems where a single missed signal can trigger a plant trip.

Chemical and petrochemical plants rely on the KJ3201X1-EA1 for discrete signal termination in reactor control systems, distillation column automation, and batch process management. In these environments, the terminal block’s compatibility with the DeltaV SIS architecture is particularly valuable, as it allows engineers to design integrated safety and regulatory control systems that share physical infrastructure while maintaining the logical separation required by IEC 61511 and ISA 84 standards.

Water and wastewater treatment facilities use the KJ3201X1-EA1 to terminate discrete signals from pump motor starters, valve position switches, flow switches, and level alarms. The DeltaV platform’s scalability — from small, single-controller systems to large, multi-area installations — makes it well suited to the diverse scale of water infrastructure projects, and the KJ3201X1-EA1 provides a consistent termination solution across all system sizes.

In mining, metals processing, and mineral handling applications, the KJ3201X1-EA1 supports discrete I/O for conveyor control systems, crusher interlocks, and materials handling automation. The rugged industrial design of the DeltaV KJ3000 I/O subsystem, combined with the reliable termination provided by the KJ3201X1-EA1, ensures continuous operation in environments subject to vibration, dust, and temperature extremes.

Product Compatibility FAQ

Q1: Is the KJ3201X1-EA1 compatible with all DeltaV KJ3000 series carriers and controllers?
The KJ3201X1-EA1 is designed for use with the DeltaV KJ3000 series I/O carrier system and is compatible with DeltaV MD, MD Plus, and SD series controllers operating within the DeltaV v10.3 and later software environments. For installations running earlier DeltaV versions, compatibility should be verified against the Emerson DeltaV hardware compatibility matrix. The terminal block interfaces with the carrier via the standard KJ3000 mechanical and electrical interface, ensuring consistent signal routing and power distribution across all compatible controller generations.

Q2: Can the KJ3201X1-EA1 be used in redundant I/O architectures, and what are the installation requirements?
Yes. The DeltaV platform supports redundant I/O configurations in which paired I/O modules and carriers provide continuous operation in the event of a single module failure. In redundant configurations, the KJ3201X1-EA1 terminal block is shared between the primary and secondary I/O modules, with field wiring terminated once at the terminal block and distributed to both modules via the carrier. This architecture eliminates the need for duplicate field wiring while providing full I/O redundancy. Installation requires a redundant-capable KJ3000 carrier and the appropriate redundant I/O module pair, configured through the DeltaV Explorer software environment.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term maintenance supported?
All KJ3201X1-EA1 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers the terminal block assembly, including the mechanical interface, electrical termination points, and carrier connector. For long-term maintenance, ZYPLC maintains inventory of KJ3201X1-EA1 and related DeltaV KJ3000 series components, enabling rapid replacement of failed units without extended lead times. Customers are encouraged to maintain a small buffer stock of critical I/O terminal blocks to minimize downtime risk in the event of unexpected failures. Our technical team is available to assist with compatibility verification, installation guidance, and system architecture review throughout the product lifecycle.
