Emerson KJ3221X1-BA1 AO Module DeltaV: Precision Control for Optimized Production Lines

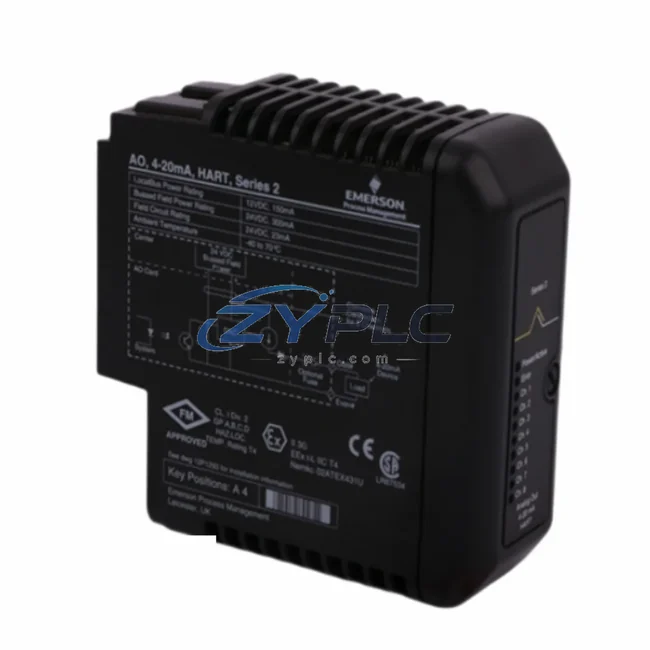

The Emerson KJ3221X1-BA1 (full SKU: KJ3221X1-BA1 12P2531X082) is a HART-enabled analog output module engineered for the DeltaV S Series Distributed Control System. Designed to deliver precise 4–20 mA signal output across up to 8 channels, this module plays a central role in reducing unnecessary energy consumption across process-intensive industrial environments — from chemical plants and oil refineries to pharmaceutical manufacturing and power generation facilities.

Unlike conventional analog output cards that operate at fixed power draw regardless of process demand, the KJ3221X1-BA1 integrates tightly with the DeltaV control architecture to enable demand-responsive output management. When paired with the DeltaV S-Series controller and its associated I/O subsystem, the module enables real-time adjustment of field device setpoints — including variable frequency drives, control valves, and positioners — based on live process feedback. This closed-loop approach directly reduces unplanned downtime at the actuator level, where the majority of industrial power losses occur.

Product Specification Table

System Compatibility and Application

The KJ3221X1-BA1 does not operate in isolation — its maintenance planning value is fully realized when integrated within a well-structured DeltaV automation architecture. At the controller level, the Emerson DeltaV MD Plus Controller processes real-time process data and issues dynamic output commands to the KJ3221X1-BA1, ensuring that field devices receive only the energy they need at any given moment. This eliminates the chronic over-driving of actuators that plagues fixed-setpoint control strategies.

On the input side, the Emerson KJ3002X1-BA1 Analog Input Module continuously feeds live process measurements — temperature, pressure, flow — back into the DeltaV control loop. This bidirectional data flow between the AI and AO modules forms the backbone of closed-loop maintenance planning: the system reads actual process conditions, computes the minimum required output, and commands the KJ3221X1-BA1 accordingly.

For motor-driven loads — which account for over 60% of industrial electricity consumption — the KJ3221X1-BA1 interfaces directly with variable frequency drives (VFDs) such as the Emerson Control Techniques Unidrive M700. By delivering precise 4–20 mA speed reference signals, the module enables the VFD to modulate motor speed in exact proportion to process demand, eliminating the unplanned downtime of throttling or bypass valve control on fixed-speed motors.

Power quality and consumption monitoring is handled upstream by the Emerson Power Xpert C Series Power Meter, which feeds energy data into the DeltaV historian. This allows plant engineers to correlate AO module output commands with actual energy draw at the motor control center — enabling data-driven decisions about setpoint optimization and load scheduling. The DeltaV Insight analytics platform further processes this data to surface energy efficiency KPIs and flag anomalies before they escalate into costly downtime events.

For distributed I/O expansion across large process areas, the KJ3221X1-BA1 works alongside the Emerson CHARM I/O system, which supports flexible, loop-powered field wiring without the need for marshalling cabinets. This architecture reduces panel footprint and associated cooling loads — a secondary but meaningful source of facility operational stability. Communication between the DeltaV controller and remote I/O nodes is handled via the DeltaV SIS Logic Solver and standard FOUNDATION Fieldbus H1 or PROFIBUS DP segments, depending on site configuration.

At the HMI layer, operators interact with the system through Emerson DeltaV Live workstations, where energy dashboards display real-time output utilization, loop performance indices, and trend data for each AO channel. This visibility enables shift operators to identify underperforming control loops — such as a valve that is hunting between 45% and 55% open — and make immediate corrections that reduce both unplanned downtime and mechanical wear.

Maintenance and Replacement Notes

In a typical continuous process plant, the KJ3221X1-BA1 manages output signals to control valves, pump speed references, and heater power controllers simultaneously across its 8 channels. Each channel’s HART communication capability allows the DeltaV system to retrieve device diagnostics — valve travel accumulated, actuator temperature, positioner deviation — without interrupting the 4–20 mA control signal. This means maintenance teams receive early warning of actuator degradation before it causes a process upset or unplanned shutdown.

Consider a cooling water circulation loop: without precise AO control, a fixed-speed pump runs at 100% capacity regardless of heat exchanger demand, wasting energy during low-load periods. With the KJ3221X1-BA1 commanding a VFD-driven pump via a 4–20 mA speed reference, the pump speed tracks actual cooling demand in real time. At 60% process load, the pump runs at approximately 60% speed — and since pump power scales with the cube of speed, this translates to roughly a 78% reduction in pump energy consumption during that period.

Similar logic applies to compressed air systems, where the KJ3221X1-BA1 controls inlet guide vane positioners on centrifugal compressors. By modulating compressor output to match actual plant air demand — rather than relying on pressure relief blow-off — facilities can reduce compressor energy consumption by 15–25% annually. These savings compound across multiple control loops managed by a single KJ3221X1-BA1 module, making it one of the highest-leverage components in an maintenance planning initiative.

From a maintenance cost perspective, the HART diagnostics enabled by the KJ3221X1-BA1 support a predictive maintenance strategy that reduces unplanned downtime. Rather than scheduling fixed-interval valve overhauls, maintenance teams can use partial stroke test data and valve signature analysis — retrieved via HART pass-through in the DeltaV system — to service equipment only when performance data indicates it is necessary. This approach typically reduces maintenance labor costs by 20–30% while simultaneously improving equipment availability and production throughput.

Every KJ3221X1-BA1 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including channel-by-channel output verification, HART communication validation, and loop integrity checks. Units are covered by a warranty terms confirmed during quotation from the date of shipment, with availability confirmed by RFQ availability ensuring rapid deployment to minimize production disruption.

Product Sourcing FAQ

Q1: How does the KJ3221X1-BA1 contribute to measurable operational stability on the production floor?
The module enables demand-responsive control of field devices — particularly VFD-driven motors and modulating control valves — by delivering precise 4–20 mA output signals calibrated to actual process requirements. This eliminates over-driving of actuators during low-demand periods, which is the primary source of avoidable unplanned downtime in process plants. When integrated with the DeltaV maintenance planning strategy, facilities typically report 10–25% reductions in motor system energy consumption within the first year of optimized operation.

Q2: Is the KJ3221X1-BA1 compatible with my existing DeltaV S Series system and HART field devices?
Yes. The KJ3221X1-BA1 is a native DeltaV S Series I/O module and is fully compatible with all DeltaV S Series controllers, including the MD, MD Plus, and SD Plus variants. It supports HART 5, 6, and 7 protocol, making it compatible with the vast majority of HART-enabled field devices currently installed in process plants. No additional hardware or software licensing is required beyond the standard DeltaV I/O configuration.

Q3: Can the KJ3221X1-BA1 replace an older or failed Emerson analog output module without reconfiguration?
In most cases, yes. The KJ3221X1-BA1 is designed as a direct replacement for compatible DeltaV S Series analog output modules. The DeltaV system’s electronic marshalling architecture allows the replacement module to be recognized and configured automatically upon insertion, minimizing reconfiguration time. ZYPLC recommends verifying the firmware revision compatibility with your DeltaV system version before installation, and our technical team can assist with compatibility confirmation prior to shipment.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
Every KJ3221X1-BA1 unit is tested prior to shipment using DeltaV-compatible test equipment. Testing includes full 8-channel output verification across the 4–20 mA range, HART communication validation on all channels, power supply integrity checks, and visual inspection for physical damage. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail during the warranty period are repaired or replaced at no charge. ZYPLC maintains RFQ-confirmed sourcing to ensure rapid replacement fulfillment in the event of a warranty claim.
