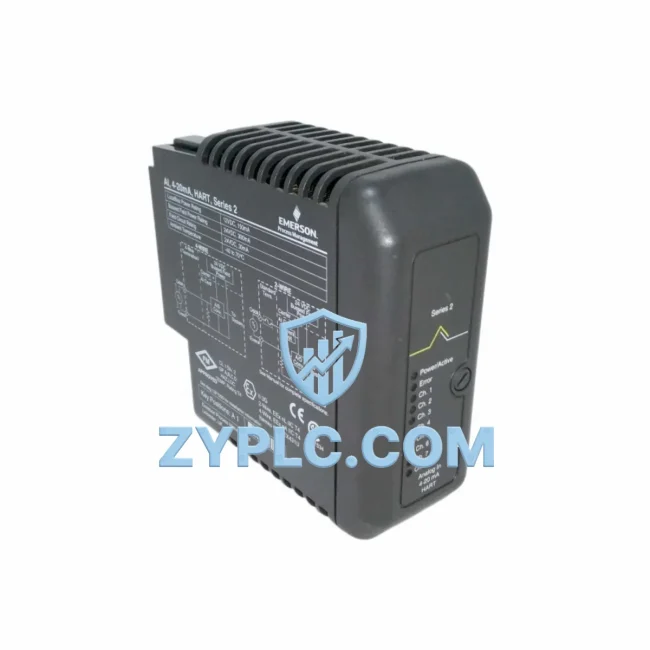

Emerson KJ3222X1-BA1 12P2532X112 HART Analog Input Module | DeltaV

Emerson KJ3222X1-BA1 12P2532X112: Industrial Data Link for DeltaV Smart Factory Networks

The Emerson KJ3222X1-BA1 12P2532X112 is a high-performance HART Analog Input Module engineered for seamless integration within the Emerson DeltaV Distributed Control System (DCS). Designed to bridge field-level instrumentation with upper-layer control and monitoring platforms, this module serves as a critical node in the industrial data chain — connecting HART-enabled sensors, transmitters, and field devices to the DeltaV controller backbone, SCADA systems, and HMI workstations. Whether deployed in oil & gas, chemical processing, power generation, or advanced manufacturing, the KJ3222X1-BA1 delivers the signal integrity, protocol fidelity, and network stability that modern smart factories demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated DeltaV automation architecture, the KJ3222X1-BA1 acts as the primary signal acquisition gateway between the physical process layer and the digital control network. Field instruments — including HART-compatible pressure transmitters, temperature sensors, flow meters, and level gauges — connect directly to this analog input module, which digitizes and transmits multi-variable process data upstream to the Emerson DeltaV MD Controller or DeltaV MQ Controller via the DeltaV I/O bus.

Within the DeltaV system, the KJ3222X1-BA1 works in close coordination with the Emerson KJ3001X1-BA1 DeltaV Controller Carrier and the KJ2005X1-BA1 Power Supply Module, ensuring stable bus voltage and uninterrupted signal flow across the I/O subsystem. For applications requiring redundant field communication, the module integrates with Emerson CHARM I/O (Characterization Module) architecture, enabling hot-swap capability and channel-level redundancy without process interruption.

Data collected by the KJ3222X1-BA1 flows through the DeltaV network to Emerson DeltaV Operate HMI workstations, where operators monitor real-time process variables, configure alarm thresholds, and initiate control actions. Simultaneously, the HART digital channel enables the Emerson AMS Device Manager to perform remote asset diagnostics, predictive maintenance scheduling, and device health monitoring — all without interrupting the 4–20 mA analog signal loop.

For plant-wide data integration, the KJ3222X1-BA1 supports upstream connectivity to OSIsoft PI System and third-party SCADA platforms via the DeltaV OPC DA/UA server interface. This enables historians, MES platforms, and enterprise ERP systems to consume real-time and historical process data from HART field devices, closing the loop between field instrumentation and business intelligence layers. In multi-zone facilities, the module can be paired with Emerson Smart Wireless THUM Adapters to extend HART communication over WirelessHART networks, further expanding the reach of the data acquisition layer without additional wiring infrastructure.

For drive and motion control integration, process signals acquired by the KJ3222X1-BA1 can be routed to variable frequency drives (VFDs) and servo controllers via DeltaV function blocks, enabling closed-loop speed and flow control based on live sensor feedback. This tightly coupled data flow — from sensor to controller to drive — is the foundation of energy-efficient, responsive process automation in smart manufacturing environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial facilities is data isolation — the inability to move process information seamlessly between field devices, control systems, and upper-layer monitoring platforms. The Emerson KJ3222X1-BA1 12P2532X112 directly addresses this challenge by providing a standards-based HART communication interface that bridges the gap between analog field instruments and digital control networks.

Protocol Unification: Many industrial sites operate a mix of legacy 4–20 mA devices and modern HART-enabled instruments. The KJ3222X1-BA1 supports both simultaneously — preserving the analog signal for control while extracting HART digital data for diagnostics and asset management. This eliminates the need for separate protocol converters or gateway hardware in most DeltaV deployments.

Eliminating Data Silos: By integrating HART device variables directly into the DeltaV control database, the KJ3222X1-BA1 makes secondary process variables (such as sensor temperature, loop current, and device status) available to SCADA, HMI, and historian systems — data that would otherwise remain trapped inside the field device. This transparency supports production line visibility, quality traceability, and regulatory compliance reporting.

Remote Monitoring and Diagnostics: The HART communication channel enables remote configuration and diagnostics of field instruments without physical access to the device. Maintenance teams can interrogate device health, calibration status, and fault codes from the control room or via remote access tools — reducing unplanned downtime and eliminating unnecessary site visits.

System Scalability: The modular architecture of the DeltaV I/O system, anchored by modules like the KJ3222X1-BA1, allows facilities to expand their analog input capacity incrementally. Additional I/O carriers and modules can be added to existing controller nodes without redesigning the control network, supporting phased capacity expansion aligned with production growth.

Pre-Shipment Testing and Quality Assurance: Every KJ3222X1-BA1 12P2532X112 unit supplied by ZYPLC undergoes functional verification prior to dispatch, including communication integrity checks and module self-diagnostic validation. All units are backed by a 12-month warranty, with in-stock availability for rapid global deployment.

Industrial Connectivity FAQ

Q1: What communication protocol does the KJ3222X1-BA1 support, and is it compatible with non-Emerson HART devices?
The KJ3222X1-BA1 supports the HART protocol (revision 5, 6, and 7) over standard 4–20 mA wiring. It is compatible with any HART-compliant field device from any manufacturer, though full multi-variable and diagnostic data access is optimized within the Emerson DeltaV and AMS Device Manager environment.

Q2: How does the KJ3222X1-BA1 ensure network stability and minimize communication latency in high-channel-count DeltaV systems?
The module uses dedicated HART modem circuitry per channel, ensuring that HART polling on one channel does not introduce latency on adjacent channels. The DeltaV I/O bus architecture provides deterministic scan rates, and the module’s onboard diagnostics continuously monitor signal quality, reporting anomalies to the DeltaV controller before they impact process control.

Q3: Can the KJ3222X1-BA1 be integrated with third-party SCADA systems and OPC-based historian platforms?
Yes. Process variables and HART device data acquired by the KJ3222X1-BA1 are stored in the DeltaV real-time database and are accessible to any OPC DA or OPC UA client, including third-party SCADA platforms, OSIsoft PI, and MES systems. This makes the module a versatile data source for plant-wide integration initiatives.

Q4: What warranty and support terms apply to the KJ3222X1-BA1 12P2532X112 supplied by ZYPLC?
All KJ3222X1-BA1 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Units are sourced from verified supply channels, functionally tested prior to dispatch, and shipped with full traceability documentation. For RFQ, lead time, and technical support, contact ZYPLC directly.
