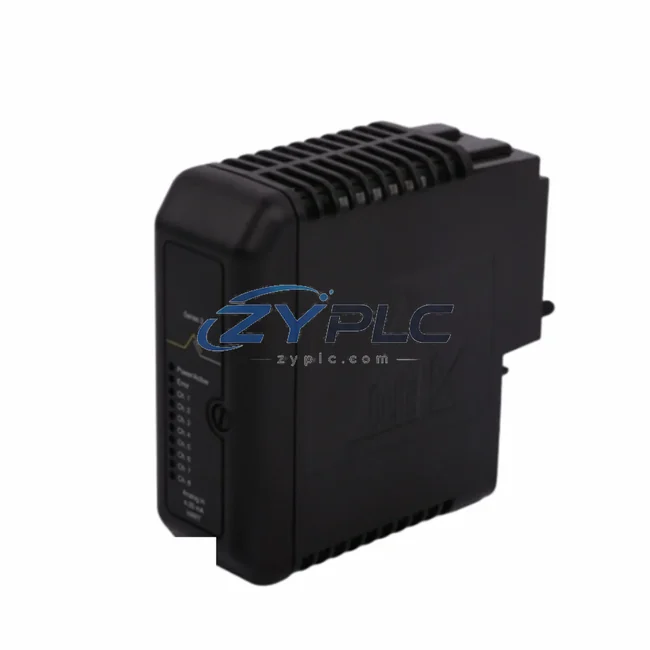

Emerson KJ3222X1-BA1 Analog Input for DeltaV

Emerson KJ3222X1-BA1 Analog Input for DeltaV

The Emerson KJ3222X1-BA1 (12P2532X072) is a high-precision analog input module engineered for seamless system integration within Emerson DeltaV Distributed Control System (DCS) architectures. Designed to occupy a defined role in the I/O layer of a multi-tier automation hierarchy, this module serves as a critical signal acquisition node that bridges field instrumentation with the DeltaV controller platform. Its architecture-ready design ensures that engineers can deploy, expand, and maintain control systems with minimal disruption to ongoing operations, backed by a warranty terms confirmed during quotation from ZYPLC.

In a fully layered DeltaV control architecture, the KJ3222X1-BA1 operates at the I/O layer, receiving 4–20 mA or voltage signals from field transmitters such as pressure, temperature, flow, and level instruments. These signals are conditioned, digitized, and passed upstream to the DeltaV MD or MD Plus controller modules via the DeltaV I/O bus, enabling real-time process monitoring and closed-loop control execution. The module’s tight integration with the DeltaV Electronic Marshalling system — particularly when paired with CHARM I/O cards — allows for flexible signal routing without the need for traditional hardwired marshalling cabinets, significantly reducing engineering hours during system commissioning and future expansion.

From a system architecture perspective, the KJ3222X1-BA1 is designed to coexist with a broad range of DeltaV subsystem components. In a typical control cabinet, it is installed on a DeltaV I/O carrier or 2-wide power/controller carrier, sharing backplane communication with adjacent modules such as the KJ3221X1-BA1 analog output module, KJ2201X1-BA1 discrete input module, and KJ2211X1-BA1 discrete output module. Power distribution to the I/O subsystem is managed through the KJ1501X1-BA2 or KJ1501X1-BA3 power supply modules, which provide regulated 24 VDC to the carrier assembly and ensure stable operation across the full I/O node. This coordinated power and signal architecture is fundamental to achieving consistent system uptime in demanding industrial environments.

Network-layer integration is achieved through the DeltaV controller’s built-in Ethernet port or via dedicated CIOC (Controller I/O Card) communication paths. In redundant architectures, the KJ3222X1-BA1 can be deployed in mirrored I/O configurations alongside a redundant controller pair — such as dual KJ3001X1-BA1 DeltaV MD Plus controllers — ensuring that a single hardware failure does not interrupt signal acquisition or process control. This redundancy capability is essential in high-availability applications such as refinery distillation columns, power generation turbine controls, and pharmaceutical batch reactors where process continuity is non-negotiable.

At the human-machine interface layer, process values acquired by the KJ3222X1-BA1 are displayed and managed through DeltaV Operate workstations or DeltaV Live HMI environments. Operators can monitor real-time analog trends, configure alarm thresholds, and initiate control actions based on the digitized field signals delivered by this module. Integration with the DeltaV Continuous Historian further enables long-term data archiving and process analytics, supporting both operational excellence and regulatory compliance across multi-site enterprise architectures.

For system commissioning and long-term maintenance, the KJ3222X1-BA1 supports DeltaV Diagnostics, allowing maintenance engineers to perform channel-level health checks, verify signal integrity, and identify wiring faults without removing the module from service. This capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies in facilities where unplanned downtime carries high operational costs. The module’s diagnostic transparency also simplifies periodic calibration verification, ensuring measurement accuracy is maintained throughout the product lifecycle.

ZYPLC supplies the KJ3222X1-BA1 with a warranty terms confirmed during quotation, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional verification prior to shipment, and our technical team provides pre-sales architecture consultation to confirm module compatibility with your existing DeltaV system revision and carrier configuration. Global logistics support ensures fast delivery to industrial sites across Asia, the Middle East, Europe, and the Americas.

Product Specification Table

System Compatibility Notes

The KJ3222X1-BA1 achieves its full performance potential when deployed as part of a coordinated DeltaV control node rather than as a standalone component. In a standard DeltaV I/O subsystem, the module is mounted on an 8-wide I/O carrier alongside complementary modules: the KJ3221X1-BA1 analog output module handles final control element commands (e.g., control valve positioners), while the KJ2201X1-BA1 discrete input module captures digital status signals from motor starters, limit switches, and safety interlocks. The KJ2211X1-BA1 discrete output module drives solenoid valves, relay coils, and motor control center (MCC) start/stop commands, completing the signal chain from field device to control strategy.

Controller-level coordination is managed by the KJ3001X1-BA1 DeltaV MD Plus Controller, which executes control strategies in IEC 61131-3 function block language and communicates with all I/O modules via the carrier backplane. In redundant configurations, a second MD Plus controller operates in hot-standby mode, with automatic bumpless transfer ensuring zero process disruption during controller switchover. Power integrity across the I/O node is maintained by the KJ1501X1-BA3 Power Supply Module, which provides regulated 24 VDC with built-in diagnostics for voltage and current monitoring, safeguarding the entire I/O assembly against power transients.

For applications requiring intrinsic safety or HART field device integration, the KJ3222X1-BA1 can be paired with DeltaV CHARM I/O cards and CHARMS Electronic Marshalling baseplates, enabling per-channel signal characterization and eliminating the need for traditional junction boxes. Communication gateways such as the DeltaV SIS Logic Solver or FOUNDATION Fieldbus H1 Interface Card extend the architecture into safety-instrumented systems and fieldbus device networks, providing a unified engineering environment across both regulatory and safety control layers. This level of system integration across hardware tiers is what distinguishes a well-engineered DeltaV system from a collection of individual components.

Industrial Application Notes

The KJ3222X1-BA1 is deployed across a wide range of process industries where reliable analog signal acquisition is fundamental to safe and efficient operations. In petroleum refining and petrochemical processing, the module acquires temperature and pressure signals from heat exchangers, distillation columns, and reactor vessels, feeding real-time data to DeltaV advanced process control (APC) applications that optimize yield and energy consumption. In power generation, it monitors turbine inlet temperatures, generator cooling water flows, and boiler drum levels, supporting both normal operations and emergency shutdown sequences coordinated through the DeltaV SIS platform.

In water and wastewater treatment facilities, the KJ3222X1-BA1 integrates with flow transmitters, pH analyzers, and dissolved oxygen sensors across multiple treatment stages, enabling centralized SCADA visibility and automated dosing control. Pharmaceutical and biotech manufacturing applications leverage the module’s high-resolution 16-bit ADC for precise monitoring of bioreactor temperature, pH, and dissolved oxygen — parameters that directly impact product quality and batch compliance under FDA 21 CFR Part 11 requirements, where data integrity and audit trail continuity are mandatory.

In mining and mineral processing, the module supports crusher load monitoring, flotation cell level control, and thickener density measurement, where harsh environmental conditions demand robust module construction and reliable backplane communication. Packaging and discrete manufacturing lines use the KJ3222X1-BA1 for tension control, web guiding, and fill-level verification, integrating analog process data with DeltaV batch management for recipe-driven production. Across all these verticals, the module’s consistent architecture footprint simplifies spare parts management and reduces the engineering burden of system expansions or plant-wide standardization initiatives.

Product Compatibility FAQ

Q1: Is the KJ3222X1-BA1 compatible with all DeltaV system revisions and carrier types?
The KJ3222X1-BA1 is compatible with DeltaV system revisions v10.3 and later, and is designed for use with standard DeltaV 2-wide and 8-wide I/O carriers. For installations on older system revisions (v9.x or earlier), firmware compatibility should be verified with Emerson DeltaV system documentation or confirmed with our technical team prior to ordering. ZYPLC provides pre-sales architecture review to confirm carrier and controller compatibility for your specific system configuration, ensuring seamless system integration with your existing infrastructure.

Q2: Can the KJ3222X1-BA1 be used in a redundant I/O architecture, and what additional components are required?
Yes. Redundant I/O configurations in DeltaV require the use of redundant I/O carriers and a redundant controller pair (e.g., dual KJ3001X1-BA1 MD Plus controllers). The KJ3222X1-BA1 itself does not require a redundant counterpart module — redundancy is managed at the controller and carrier level. For SIL-rated applications, integration with the DeltaV SIS platform and appropriate safety-rated I/O modules is recommended. Our engineering team can assist with redundancy architecture design and bill-of-materials preparation to meet your system availability targets.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects, functional failures, and component-level faults under normal operating conditions as defined by Emerson’s published environmental and electrical specifications. Warranty claims are initiated by contacting our technical support team with the module serial number, fault description, and system configuration details. Upon verification, ZYPLC will arrange for module replacement or repair at no additional cost. Warranty coverage begins from the date of shipment and applies to all KJ3222X1-BA1 units supplied through ZYPLC’s verified inventory.
