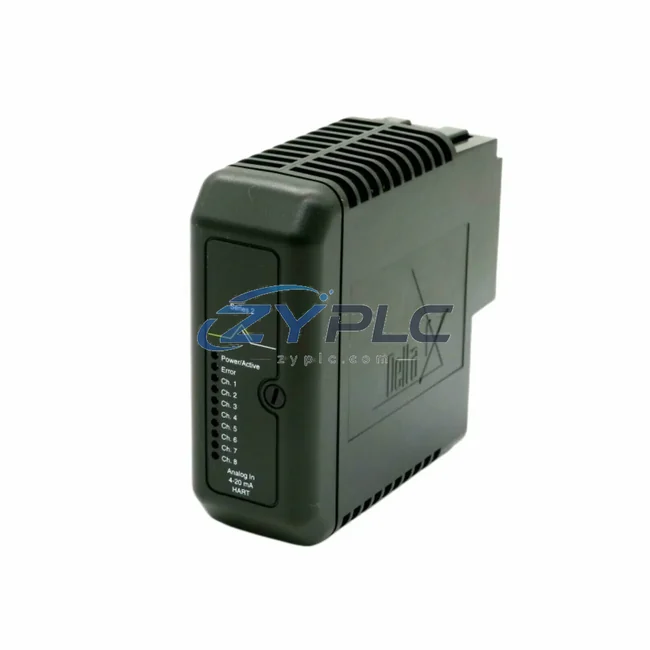

Emerson KJ3222X1-BA1 Analog Input Module

Emerson KJ3222X1-BA1 Analog Input Module: Replacement and Sourcing Information and Production Line Optimization

The Emerson KJ3222X1-BA1 12P2532X092 is a high-performance analog input module engineered for the DeltaV distributed control system (DCS) platform. Designed to meet the rigorous demands of industrial process automation, this module delivers accurate 4–20 mA HART signal acquisition with minimal power overhead — making it a cornerstone component for facilities committed to reducing unplanned downtime, improving equipment utilization, and achieving measurable gains in production line efficiency.

In modern manufacturing environments, maintenance planning begins at the signal level. The KJ3222X1-BA1 captures real-time process variables — including flow, pressure, temperature, and level — from field instruments and transmits them to the DeltaV controller with high fidelity and low latency. This precision data acquisition enables control loops to respond faster, reduce overshoot, and maintain tighter setpoints, all of which directly translate into lower operating load per unit of output.

Product Specification Table

System Compatibility and Application

The KJ3222X1-BA1 does not operate in isolation — it is a critical node within a broader industrial automation system. When integrated with the Emerson DeltaV MD Plus Controller (e.g., KJ2003X1-BA1), the analog input data collected by this module feeds directly into advanced PID control strategies that minimize motor run time and reduce pump cycling losses. Paired with the DeltaV KJ3001X1-BA1 Power Supply, the entire I/O subsystem maintains stable bus voltage even under variable load conditions, preventing energy spikes that degrade efficiency.

On the drive side, facilities often deploy Emerson Control Techniques Unidrive M700 variable frequency drives (VFDs) in conjunction with DeltaV analog outputs to regulate motor speed in real time. The KJ3222X1-BA1 closes this loop by feeding back actual process values — such as pump discharge pressure or conveyor belt tension — allowing the VFD to adjust motor frequency dynamically rather than running at fixed speed. This alone can help restore stable operation when a compatible replacement is required.

For facilities using Emerson AMS Device Manager alongside the DeltaV platform, the HART communication capability of the KJ3222X1-BA1 enables two-way communication with smart field instruments such as the Emerson Rosemount 3051 Pressure Transmitter and the Rosemount 8732 Magnetic Flowmeter Transmitter. This allows operators to retrieve diagnostic data, calibration status, and device health information without interrupting the process — reducing maintenance downtime and the unplanned downtimed during unplanned shutdowns.

At the HMI and SCADA layer, the Emerson DeltaV Operate workstation visualizes the real-time data streams from the KJ3222X1-BA1 across multiple process units. Operators can identify energy anomalies — such as a pump drawing excessive current relative to its flow output — and intervene before the condition escalates into a failure. Integration with the DeltaV Batch Executive further enables recipe-driven maintenance planning, where each production batch is executed with pre-optimized setpoints that minimize steam, compressed air, and electrical consumption.

For I/O expansion in large-scale DCS installations, the KJ3222X1-BA1 is typically mounted on a DeltaV 8-slot or 12-slot I/O carrier, sharing the backplane with analog output modules (e.g., KJ3221X1-BA1) and discrete I/O cards. This modular architecture allows engineers to scale the control system incrementally, adding condition monitoring points without redesigning the control cabinet or rewiring field instruments.

Maintenance and Replacement Notes

In a typical continuous process plant — such as a petrochemical refinery or a pharmaceutical API facility — dozens of KJ3222X1-BA1 modules may be deployed across multiple DeltaV cabinets, each responsible for acquiring signals from critical energy-consuming assets: heat exchangers, compressors, agitators, and cooling towers. The aggregate effect of accurate, low-latency signal acquisition is a control system that responds to process disturbances in milliseconds rather than seconds, preventing the energy-intensive overcorrections that occur when control loops operate on stale or noisy data.

Consider a steam-heated reactor where the KJ3222X1-BA1 monitors jacket temperature via a Rosemount 644 temperature transmitter. With accurate HART data flowing into the DeltaV controller, the steam control valve can be modulated precisely to maintain the target temperature within ±0.5°C, eliminating the steam waste associated with on/off control or poorly tuned PID loops. Over a 24-hour production cycle, this level of precision can reduce steam consumption by thousands of kilograms — a direct reduction in boiler fuel costs and CO₂ emissions.

In motor-driven applications, the KJ3222X1-BA1 supports predictive maintenance strategies by continuously monitoring vibration transmitter outputs and motor current signals. When these values trend outside normal operating bands, the DeltaV system can trigger maintenance alerts before a bearing failure or winding fault causes an unplanned shutdown. Planned maintenance windows are far less energy-intensive than emergency repairs, which often require extended restart sequences that consume disproportionate amounts of electrical energy.

The module’s compatibility with the DeltaV Electronic Marshalling architecture — using CHARM (Characterization Module) technology — further reduces installation complexity and wiring costs in new projects. By eliminating traditional marshalling cabinets, plants can reduce panel footprint, improve cable routing efficiency, and lower the overall operating load of the control room infrastructure.

Every unit of the KJ3222X1-BA1 12P2532X092 supplied by ZYPLC undergoes full functional testing prior to shipment, including signal accuracy verification across the full 4–20 mA range, HART communication validation, and power consumption measurement. This ensures that the module performs to Emerson’s original specifications from day one, with no hidden degradation that could compromise control loop performance or energy efficiency. Stock is maintained for shipment arranged after confirmation, supporting urgent MRO (Maintenance, Repair, and Operations) requirements without extended lead times.

Product Sourcing FAQ

Q1: How does the KJ3222X1-BA1 contribute to measurable operational stability in a DCS-controlled plant?
By providing high-accuracy 4–20 mA HART signal acquisition, the KJ3222X1-BA1 enables the DeltaV controller to execute tighter, more responsive control loops. Tighter control means less unplanned downtimed on overcorrection, unnecessary valve cycling, and motor speed fluctuations. In variable-load processes, this can translate to 10–30% reductions in operating load for individual control loops.

Q2: Is the KJ3222X1-BA1 12P2532X092 compatible with my existing DeltaV system?
Yes. The KJ3222X1-BA1 is designed for the Emerson DeltaV platform and is compatible with DeltaV S-Series and M-Series controllers. It mounts on standard DeltaV I/O carriers and is recognized by DeltaV Explorer without additional configuration. If you are upgrading from an older DeltaV revision, please verify your controller firmware version supports the module’s HART revision.

Q3: What is the recommended replacement or upgrade path if my existing analog input module is degraded?
The KJ3222X1-BA1 12P2532X092 is a direct replacement for units showing signal drift, HART communication failures, or intermittent channel faults. No DeltaV database changes are required for a like-for-like swap. For applications requiring higher channel density or intrinsic safety, consider evaluating the DeltaV CHARM analog input characterization modules as an alternative architecture.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All KJ3222X1-BA1 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Prior to shipment, each unit undergoes a multi-point functional test: full 4–20 mA signal sweep, HART protocol handshake verification, power consumption check, and visual inspection for connector and board integrity. Test records are available upon request. Units that do not pass all test criteria are not shipped.
