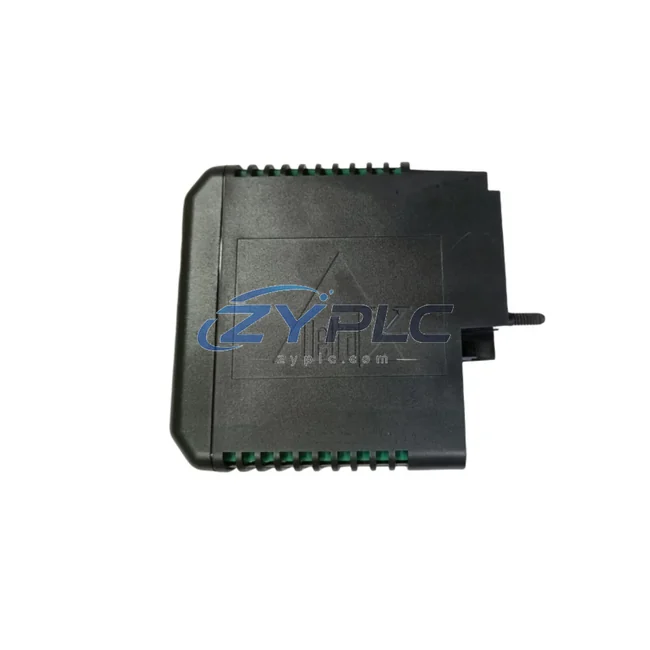

Emerson KJ3223X1-BA1 DCS I/O Module for DeltaV Systems

Emerson KJ3223X1-BA1 12P2871X032: Industrial Data Link for DeltaV Smart Factory Networks

The Emerson KJ3223X1-BA1 12P2871X032 is a high-performance DCS I/O Module engineered for the Emerson DeltaV Series distributed control system. Designed to serve as a critical node in industrial network architectures, this module bridges field-level instrumentation with upper-level control and monitoring platforms — enabling seamless, real-time data flow across the entire automation hierarchy. Whether deployed in oil & gas processing, chemical manufacturing, power generation, or pharmaceutical production, the KJ3223X1-BA1 delivers the communication reliability and protocol compatibility that modern smart factories demand.

At its core, the KJ3223X1-BA1 supports the HART (Highway Addressable Remote Transducer) communication protocol, allowing simultaneous analog signal transmission and digital communication over the same two-wire loop. This dual-channel capability means that field devices — including pressure transmitters, flow meters, temperature sensors, and valve positioners — can deliver both process values and rich diagnostic data to the DeltaV controller without additional wiring infrastructure. The result is a leaner, more cost-effective network topology that does not sacrifice data depth or system visibility.

In a typical DeltaV deployment, the KJ3223X1-BA1 sits between the field instrument layer and the DeltaV MD or MQ controller, receiving HART signals from connected sensors and forwarding structured process data upstream to the DeltaV Workstation, Historian, and SCADA/HMI platforms. This data chain supports real-time monitoring, alarm management, and closed-loop control — all essential functions for achieving production transparency and operational efficiency in Industry 4.0 environments.

Compatibility & Integration Notes

Connected Automation Data Flow

The KJ3223X1-BA1 operates at the heart of a layered industrial communication architecture. Signal acquisition begins at the field device level, where HART-enabled instruments — such as Emerson Rosemount 3051 pressure transmitters, Rosemount 648 wireless temperature transmitters, and Fisher DVC6200 digital valve controllers — generate both analog 4–20 mA process signals and HART digital diagnostic packets. The KJ3223X1-BA1 receives these combined signals and decodes the HART data layer, making device health, calibration status, and process variables available to the DeltaV controller in real time.

From the controller level, processed data travels via the DeltaV network backbone — typically a redundant Ethernet or proprietary DeltaV bus — to the DeltaV Workstation running DeltaV Operate HMI software. Operators gain a live view of all connected field devices, with alarm thresholds, trend charts, and loop diagnostics displayed on a unified dashboard. Simultaneously, the DeltaV Historian captures time-stamped process data for compliance reporting, performance analysis, and predictive maintenance workflows.

For facilities integrating third-party systems, the KJ3223X1-BA1’s data can be bridged to Modbus TCP or OPC-UA gateways — such as the Emerson ROC800 Remote Operations Controller or compatible edge gateway devices — enabling connectivity to enterprise MES and ERP platforms. Remote I/O panels equipped with Emerson CHARM I/O modules can extend the network reach to distant field areas, while Emerson AMS Device Manager provides a centralized interface for HART device configuration, calibration records, and predictive diagnostics across the entire plant network.

In drive and motor control applications, the KJ3223X1-BA1 can interface with variable frequency drives (VFDs) and soft starters that support HART or analog I/O, feeding speed, torque, and fault data back into the DeltaV control loop. This closed-loop integration supports maintenance planning strategies and reduces unplanned downtime by enabling early fault detection at the drive level before failures propagate to the process.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where field instruments, PLCs, DCS controllers, and SCADA systems operate in disconnected silos, preventing plant managers from achieving a unified view of production performance. The Emerson KJ3223X1-BA1 directly addresses this challenge by serving as a protocol-aware I/O interface that translates HART field device data into structured, controller-readable information that can be forwarded to any connected monitoring or analytics platform.

In plants where older 4–20 mA instruments have been retained alongside newer HART-capable devices, the KJ3223X1-BA1 provides a migration path that preserves existing wiring infrastructure while unlocking digital communication capabilities. Plant engineers can configure HART pass-through to AMS Device Manager without interrupting the analog control loop, enabling non-intrusive device diagnostics and remote calibration — a critical advantage in hazardous or hard-to-access field locations.

For production line transparency, the KJ3223X1-BA1 enables the DeltaV system to expose real-time OEE (Overall Equipment Effectiveness) data to SCADA dashboards and MES platforms, closing the gap between field-level sensor data and management-level KPI reporting. Alarm rationalization becomes more effective when every field device can report its own health status, reducing nuisance alarms and enabling operators to focus on genuine process deviations.

System expansion is equally straightforward: additional KJ3223X1-BA1 modules can be added to the DeltaV I/O subsystem without controller reconfiguration, supporting phased capacity growth as production demands increase. Each module ships pre-tested and verified, with full functional testing completed prior to dispatch, ensuring plug-and-play integration into existing DeltaV architectures.

Industrial Connectivity FAQ

Q1: What communication protocol does the KJ3223X1-BA1 support, and is it compatible with non-Emerson field devices?
The KJ3223X1-BA1 supports the HART protocol, which is an open, internationally recognized standard. It is compatible with any HART-compliant field device, regardless of manufacturer, making it suitable for mixed-vendor field instrument environments commonly found in brownfield plant upgrades.

Q2: How does this module ensure network stability and minimize communication latency in a DeltaV DCS environment?
The KJ3223X1-BA1 is designed for deterministic HART communication within the DeltaV I/O subsystem. The module maintains stable analog signal integrity while processing HART digital packets asynchronously, ensuring that control loop performance is not degraded by diagnostic communication traffic. DeltaV’s redundant network architecture further protects against single-point communication failures.

Q3: Can the KJ3223X1-BA1 be integrated with SCADA systems and third-party HMI platforms?
Yes. Data acquired by the KJ3223X1-BA1 is processed by the DeltaV controller and made available via OPC-DA or OPC-UA interfaces, enabling integration with third-party SCADA platforms such as Wonderware, iFIX, or Ignition. This allows plant-wide data aggregation across heterogeneous control system environments.

Q4: What quality assurance and warranty coverage is provided with this module?
Every KJ3223X1-BA1 unit undergoes full functional testing and outgoing quality inspection prior to shipment. The module is covered by a warranty terms confirmed during quotation against manufacturing defects and communication failures. Availability is confirmed via RFQ for shipment arranged after confirmation via DHL or FedEx international express, with typical lead times of 3–7 business days to major industrial regions worldwide.
