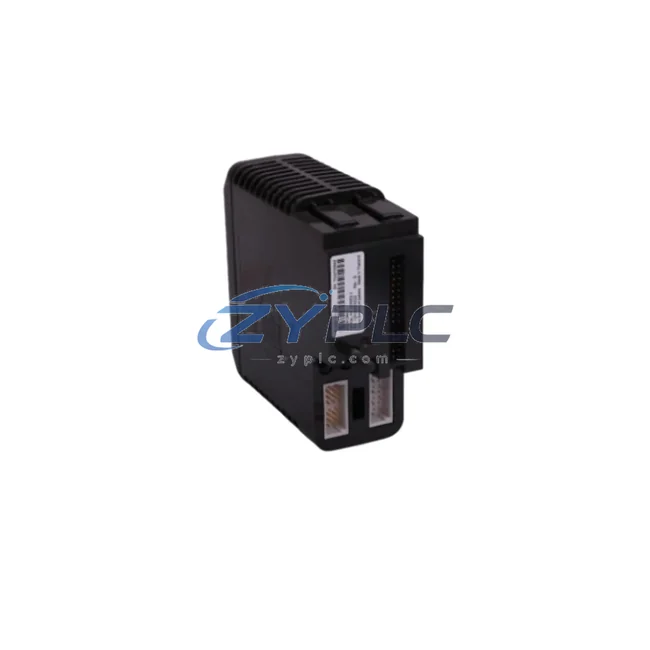

Emerson KJ3241X1-BA1 12P2506X042 Redundant Serial Interface for DeltaV

Emerson KJ3241X1-BA1 12P2506X042 Redundant Serial Interface for DeltaV

The Emerson KJ3241X1-BA1 12P2506X042 Redundant Serial Interface Card is a purpose-engineered communication module designed to operate at the heart of the DeltaV distributed control system architecture. Rather than functioning as a standalone peripheral, this card serves as a critical bridge between the DeltaV controller layer and field-level serial devices, enabling deterministic, fault-tolerant data exchange across multi-tier automation environments. Its redundant design ensures that serial communication paths remain intact even during single-point hardware failures, making it an indispensable component in high-availability process control installations across power generation, oil and gas, chemical processing, water treatment, and advanced manufacturing sectors.

In a fully integrated DeltaV system, the KJ3241X1-BA1 12P2506X042 does not operate in isolation. It is mounted within the DeltaV I/O subsystem carrier, sharing backplane resources with other I/O modules such as the KJ3002X1-BA1 analog input card, KJ3221X1-BA1 discrete output module, and KJ3222X1-BA1 discrete input module. The card communicates upstream with DeltaV MD or MQ series controllers via the internal I/O bus, while downstream it interfaces with serial field devices using RS-232 or RS-485 protocols. This layered communication topology ensures that signal integrity is maintained from the field instrument level all the way to the DeltaV operator workstation and historian server.

System architects integrating this card into a redundant DeltaV node will typically pair it with the KJ4001X1-BA1 power supply module to ensure stable, conditioned DC power delivery to the I/O carrier. The redundant serial interface capability of the KJ3241X1-BA1 12P2506X042 is particularly valuable in applications where serial-connected analyzers, flow computers, or motor control centers must maintain continuous communication with the DeltaV controller without interruption during scheduled maintenance or unplanned hardware events. The card supports automatic switchover between primary and secondary communication paths, reducing mean time to recovery and supporting overall system uptime objectives.

From a network architecture perspective, the KJ3241X1-BA1 12P2506X042 integrates seamlessly within DeltaV’s deterministic control network, which is typically structured around a dedicated Ethernet backbone connecting DeltaV workstations, application stations, and the DeltaV Pro Plus server. Serial data collected by this interface card is processed by the DeltaV controller and made available to the DeltaV Live or DeltaV Operate HMI environment, where operators can monitor serial device status, configure alarm thresholds, and execute control strategies in real time. This end-to-end data flow — from serial field device through the KJ3241X1-BA1 12P2506X042 to the HMI layer — exemplifies the system integration philosophy that defines modern DeltaV system design.

For engineering teams managing large-scale DeltaV installations, the KJ3241X1-BA1 12P2506X042 also contributes to long-term maintenance efficiency. Its hot-swap capability allows field technicians to replace the card without powering down the I/O carrier or interrupting adjacent modules such as the KJ3001X1-BA1 analog output card or KJ3101X1-BA1 thermocouple input module. This modularity reduces planned maintenance windows and supports continuous operation in facilities where process shutdowns carry significant economic or safety consequences. All units supplied by ZYPLC are fully tested, verified against Emerson factory specifications, and covered by a warranty terms confirmed during quotation, ensuring confidence in both immediate deployment and long-term operational reliability.

Product Specification Table

System Compatibility Notes

The KJ3241X1-BA1 12P2506X042 achieves its full value when deployed as part of a coordinated DeltaV control node rather than as an isolated replacement part. A typical DeltaV redundant controller node built around this serial interface card will include the following coordinated components:

At the controller layer, the DeltaV MD Plus or MQ controller module serves as the primary processing unit, executing control strategies and managing I/O communication across the backplane. The KJ3241X1-BA1 12P2506X042 connects to this controller via the DeltaV I/O bus, delivering serial device data in a format that the controller can process within its configured scan cycle. For redundant controller configurations, a secondary MD Plus controller module mirrors the primary, with the serial interface card’s dual-path design ensuring that communication continuity is preserved during controller switchover events.

At the power layer, the KJ4001X1-BA1 power supply module provides regulated DC power to the I/O carrier, supporting the KJ3241X1-BA1 12P2506X042 alongside co-resident modules such as the KJ3002X1-BA1 analog input card and KJ3222X1-BA1 discrete input module. Redundant power supply configurations — using dual KJ4001X1-BA1 units — further enhance system availability by eliminating the power supply as a single point of failure.

At the I/O layer, the KJ3241X1-BA1 12P2506X042 shares the carrier with analog and discrete I/O modules, including the KJ3001X1-BA1 analog output card for 4–20 mA control signal generation and the KJ3101X1-BA1 thermocouple input module for temperature measurement. This co-location within a single I/O carrier minimizes wiring complexity and supports a compact, high-density control cabinet layout.

At the network and HMI layer, serial data processed by the KJ3241X1-BA1 12P2506X042 is made available to the DeltaV Operate or DeltaV Live HMI environment via the DeltaV control network. Operators interact with serial device data through configured faceplates and trend displays, while the DeltaV Continuous Historian archives serial device values for long-term process analysis and regulatory compliance reporting.

Industrial Application Notes

The KJ3241X1-BA1 12P2506X042 is deployed across a wide range of industrial sectors where serial communication between DeltaV controllers and field devices is a fundamental system requirement.

In power generation facilities, this card interfaces DeltaV controllers with serial-connected turbine control panels, generator protection relays, and fuel flow computers, enabling centralized monitoring and control of generation assets from the DeltaV operator workstation.

In oil and gas processing plants, the KJ3241X1-BA1 12P2506X042 connects DeltaV to serial-based flow computers, gas chromatographs, and wellhead RTUs, supporting custody transfer measurement and production optimization workflows within a unified DeltaV control architecture.

In chemical and petrochemical facilities, the card enables DeltaV integration with serial-connected analyzers and reactor monitoring instruments, providing the real-time process data required for advanced process control and safety instrumented system coordination.

In water and wastewater treatment plants, the KJ3241X1-BA1 12P2506X042 supports DeltaV communication with serial-connected pump controllers, dosing system interfaces, and SCADA gateway devices, enabling centralized process management across geographically distributed treatment assets.

In mining and metallurgical operations, the card facilitates DeltaV integration with serial-based conveyor drive controllers, crusher monitoring systems, and smelter process instruments, supporting continuous production monitoring and predictive maintenance programs.

Product Compatibility FAQ

Q1: Is the KJ3241X1-BA1 12P2506X042 compatible with all DeltaV I/O carrier generations, and can it be installed alongside other DeltaV I/O modules without configuration conflicts?
The KJ3241X1-BA1 12P2506X042 is designed for installation in standard DeltaV I/O carriers and is compatible with the DeltaV MD, MQ, and MD Plus controller families. It can be co-installed with analog input, analog output, discrete input, and discrete output modules on the same carrier without configuration conflicts, provided that the carrier’s total power budget — supplied by the KJ4001X1-BA1 power supply module — is not exceeded. System architects should verify slot assignments and power budgets using the DeltaV Engineering configuration tool prior to deployment.

Q2: How does the redundant serial communication architecture of the KJ3241X1-BA1 12P2506X042 behave during a primary path failure, and what is the expected switchover time?
The KJ3241X1-BA1 12P2506X042 implements a dual-path serial communication architecture in which the secondary path monitors the primary path continuously. Upon detection of a primary path failure — whether due to cable fault, connector degradation, or module-level hardware event — the card executes an automatic switchover to the secondary path. Switchover is designed to be transparent to the DeltaV controller and the connected field device, with recovery occurring within the configured communication timeout window. This behavior supports the high-availability requirements of continuous process industries where serial communication interruptions can trigger process upsets or safety system activations.

Q3: What does the warranty terms confirmed during quotation cover for the KJ3241X1-BA1 12P2506X042, and what support is available for installation and commissioning?
All KJ3241X1-BA1 12P2506X042 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional testing and verification against Emerson factory specifications. For installation and commissioning support, ZYPLC’s technical team is available to assist with DeltaV configuration guidance, carrier slot assignment, and serial device integration. Customers requiring expedited replacement under warranty can contact ZYPLC directly to arrange advance exchange, minimizing system downtime during warranty service events.
