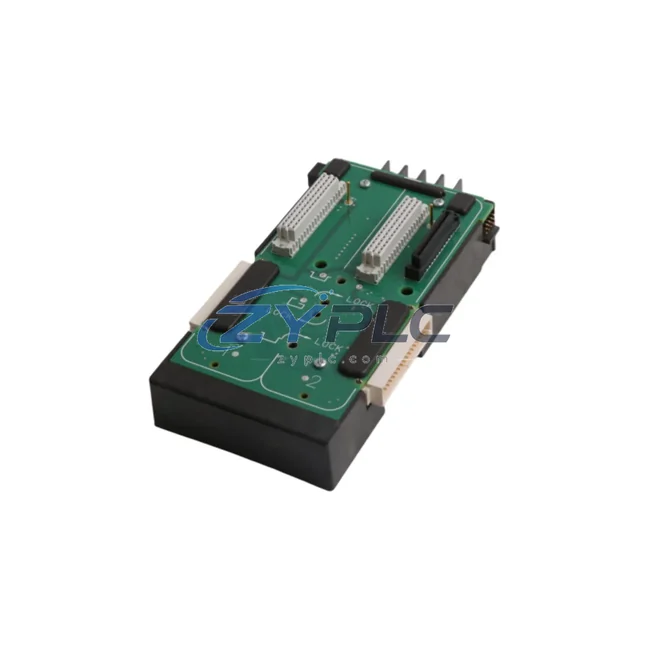

Emerson KJ4001X1-BA3 12P3378X022 Carrier Base for DeltaV

Emerson KJ4001X1-BA3 12P3378X022 Carrier Base for DeltaV

The Emerson KJ4001X1-BA3 12P3378X022 Wide Carrier Base Module is a foundational infrastructure component engineered for deployment within Emerson’s DeltaV distributed control system architecture. Designed to support modular I/O expansion across multi-tier automation environments, this carrier base provides the physical and electrical backbone that connects field-level signal modules to the DeltaV controller network. Its wide-format carrier design accommodates high-density I/O configurations, making it an essential element in control system builds where scalability, signal integrity, and long-term maintainability are primary engineering objectives.

In a fully layered DeltaV automation architecture, the KJ4001X1-BA3 12P3378X022 occupies a critical position at the I/O layer, bridging the gap between field instrumentation and the DeltaV MD or MD Plus controllers that manage process logic. The carrier base accepts a range of DeltaV I/O modules — including analog input cards such as the KJ3002X1-BA1, discrete output modules, and HART-enabled signal conditioners — and routes their data upstream through the DeltaV controller bus. This modular slot architecture allows engineers to configure mixed I/O assemblies within a single carrier, reducing panel footprint while maintaining full signal isolation between channels.

From a system architecture perspective, the KJ4001X1-BA3 integrates seamlessly with DeltaV redundant controller pairs, supporting hot-standby configurations where uninterrupted process control is mandatory. When paired with redundant power supplies such as the KJ4009X1-BB1 or equivalent DeltaV-rated power conditioners, the carrier base ensures that I/O modules remain energized and communicating even during primary power transitions. This redundancy capability is particularly valuable in continuous process industries — including petrochemical refining, power generation, and water treatment — where unplanned shutdowns carry significant operational and safety consequences.

The carrier base also plays a role in the network layer of the DeltaV architecture. I/O modules seated in the KJ4001X1-BA3 communicate with the DeltaV controller via the DeltaV I/O bus, which is internally routed through the carrier’s backplane. This eliminates the need for external field wiring between the carrier and the controller, reducing installation complexity and potential points of signal degradation. In larger system builds, multiple KJ4001X1-BA3 carriers can be deployed across a single controller node, expanding the total I/O count while maintaining a unified control domain managed through DeltaV Explorer and the DeltaV Operate HMI environment.

For human-machine interface integration, the DeltaV Operate workstation communicates with the controller network over Ethernet, and the I/O data collected through the KJ4001X1-BA3 carrier is made available in real time to operator displays, historian servers, and advanced process control applications. This end-to-end data path — from field sensor through the carrier base, into the controller, and up to the HMI — represents the core signal flow that the KJ4001X1-BA3 supports. Maintaining the integrity of this path is essential for accurate process monitoring, alarm management, and regulatory compliance in industries subject to functional safety standards such as IEC 61511.

Installation of the KJ4001X1-BA3 12P3378X022 follows standard DeltaV mechanical mounting procedures. The carrier mounts on standard DIN rail within a control cabinet, and I/O modules are inserted into the carrier slots without requiring system shutdown in hot-swap-capable configurations. This characteristic significantly reduces maintenance downtime during module replacement or system expansion activities. Field wiring connects to the I/O modules via marshalling terminals or directly to the module’s field termination assembly, depending on the cabinet design. Compatible termination assemblies and marshalling panels from the DeltaV ecosystem — including the CSLS series terminal blocks and KJ3221X1-BA1 analog output modules — can be integrated alongside the carrier to complete the field wiring architecture.

From a long-term maintenance and lifecycle management perspective, the KJ4001X1-BA3 is a stocked spare component that supports DeltaV systems deployed across multiple generations of the platform. Maintaining carrier base spares in the plant warehouse reduces mean time to repair (MTTR) for I/O subsystem faults, which is a key metric in reliability-centered maintenance programs. ZYPLC maintains verified inventory of the KJ4001X1-BA3 12P3378X022 with full functional testing prior to shipment, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects and operational failure. This warranty coverage provides procurement teams and plant engineers with the confidence needed to source replacement components outside of OEM channels without compromising system reliability commitments.

Whether you are expanding an existing DeltaV system, building a new process control architecture, or maintaining a critical spare inventory program, the Emerson KJ4001X1-BA3 12P3378X022 Wide Carrier Base Module delivers the structural and electrical foundation your I/O subsystem requires. Contact ZYPLC for availability, lead time, and technical compatibility confirmation for your specific DeltaV system configuration.

Product Specification Table

System Compatibility Notes

The KJ4001X1-BA3 12P3378X022 is designed to operate as part of a coordinated DeltaV control system rather than as a standalone component. In a typical DeltaV node assembly, the carrier base is populated with a combination of I/O modules selected to match the process signal requirements of the application. Analog input modules such as the KJ3002X1-BA1 handle 4–20 mA HART signals from field transmitters, while discrete input and output modules manage on/off signals from limit switches, solenoid valves, and motor starters. The KJ3221X1-BA1 analog output module provides 4–20 mA control signals to final control elements such as control valves and variable frequency drives.

Power distribution to the carrier and its hosted I/O modules is managed through DeltaV-compatible power supplies, with the KJ4009X1-BB1 power conditioner commonly deployed in redundant power configurations to ensure continuous module operation. The DeltaV MD Plus controller, mounted in the same or an adjacent cabinet, communicates with all I/O modules through the carrier’s backplane bus, executing control strategies defined in DeltaV Control Studio. For systems requiring remote I/O expansion, the DeltaV CHARM I/O architecture or traditional remote I/O nodes connected via DeltaV network switches extend the reach of the control system beyond the main equipment room.

At the network layer, DeltaV controllers communicate with operator workstations and engineering stations over a dedicated DeltaV control network, typically implemented as a redundant Ethernet ring using managed switches. The DeltaV Operate HMI displays real-time process data sourced from I/O modules seated in carriers like the KJ4001X1-BA3, providing operators with the visibility needed to manage complex process units. For safety-instrumented systems, the DeltaV SIS platform — including SIS controllers and SIS I/O modules — can be integrated within the same DeltaV architecture, sharing the operator interface while maintaining the independence required by IEC 61511 functional safety standards.

Industrial Application Notes

The Emerson KJ4001X1-BA3 12P3378X022 Wide Carrier Base Module finds application across a broad range of process industries where DeltaV DCS platforms are the control system of choice. In oil and gas processing facilities, the carrier base supports I/O assemblies that monitor separator pressures, flow rates, and temperature profiles across upstream and midstream process units. In power generation plants — including combined-cycle gas turbine facilities and coal-fired boiler systems — DeltaV carrier bases manage the dense I/O requirements of turbine control, boiler management, and balance-of-plant systems.

In the chemical and petrochemical sector, the KJ4001X1-BA3 is deployed in reactor control systems, distillation column management, and heat exchanger networks where precise analog signal handling and reliable I/O infrastructure are essential for product quality and process safety. Water and wastewater treatment facilities use DeltaV carrier bases to manage pump station controls, chemical dosing systems, and filtration process monitoring across geographically distributed plant sites. In mining and minerals processing, the carrier base supports mill control systems, flotation circuit management, and tailings handling automation where harsh environmental conditions demand robust and maintainable control hardware.

Pharmaceutical manufacturing environments, subject to FDA 21 CFR Part 11 and GAMP 5 validation requirements, rely on DeltaV’s integrated audit trail and electronic batch record capabilities — all of which depend on the reliable I/O infrastructure provided by carrier bases like the KJ4001X1-BA3. Packaging and material handling lines in food and beverage production also benefit from the modular I/O expansion capability of the DeltaV carrier architecture, allowing production line reconfigurations without wholesale control system redesign.

Product Compatibility FAQ

Q1: Is the KJ4001X1-BA3 12P3378X022 compatible with all generations of DeltaV I/O modules?
The KJ4001X1-BA3 Wide Carrier Base is designed for use with DeltaV traditional I/O modules and is compatible with the range of analog, discrete, and HART-enabled I/O cards supported by DeltaV MD, MD Plus, MQ, and SQ controllers. Compatibility with specific I/O module generations should be confirmed against the DeltaV hardware compatibility matrix for your system version. ZYPLC’s technical team can assist with compatibility verification for your specific DeltaV system build.

Q2: Can the KJ4001X1-BA3 be installed in a redundant power architecture, and does it support hot-swap I/O module replacement?
Yes. The KJ4001X1-BA3 carrier base is compatible with DeltaV redundant power supply configurations, ensuring that I/O modules remain operational during power supply transitions. In DeltaV systems configured for hot-swap I/O, individual I/O modules can be removed and replaced from the carrier slots without requiring a controller shutdown, minimizing process disruption during maintenance activities. This capability is a key advantage of the DeltaV modular I/O architecture for continuous process applications.

Q3: What warranty and quality assurance does ZYPLC provide for the KJ4001X1-BA3 12P3378X022?
All KJ4001X1-BA3 12P3378X022 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure. Prior to shipment, each unit undergoes functional testing to verify electrical integrity and backplane bus communication capability. ZYPLC maintains traceable inventory records and provides documentation support for plant maintenance and procurement teams. For orders, technical inquiries, or warranty claims, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
