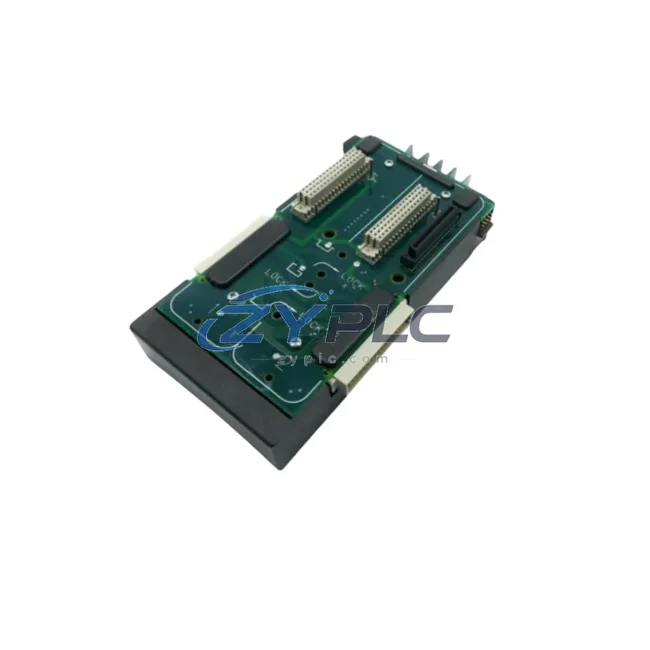

Emerson KJ4001X1-BA3 Carrier Base for DeltaV

Emerson KJ4001X1-BA3 Carrier Base: Control System and system integration

The Emerson KJ4001X1-BA3 (also referenced as 12P3378X012 / VE3051C0) is a wide carrier base module engineered for deployment within the Emerson DeltaV distributed control system platform. Rather than functioning as a standalone component, this carrier base serves as the structural and electrical backbone of the DeltaV I/O subsystem — the physical layer upon which I/O cards, controller modules, and communication interfaces are mounted, interconnected, and powered. Understanding its role within the full control system architecture is essential for engineers responsible for system design, expansion, redundancy planning, and long-term maintenance.

In a layered automation architecture, the KJ4001X1-BA3 occupies the I/O layer, bridging the controller layer above and the field device layer below. It provides the mechanical housing and backplane connectivity that allows DeltaV I/O modules — such as analog input cards, digital output cards, and HART-enabled signal conditioners — to communicate with the DeltaV controller over the internal system bus. Its wide-format design accommodates higher-density I/O configurations, making it particularly suited for process-intensive applications where channel count and cabinet space efficiency are both critical engineering constraints.

Product Specification Table

System Compatibility Notes

The KJ4001X1-BA3 does not operate in isolation — its value is realized through its integration with the broader DeltaV control system architecture. In a typical DeltaV installation, the carrier base is populated with DeltaV I/O modules such as the KJ3002X1-BA1 analog input card or the KJ3221X1-BA1 digital output module, both of which seat directly into the carrier’s backplane slots. These I/O cards receive field signals from transmitters, actuators, and sensors, and relay processed data upward to the DeltaV controller — typically a KJ2003X1-BA1 MD Plus Controller or a KJ2005X1-BA1 MD Controller — via the system bus embedded in the carrier base.

Power delivery to the carrier and its hosted I/O modules is managed through the DeltaV KJ1501X1-BA2 Power Supply, which connects to the carrier rail and distributes regulated DC power across all installed cards. In redundant system designs, a secondary power supply module is paired with the primary to ensure uninterrupted operation during power source failures — a critical requirement in continuous process industries such as oil refining, chemical processing, and power generation.

For systems requiring fieldbus or advanced digital communication, the carrier base supports the installation of DeltaV FOUNDATION Fieldbus H1 interface cards or PROFIBUS DP communication modules, enabling the DeltaV system to communicate with intelligent field devices over standardized industrial protocols. This system integration capability allows the KJ4001X1-BA3 to serve as the physical anchor point for multi-protocol I/O architectures within a single control cabinet.

At the human-machine interface layer, operators interact with the DeltaV system through DeltaV Operate workstations or remote engineering terminals, which communicate with the controller over the DeltaV control network — typically an Ethernet-based redundant ring topology. The carrier base, by ensuring reliable backplane signal integrity, directly supports the data fidelity that HMI displays depend upon for accurate real-time process visualization.

In cabinet-level design, the KJ4001X1-BA3 is typically mounted alongside DeltaV terminal blocks and marshalling panels that organize field wiring before it reaches the I/O cards. Proper carrier base selection — including the wide-format KJ4001X1-BA3 versus narrower alternatives — determines the maximum I/O density achievable within a given cabinet footprint, directly influencing both capital cost and future expansion capacity.

Industrial Application Notes

The KJ4001X1-BA3 wide carrier base module is deployed across a broad range of industrial automation sectors where the DeltaV platform is the control system of choice. In oil and gas processing facilities, it supports high-channel-count I/O subsystems managing pressure, temperature, flow, and level signals from wellhead equipment, separation trains, and pipeline monitoring systems. Its wide-format design allows engineers to maximize I/O density within explosion-proof or pressurized control enclosures where cabinet space is at a premium.

In power generation plants — including thermal, combined-cycle, and renewable energy facilities — the carrier base forms part of the DeltaV I/O infrastructure responsible for turbine control, boiler management, and grid synchronization monitoring. Redundant carrier and I/O configurations are standard in these environments, where a single point of failure in the control system can result in unplanned outages with significant financial and safety consequences.

For pharmaceutical and life sciences manufacturing, the DeltaV platform — and by extension the KJ4001X1-BA3 carrier base — is widely used in FDA-regulated batch processing environments. The carrier base supports the I/O modules that monitor critical process parameters such as bioreactor temperature, pH, dissolved oxygen, and agitation speed, all of which must be logged with full audit trail compliance under 21 CFR Part 11 requirements.

In water and wastewater treatment facilities, the carrier base enables DeltaV I/O subsystems to interface with pump motor drives, valve actuators, chemical dosing systems, and flow measurement instruments distributed across large geographic areas. Its compatibility with DeltaV remote I/O and FOUNDATION Fieldbus architectures makes it suitable for both centralized and distributed control topologies.

Across mining, metals, and minerals processing operations, the KJ4001X1-BA3 supports DeltaV control systems managing crusher circuits, flotation cells, thickener drives, and tailings management systems — environments characterized by high vibration, dust ingress, and wide ambient temperature ranges that demand robust, well-supported hardware with proven long-term availability.

Product Compatibility FAQ

Q1: Is the KJ4001X1-BA3 compatible with both legacy and current-generation DeltaV I/O modules?
The KJ4001X1-BA3 wide carrier base is designed for the DeltaV Series I/O platform and is compatible with a broad range of DeltaV I/O cards across multiple generations of the platform. Engineers integrating this carrier into existing DeltaV systems should verify compatibility with their specific DeltaV system version and I/O card revision levels. ZYPLC’s technical team can assist with compatibility verification prior to procurement to ensure seamless system integration within your existing control architecture.

Q2: Can this carrier base be used in a redundant DeltaV I/O architecture, and what additional components are required?
Yes, the DeltaV platform supports redundant I/O configurations in which paired I/O modules operate in active-standby or active-active modes to eliminate single points of failure at the I/O layer. Implementing redundant I/O with the KJ4001X1-BA3 typically requires compatible redundant I/O module pairs, a redundant power supply arrangement, and appropriate DeltaV system licensing. The carrier base itself provides the physical backplane infrastructure that supports these redundant module configurations. ZYPLC supplies matched carrier and I/O module sets to simplify redundant architecture procurement.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
All KJ4001X1-BA3 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional testing and inspection to confirm operational integrity. ZYPLC’s engineering support team is available to assist with installation guidance, system architecture questions, and commissioning troubleshooting. For long-term maintenance planning, ZYPLC maintains inventory of DeltaV carrier bases, I/O modules, and power supply components to support rapid replacement needs and minimize control system downtime.
