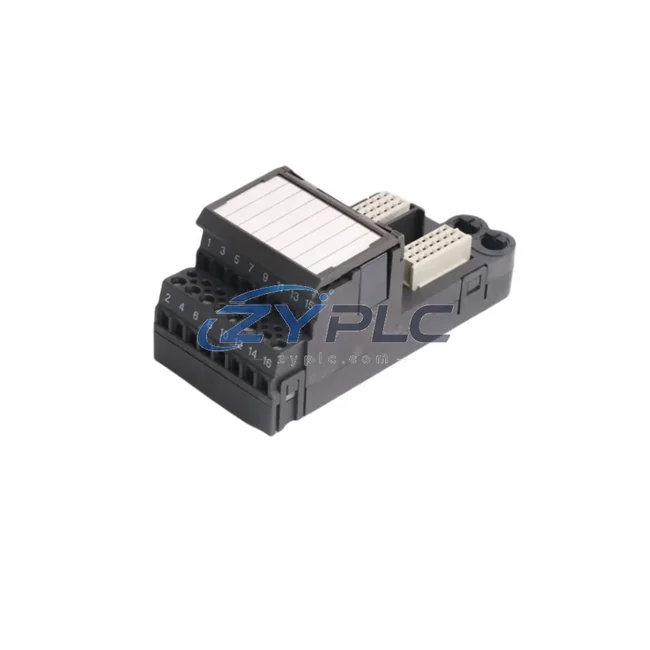

Emerson KJ4001X1-CA1 12P0623X072 I/O Module for DeltaV

Emerson KJ4001X1-CA1 12P0623X072 I/O Module for DeltaV

The Emerson KJ4001X1-CA1 12P0623X072 is a field-proven DCS I/O module engineered for seamless integration within the Emerson DeltaV distributed control system architecture. Designed to operate as a critical node in the I/O layer of a multi-tier automation hierarchy, this module bridges the gap between field instrumentation and the DeltaV controller network, ensuring deterministic signal acquisition, reliable data transmission, and long-term operational stability across demanding industrial environments.

In modern process automation, the integrity of the I/O layer directly determines the responsiveness and reliability of the entire control system. The KJ4001X1-CA1 12P0623X072 is purpose-built to fulfill this role within the DeltaV ecosystem, supporting high-density channel configurations that reduce cabinet footprint while maintaining full signal fidelity. Its architecture is compatible with DeltaV’s Electronic Marshalling concept, enabling flexible I/O assignment without the constraints of traditional hardwired marshalling panels. This dramatically reduces engineering hours during commissioning and simplifies future modifications as process requirements evolve.

From a system architecture perspective, this I/O module is designed to work in close coordination with DeltaV MD Plus Controllers and DeltaV MQ Controllers, which serve as the processing backbone of the control layer. The module communicates over the DeltaV I/O network using Emerson’s proprietary FOUNDATION protocol stack, ensuring low-latency, high-integrity data exchange between field devices and the controller. When paired with CHARM I/O Cards (CHARacterization Modules) and the CIOC (CHARM I/O Card) carrier, the KJ4001X1-CA1 12P0623X072 supports channel-level redundancy, allowing individual signal paths to be maintained even during partial hardware failures — a critical requirement in continuous process industries such as oil refining, chemical processing, and power generation.

At the network layer, the DeltaV system leverages a redundant Ethernet backbone to connect controllers, I/O subsystems, workstations, and historian nodes. The KJ4001X1-CA1 12P0623X072 integrates into this architecture without requiring additional protocol converters or gateways, reducing potential points of failure and simplifying network topology. For facilities requiring HART pass-through capability, this module supports HART communication on analog channels, enabling asset management tools such as the AMS Device Manager to communicate directly with smart field instruments without interrupting the primary control loop.

Power integrity is a foundational concern in any DCS deployment. The KJ4001X1-CA1 12P0623X072 is designed to operate within the DeltaV power distribution framework, which typically includes redundant DeltaV Power Supplies and DeltaV Power Conditioners to ensure uninterrupted operation during utility fluctuations. The module’s low power consumption profile allows for higher channel density per power zone, reducing the number of power supply units required in large-scale installations and contributing to overall cabinet efficiency.

For human-machine interface integration, the DeltaV system connects operator workstations running DeltaV Operate, providing real-time visualization of all I/O signals managed by the KJ4001X1-CA1 12P0623X072. Alarm management, trend displays, and diagnostic dashboards are all populated from the data streams passing through this module, making its reliable operation essential to operator situational awareness. In redundant controller configurations, the module’s data is mirrored across primary and secondary controllers, ensuring bumpless transfer during controller switchover events.

From a maintenance and lifecycle perspective, the KJ4001X1-CA1 12P0623X072 supports hot-swap replacement within the DeltaV carrier assembly, minimizing process downtime during hardware servicing. Its diagnostic registers are accessible through the DeltaV Diagnostics application, enabling maintenance teams to identify signal degradation, channel faults, or communication anomalies before they escalate into process upsets. This proactive maintenance capability is particularly valuable in industries with strict uptime requirements, such as pharmaceutical manufacturing, water treatment, and LNG processing.

All units supplied by ZYPLC are fully tested, verified against original Emerson specifications, and covered by a warranty terms confirmed during quotation. Our inventory management system ensures consistent stock availability, reducing lead times for urgent replacement scenarios. With system integration support, our technical team can assist with system compatibility verification, firmware version matching, and pre-shipment configuration review to ensure the module is ready for installation upon arrival.

Product Specification Table

System Compatibility Notes

The KJ4001X1-CA1 12P0623X072 achieves its full performance potential when deployed as part of a coordinated DeltaV system architecture. At the controller level, it interfaces directly with the DeltaV MD Plus Controller and DeltaV MQ Controller, which execute the control strategies defined in DeltaV Control Studio. The I/O module’s channel data is consumed by these controllers in real time, enabling closed-loop regulatory control, advanced process control (APC), and safety instrumented function (SIF) execution.

Within the I/O subsystem, the KJ4001X1-CA1 12P0623X072 operates alongside CHARM I/O Cards (CHARMs) and the CIOC Carrier, which provide the physical termination points for field wiring. This combination supports Emerson’s Electronic Marshalling philosophy, where signal characterization is performed at the I/O card level rather than in the marshalling cabinet, significantly reducing wiring complexity. For legacy installations, the module can also be integrated with traditional DeltaV I/O Subsystem Carriers and DeltaV Termination Assemblies (TAs), preserving compatibility with existing infrastructure.

At the network layer, the module’s data flows through the DeltaV Application Station and DeltaV Workstation infrastructure, where it is processed by the DeltaV Operate HMI and archived by the DeltaV Continuous Historian. For facilities requiring integration with enterprise-level systems, the DeltaV OPC DA/UA Server provides a standardized interface for data exchange with MES, ERP, and asset management platforms. The AMS Device Manager leverages HART pass-through capability to perform remote diagnostics on smart field instruments connected to the module’s analog channels.

In safety-critical applications, the KJ4001X1-CA1 12P0623X072 can be deployed in architectures that include the DeltaV SIS Logic Solver and DeltaV SIS Power Module, supporting IEC 61511-compliant safety instrumented systems. The separation of safety and basic process control system (BPCS) I/O is maintained through DeltaV’s integrated safety architecture, ensuring that safety functions remain independent while sharing the same engineering environment.

Industrial Application Notes

The KJ4001X1-CA1 12P0623X072 is deployed across a wide range of industries where the DeltaV platform is the standard for process automation. In oil and gas processing and LNG facilities, the module handles analog input signals from pressure transmitters, flow meters, and temperature sensors distributed across large process units, where signal integrity and redundancy are non-negotiable. Its HART pass-through capability enables remote valve diagnostics and transmitter calibration without process interruption.

In pharmaceutical and biotech manufacturing, the module supports 21 CFR Part 11-compliant DeltaV deployments, where every I/O signal must be traceable, auditable, and protected against unauthorized modification. The DeltaV Electronic Marshalling architecture, anchored by modules like the KJ4001X1-CA1 12P0623X072, enables rapid reconfiguration of I/O assignments during process scale-up or equipment changeover — a critical advantage in flexible manufacturing environments.

For power generation and utilities, including thermal power plants and water treatment facilities, the module provides the reliable analog and digital I/O infrastructure required for turbine control, boiler management, and SCADA integration. Its compatibility with redundant DeltaV controller configurations ensures that control system availability meets the stringent uptime requirements of utility operations. In chemical and petrochemical plants, the module’s robust design and wide operating temperature range make it suitable for installation in process areas where ambient conditions can be challenging, supporting continuous operation across multi-year turnaround cycles.

Product Compatibility FAQ

Q1: Is the KJ4001X1-CA1 12P0623X072 compatible with both legacy DeltaV S-series and current DeltaV v14/v15 system versions?
The KJ4001X1-CA1 12P0623X072 is designed for the DeltaV platform and is generally compatible across multiple DeltaV system versions, including legacy S-series hardware and current v14/v15 releases. However, firmware version alignment between the I/O module and the DeltaV controller is essential for full feature support. ZYPLC’s system integration service includes pre-shipment firmware verification and compatibility confirmation against your specific DeltaV system version, ensuring the module is ready for installation without requiring additional firmware updates on-site.

Q2: Can this module be installed in a hot-standby redundant DeltaV controller architecture without process interruption?
Yes. The KJ4001X1-CA1 12P0623X072 supports hot-swap replacement within the DeltaV carrier assembly, and when deployed in a redundant controller architecture with DeltaV MD Plus or MQ controllers, the I/O module’s data is continuously mirrored between primary and secondary controllers. This ensures bumpless transfer during controller switchover and allows module replacement during scheduled maintenance windows without requiring a process shutdown. Proper commissioning procedures, including DeltaV Diagnostics verification post-installation, are recommended to confirm signal integrity after replacement.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system integration?
All KJ4001X1-CA1 12P0623X072 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers full unit replacement or repair at no additional cost. In addition, ZYPLC’s system integration support includes pre-shipment testing, system compatibility verification, and technical consultation for installation and commissioning. Our team can assist with DeltaV configuration file review, carrier assembly compatibility confirmation, and HART device integration planning to minimize engineering risk during system deployment.
