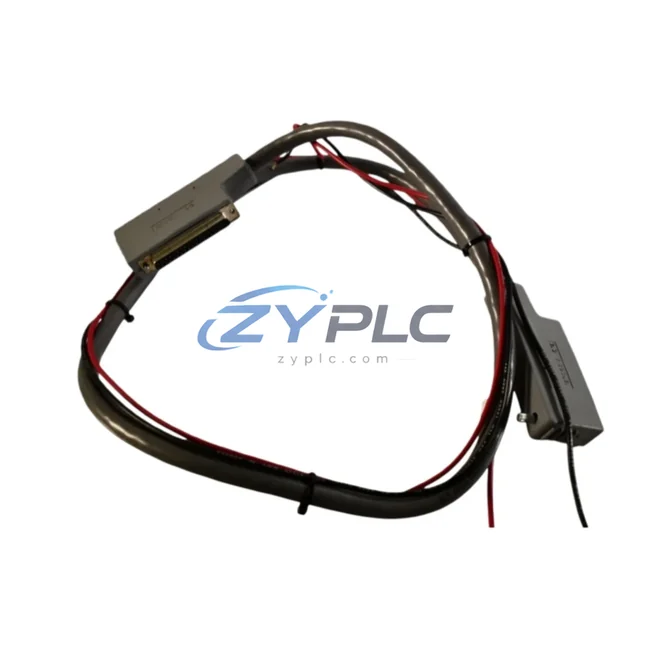

Emerson KJ4001X1-HA1 LocalBus Cable Extender | 12P0949X042

Emerson KJ4001X1-HA1 LocalBus Cable Extender: Industrial Data Link for DeltaV DCS Networks

The Emerson KJ4001X1-HA1 (Part No. 12P0949X042) is a purpose-engineered LocalBus Cable Extender designed for the Emerson DeltaV Distributed Control System platform. In modern smart factory environments, reliable physical-layer connectivity is the foundation of every data pipeline — from field-level sensors and actuators through to PLC controllers, remote I/O nodes, HMI workstations, SCADA servers, and enterprise MES systems. The KJ4001X1-HA1 fulfills this role by extending the DeltaV LocalBus beyond standard reach limits, ensuring that signal integrity, deterministic communication timing, and network stability are maintained across the full automation architecture.

Industrial sites increasingly demand transparent, real-time data flows across distributed assets. The KJ4001X1-HA1 enables DeltaV controller nodes — such as the MD Plus Controller and MD Controller series — to communicate reliably with I/O subsystems installed at extended distances within marshalling cabinets or remote equipment rooms. By preserving LocalBus signal quality over longer cable runs, this extender eliminates the data isolation that commonly occurs when control hardware is physically separated from field termination assemblies.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding where the KJ4001X1-HA1 sits within the automation data chain is essential for system integrators and maintenance engineers. In a typical DeltaV installation, the data journey begins at the field device layer — pressure transmitters, flow meters, temperature sensors, and valve positioners — all wired into DeltaV CHARM I/O cards or traditional DeltaV 8-channel analog input/output carriers. These I/O subsystems communicate upstream via the LocalBus to the DeltaV MD Plus Controller or DeltaV MD Controller, which executes the control strategy and manages loop calculations at deterministic scan rates.

When the physical distance between the controller node and the I/O carrier exceeds standard LocalBus cable specifications, the KJ4001X1-HA1 cable extender is inserted into the signal path to regenerate and extend the bus without introducing latency or data corruption. This is particularly critical in large marshalling rooms where the DeltaV Power Supply PS2 and controller hardware are rack-mounted at one end of the cabinet while I/O termination assemblies are positioned at the opposite end or in an adjacent enclosure.

Above the controller layer, the DeltaV network connects via Ethernet to the DeltaV Application Station and DeltaV Operator Workstation, where operators interact with process graphics through the DeltaV Operate HMI environment. SCADA-level integration is achieved through OPC DA/UA gateways — such as the Emerson DeltaV OPC Server — which publish real-time process values to historian platforms, MES databases, and enterprise dashboards. Any disruption in the LocalBus layer directly impacts the quality and continuity of data reaching these upper-level systems, making the KJ4001X1-HA1 a critical reliability component.

For sites running hybrid architectures, the DeltaV system may also interface with third-party field devices via FOUNDATION Fieldbus H1 interface cards or HART multiplexers, aggregating smart device diagnostics alongside traditional 4–20 mA signals. Remote asset monitoring is further supported through integration with AMS Device Manager, which relies on uninterrupted LocalBus communication to poll HART device health data and surface predictive maintenance alerts to the SCADA layer. The KJ4001X1-HA1 ensures this entire data chain — from sensor to cloud — remains intact.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield DCS installations is physical-layer data isolation: controller hardware and I/O subsystems that cannot communicate reliably because cable runs exceed specification, cabinet layouts have evolved over time, or original infrastructure was not designed for current expansion requirements. The KJ4001X1-HA1 directly addresses this problem by providing a validated, OEM-sourced extension solution that maintains LocalBus signal integrity without requiring controller reconfiguration or I/O remapping.

Protocol fragmentation is another common pain point on industrial sites where DeltaV systems coexist with legacy PLCs, third-party SCADA platforms, or Modbus RTU field devices. While the KJ4001X1-HA1 operates at the DeltaV LocalBus layer, its role in maintaining controller-to-I/O communication stability is foundational to any protocol gateway or translation layer operating above it. A stable LocalBus means the DeltaV controller can reliably execute Modbus TCP/IP pass-through functions, PROFIBUS DP interface card polling, and OPC UA data publication without scan-cycle overruns caused by bus errors.

For remote monitoring and diagnostics, plant engineers depend on continuous, low-latency data from field devices. Alarm management systems, safety instrumented system (SIS) interfaces, and remote diagnostic tools all require that the DeltaV controller maintains its I/O scan without interruption. The KJ4001X1-HA1 eliminates the risk of LocalBus signal degradation that can cause spurious I/O faults, missed alarms, or controller failover events — all of which translate directly into unplanned downtime and production loss.

System expansion is simplified as well. As production lines grow and new I/O points are added, the KJ4001X1-HA1 allows engineers to extend existing controller nodes to new I/O carriers without redesigning the cabinet layout or investing in additional controller hardware. This scalability supports phased smart factory upgrades, where digital transformation is implemented incrementally across production cells while maintaining continuity of existing control loops.

Every unit supplied by ZYPLC undergoes full functional outgoing inspection, verifying LocalBus signal continuity and connector integrity before dispatch. Stock is maintained in-warehouse for shipment arranged after confirmation via DHL or FedEx express, with a warranty terms confirmed during quotation covering all supplied components.

Industrial Connectivity FAQ

Q1: Does the KJ4001X1-HA1 introduce any communication latency into the DeltaV LocalBus?
No. The KJ4001X1-HA1 is a passive cable extension assembly engineered to OEM specifications. It does not add active processing stages to the LocalBus signal path, so deterministic scan-cycle timing between the DeltaV controller and I/O subsystems is preserved. Communication latency remains within DeltaV system design parameters.

Q2: Which DeltaV controller and I/O platforms are compatible with the KJ4001X1-HA1?
The KJ4001X1-HA1 is compatible with the Emerson DeltaV M-series and S-series controller platforms, including the MD Plus Controller and MD Controller, when used with standard DeltaV I/O carriers and CHARM I/O subsystems. Compatibility should be verified against the specific DeltaV system revision and cabinet configuration on your site.

Q3: How does LocalBus stability affect SCADA and HMI data quality?
The DeltaV LocalBus is the physical communication layer between the controller and all connected I/O points. Any instability at this layer — caused by signal degradation over excessive cable length — results in I/O scan errors that propagate upward as bad-quality tags in the DeltaV Operate HMI and OPC data feeds consumed by SCADA historians. Maintaining LocalBus integrity with the KJ4001X1-HA1 ensures clean, continuous data delivery to all upper-level systems.

Q4: What warranty and testing does ZYPLC provide with the KJ4001X1-HA1?
All KJ4001X1-HA1 units supplied by ZYPLC carry a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes full functional outgoing inspection — including LocalBus connector verification and continuity testing — before dispatch. Express global shipping is available via DHL and FedEx, with availability confirmed by RFQ units ready for same-day or next-business-day dispatch.
