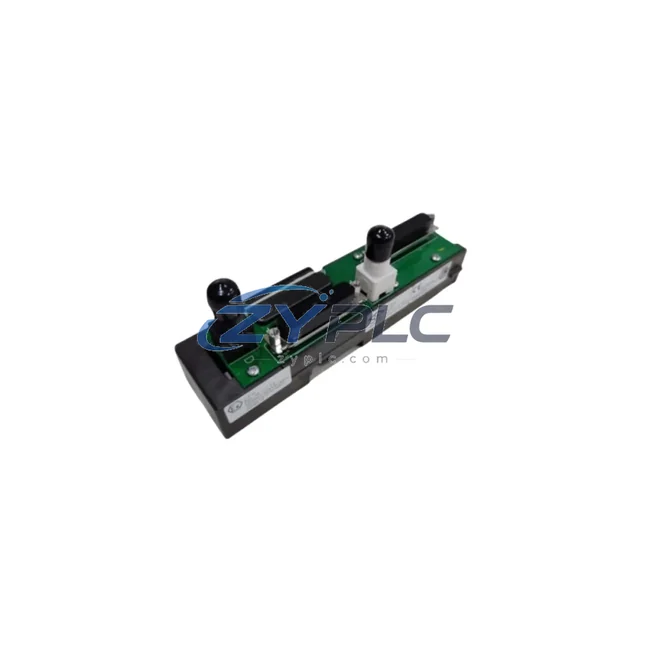

Emerson KJ4001X1-NA1 12P3373X032 DeltaV Extender Module

Emerson KJ4001X1-NA1 12P3373X032: Industrial Data Link for DeltaV Distributed Control Systems

The Emerson KJ4001X1-NA1 12P3373X032 is a high-performance Communication Extender Module engineered for the DeltaV Series Distributed Control System (DCS) platform. Designed to extend and stabilize the industrial network backbone across complex process automation environments, this module serves as a critical node in the data flow chain — bridging field-level instrumentation, remote I/O subsystems, PLC controllers, HMI workstations, and SCADA supervisory layers into a unified, real-time communication architecture.

In modern smart factory deployments, data isolation between field devices and upper-level control systems remains one of the most persistent challenges. The KJ4001X1-NA1 12P3373X032 directly addresses this by providing reliable signal extension and protocol-transparent communication across the DeltaV network infrastructure, ensuring that process variables, alarm states, and diagnostic data flow continuously from sensor to system without latency or packet loss.

Compatibility & Integration Notes

Connected Automation Data Flow

Within a DeltaV-based process automation architecture, the KJ4001X1-NA1 12P3373X032 operates as the communication backbone extender that keeps every layer of the control hierarchy synchronized. At the field level, instruments such as Emerson Rosemount 3051 pressure transmitters and Fisher control valves generate continuous process signals. These signals are collected by Emerson CHARM I/O modules (such as the KJ3221X1-BA1 CHARM baseplates) and routed through the DeltaV I/O network to the controller layer.

The extender module ensures that this signal path remains stable and latency-free even as the network spans multiple cabinets or remote marshalling panels. Emerson DeltaV MD-Plus controllers (KJ2003X1-BA1) rely on consistent backplane communication to execute control strategies in real time — any interruption in the extender link directly impacts loop performance and alarm response times. By maintaining deterministic data transfer, the KJ4001X1-NA1 12P3373X032 protects the integrity of PID control loops, cascade strategies, and interlock logic running on the DeltaV platform.

At the supervisory level, DeltaV Operate HMI workstations and DeltaV Insight analytics tools pull live process data through the same network path that this extender module supports. SCADA systems integrated via OPC DA/UA servers — often connected through Emerson’s DeltaV OPC Mirror or third-party gateways — depend on uninterrupted data flow from the controller network. The KJ4001X1-NA1 12P3373X032 ensures that historian servers, alarm management platforms, and remote monitoring dashboards receive accurate, real-time process data without gaps.

In multi-node DeltaV installations, the extender module also supports network redundancy configurations. When paired with redundant DeltaV controllers and redundant I/O subsystems (such as the KJ4001X1-NA1 series in mirrored topologies), it enables automatic failover without process interruption — a critical requirement in continuous process industries including oil and gas, chemical, pharmaceutical, and power generation.

For remote diagnostic access, the DeltaV network path supported by this module enables Emerson’s AMS Device Manager to communicate with HART-enabled field instruments, retrieve device health data, and push configuration changes without requiring physical access to the field device. This remote diagnostics capability reduces maintenance costs and supports predictive maintenance strategies aligned with IIoT and Industry 4.0 frameworks.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with legacy field devices, mixed communication protocols, and fragmented control architectures that create data silos — islands of process information that cannot be accessed, correlated, or acted upon by the broader control system. The Emerson KJ4001X1-NA1 12P3373X032 is a direct solution to this challenge within DeltaV environments.

By extending the DeltaV network reliably across physical distances and cabinet boundaries, this module eliminates the communication gaps that cause data isolation. Process engineers gain full visibility into remote I/O nodes, field instruments, and control loops from a single DeltaV Operate console — without deploying additional protocol converters or standalone gateways that introduce latency and single points of failure.

For facilities undergoing digital transformation, the KJ4001X1-NA1 12P3373X032 supports the gradual integration of edge computing nodes and IIoT gateways into the existing DeltaV architecture. Edge devices can tap into the real-time process data stream enabled by this extender module, feeding analytics platforms and cloud-based monitoring systems without disrupting the primary control network.

Production line transparency is another key benefit. With stable network extension, DeltaV Batch and DeltaV Continuous Historian can capture complete process records across all connected nodes — enabling compliance reporting, batch genealogy tracking, and OEE (Overall Equipment Effectiveness) analysis. System expansion is equally straightforward: additional DeltaV I/O carriers, remote CHARM panels, and controller nodes can be integrated into the extended network without architectural redesign.

Industrial Connectivity FAQ

Q1: What communication latency can be expected when using the KJ4001X1-NA1 12P3373X032 in a DeltaV network?
The KJ4001X1-NA1 12P3373X032 is designed for deterministic, low-latency communication within the DeltaV network architecture. Under normal operating conditions, the module maintains sub-millisecond backplane communication latency, consistent with DeltaV controller scan rates. Network performance is not degraded by the extender module when installed within Emerson’s specified topology guidelines.

Q2: Is this module compatible with both legacy and current DeltaV controller platforms?
Yes. The KJ4001X1-NA1 12P3373X032 is compatible with DeltaV S-series, M-series, and MD-series controller platforms. It supports both legacy DeltaV network configurations and current-generation DeltaV Live and DeltaV Operate environments. Firmware compatibility should be verified against the specific DeltaV system version in use; our technical team can assist with compatibility confirmation prior to shipment.

Q3: How is network stability ensured in redundant DeltaV configurations?
When deployed in redundant DeltaV topologies, the KJ4001X1-NA1 12P3373X032 supports automatic network failover without process interruption. The module maintains synchronization between primary and secondary network paths, ensuring that controller redundancy and I/O redundancy features of the DeltaV platform operate as designed. All units are tested for network stability under load prior to shipment.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every KJ4001X1-NA1 12P3373X032 unit is subject to full functional verification testing before shipment, including communication interface checks, backplane signal integrity testing, and power supply validation. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is provided at no charge within the warranty period. Global shipping via DHL and FedEx express services is available, with tracking provided for all orders.
