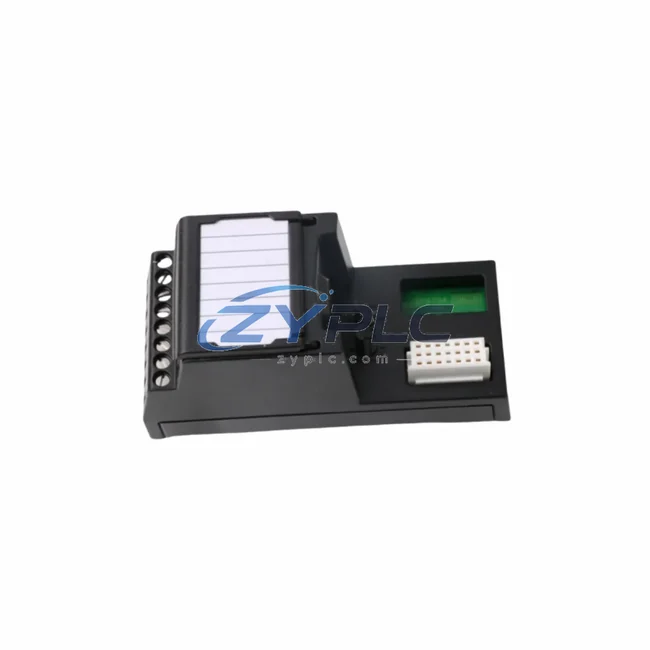

Emerson KJ4006X1-BC1 12P4720X062 Fused Terminal Block for DeltaV

Emerson KJ4006X1-BC1 12P4720X062 Fused Terminal Block for DeltaV

The Emerson KJ4006X1-BC1 12P4720X062 is a fused 8-channel terminal block engineered for seamless integration within the Emerson DeltaV distributed control system (DCS) architecture. Designed to serve as a critical junction between field instrumentation and the DeltaV I/O subsystem, this terminal block ensures reliable signal conditioning, overcurrent protection, and clean wiring organization across multi-loop process control environments. Whether deployed in greenfield automation projects or as a replacement component in an existing DeltaV installation, the KJ4006X1-BC1 delivers the structural consistency and electrical integrity that modern process control demands.

In a layered DeltaV architecture, the KJ4006X1-BC1 occupies the field termination layer — the critical interface between raw field signals and the DeltaV I/O cards housed in the controller enclosure. Each of its 8 fused channels provides individual overcurrent protection, preventing fault propagation from a single field loop into the broader I/O network. This design philosophy aligns with the redundancy and fault-isolation principles that define enterprise-grade DCS deployments in industries such as oil and gas, chemical processing, power generation, and water treatment.

Product Specification Table

System Compatibility Notes

The KJ4006X1-BC1 does not function in isolation — it is a structural node within a coordinated DeltaV control architecture. At the controller layer, the DeltaV MD Plus Controller or DeltaV M-Series Controller manages process logic and communicates with I/O subsystems via the DeltaV I/O bus. The terminal block connects field wiring to DeltaV Series Analog Input (AI) cards such as the KJ3002X1-BA1 or Analog Output (AO) cards like the KJ3222X1-BA1, ensuring that each field loop is individually protected before signals reach the I/O card.

In marshalling cabinets, the KJ4006X1-BC1 is typically installed alongside DeltaV CHARM I/O cards and Electronic Marshalling (EM) modules, which allow flexible signal routing without traditional hardwired marshalling. The fused terminal block provides an additional layer of protection upstream of the CHARM architecture, particularly in legacy hybrid installations where traditional and electronic marshalling coexist.

Power distribution within the control cabinet is managed by DeltaV Power Supplies (e.g., the KJ4001X1-BA1 24 VDC power supply), which feed both the I/O cards and the field termination layer. The KJ4006X1-BC1 is designed to operate within the voltage and current parameters defined by the DeltaV power architecture, ensuring stable operation across all 8 channels simultaneously.

For process visualization and operator interaction, the DeltaV system integrates with DeltaV Operate HMI workstations, which display real-time loop status, alarm conditions, and diagnostic data sourced from the I/O layer where the KJ4006X1-BC1 resides. Communication between the controller and HMI is handled over the DeltaV Application Station network, typically running on a dedicated Ethernet backbone.

In redundant DeltaV architectures, the terminal block is paired with redundant I/O cards and DeltaV SIS (Safety Instrumented System) modules such as the KJ4110X1-BA1 SIS Logic Solver, ensuring that safety-critical loops maintain signal integrity even during partial system failures. The per-channel fusing of the KJ4006X1-BC1 is particularly valuable in SIS applications, where a single field fault must not compromise adjacent safety loops.

Field communication protocols supported through the DeltaV I/O infrastructure include HART 7, FOUNDATION Fieldbus H1, and standard 4–20 mA analog, all of which can be terminated through the KJ4006X1-BC1 depending on the paired I/O card type. This multi-protocol compatibility makes the terminal block a versatile component across diverse instrumentation environments.

Industrial Application Notes

In petrochemical and refinery applications, the KJ4006X1-BC1 is deployed in marshalling rooms where hundreds of field instrument loops — pressure transmitters, temperature sensors, flow meters, and control valves — must be individually protected and cleanly terminated before connecting to DeltaV I/O cards. The per-channel fusing prevents a shorted field cable from taking down an entire I/O card, which could otherwise cause unplanned process shutdowns with significant economic consequences.

In power generation facilities, including combined-cycle gas turbine plants and coal-fired boilers, the DeltaV DCS manages critical control loops for steam temperature, turbine speed, and combustion air. The KJ4006X1-BC1 provides the field termination infrastructure that supports these loops, ensuring that signal integrity is maintained from the field sensor through to the DeltaV controller without interruption.

In water and wastewater treatment plants, where DeltaV systems manage pump control, chemical dosing, and filtration processes, the terminal block simplifies maintenance by allowing technicians to isolate individual field loops for testing or replacement without disturbing adjacent channels. This capability reduces maintenance downtime and supports the long-term reliability goals of municipal infrastructure operators.

In pharmaceutical and food processing environments, where regulatory compliance requires traceable, documented control system architectures, the KJ4006X1-BC1 contributes to a clean, auditable wiring design. Its compatibility with DeltaV’s built-in diagnostic and asset management tools (via AMS Device Manager) allows maintenance teams to monitor field device health directly from the DCS, reducing the need for manual field inspections and supporting predictive maintenance strategies.

For mining and metals processing operations, where harsh environments and long cable runs are common, the fused terminal block provides essential protection against voltage transients and ground faults that are prevalent in electrically noisy industrial environments. Combined with DeltaV’s robust I/O architecture, the KJ4006X1-BC1 ensures that control system uptime is maintained even under demanding operating conditions.

Product Compatibility FAQ

Q1: Is the KJ4006X1-BC1 compatible with all DeltaV I/O card types, and can it be used in both traditional and electronic marshalling architectures?
The KJ4006X1-BC1 is designed for use with DeltaV Series I/O cards, including analog input, analog output, discrete input, and discrete output modules. It is compatible with traditional hardwired marshalling architectures and can also be used in hybrid installations alongside DeltaV CHARM Electronic Marshalling modules. For full CHARM-native deployments, Emerson’s CHARM I/O cards handle termination internally, but the KJ4006X1-BC1 remains a valid upstream protection component for field wiring entering the marshalling cabinet.

Q2: How does the per-channel fusing of the KJ4006X1-BC1 improve system reliability and simplify fault diagnosis during commissioning and long-term maintenance?
Each of the 8 channels on the KJ4006X1-BC1 is individually fused, meaning a fault on one field loop — such as a short circuit or overcurrent condition — is isolated at the terminal block level without affecting adjacent channels or the connected I/O card. During commissioning, this allows engineers to energize and test individual loops independently. During long-term maintenance, technicians can replace a blown fuse on a single channel without taking the entire I/O card offline, significantly reducing mean time to repair (MTTR) and supporting continuous process operation.

Q3: What warranty and supply assurance does ZYPLC provide for the KJ4006X1-BC1 12P4720X062, and how is the unit tested before shipment?
ZYPLC provides a warranty terms confirmed during quotation on the KJ4006X1-BC1 12P4720X062, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify channel continuity, fuse integrity, and terminal block mechanical condition before dispatch. ZYPLC maintains inventory of DeltaV-compatible components to support urgent replacement requirements, with global shipping available to minimize control system downtime. For procurement inquiries or technical verification, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
