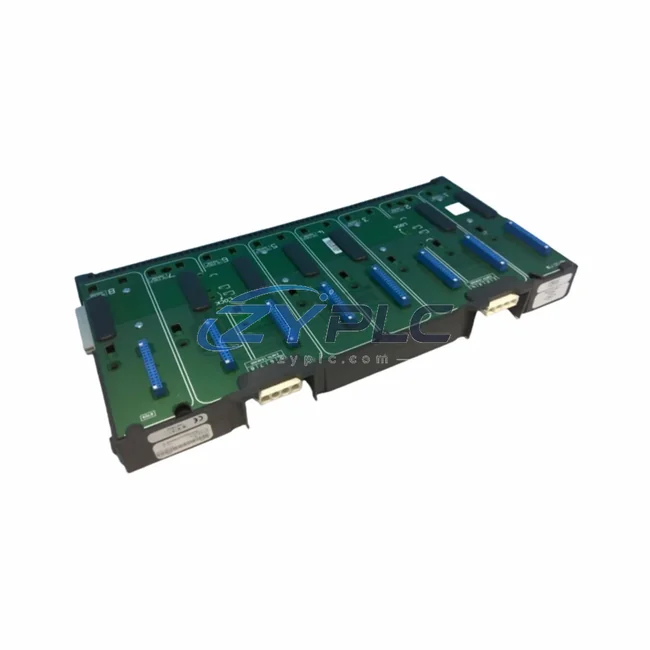

Emerson KJ4101X1-BA1 I/O Module for DeltaV Systems

Emerson KJ4101X1-BA1 Industrial Network Interface for DeltaV Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and upper-level control systems is the backbone of operational efficiency. The Emerson KJ4101X1-BA1 I/O Module is engineered to serve as a critical industrial network interface within the DeltaV Series distributed control architecture, enabling reliable signal acquisition, protocol-transparent communication, and real-time data transmission across complex automation networks.

From the moment a sensor signal enters the field bus, the KJ4101X1-BA1 ensures that data is accurately captured, conditioned, and forwarded through the DeltaV control backbone to SCADA platforms, HMI terminals, and enterprise-level MES systems. Its robust design supports continuous operation in demanding industrial environments — including chemical processing, oil and gas, power generation, and advanced manufacturing — where network stability and data integrity are non-negotiable.

Compatibility & Integration Notes

Connected Automation Data Flow

The KJ4101X1-BA1 sits at the heart of a layered industrial communication architecture. At the field level, smart transmitters and HART-enabled sensors — such as pressure, temperature, and flow devices — feed live process data into the module’s input channels. This signal acquisition layer is the first link in a chain that ultimately delivers actionable intelligence to operators and engineers at the control room level.

Within the DeltaV controller network, the KJ4101X1-BA1 interfaces directly with the Emerson KJ3221X1-BA1 analog input card and the KJ3002X1-BC1 digital output module, forming a tightly integrated I/O subsystem. These modules share a common DeltaV I/O bus, ensuring deterministic scan cycles and synchronized data updates across all connected field devices. When process conditions change — a valve position shifts, a motor speed varies — the KJ4101X1-BA1 captures the delta in real time and propagates it upstream without latency.

For sites requiring protocol conversion between legacy PROFIBUS DP devices and modern Ethernet-based SCADA systems, the KJ4101X1-BA1 works in conjunction with the Emerson VE4035S2B1 PROFIBUS gateway card and the KJ4001X1-CH1 controller interface module. This combination eliminates data silos that commonly arise when older field instruments cannot natively communicate with IP-based supervisory platforms. The gateway layer translates PROFIBUS frames into OPC-UA or Modbus TCP packets, making the data immediately consumable by Emerson DeltaV Operate HMI workstations and third-party SCADA servers.

At the drive and motion control layer, variable frequency drives (VFDs) and servo controllers connected via Modbus RTU can be polled through the KJ4101X1-BA1’s serial communication path. Speed references, torque feedback, fault codes, and energy consumption data are all aggregated into the DeltaV historian, enabling trend analysis and predictive maintenance workflows. The Emerson SE4006S2T2B6 power supply module ensures stable 24 VDC rail voltage across the I/O chassis, protecting the KJ4101X1-BA1 and its neighboring modules from power transients that could corrupt communication frames.

Remote I/O expansion is equally well-supported. By pairing the KJ4101X1-BA1 with the Emerson KJ2201X1-HA1 remote I/O carrier and the KJ1501X1-BA1 I/O bus interface, engineers can extend the DeltaV control network to satellite equipment rooms or remote field junction boxes — all without running additional home-run cables. This architecture is particularly valuable in large-scale process plants where field devices may be distributed across hundreds of meters of plant floor.

Edge computing integration is another key capability. When paired with an industrial edge gateway running Emerson’s PACEdge platform, the KJ4101X1-BA1 can push real-time I/O data to cloud analytics engines or on-premise MES databases. This enables closed-loop quality control, OEE calculation, and digital twin synchronization — all driven by the live field data that the KJ4101X1-BA1 continuously acquires and transmits.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant may simultaneously operate HART field instruments, PROFIBUS DP motor drives, Modbus RTU analyzers, and Foundation Fieldbus flow computers — each speaking a different language, each creating a potential data island.

The Emerson KJ4101X1-BA1 addresses this challenge by serving as a protocol-agnostic I/O interface within the DeltaV ecosystem. Rather than requiring costly rip-and-replace upgrades to legacy field devices, the KJ4101X1-BA1 allows existing instruments to remain in service while their data is normalized and forwarded to modern SCADA and HMI platforms. This approach dramatically reduces integration costs and project timelines for brownfield modernization projects.

Remote monitoring and diagnostics are equally transformed. With the KJ4101X1-BA1 in the network, maintenance engineers can access device-level diagnostics — valve signatures, transmitter self-test results, loop integrity checks — directly from the DeltaV workstation or a remote laptop connected via VPN. Alarm conditions are propagated in real time, with configurable severity levels and acknowledgment workflows that comply with ISA-18.2 alarm management standards.

Production line transparency is another direct benefit. By connecting every field device through a unified I/O backbone, plant managers gain a single-pane-of-glass view of all process variables, equipment states, and energy consumption metrics. This transparency is the foundation of continuous improvement programs, enabling data-driven decisions about maintenance scheduling, production optimization, and capacity planning.

System scalability is built into the DeltaV architecture that the KJ4101X1-BA1 supports. As production requirements grow, additional I/O modules can be added to the chassis without disrupting existing control loops. The modular design means that a plant can start with a minimal I/O footprint and expand incrementally — adding analog inputs, digital outputs, or specialized communication modules — as new equipment is commissioned.

Industrial Connectivity FAQ

Q1: What communication protocols does the Emerson KJ4101X1-BA1 support?
The KJ4101X1-BA1 is designed for integration within the Emerson DeltaV DCS architecture and supports HART, Foundation Fieldbus, PROFIBUS DP, and Modbus RTU/TCP communication protocols. For Ethernet-based SCADA connectivity, it operates in conjunction with DeltaV gateway modules that provide OPC-UA and Modbus TCP/IP translation.

Q2: How does the KJ4101X1-BA1 ensure network stability in harsh industrial environments?
The module is built to industrial-grade specifications, with EMI shielding, wide operating temperature tolerance, and redundant power input support. Its deterministic I/O scan cycle ensures that communication latency remains within the bounds required for closed-loop process control, even under high network load conditions.

Q3: Can the KJ4101X1-BA1 be integrated with third-party SCADA and HMI systems?
Yes. Through the DeltaV OPC-UA server and Modbus TCP gateway capabilities, the KJ4101X1-BA1’s I/O data can be consumed by any SCADA or HMI platform that supports these standard industrial protocols — including Wonderware, iFIX, Ignition, and WinCC. No proprietary middleware is required for standard integration scenarios.

Q4: What warranty and pre-shipment testing does the KJ4101X1-BA1 include?
Every KJ4101X1-BA1 unit supplied by ZYPLC is covered by a 12-month quality warranty and undergoes functional testing prior to shipment. Testing includes communication loop verification, I/O channel integrity checks, and power supply validation to ensure that the module performs to specification upon arrival at your facility.
