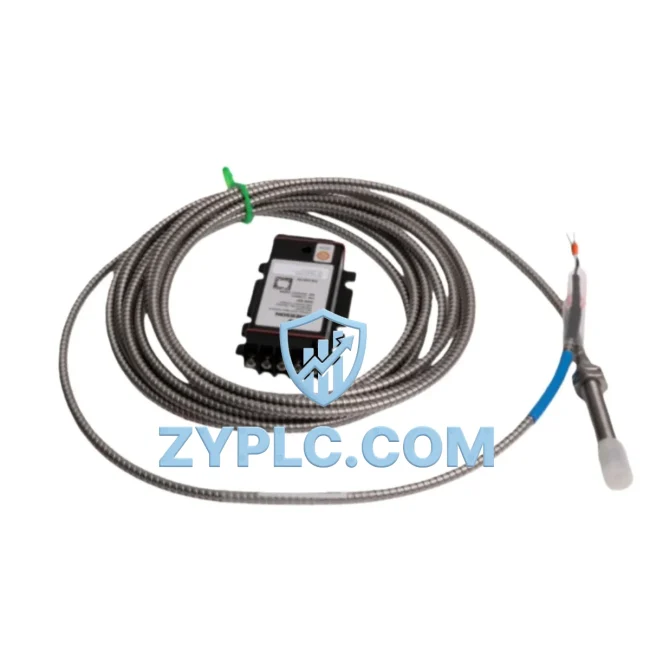

Emerson PR6423/003-131+CON031 Eddy Current Sensor EPRO

Emerson PR6423/003-131+CON031 Eddy Current Sensor for EPRO

In modern industrial control system architecture, reliable shaft displacement and vibration measurement is not a peripheral function — it is a foundational layer of machine protection and process continuity. The Emerson PR6423/003-131+CON031 eddy current sensor, paired with its dedicated CON031 signal conditioning module, is engineered to deliver precise, non-contact proximity measurement within the EPRO machinery protection platform. This sensor system occupies a critical position in the condition monitoring layer of rotating equipment control architectures, feeding real-time displacement data upward to protection relays, DCS controllers, and plant-wide asset management systems.

Unlike generic proximity probes, the PR6423/003-131+CON031 is factory-matched and calibrated as a complete sensor-cable-conditioner system. The PR6423/003-131 probe operates at a nominal gap range suited for shaft displacement measurement on turbines, compressors, pumps, and motors, while the CON031 conditioner converts the raw oscillator signal into a linear DC voltage output compatible with downstream monitoring hardware. This matched-system approach eliminates calibration drift between components and ensures measurement traceability across the full signal chain — from the rotating shaft surface to the control room display.

Product Specification Table

System Compatibility Notes

The PR6423/003-131+CON031 does not function in isolation. Its value is realized only when it is correctly integrated into a layered machinery protection and process control architecture. At the monitoring layer, the conditioner’s DC voltage output connects directly to Emerson EPRO MMS6120 or MMS6110 vibration monitoring modules housed within the MMS6000 series rack. These rack-mounted modules perform signal processing, alarm threshold evaluation, and relay output switching — forming the protection layer that sits between the sensor and the shutdown system.

Above the monitoring rack, the MMS6000 system communicates with plant DCS platforms via Modbus RTU, PROFIBUS DP, or hardwired relay contacts. In Emerson DeltaV or Ovation DCS environments, the vibration data from the PR6423 system is integrated into the process historian and operator display layer, where operators can trend shaft displacement alongside process variables such as bearing temperature, flow rate, and suction pressure. This system integration is what transforms raw vibration data into actionable process intelligence.

At the power layer, the CON031 conditioner requires a stable -24 VDC supply. In critical machinery protection applications, this supply is typically sourced from a redundant DC power distribution panel, often fed by dual Emerson or third-party 24 VDC power supplies with diode-ORing to eliminate single-point power failure. The PR6423 probe cable — a factory-matched extension cable with defined capacitance and inductance — must be routed separately from high-voltage power cables to prevent electromagnetic interference from corrupting the low-level oscillator signal.

For turbine and compressor protection systems, the PR6423/003-131+CON031 is typically deployed in pairs per measurement plane — one probe at the X-axis and one at the Y-axis — to enable full orbital shaft displacement analysis. The paired probes feed into adjacent MMS6120 channels, and the MMS6000 rack’s internal bus synchronizes the two channels for orbital plot generation. This dual-probe architecture is a standard requirement in API 670-compliant machinery protection systems for critical rotating equipment.

At the field wiring layer, the CON031 conditioner is typically mounted in a junction box or marshalling cabinet close to the machine, with the DC output signal transmitted via shielded twisted-pair cable to the monitoring rack in the control room. Proper shield grounding at a single point — typically at the monitoring rack end — is essential to prevent ground loop interference. Terminal blocks within the marshalling cabinet, such as DIN-rail mounted screw or spring-clamp types, provide the interconnection point between the field cable and the control room cable run.

Industrial Application Notes

In power generation plants, the PR6423/003-131+CON031 is a standard component in steam turbine shaft monitoring systems. Installed at the journal bearing locations, the probe monitors shaft eccentricity and radial vibration continuously during startup, steady-state operation, and shutdown. The MMS6000 rack evaluates the displacement signal against API 670 alarm and danger setpoints, triggering automatic turbine trip if shaft displacement exceeds safe limits — protecting the turbine from catastrophic bearing failure.

In petrochemical and refinery applications, the sensor system is deployed on centrifugal compressors in critical service — ethylene, hydrogen, and natural gas compression trains where unplanned downtime carries significant safety and financial consequences. The PR6423 system’s non-contact measurement principle means zero mechanical wear and no maintenance-induced downtime from sensor replacement, contributing directly to compressor availability targets above 99%.

In water treatment and municipal utility plants, the sensor monitors vertical pump shaft displacement to detect impeller wear, cavitation-induced vibration, and bearing degradation before they progress to failure. The analog output integrates with SCADA systems via the plant DCS analog input cards, enabling long-term vibration trending and predictive maintenance scheduling without requiring dedicated vibration analysis software at the field level.

In mining and mineral processing, the PR6423 system is applied to large ball mill drives, crusher motors, and conveyor drive gearboxes — environments characterized by high ambient vibration, dust, and temperature extremes. The probe’s robust stainless steel construction and the CON031’s wide operating temperature range make this system suitable for these demanding conditions without requiring additional environmental protection enclosures.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment functional testing including output linearity verification and gap calibration check, and backed by a 12-month warranty. Stock availability is maintained to support both planned maintenance replacements and emergency breakdown situations, with fast international shipping to minimize machine downtime.

Product Compatibility FAQ

Q1: Is the PR6423/003-131+CON031 a matched system, and can I replace only the probe or conditioner separately?
The PR6423/003-131 probe and CON031 conditioner are factory-matched as a system with a defined extension cable. Replacing only one component without re-matching and re-calibrating the system will introduce measurement error. ZYPLC supplies the complete matched system to ensure measurement accuracy and system compliance with API 670 requirements. If your existing conditioner is functional, contact us to discuss probe-only supply with calibration documentation.

Q2: Which Emerson EPRO monitoring modules are compatible with the CON031 output signal?
The CON031 produces a standard EPRO linear DC voltage output (-2 VDC to -18 VDC) compatible with the full MMS6000 series monitoring rack, including MMS6110 (displacement), MMS6120 (vibration/displacement), and MMS6823 (position) modules. It is also compatible with legacy MMS3000 series hardware. For DCS integration, the output connects to any standard analog input module accepting 0–10 VDC or configurable DC voltage ranges. Confirm your monitoring rack channel configuration before installation.

Q3: What does the 12-Month Warranty cover, and what is the testing process before shipment?
Every PR6423/003-131+CON031 system supplied by ZYPLC undergoes pre-shipment testing including probe oscillator frequency verification, output voltage linearity check across the full gap range, and conditioner power supply current draw measurement. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement unit dispatch and return logistics coordination. Contact plc.sales@zyplc.com for warranty registration and claim procedures.

—
