Emerson PR6423/00E-030 CON021 Eddy Current Proximity Sensor for Bently Nevada Systems

Emerson PR6423/00E-030 CON021: Industrial Data Link for Bently Nevada Vibration Monitoring Systems

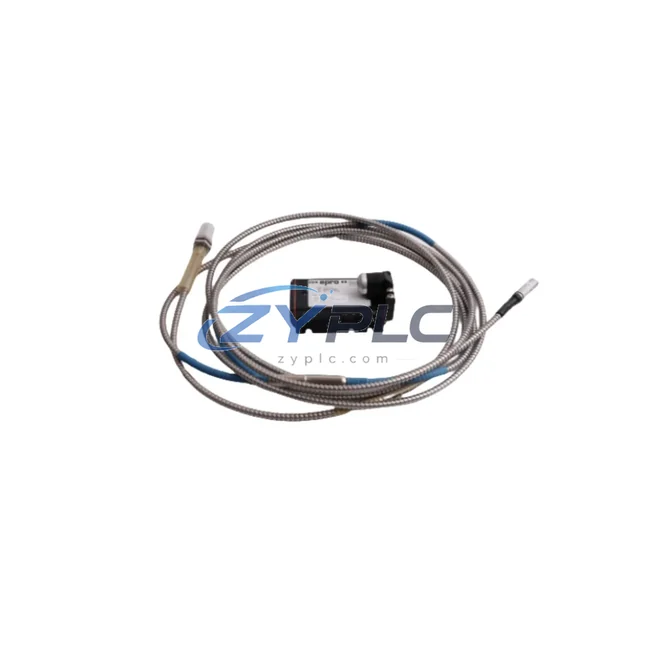

The Emerson PR6423/00E-030 CON021 is a high-precision eddy current proximity sensor engineered for continuous, non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery. As a core component of the Bently Nevada condition monitoring ecosystem, this sensor serves as the critical signal acquisition node that feeds real-time mechanical data into plant-wide SCADA, DCS, and predictive maintenance platforms. In smart factory environments where machine health directly impacts production continuity, the PR6423/00E-030 CON021 delivers the measurement accuracy and signal integrity required to sustain uninterrupted industrial data flow from the field device layer to the control room.

Designed to operate within the Bently Nevada 3500 Series machinery protection system architecture, the PR6423/00E-030 CON021 integrates seamlessly with the 3500/42M four-channel proximitor I/O module, enabling multi-point vibration acquisition across critical rotating assets such as compressors, turbines, pumps, and gearboxes. The sensor’s analog output signal — typically a DC voltage proportional to gap distance — is conditioned by the CON021 proximitor extension cable and driver circuit before being transmitted to the 3500 rack’s signal processing cards. From there, digitized vibration data is routed via Modbus TCP or OPC UA to the System 1 Evolution software platform, where engineers can monitor waveform trends, configure alarm thresholds, and initiate remote diagnostic sessions without interrupting production.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the PR6423/00E-030 CON021 is mounted adjacent to the shaft of a high-speed compressor or steam turbine. The sensor tip generates an eddy current field that responds to changes in the conductive target gap, producing a continuous analog voltage signal that travels through the CON021 extension cable to the proximitor driver — often a Bently Nevada 3300 XL 8mm proximitor or a 3300 RAM proximitor — mounted in a junction box near the machine. This conditioned signal is then wired into the Bently Nevada 3500/42M proximitor I/O module installed in the 3500 rack, which digitizes the vibration amplitude and phase data at high sampling rates.

The 3500 rack’s communication gateway card — such as the 3500/92 communication gateway — bridges the field measurement data to the plant Ethernet network using Modbus TCP or OPC UA, making real-time vibration vectors available to the Emerson System 1 Evolution software running on the plant historian server. Simultaneously, the 3500 rack can output 4–20 mA analog signals to a Yokogawa CENTUM VP DCS or a Honeywell Experion PKS controller for integrated process control decisions. Plant operators monitoring the HMI — whether a Wonderware InTouch station or a Rockwell FactoryTalk View SE terminal — receive live vibration trend data, orbit plots, and alarm status without any manual data collection.

For facilities running a multi-vendor architecture, the OPC UA data stream from the 3500 rack can be aggregated by an edge gateway such as the Emerson ROC800 remote operations controller or a Moxa MGate MB3660 Modbus gateway, which normalizes the vibration data alongside process variables from Rosemount 3051 pressure transmitters and Micro Motion Coriolis flow meters before forwarding the unified dataset to the plant SCADA server or a cloud-based asset performance management platform. This end-to-end data chain — from the PR6423/00E-030 CON021 sensor tip to the enterprise analytics layer — eliminates manual inspection cycles and enables condition-based maintenance scheduling across the entire rotating equipment fleet.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities operating legacy rotating machinery is the fragmentation of vibration and displacement data across incompatible monitoring systems. Older machinery protection systems often rely on proprietary analog wiring schemes that cannot be directly integrated with modern DCS or SCADA platforms, creating data silos that prevent maintenance engineers from correlating machine health trends with process variables in real time.

The Emerson PR6423/00E-030 CON021, when deployed within the Bently Nevada 3500 Series framework, directly addresses this integration gap. By leveraging the 3500 rack’s built-in Modbus TCP and OPC UA communication capabilities, vibration data captured by the PR6423/00E-030 CON021 can be published to any standards-compliant SCADA or historian platform — including OSIsoft PI, Aspentech IP.21, or Ignition by Inductive Automation — without requiring custom protocol converters or middleware. This open communication architecture enables plant-wide production transparency, where vibration alarms from the PR6423/00E-030 CON021 can automatically trigger work orders in SAP PM or Maximo asset management systems, closing the loop between condition monitoring and maintenance execution.

For remote sites or unmanned compressor stations, the 3500 rack’s remote diagnostic capability — accessed via the System 1 Evolution remote connection module — allows vibration specialists to review waveform data, adjust alarm setpoints, and perform virtual bump tests from a central engineering office, eliminating the need for on-site visits during routine surveillance. This capability is particularly valuable for offshore platforms, pipeline booster stations, and remote power generation facilities where travel costs and safety risks make frequent physical inspections impractical. The PR6423/00E-030 CON021’s robust construction — rated for operation in high-temperature, high-vibration environments — ensures measurement continuity even under the demanding conditions typical of these remote installations. All units supplied by ZYPLC are pre-tested prior to shipment and covered by a warranty terms confirmed during quotation, with RFQ-confirmed sourcing available for shipment arranged after confirmation to global destinations.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 system support when using the PR6423/00E-030 CON021?
The Bently Nevada 3500 Series rack, which hosts the signal output from the PR6423/00E-030 CON021, supports Modbus TCP and OPC UA via the 3500/92 communication gateway card. These protocols allow direct integration with SCADA platforms, DCS controllers, and historian servers without additional protocol converters, ensuring low-latency data delivery to the control room.

Q2: Is the PR6423/00E-030 CON021 compatible with third-party DCS and SCADA systems?
Yes. Because the 3500 rack publishes vibration data over open industrial protocols (Modbus TCP, OPC UA), the measurement data from the PR6423/00E-030 CON021 can be consumed by any compliant SCADA, DCS, or historian platform, including Yokogawa CENTUM, Honeywell Experion, Emerson DeltaV, OSIsoft PI, and Ignition. No proprietary middleware is required for standard integration scenarios.

Q3: How is network stability ensured for continuous vibration monitoring in high-interference industrial environments?
The PR6423/00E-030 CON021 uses a shielded coaxial cable system with the CON021 matched extension to minimize electromagnetic interference from variable frequency drives, high-voltage switchgear, and other industrial noise sources. The Bently Nevada 3500 rack’s signal processing architecture further filters and conditions the raw sensor signal before digitization, ensuring stable, high-fidelity data transmission even in electrically noisy plant environments.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the PR6423/00E-030 CON021?
All PR6423/00E-030 CON021 units supplied by ZYPLC undergo functional testing prior to shipment to verify sensor output linearity, cable continuity, and driver compatibility. Each unit is covered by a warranty terms confirmed during quotation from the date of delivery. Availability is confirmed via RFQ for shipment arranged after confirmation, with express shipping options to support urgent maintenance and shutdown requirements globally.
