Emerson PR6423/00R-010 CON021 Eddy Current Proximity Probe for Epro Systems

Emerson PR6423/00R-010 CON021 Industrial Network Interface for Epro Systems: Precision Eddy Current Data Link for Smart Factory Connectivity

The Emerson PR6423/00R-010 + CON021 eddy current proximity probe system is a cornerstone component in industrial vibration monitoring and machine protection networks. Designed for seamless integration within the Epro MMS6000 series condition monitoring platform, this probe-and-converter assembly delivers high-resolution shaft displacement and vibration data directly into your plant’s SCADA, DCS, and HMI infrastructure. Whether deployed on rotating machinery in power generation, oil and gas, petrochemical, or heavy manufacturing environments, the PR6423/00R-010 + CON021 ensures that real-time machine health data flows without interruption from the field sensor layer to the control room.

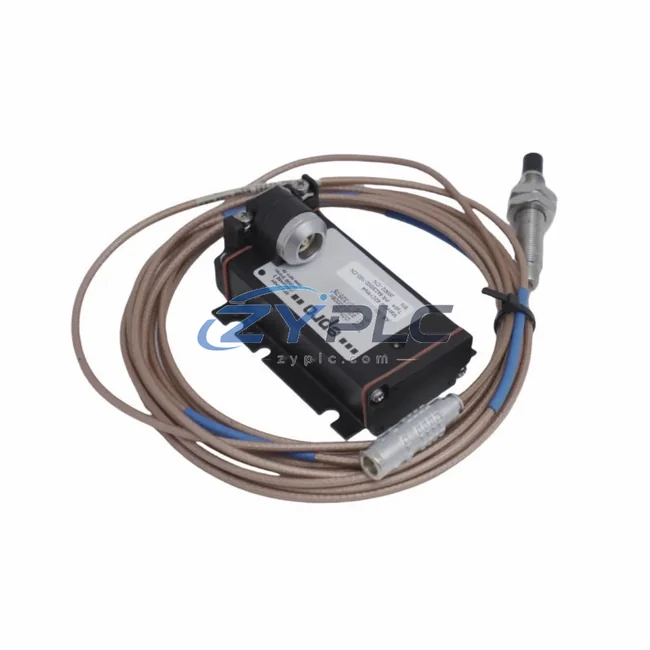

At its core, the PR6423/00R-010 is a non-contact eddy current proximity probe engineered to measure radial shaft vibration, axial position, and differential expansion with micron-level accuracy. Paired with the CON021 signal conditioner, the system converts raw probe output into a standardized analog signal — typically a 4–20 mA or ±24 VDC output — that integrates directly with Emerson Epro MMS6220 vibration monitoring modules, MMS6312 speed monitoring cards, and the broader MMS6000 rack-based protection system. This analog-to-digital signal chain forms the foundation of a reliable industrial data link, enabling continuous condition monitoring without the latency or packet loss risks associated with wireless or fieldbus-only architectures.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the PR6423/00R-010 + CON021 sits at the signal acquisition layer — the first link in a data chain that ultimately feeds plant-wide SCADA dashboards and predictive maintenance platforms. The probe is typically mounted at the bearing housing of a critical rotating asset: a steam turbine, centrifugal compressor, or large induction motor. Its eddy current field continuously tracks shaft position, and the CON021 conditioner converts this into a clean analog signal routed to the Emerson Epro MMS6220 vibration monitor card installed in the MMS6000 protection rack.

From the MMS6000 rack, processed vibration data is transmitted via hardwired analog outputs or — in modernized plants — through a Modbus RTU-to-Ethernet gateway such as the Emerson ROC800 or a third-party protocol converter, bridging the legacy analog world to the plant’s Ethernet/IP or PROFINET backbone. This gateway layer is where the PR6423 system connects to higher-level systems: Emerson DeltaV DCS controllers receive real-time vibration amplitude and phase data, while Wonderware or Emerson Ovation SCADA platforms display trend curves and alarm states on operator HMI screens.

For plants running Emerson AMS Device Manager or similar asset management software, the MMS6000 rack’s digital outputs feed predictive maintenance algorithms that correlate PR6423 vibration signatures with process variables from Rosemount 3051 pressure transmitters and Rosemount 648 temperature sensors on the same asset. This multi-sensor data fusion — vibration, pressure, temperature — enables early fault detection for imbalance, misalignment, bearing wear, and oil whirl, all traceable back to the precision signal delivered by the PR6423/00R-010 + CON021 probe system.

In remote or unmanned facilities, the data chain extends further: an Emerson Remote Terminal Unit (RTU) or edge gateway aggregates MMS6000 outputs alongside PLC data from Emerson PACSystem RX3i or Allen-Bradley ControlLogix controllers, packaging the combined dataset for transmission over fiber or cellular WAN to a central operations center. Remote diagnostics teams can then access live vibration spectra, alarm histories, and probe gap voltages without dispatching field technicians — reducing maintenance costs and downtime across geographically distributed assets.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation: vibration data locked inside a standalone protection rack, disconnected from the plant’s broader automation and information systems. The PR6423/00R-010 + CON021 system, when properly integrated, directly addresses this problem.

Protocol Fragmentation: Many plants operate a mix of legacy analog instruments, Modbus RTU devices, PROFIBUS DP nodes, and modern Ethernet/IP controllers. The CON021’s standardized analog output acts as a universal signal source that any protocol gateway can ingest and re-transmit in the target protocol — whether Modbus TCP, OPC-UA, or MQTT for IIoT cloud platforms. This eliminates the need for proprietary middleware and allows the PR6423 system to coexist with diverse automation ecosystems.

Production Line Transparency: By routing PR6423 vibration data into the plant SCADA alongside process flow rates, temperatures, and production counts, operations managers gain a unified view of both process performance and equipment health. Alarm correlation becomes possible: a spike in PR6423 vibration amplitude coinciding with a process upset can be flagged automatically, triggering a maintenance work order in the CMMS before a failure occurs.

Remote Monitoring and Diagnostics: With the PR6423 data accessible via SCADA or cloud historian, remote engineering teams can perform spectrum analysis, trend review, and alarm acknowledgment from any location. This is particularly valuable for offshore platforms, remote compressor stations, and multi-site manufacturing groups where on-site expertise is limited.

System Scalability: The Epro MMS6000 platform supports expansion from a single-channel probe input to a full 32-channel protection system within the same rack, accommodating additional PR6423 probes, PR6424 high-temperature variants, PR6426 long-range probes, and PR9268 seismic velocity sensors as monitoring requirements grow. This modular architecture protects the initial investment while allowing the data network to scale with the plant.

Industrial Connectivity FAQ

Q1: What communication protocols does the PR6423/00R-010 + CON021 system support for SCADA integration?
The CON021 conditioner outputs a standard analog signal (4–20 mA or ±24 VDC) that is protocol-agnostic at the field level. Integration with SCADA or DCS is achieved via the MMS6000 rack’s analog I/O cards or through a Modbus RTU/TCP gateway. For OPC-UA or MQTT connectivity, a compatible edge gateway is required between the MMS6000 rack and the IT network layer.

Q2: How is network stability and signal integrity maintained over long cable runs?
The PR6423 probe uses a coaxial cable assembly with defined extension cable lengths (typically up to 9 meters with standard cable, extendable with matched extension cables). The CON021 conditioner is designed to compensate for cable capacitance variations, ensuring stable gap voltage and vibration signal output regardless of cable length within specification. Shielded cable routing and proper grounding are recommended to minimize EMI interference in high-noise industrial environments.

Q3: Is the PR6423/00R-010 + CON021 compatible with third-party monitoring systems beyond the Epro MMS6000 platform?
Yes. Because the CON021 outputs a standard analog signal, it can interface with any vibration monitor or data acquisition system that accepts 4–20 mA or voltage inputs — including Bently Nevada 3500 series monitors, National Instruments DAQ systems, and custom PLC analog input modules. Protocol conversion gateways can further extend compatibility to digital fieldbus and industrial Ethernet networks.

Q4: What does the warranty and support terms confirmed before quote cover, and how is pre-shipment testing conducted?
Every PR6423/00R-010 + CON021 unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying probe sensitivity, gap voltage linearity, and CON021 output accuracy against Emerson factory specifications. The warranty and support terms confirmed before quote covers manufacturing defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, commissioning, and system integration queries.
