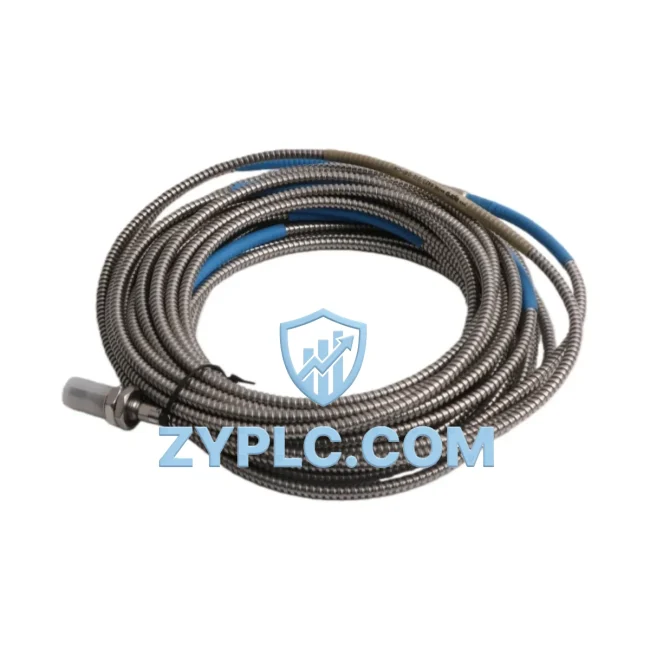

Emerson PR6423/015-040 Eddy Current Sensor for Bently Nevada Systems

Emerson PR6423/015-040: Industrial Data Link for Smart Factory Vibration Monitoring Networks

The Emerson PR6423/015-040 is a high-precision eddy current sensor engineered for continuous, non-contact measurement of shaft vibration, axial position, and radial displacement in rotating machinery. As a core component of the Bently Nevada condition monitoring ecosystem, this sensor serves as the critical signal acquisition node in the industrial data chain — converting mechanical motion into reliable analog signals that feed directly into vibration monitoring systems, SCADA platforms, and predictive maintenance networks across smart factory environments.

In modern industrial facilities, real-time machine health data must flow seamlessly from field-level sensors through communication gateways to supervisory control systems. The PR6423/015-040 anchors this data pipeline at the physical layer, delivering consistent 4–20 mA or voltage output signals that integrate with the Bently Nevada 3500 Series Machinery Protection System — a rack-based monitoring platform that aggregates multi-channel vibration, temperature, and position data for transmission to DCS, PLC, and SCADA systems via Modbus RTU, Modbus TCP/IP, and FOUNDATION Fieldbus protocols.

Compatibility & Integration Notes

Connected Automation Data Flow

The PR6423/015-040 operates as the front-end sensing element in a layered industrial communication architecture. In a typical turbine or compressor monitoring installation, the sensor is paired with a Bently Nevada 3500/42M Proximitor I/O Module, which conditions the raw eddy current signal and feeds it into the 3500 Rack Monitoring System. From there, the 3500 rack’s 3500/92 Communication Gateway Module bridges the vibration data onto the plant’s Ethernet backbone using Modbus TCP/IP or OPC-UA, making real-time shaft displacement and vibration amplitude values available to Emerson DeltaV DCS controllers and Ovation SCADA platforms.

Within the control network, the vibration data streams alongside process variables from Rosemount 3051 pressure transmitters and Rosemount 648 wireless temperature transmitters, all converging at the Emerson Smart Wireless Gateway 1420 for unified plant-wide visibility. For facilities running Siemens or Rockwell control infrastructure, the 3500 gateway’s Modbus RTU port connects directly to Siemens S7-300/S7-400 PLC communication modules or Allen-Bradley ControlLogix remote I/O adapters, enabling cross-platform data integration without protocol conversion middleware.

At the edge layer, the vibration signals captured by the PR6423/015-040 can be routed through an Emerson AMS Device Manager edge node for local analytics, alarm threshold management, and predictive maintenance scheduling — reducing the latency between fault detection and maintenance dispatch. HMI terminals running Wonderware InTouch or GE iFIX SCADA display real-time shaft orbit plots, trend data, and alarm states derived directly from this sensor’s output, giving operators full situational awareness of rotating equipment health across the production floor.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is the fragmentation of machine health data — vibration sensors operating on proprietary analog loops, disconnected from the plant’s digital communication backbone. The Emerson PR6423/015-040, when integrated with the Bently Nevada 3500 monitoring platform, directly addresses this data isolation problem by providing a structured, protocol-compliant pathway from raw mechanical signals to enterprise-level data systems.

For plants transitioning from standalone vibration analyzers to networked condition monitoring, the PR6423/015-040 enables a phased integration approach: existing coaxial sensor wiring is retained while the 3500 rack’s communication modules add Modbus or Fieldbus connectivity, eliminating the need for full sensor replacement. This architecture supports production line transparency — maintenance engineers can access real-time vibration trends, historical waveform data, and alarm logs from any SCADA workstation or mobile HMI, regardless of physical proximity to the machine.

Remote diagnostics capability is a key value driver: with the 3500 system’s OPC-UA server active, vibration data from the PR6423/015-040 can be securely published to cloud-based asset performance management platforms, enabling off-site engineering teams to perform spectrum analysis and bearing fault detection without plant access. System expansion is equally straightforward — additional PR6423 series sensors can be added to existing 3500 racks without network reconfiguration, supporting scalable monitoring as production capacity grows.

Every PR6423/015-040 unit supplied by ZYPLC undergoes pre-shipment functional verification, including gap voltage output testing and cable continuity checks, ensuring the sensor performs to Bently Nevada specifications from day one. All units are backed by a 12-month warranty and supported by in-stock inventory for rapid global dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the PR6423/015-040 support when integrated with the Bently Nevada 3500 system?
The PR6423/015-040 itself outputs an analog signal (gap voltage), but when connected to the Bently Nevada 3500 rack with a 3500/92 Communication Gateway, the system supports Modbus RTU, Modbus TCP/IP, FOUNDATION Fieldbus, and OPC-UA — enabling direct integration with DCS, PLC, and SCADA platforms.

Q2: Can this sensor be used with non-Bently Nevada monitoring systems?
Yes. The PR6423/015-040 produces a standard analog output compatible with any signal conditioner or monitor module that accepts eddy current sensor inputs. It can interface with third-party vibration monitors from Siemens, SKF, or Rockwell Automation, provided the monitor supports the sensor’s sensitivity and range specifications.

Q3: How does the PR6423/015-040 contribute to network stability in continuous monitoring applications?
The sensor’s non-contact measurement principle eliminates mechanical wear, ensuring consistent signal output over extended operating periods. Combined with the 3500 rack’s redundant power supply options and watchdog communication monitoring, the overall system maintains high network uptime — critical for 24/7 rotating machinery protection in power generation and petrochemical applications.

Q4: What is included with the ZYPLC supply of the PR6423/015-040, and what warranty applies?
Each unit supplied by ZYPLC includes the PR6423/015-040 eddy current sensor with coaxial cable assembly, pre-shipment functional test report, and a 12-month warranty covering manufacturing defects and performance deviations from Bently Nevada specifications. In-stock units are available for same-week dispatch with full export documentation.
