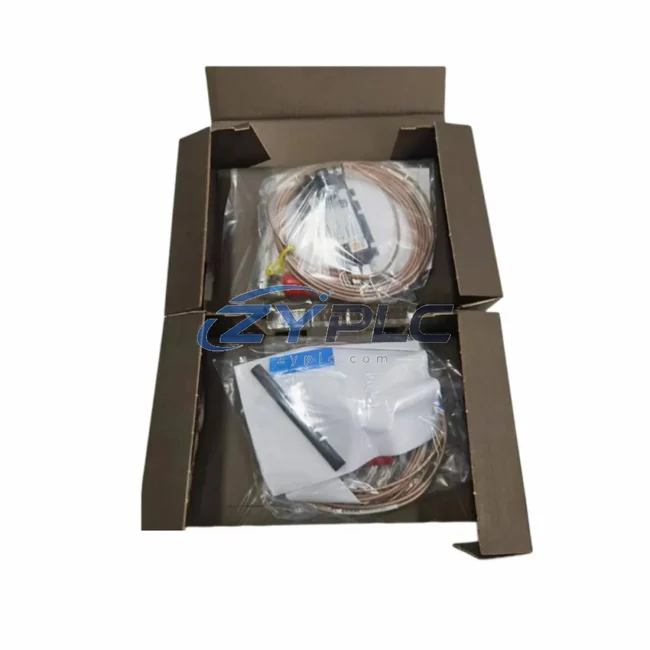

Emerson PR6424/000-100 CON021 Proximity Probe for 3300

Emerson PR6424/000-100 CON021 Proximity Probe for 3300

The Emerson Bently Nevada PR6424/000-100 CON021 is a high-precision eddy-current proximity probe engineered for seamless integration into the Bently Nevada 3300 Series continuous vibration monitoring architecture. Rather than functioning as a standalone sensor, this probe is a foundational element of a layered control system — one that spans the signal acquisition layer, the condition monitoring layer, the communication layer, and ultimately the plant-level supervisory control and data acquisition (SCADA) environment. Understanding its role within this broader architecture is essential for engineers designing reliable, redundant, and maintainable rotating machinery protection systems.

In a typical 3300 Series deployment, the PR6424/000-100 CON021 operates in conjunction with the 3300/55 Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated voltage output proportional to the gap distance between the probe tip and the rotating shaft. This conditioned signal is then routed to the 3300 XL 8mm Proximitor® I/O module housed within the 3300 rack system. The rack itself — often a 3300/20 or 3300/25 rack — provides the structural and electrical backbone for the entire monitoring system, accepting multiple I/O modules that handle radial vibration, axial position, speed, and process variable inputs simultaneously.

At the control layer, the digitized vibration data from the PR6424/000-100 CON021 is processed by the 3500 Series Machinery Protection System or integrated directly into a DCS or PLC platform via the 3300/93 Communication Gateway. This gateway supports Modbus RTU, Modbus TCP/IP, and OPC-DA protocols, enabling seamless data exchange with Emerson DeltaV DCS, Honeywell Experion, Siemens SIMATIC S7, or Allen-Bradley ControlLogix platforms. The result is a unified control architecture where vibration data from the PR6424 probe contributes directly to process interlocks, alarm management, and predictive maintenance workflows.

From a redundancy design perspective, the PR6424/000-100 CON021 supports dual-probe configurations where two probes are mounted 90° apart on the same shaft journal, providing XY vibration vector data. This configuration, combined with the 3300/46 Dual Voting Logic module, enables voted shutdown logic that prevents spurious trips while maintaining full protection integrity. In safety-instrumented systems (SIS) designed to IEC 61511 standards, this redundancy architecture is critical for achieving the required Safety Integrity Level (SIL) ratings.

The probe’s 8mm tip diameter and 5-metre armored extension cable (CON021 designation) make it suitable for installation in confined bearing housings, compressor casings, steam turbine pedestals, and pump bearing brackets. The cable’s stainless-steel armor provides mechanical protection in environments with high vibration, oil mist, and elevated temperatures up to 177°C at the probe tip. The extension cable connects to the Proximitor® sensor via a standard TNC connector, ensuring consistent signal integrity across the full cable run.

In layered automation systems, the PR6424/000-100 CON021 sits at the field instrumentation layer, feeding real-time shaft displacement data upward through the I/O layer (3300 rack modules), through the condition monitoring layer (3500 Series or equivalent), and into the plant information layer via the OSIsoft PI System or Emerson AMS Device Manager. This vertical data flow enables operations teams to correlate vibration trends with process variables such as bearing temperature (measured by 3300/50 Temperature Monitor modules), lube oil pressure, and load conditions — providing a holistic view of machine health that supports both reactive and predictive maintenance strategies.

For engineering teams managing large rotating machinery fleets — including gas turbines, centrifugal compressors, boiler feed pumps, and induced draft fans — the PR6424/000-100 CON021 offers a standardized, interchangeable probe format that simplifies spare parts management. Maintaining a common probe inventory across multiple machine trains reduces procurement complexity and ensures rapid replacement during planned outages or emergency shutdowns. Combined with the warranty terms confirmed during quotation provided on every unit, this standardization significantly reduces the total cost of ownership over the asset lifecycle.

Product Specification Table

System Compatibility Notes

The PR6424/000-100 CON021 achieves its full potential only when integrated within a coordinated control system architecture. In a complete 3300 Series installation, the probe works in concert with the following components and modules:

The 3300/55 Proximitor® Sensor serves as the immediate signal conditioner, converting the probe’s raw eddy-current output into a calibrated voltage signal. This sensor is typically mounted in a junction box adjacent to the machine, minimizing cable run length and reducing signal noise. The conditioned output is then routed to the 3300 XL 8mm I/O Module installed in the monitoring rack, where the signal is digitized and processed against configurable alarm and danger setpoints.

The monitoring rack — commonly a 3300/20 Four-Slot Rack or 3300/25 Eight-Slot Rack — houses multiple I/O modules simultaneously, allowing a single rack to monitor radial vibration (via PR6424 probes), axial position (via PR6422 probes), shaft speed (via PR6423 speed probes), and bearing temperature (via 3300/50 Temperature Monitor modules). This consolidated architecture reduces panel space requirements and simplifies wiring in control cabinets.

For plant-level integration, the 3300/93 Communication Gateway bridges the 3300 Series monitoring system with the plant DCS or SCADA platform. Supporting Modbus RTU, Modbus TCP/IP, and OPC-DA, this gateway enables real-time vibration data from the PR6424/000-100 CON021 to appear as process variables in the DCS historian, triggering automated responses such as load reduction, standby pump activation, or controlled shutdown sequences. In redundant architectures, a secondary 3300/93 Gateway can be configured in hot-standby mode, ensuring continuous data availability even during gateway maintenance.

At the human-machine interface layer, vibration trends from the PR6424 probe are visualized on Emerson AMS Machinery Manager workstations or integrated into the plant DCS operator console via OPC. Operators can monitor shaft centerline plots, orbit diagrams, and trend data in real time, enabling early detection of developing faults such as unbalance, misalignment, oil whirl, and rub conditions. This HMI integration transforms raw vibration data into actionable maintenance intelligence, reducing unplanned downtime and extending machine service intervals.

Industrial Application Notes

The PR6424/000-100 CON021 finds application across a wide range of heavy industrial sectors where rotating machinery protection is critical to operational continuity and safety.

In power generation facilities — including gas turbine plants, steam turbine generators, and combined-cycle power stations — the PR6424 probe monitors shaft vibration on turbine rotors, generator shafts, and exciter bearings. Vibration data is integrated with the turbine control system (TCS) to enforce vibration-based load limits and initiate controlled shutdowns before bearing damage occurs. The probe’s high-temperature rating makes it suitable for installation in the hot sections of steam turbines where ambient temperatures can approach the probe’s rated limit.

In petrochemical and refinery applications, the PR6424/000-100 CON021 is deployed on centrifugal compressors, reactor charge pumps, and crude oil transfer pumps. These machines operate continuously in hazardous areas classified as Zone 1 or Zone 2 under IEC 60079, requiring ATEX or IECEx certified equipment. The PR6424 series carries the necessary certifications for use in these environments, and its armored extension cable provides additional mechanical protection against chemical splash and abrasion.

In water and wastewater treatment plants, the probe monitors large vertical turbine pumps and horizontal centrifugal pumps that operate in wet, corrosive environments. The IP67-rated probe body resists moisture ingress, and the stainless-steel cable armor provides corrosion resistance in chlorinated or saline water environments. Vibration monitoring in these applications helps utilities avoid catastrophic pump failures that could disrupt water supply or cause environmental incidents.

In mining and mineral processing operations, the PR6424/000-100 CON021 is used on SAG mills, ball mills, slurry pumps, and conveyor drive motors. These machines operate under high dynamic loads and are subject to significant vibration from process variability. Early detection of bearing wear or rotor imbalance through continuous vibration monitoring allows maintenance teams to schedule bearing replacements during planned shutdowns rather than responding to emergency failures.

Product Compatibility FAQ

Q1: Is the PR6424/000-100 CON021 compatible with the Bently Nevada 3500 Series Machinery Protection System?
The PR6424/000-100 CON021 is natively designed for the 3300 Series architecture. However, it can be used with the 3500 Series system when paired with the appropriate 3500/42M Proximitor®/Seismic Monitor I/O module, which accepts standard 8mm eddy-current probe inputs. Engineers should verify the scale factor (7.87 V/mm) is correctly configured in the 3500 module to ensure accurate vibration measurement. system integration between the 3300 probe and 3500 monitor is supported and documented in Bently Nevada’s system integration guidelines.

Q2: Can the PR6424/000-100 CON021 be installed in a redundant dual-probe configuration, and what additional components are required?
Yes. Dual-probe XY configurations are standard practice for critical rotating machinery. Two PR6424/000-100 CON021 probes are mounted 90° apart on the same shaft journal, each connected to its own 3300/55 Proximitor® Sensor and dedicated I/O channel in the monitoring rack. The 3300/46 Dual Voting Logic module can be added to implement 2-out-of-2 or 2-out-of-3 voted shutdown logic, preventing spurious trips while maintaining full protection. This configuration is covered under the warranty terms confirmed during quotation on all supplied components.

Q3: What is the recommended maintenance interval for the PR6424/000-100 CON021, and how does the warranty terms confirmed during quotation support long-term asset management?
Bently Nevada recommends verifying probe gap voltage and scale factor calibration during each planned machine outage, typically every 12–24 months depending on operating severity. The probe itself has no moving parts and requires no routine replacement under normal operating conditions. The warranty terms confirmed during quotation covers manufacturing defects and premature failure under normal operating conditions, providing assurance during the critical commissioning and early-operation phase. For long-term asset management, maintaining a standardized spare probe inventory (PR6424/000-100 CON021) ensures rapid replacement capability without extended lead times, minimizing machine downtime during unplanned outages.
