In modern smart factory environments, real-time machine health data is the backbone of predictive maintenance and operational continuity. The Emerson PR6426/000-030 CON021 eddy current proximity sensor — part of the renowned Bently Nevada vibration monitoring platform — serves as a critical node in the industrial data chain, bridging rotating machinery signals with plant-wide SCADA, DCS, and HMI systems. From signal acquisition at the shaft to remote diagnostics at the control room, this sensor enables seamless, high-fidelity data flow across every layer of the industrial network.

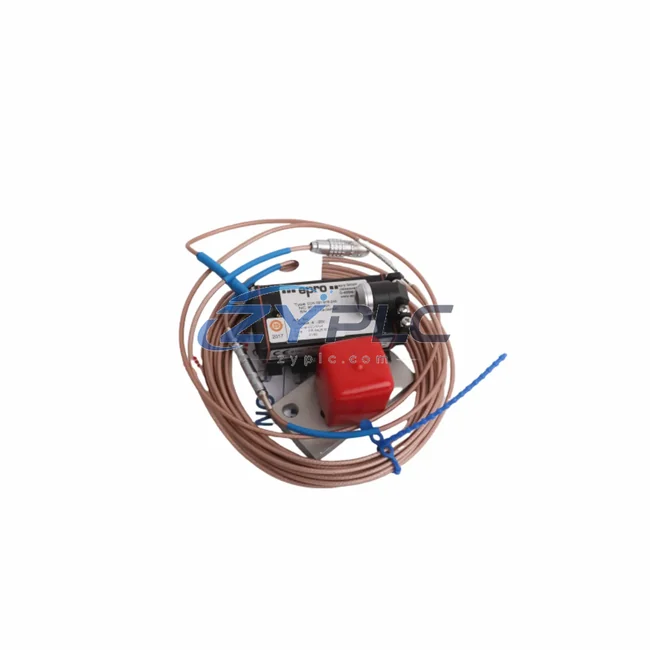

The PR6426/000-030 CON021 is a non-contact eddy current sensor designed to measure radial shaft vibration, axial position, and differential expansion on turbines, compressors, pumps, and other critical rotating assets. Operating within the Bently Nevada 3500 Series machinery protection framework, it delivers continuous analog output that feeds directly into monitoring modules such as the 3500/42M Proximitor I/O Module and the 3500/22M Transient Data Interface, ensuring that every micron of shaft movement is captured, digitized, and transmitted without latency.

Compatibility & Integration Notes

Connected Automation Data Flow

The industrial data journey begins at the machine itself. The PR6426/000-030 CON021 mounts adjacent to the rotating shaft, generating a continuous voltage signal proportional to the gap between the probe tip and the conductive target surface. This raw analog signal travels through the extension cable to the CON021 Proximitor conditioner, which converts and conditions the output for transmission to the monitoring rack.

Within the Bently Nevada 3500 rack, the conditioned signal enters the 3500/42M Proximitor I/O module, where it is digitized and processed against configurable alarm thresholds. The 3500/15 Power Supply Module ensures stable, uninterrupted power delivery to all rack components, maintaining signal integrity even in electrically noisy plant environments. Simultaneously, the 3500/25 Keyphasor Module captures once-per-revolution reference pulses, enabling the system to calculate synchronous vibration vectors and phase angles — data that is essential for balancing and diagnostics.

Processed vibration data is then routed through the 3500/22M Transient Data Interface to the plant’s DCS or SCADA platform via OPC-UA or Modbus TCP. Operators monitoring the AMS 6500 ATG machinery health platform or the CSI 6500 Machinery Health Monitor receive live trending data, alarm states, and waveform snapshots without any manual intervention. For facilities running multi-vendor environments, an industrial protocol gateway bridges the Bently Nevada analog outputs to Ethernet-based networks, enabling integration with Siemens, Rockwell, or Honeywell DCS platforms.

In parallel sensor arrays — common on large turbine trains — the PR6426/000-030 CON021 operates alongside complementary models such as the PR6423 and PR6424 series probes, each covering different measurement planes and shaft positions. The PR6426/010-010 variant, for instance, is deployed for shorter cable runs in confined machinery spaces, while the PR6426/000-030 CON021 addresses standard 30-foot extension configurations. Together, these sensors form a comprehensive vibration monitoring mesh that feeds unified data streams to the plant historian and remote diagnostic centers.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is data isolation — the condition where critical machine health information is trapped within proprietary monitoring systems, inaccessible to plant-wide SCADA, ERP, or cloud analytics platforms. The PR6426/000-030 CON021, integrated within the Bently Nevada 3500 ecosystem, directly addresses this problem through its open protocol architecture and gateway-ready signal outputs.

By standardizing vibration and position data into OPC-UA or Modbus-compatible formats at the rack level, the 3500 system eliminates the need for manual data extraction or custom middleware. Maintenance engineers can access real-time shaft vibration trends, alarm histories, and spectral data from any HMI terminal or remote workstation connected to the plant network. This transparency enables condition-based maintenance scheduling, reducing unplanned downtime and extending equipment service intervals.

For multi-site operations, the system supports remote diagnostics over secure industrial Ethernet, allowing centralized engineering teams to monitor rotating assets across geographically distributed facilities from a single SCADA dashboard. Alarm thresholds, sensor calibration parameters, and data logging intervals can all be adjusted remotely, eliminating the need for on-site intervention during routine configuration changes.

System scalability is another key advantage. As production lines expand, additional PR6426 probes and 3500 rack modules can be integrated without disrupting existing network architecture. The modular design of the Bently Nevada platform ensures that new measurement points are automatically recognized by the SCADA historian, maintaining a consistent and auditable data record across the entire asset base.

Every unit of the Emerson PR6426/000-030 CON021 supplied by ZYPLC undergoes pre-shipment functional verification, including output signal linearity checks and connector integrity testing, ensuring that the sensor performs to specification from the moment it is installed. Stock is maintained for rapid dispatch, supporting both planned maintenance schedules and emergency replacement requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the PR6426/000-030 CON021 support for SCADA integration?
The PR6426/000-030 CON021 outputs a standard analog voltage signal (–24 VDC, 200 mV/mil) that is processed by the Bently Nevada 3500 rack. The 3500 system supports OPC-UA and Modbus TCP/RTU communication to SCADA, DCS, and HMI platforms, enabling seamless integration into plant-wide industrial networks without additional signal conditioning hardware.

Q2: How does the system ensure network stability and data continuity in high-vibration environments?
The PR6426/000-030 CON021 uses a shielded coaxial cable assembly and a robust BNC connector interface to minimize electromagnetic interference. The CON021 Proximitor conditioner provides galvanic isolation and signal buffering, ensuring stable, continuous data transmission even in environments with high electrical noise from variable frequency drives, motors, and switching power supplies.

Q3: Can the PR6426/000-030 CON021 be integrated into existing multi-vendor control systems?
Yes. Through the Bently Nevada 3500 rack’s OPC-UA server and optional Modbus gateway modules, the sensor data can be published to any SCADA or DCS platform that supports standard industrial protocols, including Siemens PCS 7, Rockwell FactoryTalk, Honeywell Experion, and ABB System 800xA, without requiring proprietary software licenses.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this sensor?
All PR6426/000-030 CON021 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit undergoes pre-shipment output signal verification and mechanical inspection before dispatch. Availability is confirmed via RFQ for same-week shipping to support both scheduled maintenance and urgent replacement needs.
