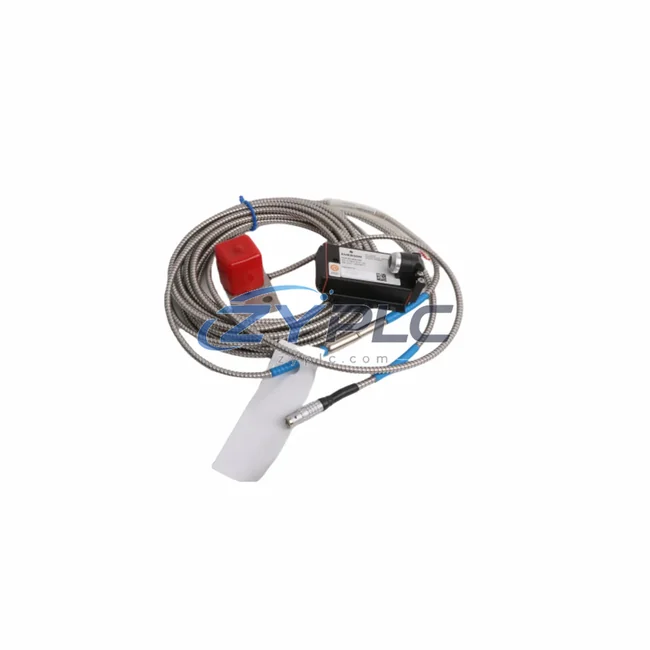

Emerson PR6426/010-030 Proximity Sensor for EPRO

Emerson PR6426/010-030 Proximity Sensor for EPRO

The Emerson PR6426/010-030 CON021/916-160 eddy current proximity sensor is a precision-engineered component designed for seamless integration within the EPRO machinery protection and condition monitoring architecture. As a critical element of the control system hierarchy, this sensor operates at the field instrumentation layer, delivering continuous, high-resolution shaft displacement and vibration data to the upper layers of the automation stack — from the EPRO monitor rack through to the SCADA and asset management platforms.

In a layered automation system, the PR6426/010-030 serves as the primary signal source for rotating machinery health. Its non-contact eddy current measurement principle ensures zero mechanical wear, making it ideal for long-term deployment in turbines, compressors, pumps, and motors where continuous uptime is non-negotiable. The sensor pairs directly with the CON021/916-160 extension cable and the TK-RNCL/001 proximitor/oscillator to form a complete measurement chain, feeding calibrated 4–20 mA or voltage signals into the EPRO 3500 Series monitor rack.

Product Specification Table

System Compatibility Notes

The PR6426/010-030 does not operate in isolation — it is a foundational node in a coordinated machinery protection architecture. At the field layer, the sensor tip is mounted radially or axially on the machine shaft, with the CON021/916-160 extension cable routing the signal to the TK-RNCL/001 proximitor, which conditions and amplifies the raw eddy current signal into a calibrated voltage output. This conditioned signal feeds directly into the EPRO 3500/22M Transient Data Interface or the 3500/42M Proximitor/Seismic Monitor module housed in the 3500 Series rack.

Within the monitor rack, the 3500/20 Rack Interface Module manages communication between the individual monitor cards and the plant DCS or safety system. Alarm setpoints configured in the 3500 rack — including Alert and Danger thresholds for shaft displacement, gap voltage, and vibration amplitude — are transmitted upstream to the Emerson AMS Suite or OSIsoft PI historian for trend analysis and predictive maintenance scheduling. The 3500/93 Communication Gateway Module enables Modbus TCP or FOUNDATION Fieldbus connectivity, allowing the EPRO rack data to be consumed by third-party SCADA platforms such as Wonderware System Platform or Ignition by Inductive Automation.

At the HMI layer, operators interact with real-time vibration trends and alarm states through the Emerson AMS Device Manager or a custom Ignition Vision panel, where the PR6426/010-030 data appears as a live channel alongside temperature inputs from Pt100 RTD assemblies and process pressure signals from Rosemount 3051 transmitters. This multi-layer data convergence enables a complete picture of rotating equipment health without requiring manual inspection or intrusive measurement.

For redundancy-critical applications — such as steam turbine protection in power generation or gas compressor trains in LNG facilities — dual PR6426/010-030 sensors are deployed in a 2-of-2 or 2-of-3 voting architecture, with each sensor feeding an independent monitor channel. The 3500 rack’s built-in voting logic ensures that a single sensor fault does not trigger a spurious shutdown, while still maintaining full protection against genuine mechanical events. This redundancy design is further supported by the 3500/15 Power Supply Module, which provides isolated, regulated power to each monitor card independently.

Industrial Application Notes

The PR6426/010-030 finds application across a broad range of process industries where rotating machinery reliability is paramount. In power generation, it monitors turbine shaft eccentricity and differential expansion during startup and load transitions, providing early warning of bearing wear or rotor imbalance before catastrophic failure occurs. In petrochemical and refinery environments, it is deployed on centrifugal compressors and reactor agitators, where continuous shaft position monitoring is mandated by API 670 machinery protection standards.

In water treatment and municipal utilities, the sensor monitors large vertical pump shafts and motor bearings, feeding data into the plant SCADA for automated maintenance scheduling. Mining and mineral processing operations use the PR6426/010-030 on ball mills, SAG mills, and conveyor drive motors, where the harsh environment demands the sensor’s IP67 rating and wide temperature tolerance. Packaging and food processing lines benefit from the sensor’s non-contact design, which eliminates contamination risk while providing precise shaft runout data for quality-critical machinery.

In all these applications, the PR6426/010-030 integrates into the existing control architecture without requiring dedicated signal conditioning hardware beyond the standard EPRO proximitor, minimizing engineering effort and reducing commissioning time. Its compatibility with the Bently Nevada 3500 Series — the industry’s most widely deployed machinery protection platform — ensures that replacement and spare parts management is straightforward, with ZYPLC maintaining RFQ-confirmed sourcing for rapid dispatch.

Product Compatibility FAQ

Q1: Is the PR6426/010-030 compatible with Bently Nevada 3500 Series monitor racks?
Yes. The PR6426/010-030 is fully compatible with the Bently Nevada 3500 Series machinery protection system, which is the OEM platform for EPRO sensors. It connects via the CON021/916-160 extension cable to the TK-RNCL/001 proximitor, and the conditioned output feeds directly into 3500/42M or 3500/22M monitor modules without any additional signal conditioning.

Q2: Can this sensor be installed in hazardous area (ATEX/IECEx) environments?
The PR6426/010-030 is designed for general industrial environments with IP67 protection. For ATEX or IECEx Zone 1/Zone 2 hazardous area installations, please confirm the specific approval markings on the unit datasheet. ZYPLC can advise on compatible EPRO sensor variants with the appropriate Ex certification for your application.

Q3: What does the warranty terms confirmed during quotation cover, and how is it supported?
All PR6426/010-030 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify output linearity, gap voltage calibration, and cable integrity. In the event of a warranty claim, ZYPLC provides direct technical support and replacement dispatch. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty service.
