Emerson PR9376/010-011 Proximity Sensor for EPRO

Emerson PR9376/010-011 Proximity Sensor for EPRO

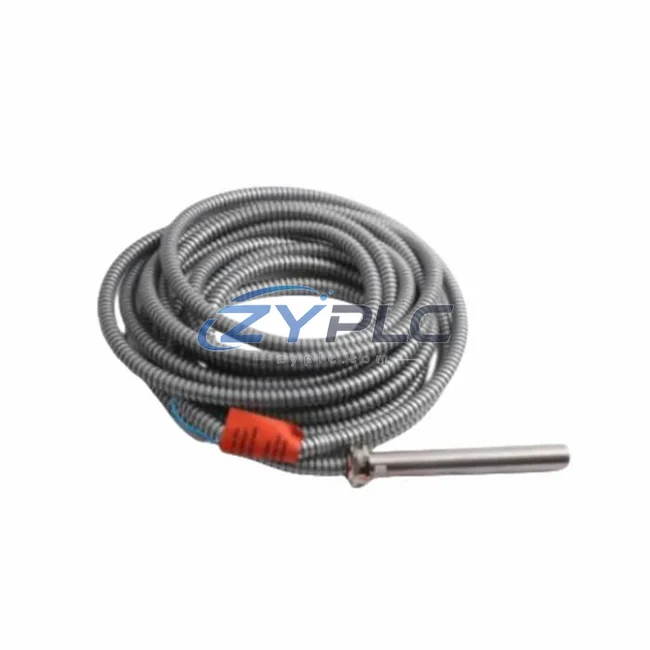

The Emerson PR9376/010-011 is a precision proximity sensor module engineered for seamless integration within the EPRO machinery protection and vibration monitoring architecture. Rather than functioning as a standalone measurement device, this module is designed to operate as a critical sensing node within a layered industrial control system — interfacing directly with signal conditioning units, protection relay modules, and supervisory control platforms to deliver continuous, high-fidelity shaft displacement and rotational speed data across the full control hierarchy.

In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and rotating machinery applications — the integrity of the vibration monitoring layer is foundational to system-wide reliability. The PR9376/010-011 addresses this requirement by providing a stable, low-noise eddy-current sensing signal that feeds directly into the EPRO 3500 Series rack-based monitoring system, enabling real-time protection logic, alarm threshold management, and predictive maintenance workflows at the supervisory level.

Product Specification Table

System Compatibility Notes

The PR9376/010-011 achieves its full operational value when deployed as part of a coordinated EPRO machinery protection architecture. At the sensing layer, the proximity probe pairs with the PR9376/010-030 extension cable and the PR9376/010-090 driver module to form a complete eddy-current measurement chain. This chain feeds conditioned analog signals into the EPRO MMS 6120 vibration monitor card or the Bently Nevada 3500/42M position monitor, both of which are rack-mounted within the EPRO 3500 Series protection chassis.

At the I/O and signal processing layer, the monitor cards communicate alarm and trip states to the EPRO MMS 6823 relay output module, which interfaces with the plant’s emergency shutdown (ESD) system or distributed control system (DCS) — typically a DeltaV M-Series controller or equivalent Emerson automation platform. The relay outputs can be wired to motor protection relays, solenoid valve actuators, or variable frequency drives (VFDs) to execute protective actions in response to vibration threshold violations.

At the network and supervisory layer, the EPRO rack communicates via Modbus RTU or OPC-DA/UA to the plant historian or SCADA platform, enabling long-term trend analysis, predictive maintenance scheduling, and integration with asset management software such as Emerson AMS Device Manager. The EPRO MMS 6350 communication gateway facilitates this data bridge, ensuring that vibration data captured by the PR9376/010-011 is available across the full automation hierarchy — from field sensor to enterprise dashboard.

Power integrity for the monitoring rack is maintained by the EPRO MMS 6004 power supply module, which provides redundant 24 VDC rails to all installed monitor cards and sensor driver circuits. This redundant power architecture ensures that a single power supply failure does not interrupt continuous machinery protection — a critical requirement in unattended compressor stations, offshore platforms, and nuclear auxiliary systems.

At the human-machine interface layer, operators interact with vibration data through the Emerson Ovation Operator Station or a dedicated EPRO condition monitoring workstation, where real-time gap measurements, velocity trends, and alarm histories are displayed. This system integration of the PR9376/010-011 within the full system stack — from eddy-current probe to enterprise HMI — ensures that every layer of the control architecture benefits from accurate, low-latency shaft position data.

Industrial Application Notes

In power generation facilities, the PR9376/010-011 is deployed on steam turbine shaft lines to monitor radial vibration and axial position, providing the protection system with the data needed to initiate controlled shutdowns before catastrophic bearing failure occurs. In petrochemical and refinery environments, the module monitors centrifugal compressor rotors operating at high speeds and elevated temperatures, where non-contact sensing is the only viable measurement method.

In water treatment and pumping stations, the proximity sensor monitors vertical pump shaft runout and bearing wear, enabling condition-based maintenance intervals that reduce unplanned downtime. In mining and mineral processing applications, the PR9376/010-011 is installed on crusher drives, conveyor head pulleys, and mill pinion shafts — environments characterized by high vibration, dust ingress, and wide temperature swings — where its IP67-rated sensor tip and robust eddy-current technology deliver consistent performance.

In metallurgical and steel mill applications, the module monitors rolling mill drive shafts and continuous caster pinch roll assemblies, where precise gap measurement is essential for product quality control as well as equipment protection. Across all these industries, the PR9376/010-011 contributes to a unified machinery health monitoring strategy that reduces maintenance costs, extends equipment life, and supports regulatory compliance with API 670 machinery protection standards.

Product Compatibility FAQ

Q1: Is the PR9376/010-011 compatible with both the EPRO MMS 6000 Series and the Bently Nevada 3500 Series monitoring racks?
A: Yes. The PR9376/010-011 uses a standard eddy-current output signal (typically –24 VDC supply, analog voltage output) that is compatible with both the EPRO MMS 6120/6110 monitor cards and the Bently Nevada 3500/42M position monitor, provided the correct driver module (PR9376/010-090 or equivalent) and extension cable are used to complete the measurement chain. Always verify the gap voltage range and sensitivity (V/mm) against the monitor card’s input specification before commissioning.

Q2: What is the recommended installation and commissioning procedure for integrating this sensor into an existing EPRO rack system?
A: Installation requires mechanical mounting of the probe at the correct gap distance (typically 1.0–1.5 mm from the target shaft surface), routing of the extension cable to the driver module, and connection of the driver output to the monitor card input terminal. After physical installation, the gap voltage should be verified at the driver output using a calibrated voltmeter, and the monitor card’s alarm and trip setpoints should be configured in accordance with the machine OEM’s vibration limits and API 670 guidelines. A full functional test — including simulated alarm and trip conditions — should be completed before returning the machine to service.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for EPRO proximity sensor systems?
A: The warranty terms confirmed during quotation covers manufacturing defects, electrical failures, and performance deviations from published specifications under normal operating conditions, commencing from the date of shipment. ZYPLC maintains dedicated inventory of EPRO proximity sensor components — including probes, extension cables, and driver modules — to support rapid replacement in the event of sensor failure. For long-term maintenance planning, ZYPLC recommends holding a minimum of two spare PR9376/010-011 units per monitored machine train, ensuring that critical protection systems can be restored within a single maintenance shift without waiting for international procurement lead times.
