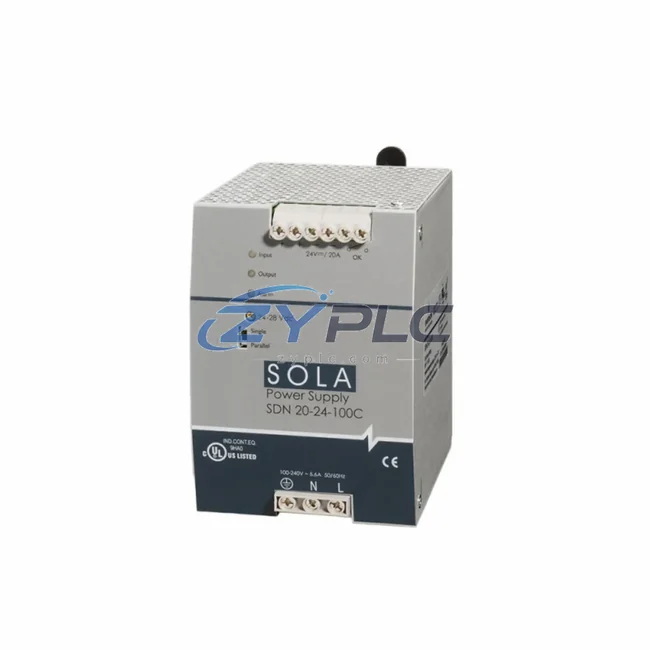

Emerson SDN 20-24-100C DIN Rail Power Supply

Emerson SDN 20-24-100C DIN Rail Power Supply for SDN-C Automation

The Emerson SDN 20-24-100C is a high-efficiency 24VDC 20A DIN rail power supply engineered for demanding industrial automation environments where energy performance, system reliability, and production continuity are non-negotiable. As part of Emerson’s proven SDN-C Series, this unit delivers stable, regulated DC power to PLCs, I/O modules, HMIs, servo drives, and distributed control nodes — all while minimizing unnecessary energy draw across the full load range. For factories focused on reducing operational energy costs and improving equipment utilization, the SDN 20-24-100C is a foundational component in any efficiency-oriented power architecture.

Product Specification Table

System Compatibility and Application

In a modern energy-conscious production line, the power supply is not a passive component — it is the first point of energy governance. The SDN 20-24-100C feeds 24VDC directly to the control backbone, including Siemens S7-1500 CPU modules and their associated ET 200SP distributed I/O stations, ensuring that every digital input, analog sensor signal, and fieldbus node receives clean, regulated power without voltage sag under transient load conditions.

When paired with a Siemens SINAMICS G120 variable frequency drive or an Allen-Bradley PowerFlex 525 AC drive, the SDN 20-24-100C supplies the 24V control circuit that governs drive enable signals, safe torque off (STO) inputs, and digital I/O feedback — all critical for energy-efficient motor speed regulation. Proper 24V supply stability directly affects how accurately the drive responds to speed reference commands, which in turn determines motor load at partial load.

For condition monitoring at the panel level, the SDN 20-24-100C is commonly deployed alongside Schneider Electric PowerLogic PM5000 series power meters or Siemens SENTRON PAC3200 power analyzers, which measure real-time kWh consumption, power factor, and harmonic distortion. These meters draw their own 24VDC auxiliary supply from the SDN-C rail, making supply quality directly relevant to measurement accuracy and data integrity in maintenance planning systems.

In servo-driven applications, the SDN 20-24-100C provides the logic supply for Omron G5 series servo drives and their associated 1S series servo motors, where the 24V rail powers encoder feedback circuits, brake control outputs, and safety relay coils. Stable 24V logic power is essential for maintaining servo positioning accuracy and preventing nuisance faults that cause unplanned downtime and wasted production cycles.

Communication infrastructure — including Moxa EDS-308 managed Ethernet switches for PROFINET or EtherNet/IP topologies — also draws from the 24VDC bus. Network stability depends on supply ripple performance; the SDN 20-24-100C’s low output ripple (<50mVpp) ensures that real-time communication between PLCs, SCADA systems, and field devices remains uninterrupted, supporting continuous data flow for energy analytics and predictive maintenance platforms.

Maintenance and Replacement Notes

On a typical automotive parts assembly line running three shifts, unregulated or inefficient 24V power supplies contribute to panel overheating, increased cooling energy costs, and intermittent PLC faults that disrupt production rhythm. The Emerson SDN 20-24-100C addresses this directly through its ≥89% conversion efficiency, which means less than 11% of input energy is lost as heat — significantly reducing the thermal load inside the control cabinet and lowering the duty cycle of panel air conditioners or heat exchangers.

In conveyor and material handling systems, where multiple motor starters, proximity sensors, and safety light curtains share the same 24V bus, the SDN 20-24-100C’s 20A continuous output capacity and built-in overload protection prevent voltage collapse during simultaneous load switching events. This protects downstream devices from brown-out conditions that can corrupt PLC memory, trigger false sensor readings, or cause servo drives to fault — all of which result in unplanned downtime and lost production output.

For facilities implementing ISO 50001 maintenance planning programs, the SDN 20-24-100C supports energy baseline documentation by providing a stable, measurable power input point. Its universal AC input range (85–264 VAC) also makes it suitable for global deployment without hardware changes, reducing spare parts inventory complexity and procurement lead times. Every unit shipped by ZYPLC undergoes full load testing and output regulation verification before dispatch, with a warranty terms confirmed during quotation covering all functional defects.

Product Sourcing FAQ

Q1: How much energy can the SDN 20-24-100C save compared to a standard 24V power supply?
A: Compared to conventional linear or low-efficiency switch-mode supplies operating at 75–80% efficiency, the SDN 20-24-100C’s ≥89% efficiency at full load reduces heat dissipation by 30–40% at equivalent output power. In a 24/7 production environment, this translates to measurable reductions in panel cooling energy and lower overall facility power consumption.

Q2: Is the SDN 20-24-100C compatible with Siemens, Allen-Bradley, and Schneider PLC systems?
A: Yes. The 24VDC output is fully compatible with Siemens S7-300/S7-1500, Allen-Bradley ControlLogix/CompactLogix, Schneider Modicon M340/M580, and Omron CJ/NJ series PLCs and their associated I/O modules. The adjustable output voltage (24–28V) allows fine-tuning for specific system requirements.

Q3: What is the recommended replacement or upgrade path for aging SDN-C series units?
A: For direct replacement, the SDN 20-24-100C is a drop-in substitute for earlier SDN 20-24-100 units. For capacity upgrades, Emerson’s SDN 40-24-100C (40A) is the next step up within the same SDN-C platform, maintaining identical mounting footprint and wiring interface to minimize retrofit time and cost.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
A: Every SDN 20-24-100C unit supplied by ZYPLC is tested under full rated load for output voltage accuracy, ripple performance, and thermal stability prior to shipment. The warranty terms confirmed during quotation covers all manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize any impact on your production schedule.
