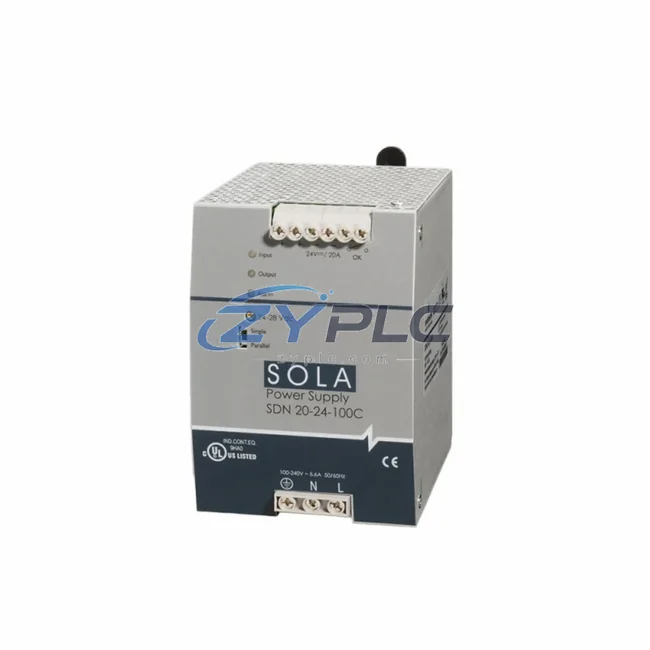

Emerson SDN20-24-100C DIN Rail Power Supply

Emerson SDN20-24-100C DIN Rail Power Supply: Replacement and Sourcing Information for Production Line Optimization

The Emerson SDN20-24-100C is a high-efficiency 24VDC / 20A DIN rail-mounted power supply engineered for demanding industrial automation environments. Designed within Emerson’s proven SDN Series platform, this unit delivers stable, regulated DC power to PLCs, I/O modules, servo drives, and field instrumentation — all while minimizing unplanned downtime across the full load range. For facilities focused on reducing idle power consumption, improving equipment uptime, and tightening production line cycle times, the SDN20-24-100C represents a foundational component in any industrial control architecture.

Unlike generic power supplies, the SDN20-24-100C is built to sustain continuous 20A output with a wide AC input range (85–264VAC), making it resilient to grid fluctuations common in heavy industrial settings. Its active power factor correction and high conversion efficiency (>91%) directly reduce heat generation and cooling overhead — two often-overlooked contributors to facility energy costs.

Product Specification Table

System Compatibility and Application

In a modern energy-optimized production cell, the SDN20-24-100C serves as the stable DC backbone that powers every downstream control and sensing component. Consider a typical mid-scale assembly line: a Siemens S7-1500 PLC handles the primary logic and motion sequencing, while a Siemens ET 200SP distributed I/O system collects real-time signals from proximity sensors, pressure transducers, and temperature probes mounted across the line. All of these 24VDC field devices draw their operating power from the SDN20-24-100C — and because the supply maintains output regulation within ±1% even under dynamic load swings, the PLC’s analog input modules receive clean, noise-free reference voltage, improving measurement accuracy and reducing false fault triggers.

On the drive side, a Siemens SINAMICS G120 variable frequency drive or an Allen-Bradley PowerFlex 525 manages motor speed on conveyor and pump circuits. These drives rely on stable 24VDC control power for their internal logic boards and safety relay circuits — an unstable supply here can cause nuisance trips that interrupt production and inflate maintenance call-outs. The SDN20-24-100C’s built-in overvoltage protection (OVP) and short-circuit protection (SCP) ensure that even a downstream wiring fault does not cascade into a drive fault or PLC reset.

For condition monitoring, a Schneider Electric PowerLogic PM5000 power meter or an Emerson Power Xpert C4000 energy analyzer can be integrated into the same control cabinet, drawing 24VDC auxiliary power from the SDN20-24-100C while reporting real-time kWh, power factor, and harmonic distortion data back to the SCADA layer via Modbus RTU or PROFIBUS DP. This closed-loop visibility allows plant engineers to correlate power consumption spikes with specific machine states — identifying inefficient idle modes, oversized motor selections, or poorly tuned PID loops that waste energy without contributing to throughput.

At the HMI layer, a Siemens SIMATIC KTP700 Basic Panel or a Weintek MT8000 series HMI provides operators with live energy dashboards and alarm management. These panels, also powered at 24VDC, display real-time OEE (Overall Equipment Effectiveness) metrics alongside operating load per production cycle — giving shift supervisors the data they need to make immediate adjustments rather than waiting for end-of-shift reports. When paired with an Emerson DeltaV distributed control system at the supervisory level, the entire energy data chain — from field sensor through drive feedback to enterprise reporting — becomes coherent and actionable.

Communication integrity across this architecture is maintained by PROFINET or EtherNet/IP managed switches, which also require stable 24VDC power. A single SDN20-24-100C with its 20A capacity can simultaneously supply a mid-size I/O rack, an HMI panel, a managed switch, and multiple safety relays — consolidating power distribution and reducing the number of individual PSU units in the cabinet, which itself lowers panel complexity and failure points.

Maintenance and Replacement Notes

Unplanned downtime in industrial facilities rarely comes from a single large source — it accumulates from dozens of small inefficiencies: control panels running at partial load with low-efficiency linear supplies, motors operating at fixed speed when variable-speed control would suffice, and sensors cycling unnecessarily because the control logic hasn’t been tuned for the actual production rhythm. The SDN20-24-100C addresses the power supply layer of this problem directly.

With an active power factor correction circuit maintaining PF >0.95, the SDN20-24-100C draws near-unity power from the AC mains — meaning the facility’s electrical infrastructure (transformers, cabling, switchgear) operates closer to its rated capacity without the reactive power overhead that inflates apparent power demand and utility penalty charges. In a plant with 50–100 control panels, replacing aging linear or low-PF switch-mode supplies with SDN-series units can measurably reduce the facility’s total reactive power demand.

The supply’s wide operating temperature range (-25°C to +70°C) and convection cooling design eliminate the need for forced-air cooling fans in the control cabinet — removing a common failure point and reducing cabinet noise levels. Fan failures in control panels are a leading cause of unplanned thermal shutdowns; the SDN20-24-100C’s fanless design directly reduces this maintenance burden and the associated production downtime costs.

For predictive maintenance programs, the SDN20-24-100C’s output voltage monitoring capability (via the adjustable output trim) allows maintenance teams to detect gradual output drift — an early indicator of capacitor aging — before it causes a control system fault. When integrated with an condition monitoring relay such as a Phoenix Contact EMD-SL-3V series voltage monitoring relay, out-of-tolerance conditions can trigger a maintenance alert in the CMMS system without interrupting production, enabling planned replacement during scheduled downtime rather than emergency response.

All units supplied by ZYPLC are individually tested prior to shipment, with output voltage, ripple, and load regulation verified against factory specifications. This pre-shipment testing protocol ensures that every SDN20-24-100C installed in your control panel performs to specification from day one — reducing commissioning time and eliminating the risk of installing a marginal unit that fails early in service.

Product Sourcing FAQ

Q1: How much energy can the SDN20-24-100C save compared to a standard industrial power supply?
The SDN20-24-100C achieves >91% conversion efficiency with active PFC (>0.95), compared to 75–82% efficiency typical of older linear or basic switch-mode supplies. In a 480W continuous load scenario, this efficiency improvement can reduce power consumption by 40–80W per unit — translating to meaningful savings across a multi-panel facility operating 24/7. Additionally, the near-unity power factor reduces reactive power charges on utility bills where kVAR penalties apply.

Q2: Is the SDN20-24-100C compatible with my existing Siemens, Allen-Bradley, or Schneider PLC system?
Yes. The SDN20-24-100C outputs standard 24VDC, which is the universal control voltage for virtually all major PLC platforms including Siemens S7-300/400/1200/1500, Allen-Bradley ControlLogix and CompactLogix, Schneider Modicon M340/M580, and Beckhoff CX/EK series. No special interface or adapter is required — the supply connects directly to the 24VDC bus of your existing control cabinet.

Q3: Can the SDN20-24-100C replace my current DIN rail power supply without rewiring the panel?
In most cases, yes. The SDN20-24-100C uses standard 35mm DIN rail mounting (EN 60715) and accepts universal AC input (85–264VAC), so it fits into existing panel layouts without structural modification. Output terminals are compatible with standard ferrule-terminated wiring. Always verify that the replacement unit’s output current rating (20A) meets or exceeds your panel’s total 24VDC load before installation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All SDN20-24-100C units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and performance deviations from published specifications. Prior to shipment, each unit undergoes output voltage verification, load regulation testing, and ripple measurement. Units that do not meet factory specifications are quarantined and not shipped. Warranty claims are processed directly through ZYPLC — contact plc.sales@zyplc.com or +86 19859288691 for RMA support.
