Emerson SLS1508 Power Supply for DeltaV: Control System Backbone for Distributed Automation

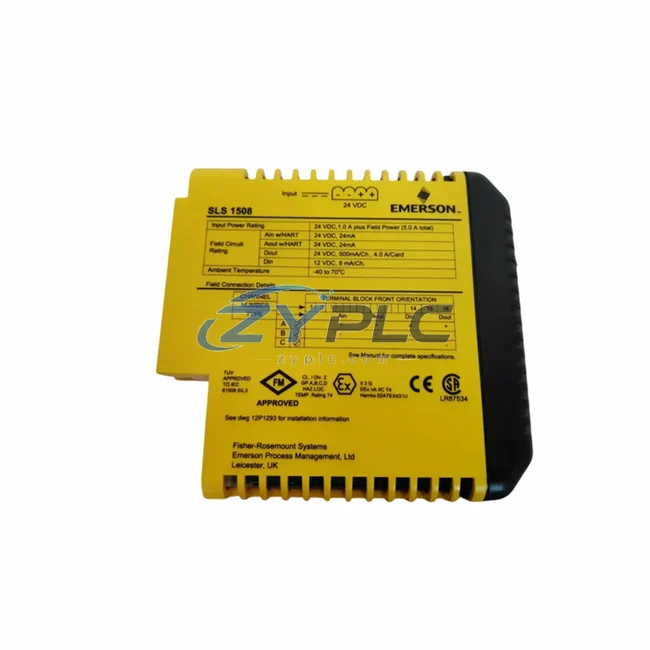

In a fully integrated DeltaV distributed control system, power integrity is not a peripheral concern — it is the architectural foundation upon which every control layer depends. The Emerson SLS1508 (part number KJ2201X1-BA1, also referenced as 12P3162X162) is a dedicated DCS power supply module engineered to deliver stable, conditioned DC power to the DeltaV S-Series controller chassis and associated I/O subsystems. Its role within the control architecture extends far beyond simple voltage conversion: it ensures that every upstream and downstream component — from the CE3007 controller card to the KJ3002X1-BA1 analog input module — operates within its specified electrical envelope, maintaining signal fidelity, scan cycle consistency, and system-wide determinism.

Understanding the SLS1508 requires viewing it not as a standalone unit, but as a load-bearing element within a layered automation hierarchy. In a typical DeltaV deployment, the control layer is anchored by redundant controller pairs such as the MD Plus or CE3007 series, which manage real-time process logic and communicate over the DeltaV network. These controllers are housed in S-Series carrier assemblies — the same chassis infrastructure that the SLS1508 powers. Without a reliable, properly rated power supply module, even the most sophisticated controller configuration becomes vulnerable to brownout-induced resets, corrupted I/O scans, and unplanned process interruptions.

Product Specification Table

System Compatibility Notes

The SLS1508 is most effectively deployed as part of a coordinated power architecture that mirrors the redundancy philosophy of the broader DeltaV system. In high-availability process environments — such as continuous chemical reactors, offshore platform control rooms, or power generation facilities — engineers typically install two SLS1508 units in parallel within the same S-Series carrier. This configuration ensures that a single power supply failure does not interrupt controller operation, preserving the uptime guarantees demanded by SIL-rated safety instrumented systems.

At the controller layer, the SLS1508 directly supports the CE3007 and MD Plus controller modules, which execute the DeltaV control strategies and manage I/O communication over the FOUNDATION Fieldbus H1 and HART networks. The stable 24 VDC rail provided by the SLS1508 is equally critical for the KJ3002X1-BA1 analog input module and the KJ3221X1-BA1 analog output module, both of which require clean, low-ripple power to maintain 4–20 mA signal accuracy across long field cable runs.

At the I/O layer, discrete input and output modules such as the KJ4001X1-CG1 digital input card and the KJ2003X1-BA2 digital output module rely on the backplane power bus energized by the SLS1508. Any voltage sag or transient on this bus directly affects the response time and diagnostic accuracy of these modules, making power supply selection a critical engineering decision rather than an afterthought.

The network layer of a DeltaV system — typically built around the DeltaV Ethernet control network and supported by communication gateways such as the VE5009 Ethernet I/O card — also benefits indirectly from SLS1508 stability. Network interface modules housed in the same carrier draw from the same power bus, and power-induced resets can cause temporary network partitioning that disrupts the deterministic communication required for coordinated multi-controller strategies.

For human-machine interface integration, the DeltaV Operate workstations and DeltaV Mobile clients connect to the control network via standard Ethernet, but the field-level operator panels and local HMI terminals — often powered from the same 24 VDC distribution rail as the SLS1508 output — depend on the same power infrastructure. Ensuring that the SLS1508 is correctly sized and thermally managed within the control cabinet is therefore a prerequisite for reliable HMI availability.

At the execution layer, variable frequency drives, smart valve positioners, and motor control centers receive their command signals from DeltaV analog and digital output modules. The signal integrity of these outputs — and therefore the precision of final control elements — traces directly back to the quality of the DC power supplied by the SLS1508. Engineers specifying the SD3008 power conditioner or the S2090001-01 system power supply for auxiliary loads should coordinate their selection with the SLS1508 to ensure that the overall power budget of the control cabinet is balanced and that no single supply is operating near its thermal limit.

Industrial Application Notes

The Emerson SLS1508 has been deployed across a wide range of process industries where DeltaV is the platform of choice for continuous and batch control. In petroleum refining and petrochemical complexes, the SLS1508 powers DeltaV controller nodes managing distillation column temperature profiles, reactor pressure loops, and compressor anti-surge strategies. The module’s ability to operate across a wide AC input range makes it suitable for facilities with variable grid quality, including those in emerging markets where power infrastructure may be less stable.

In water and wastewater treatment plants, the SLS1508 supports DeltaV systems controlling pump sequencing, chemical dosing, and filtration backwash cycles. These applications demand high system availability with minimal maintenance intervention, and the SLS1508’s robust design — combined with its warranty terms confirmed during quotation coverage from ZYPLC — provides the reliability assurance that municipal operators require when specifying replacement or spare components.

In mining and metallurgical processing, where control cabinets are exposed to vibration, dust ingress, and wide ambient temperature swings, the SLS1508’s industrial-grade construction ensures continued operation under conditions that would compromise commercial-grade power supplies. Ore processing lines, flotation cell control systems, and smelter automation platforms built on DeltaV benefit from the module’s proven field reliability.

Pharmaceutical and food-and-beverage manufacturers operating under FDA 21 CFR Part 11 or GAMP 5 validation frameworks rely on DeltaV’s audit trail and electronic batch record capabilities. The SLS1508, as a qualified component within the validated DeltaV hardware platform, can be replaced under change control procedures without triggering full system revalidation, provided that the replacement unit carries equivalent certification — a key advantage of sourcing from ZYPLC with documented warranty terms confirmed during quotation and test records.

Packaging and material handling lines that use DeltaV for coordinated motion and process control also benefit from the SLS1508’s stable power delivery. High-speed discrete I/O operations — such as label verification, fill-level checking, and reject gate actuation — require consistent power to maintain sub-millisecond response times across the I/O subsystem.

Product Compatibility FAQ

Q1: Can the SLS1508 be used in a redundant power configuration within the same DeltaV S-Series carrier?
Yes. The SLS1508 is designed to support parallel redundant power configurations within the DeltaV S-Series chassis. Two units can be installed simultaneously, with the system automatically load-sharing and failing over to the remaining unit in the event of a single supply failure. This configuration is strongly recommended for any application requiring continuous availability, including SIL 1 and SIL 2 safety instrumented systems. ZYPLC supplies matched pairs of SLS1508 units with coordinated test documentation to simplify redundant commissioning.

Q2: Is the SLS1508 compatible with all DeltaV S-Series carrier sizes, and how does it interact with the CE3007 and MD Plus controllers?
The SLS1508 is compatible with the standard DeltaV S-Series carrier assemblies used with the CE3007, MD Plus, and related controller families. It interfaces with the carrier backplane to distribute regulated 24 VDC to all installed I/O and controller modules. When replacing an existing SLS1508 in a live system, it is advisable to perform the swap during a planned maintenance window or to use the redundant supply to maintain power continuity. ZYPLC provides pre-tested units with full parameter verification to minimize commissioning time and reduce the risk of compatibility issues.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and how does it support long-term maintenance planning?
ZYPLC’s warranty terms confirmed during quotation on the SLS1508 covers manufacturing defects, functional failures under normal operating conditions, and parameter deviations from Emerson’s published specifications. Each unit is tested prior to shipment using calibrated equipment, and test records are available upon request to support maintenance documentation and regulatory compliance. For long-term maintenance planning, ZYPLC recommends holding at least one spare SLS1508 per installed carrier in critical process applications, and can provide consignment stock arrangements for large-scale DeltaV installations. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to discuss spare parts management programs tailored to your system architecture.
