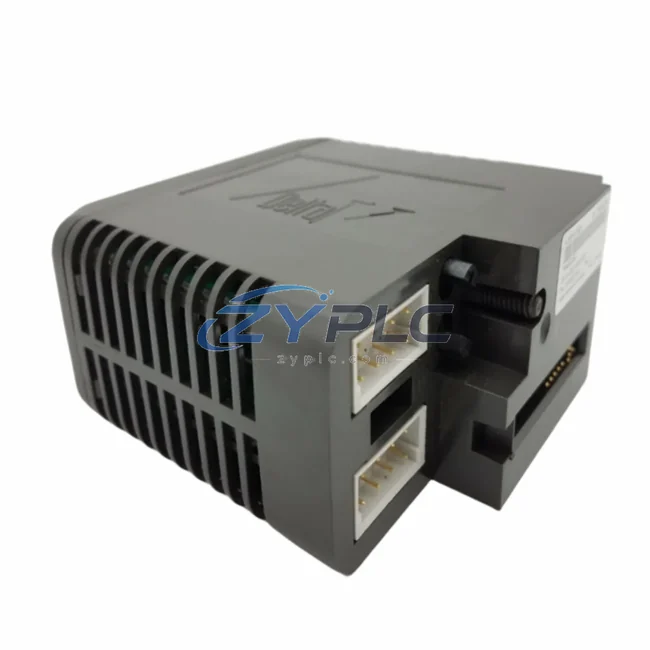

Emerson VE4002S1T1B2 Analog Output Module

Emerson VE4002S1T1B2 Analog Output Module: Replacement and Sourcing Information for DeltaV Automation

The Emerson VE4002S1T1B2 (also referenced as KJ3001X1-BG1 / 12P0557X162) is a high-performance analog output module engineered for the Emerson DeltaV distributed control system. In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to deliver precise, stable analog signals to field devices — including control valves, variable frequency drives, and positioners — directly determines how efficiently a plant consumes power. The VE4002S1T1B2 is designed to minimize signal drift, reduce unnecessary actuator hunting, and maintain tight loop control, all of which translate into measurable reductions in unplanned downtime across the production line.

Whether deployed in chemical processing, oil and gas, power generation, pharmaceutical manufacturing, or food and beverage automation, this module integrates seamlessly into the DeltaV I/O subsystem, enabling engineers to implement maintenance-focused control strategies without additional hardware overhead. Its compact form factor and low self-consumption design ensure that the module itself contributes minimal parasitic load to the control cabinet power budget.

Product Specification Table

System Compatibility and Application

The VE4002S1T1B2 does not operate in isolation — its maintenance planning value is fully realized when it functions as part of a tightly integrated DeltaV automation architecture. In a typical energy-conscious plant layout, the module receives setpoint commands from a DeltaV MD Plus Controller or DeltaV M5Plus Controller, which executes PID and advanced control algorithms to determine the optimal output signal for each field device. The analog output signal is then transmitted to downstream actuators such as Fisher FIELDVUE DVC6200 digital valve controllers, which position control valves with high repeatability, eliminating the micro-oscillations that cause unnecessary pneumatic operating load.

On the drive side, the 4–20 mA output from the VE4002S1T1B2 is commonly used to command Emerson Control Techniques Unidrive M700 variable frequency drives or compatible third-party VFDs, adjusting motor speed in real time based on process demand rather than running motors at fixed full speed. This alone can help restore stable operation when a compatible replacement is required. The precise 16-bit resolution of the VE4002S1T1B2 ensures that speed references are delivered without quantization error, preventing the micro-corrections that cause VFDs to hunt and consume excess reactive power.

For condition monitoring and verification, the VE4002S1T1B2 works alongside Emerson DeltaV Analog Input modules such as the VE4001S2T1B1, which read back process variables — flow, pressure, temperature — from field transmitters. This closed-loop architecture, combining analog output precision with analog input feedback, enables the DeltaV system to continuously verify that energy is being consumed only as needed. Integration with Emerson AMS Device Manager further allows maintenance teams to monitor the health of connected field devices, catching calibration drift or valve wear before it leads to energy-wasting control degradation.

Communication across the plant floor is handled via the DeltaV system’s built-in FOUNDATION Fieldbus H1 and HART protocol support, allowing the VE4002S1T1B2 to coexist with smart field instruments that report diagnostic data back to the control room. When paired with DeltaV CHARM I/O cards for flexible marshalling, the overall I/O architecture becomes highly reconfigurable, reducing the engineering effort and downtime associated with production line changes — a key factor in maintaining high equipment utilization rates. The DeltaV Operate HMI provides operators with real-time visibility into output states, loop performance, and energy-related KPIs, enabling proactive intervention before inefficiencies escalate into costly process upsets.

Maintenance and Replacement Notes

In a continuous chemical processing plant, uncontrolled valve positioning is one of the largest sources of hidden unplanned downtime. When an analog output module delivers imprecise or noisy signals, control valves oscillate around their setpoint, consuming excess compressed air in pneumatic actuators and causing downstream process variability that forces operators to run equipment at conservative, energy-inefficient margins. The VE4002S1T1B2 eliminates this problem through its high-resolution 16-bit output and robust signal conditioning, delivering clean, stable 4–20 mA signals that keep valves locked on target.

In motor-driven applications — pumps, compressors, fans, and conveyors — the module’s precise speed reference output to variable frequency drives ensures that motors operate at the minimum speed required to meet process demand. A pump running at 80% speed consumes only about 51% of the energy it would at full speed (following the affinity laws), so the accuracy of the speed reference signal has a direct and significant impact on energy bills. Plants that have upgraded from older, lower-resolution analog output modules to the VE4002S1T1B2 class of hardware consistently report reductions in motor load and improvements in process stability.

Predictive maintenance is another dimension of maintenance planning that the VE4002S1T1B2 supports. By maintaining accurate output signals, the module ensures that field device diagnostics — reported via HART or FOUNDATION Fieldbus — reflect true process conditions rather than artifacts of signal quality issues. This allows maintenance teams to identify developing faults in pumps, compressors, and heat exchangers before they cause efficiency losses or unplanned shutdowns. Reduced unplanned downtime means higher overall equipment effectiveness (OEE) and lower operating load per unit of production output.

All units supplied by ZYPLC undergo functional output testing across all channels prior to shipment, verifying signal accuracy, channel isolation, and communication integrity within the DeltaV I/O bus. This pre-shipment validation ensures that the module performs to specification from day one, avoiding the energy and productivity losses associated with field commissioning failures. With a warranty terms confirmed during quotation covering all supplied modules, customers can deploy the VE4002S1T1B2 with confidence in both performance and supply chain reliability.

Product Sourcing FAQ

Q1: How does the VE4002S1T1B2 contribute to operational stability compared to a standard analog output module?
The VE4002S1T1B2 uses a 16-bit DAC for each output channel, delivering signal resolution approximately four times finer than a typical 12-bit module. This precision reduces control loop oscillation, minimizes actuator over-travel, and allows VFDs to operate at more accurate speed setpoints — all of which directly reduce operating load in motor and valve-driven processes. In high-cycle applications, the cumulative operational stability can be substantial over a full production year.

Q2: Is the VE4002S1T1B2 compatible with my existing DeltaV system version?
The VE4002S1T1B2 is designed for the Emerson DeltaV S-series and M-series I/O subsystems and is compatible with DeltaV system versions that support the KJ3001X1-BG1 hardware revision. It is a direct drop-in replacement for existing installations using the same module family. ZYPLC recommends confirming your DeltaV system version and I/O carrier type before ordering; our technical team can assist with compatibility verification.

Q3: What is the recommended replacement or upgrade path if my current analog output module is causing control loop instability?
If your current module is exhibiting output drift, channel failures, or communication errors on the DeltaV I/O bus, the VE4002S1T1B2 is a direct replacement that restores full loop performance without requiring controller reconfiguration. For plants considering a broader I/O modernization, pairing the VE4002S1T1B2 with DeltaV CHARM I/O infrastructure provides additional flexibility for future production line reconfigurations.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
All VE4002S1T1B2 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against defects in materials and workmanship under normal operating conditions. Prior to shipment, each unit undergoes functional testing including analog output accuracy verification across all 8 channels, DeltaV I/O bus communication testing, and channel isolation checks. Test records are available upon request. In the event of a warranty claim, ZYPLC provides replacement or repair support with minimal lead time to reduce production impact.
