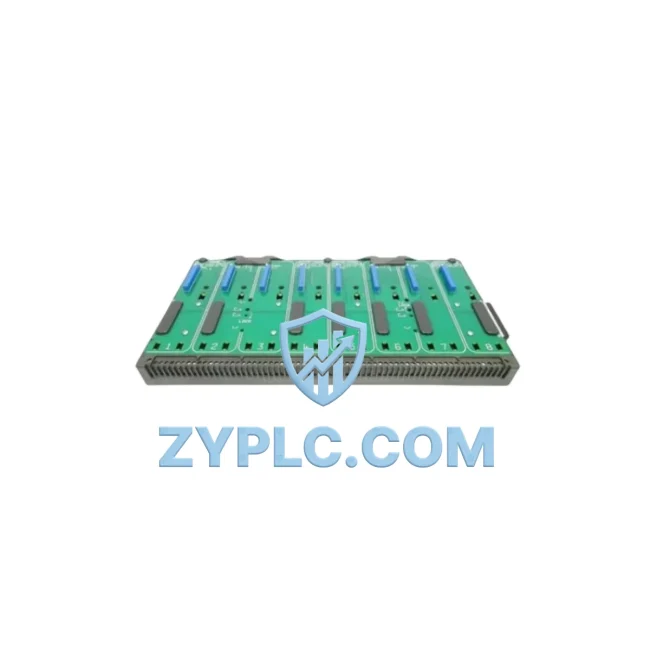

The Emerson VE4050S2K1C0 (KJ4001X1-BE1, 12P0818X072) is a FOUNDATION Fieldbus H1 I/O Carrier Module engineered for the DeltaV distributed control system platform. Designed to serve as the critical junction between intelligent field instruments and the plant-wide control network, this carrier module enables seamless protocol-level integration across the full automation stack — from sensor-level signal acquisition through to SCADA visualization and enterprise data systems. In smart factory environments where data continuity, network determinism, and real-time diagnostics are non-negotiable, the VE4050S2K1C0 delivers the connectivity backbone that modern process plants demand.

At its core, the VE4050S2K1C0 functions as a FOUNDATION Fieldbus H1 segment host, providing the physical and logical interface between DeltaV controllers and field-mounted devices such as pressure transmitters, flow meters, valve positioners, and temperature sensors. Unlike conventional 4–20 mA analog wiring, FOUNDATION Fieldbus H1 enables bidirectional digital communication, allowing each connected device to transmit process values, device diagnostics, and configuration data simultaneously over a single twisted-pair segment. This dramatically reduces wiring complexity while increasing the volume and quality of data available to the DeltaV SCADA and HMI layers.

Network Communication Table

Connected Automation Data Flow

In a typical DeltaV process automation architecture, the VE4050S2K1C0 sits at the heart of the field network layer. Field instruments — including Emerson Rosemount 3051 pressure transmitters, Fisher FIELDVUE DVC6200 digital valve controllers, and Micro Motion Coriolis flow meters — connect directly to the FOUNDATION Fieldbus H1 segment hosted by this carrier module. Each device communicates its process variable, secondary variables, and self-diagnostic status upstream through the carrier to the DeltaV Fieldbus Interface Card, which in turn feeds data to the DeltaV MD or MQ controller over the DeltaV I/O bus.

From the controller level, real-time process data is aggregated and forwarded to the DeltaV Application Station, where the DeltaV Operate HMI presents live process graphics, trend displays, and alarm management dashboards to control room operators. Simultaneously, the DeltaV Historian captures time-stamped process data for long-term storage and OEE analysis. For plants running integrated SCADA platforms such as OSIsoft PI or Wonderware System Platform, the DeltaV OPC DA/UA server acts as the protocol gateway, translating DeltaV-native data into standard OPC formats consumable by third-party analytics and MES systems.

Where remote I/O extension is required — for example, in geographically distributed wellhead or pipeline monitoring applications — the DeltaV Remote I/O system (using DeltaV CHARM I/O or traditional S-series remote I/O nodes) can be integrated alongside the VE4050S2K1C0 carrier infrastructure, extending the same FOUNDATION Fieldbus data model to remote field locations without sacrificing network determinism or diagnostic transparency. For safety-critical loops, the VE4050S2K1C0 is compatible with DeltaV SIS (Safety Instrumented System) architectures, where it can coexist with SIS I/O carriers on the same subsystem rail, enabling a unified hardware platform for both basic process control and safety functions.

At the edge, Emerson’s AMS Device Manager software leverages the bidirectional FOUNDATION Fieldbus communication enabled by the VE4050S2K1C0 to perform remote device configuration, calibration verification, and predictive maintenance scheduling — all without requiring physical access to the field instrument. This capability is central to the smart factory vision: transforming isolated field devices into networked, self-reporting assets that continuously contribute to plant-wide operational intelligence.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is protocol fragmentation — a patchwork of 4–20 mA analog loops, HART point-to-point wiring, proprietary serial buses, and early-generation digital networks that cannot natively exchange data with modern DCS or SCADA platforms. The result is data isolation: critical process information trapped at the field device level, invisible to control room operators and inaccessible to plant optimization systems.

The VE4050S2K1C0 directly addresses this challenge by providing a standards-based FOUNDATION Fieldbus H1 interface that replaces multiple analog I/O channels with a single, high-integrity digital segment capable of hosting up to 16 field devices. Each device on the segment publishes its process data, status, and diagnostics as structured digital messages, eliminating the signal degradation and noise susceptibility inherent in analog transmission. The result is a transparent, auditable data pipeline from the field instrument to the DeltaV controller — and from there, to every upstream system in the plant hierarchy.

For plants undertaking digital transformation initiatives, the VE4050S2K1C0 enables a phased migration strategy: existing HART instruments can be retained and gradually replaced with FOUNDATION Fieldbus-capable devices as maintenance cycles permit, while the DeltaV platform provides a unified engineering environment for both legacy and modern I/O types. This approach minimizes capital expenditure while progressively eliminating data silos and expanding the scope of real-time monitoring and remote diagnostics.

Remote diagnostics capability is particularly valuable in hazardous or difficult-to-access plant areas. With FOUNDATION Fieldbus, operators can interrogate any connected device from the DeltaV workstation, retrieving live diagnostic parameters, historical alarm logs, and device health indicators without entering the field. This reduces maintenance labor costs, shortens mean time to repair (MTTR), and supports compliance with functional safety standards such as IEC 61511.

System scalability is another key advantage. As production capacity expands or process configurations change, additional FOUNDATION Fieldbus segments can be added to the DeltaV I/O subsystem by installing additional VE4050S2K1C0 carrier modules and corresponding interface cards — without requiring changes to the controller architecture or SCADA configuration. This modular expandability protects the initial automation investment and supports long-term plant growth strategies.

Industrial Connectivity FAQ

Q1: What communication latency can be expected on a FOUNDATION Fieldbus H1 segment hosted by the VE4050S2K1C0?
FOUNDATION Fieldbus H1 operates at 31.25 kbit/s with a deterministic, scheduled communication model. Typical macro-cycle times for a fully loaded segment (16 devices) range from 500 ms to 1 second, depending on the number of published variables and the configured schedule. For time-critical control loops, Emerson recommends limiting the number of devices per segment and using the DeltaV control-in-the-field (CIF) capability to execute PID control directly within the field device, reducing dependency on controller scan rates.

Q2: Is the VE4050S2K1C0 compatible with both DeltaV S-series and M-series controller platforms?
Yes. The VE4050S2K1C0 is designed for the DeltaV I/O subsystem and is compatible with DeltaV MD, MQ, SD, and SQ controllers, as well as the DeltaV SIS platform. It mounts on the standard DeltaV I/O carrier rail and interfaces with DeltaV Fieldbus Interface Cards (FBICs) such as the VE4001S2T1B2. Compatibility with specific DeltaV software versions should be confirmed against the Emerson DeltaV compatibility matrix for the installed system version.

Q3: How does the VE4050S2K1C0 support network stability in electrically noisy industrial environments?
FOUNDATION Fieldbus H1 is inherently more noise-resistant than analog 4–20 mA signals due to its digital encoding and differential signaling on twisted-pair cable. The VE4050S2K1C0 carrier, combined with properly installed segment terminators and Fieldbus-certified cable, provides robust immunity to electromagnetic interference (EMI) from variable frequency drives (VFDs), motor starters, and high-voltage switchgear commonly found in process plant environments. Emerson’s DeltaV Fieldbus Diagnostics tool provides continuous segment health monitoring, alerting engineers to noise levels, signal quality degradation, or device communication errors before they impact process control.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every VE4050S2K1C0 unit supplied by ZYPLC is subject to functional verification testing prior to shipment, confirming communication interface integrity, carrier bus connectivity, and physical condition. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Units are shipped with appropriate anti-static and protective packaging to prevent transit damage. For warranty claims or technical support inquiries, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
