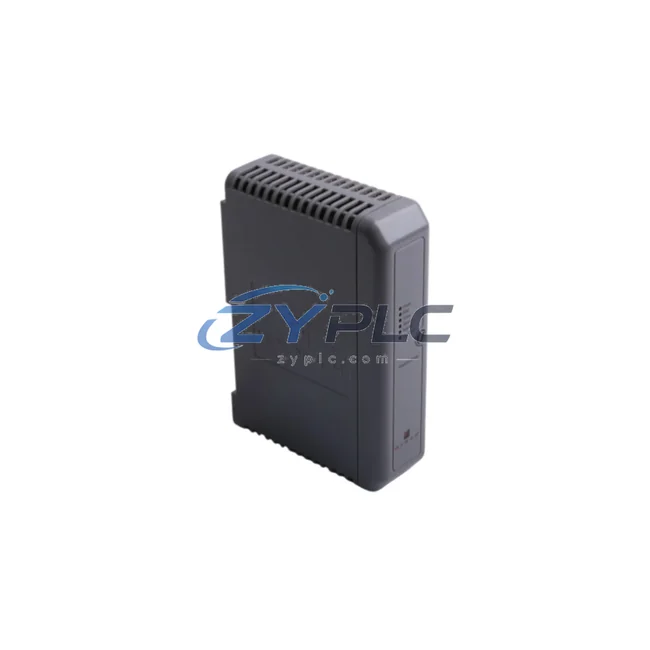

Emerson VIM-4201 HART Communication Gateway for DeltaV Systems

Emerson VIM-4201 HART Communication Gateway: Industrial Data Link for DeltaV Smart Factory Systems

The Emerson VIM-4201 is a high-performance HART Communication Gateway engineered for seamless integration within DeltaV Distributed Control System (DCS) architectures. Designed to bridge the gap between field-level instrumentation and upper-layer control platforms, the VIM-4201 enables real-time, bidirectional data exchange across the full automation hierarchy — from sensors and transmitters on the plant floor to SCADA servers, HMI workstations, and enterprise MES platforms. In an era where smart manufacturing demands continuous visibility and zero data isolation, the VIM-4201 delivers the connectivity backbone that modern industrial sites require.

At its core, the VIM-4201 functions as a Virtual I/O Module within the DeltaV ecosystem, supporting the HART (Highway Addressable Remote Transducer) protocol to communicate with intelligent field devices including pressure transmitters, flow meters, temperature sensors, and valve positioners. By leveraging HART’s dual-signal capability — simultaneous analog 4–20 mA process values and digital diagnostic data — the VIM-4201 allows plant engineers to retrieve device health status, calibration data, and process variables without interrupting live operations. This capability is foundational to predictive maintenance strategies and real-time condition monitoring in smart factory environments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical DeltaV-based smart factory deployment, the VIM-4201 sits at the intersection of field instrumentation and the control network, orchestrating data flow across multiple system layers. At the field level, HART-enabled devices such as Emerson Rosemount 3051 pressure transmitters and Fisher FIELDVUE DVC6200 digital valve controllers communicate their process and diagnostic data to the VIM-4201 over the standard 4–20 mA loop. The VIM-4201 extracts the embedded HART digital signal and routes it into the DeltaV controller — typically a DeltaV MD or MX Series controller — where it becomes available for real-time process control logic and alarm management.

From the DeltaV controller, process data travels upstream via the DeltaV control network to DeltaV Operate HMI workstations, where operators monitor live process values, acknowledge alarms, and execute control commands. Simultaneously, the data is forwarded to the DeltaV Historian or an OPC DA/UA server, enabling integration with third-party SCADA platforms such as Emerson Ovation or OSIsoft PI System for long-term trending, KPI dashboards, and production reporting. For sites requiring remote access, the DeltaV Remote Client or a secure industrial DMZ gateway extends visibility to off-site engineering teams, enabling remote diagnostics and parameter adjustments without physical site visits.

The VIM-4201 also plays a critical role in multi-drop HART network configurations, where a single communication channel supports multiple field devices. In conjunction with Emerson AMS Device Manager — an asset management software platform — the VIM-4201 enables automated device scanning, configuration backup, and predictive alert generation. When a field device such as a Micro Motion Coriolis flow meter or a Rosemount 848T temperature transmitter reports an abnormal diagnostic flag, AMS Device Manager captures the alert and routes it to the maintenance team via the plant’s alarm management system, closing the loop between field anomaly detection and corrective action dispatch.

For remote I/O expansion scenarios, the VIM-4201 integrates with DeltaV Remote I/O (RIO) nodes deployed in hazardous or geographically distributed areas, extending the HART communication reach without requiring additional controller hardware. This architecture supports scalable plant expansion while maintaining a unified data namespace within the DeltaV system — a key requirement for sites pursuing ISA-95 or IEC 62443 compliance frameworks.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, legacy systems, and isolated control islands. The Emerson VIM-4201 directly addresses this challenge by providing a standardized HART communication interface that bridges legacy 4–20 mA field wiring with the digital intelligence of modern DCS platforms. Sites that previously relied on manual field walks for device calibration checks or fault diagnosis can now access the same information digitally through the DeltaV workstation — eliminating data silos and reducing mean time to repair (MTTR).

For plants operating mixed-vendor environments, the VIM-4201’s compatibility with the HART protocol — an open, globally recognized standard — ensures interoperability with field devices from multiple manufacturers, including ABB, Yokogawa, Honeywell, and Siemens. This protocol-level openness allows engineering teams to standardize on a single communication infrastructure without being locked into a single device vendor, significantly reducing integration complexity and long-term maintenance costs.

Production line transparency is another key benefit. By surfacing real-time device diagnostics alongside process values, the VIM-4201 enables condition-based maintenance programs that shift plant operations from reactive to predictive. Operators can identify instrument drift, valve stiction, or sensor fouling before these issues escalate into unplanned shutdowns — directly improving OEE (Overall Equipment Effectiveness) and production throughput. For multi-site enterprises, the ability to aggregate HART diagnostic data from multiple DeltaV systems into a centralized SCADA or historian platform creates a unified operational intelligence layer that supports corporate-level performance benchmarking and continuous improvement initiatives.

Industrial Connectivity FAQ

Q1: What communication protocols does the Emerson VIM-4201 support, and is it compatible with non-Emerson field devices?
The VIM-4201 supports the HART protocol (revision 5, 6, and 7), which is an open international standard. It is fully compatible with any HART-enabled field device regardless of manufacturer, including instruments from ABB, Yokogawa, Honeywell, and Siemens. Within the DeltaV DCS, the VIM-4201 maps HART device data to standard DeltaV function blocks, ensuring seamless integration with the control strategy without custom programming.

Q2: How does the VIM-4201 ensure network stability and minimize communication latency in time-critical process control applications?
The VIM-4201 is designed for deterministic HART communication with optimized polling cycles that balance data refresh rates against network bandwidth. In DeltaV configurations, HART secondary variable updates are managed asynchronously from the primary 4–20 mA control loop, ensuring that diagnostic data retrieval does not introduce latency into the primary process control path. The module supports configurable scan rates to match the dynamics of different process applications, from slow-moving temperature loops to faster flow control applications.

Q3: Can the VIM-4201 be integrated with third-party SCADA or MES systems, and what data formats are supported for upstream connectivity?
Yes. Within the DeltaV ecosystem, the VIM-4201’s data is accessible via OPC DA and OPC UA interfaces, enabling integration with any OPC-compliant SCADA, MES, or historian platform. This includes systems such as Wonderware InTouch, Ignition by Inductive Automation, OSIsoft PI, and SAP MII. For sites requiring direct database connectivity, DeltaV’s built-in historian can export process and diagnostic data in standard formats including CSV, XML, and SQL-compatible structures.

Q4: What warranty and pre-shipment testing does the VIM-4201 include, and what is the typical lead time for global orders?
Every Emerson VIM-4201 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing to confirm communication integrity, I/O channel performance, and protocol compliance. ZYPLC maintains ready stock of the VIM-4201 to support urgent project timelines, with global shipping available to most destinations within 3–7 business days. For large-volume orders or project-specific requirements, expedited fulfillment options are available upon request.
