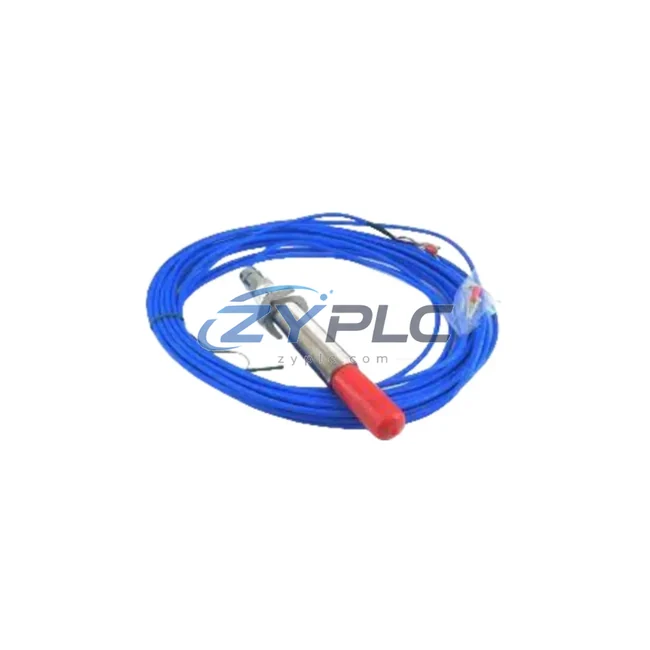

EPRO MMG 1070/04TS Displacement Sensor for Proximity

EPRO MMG 1070/04TS Displacement Sensor for Proximity: Compatibility and Replacement Notes

The EPRO MMG 1070/04TS is a precision eddy current displacement sensor engineered for seamless integration into multi-layer industrial control architectures. Rather than functioning as a standalone measurement device, the MMG 1070/04TS is designed to serve as a critical sensing node within a complete proximity monitoring system — coordinating signal acquisition, transmission, and processing across the control layer, I/O layer, network layer, power layer, HMI layer, and actuation layer. In turbomachinery protection, rotating equipment condition monitoring, and high-availability process control environments, the architectural role of this sensor extends far beyond simple displacement measurement.

Within a layered automation system, the MMG 1070/04TS operates in conjunction with its matched driver electronics — typically the EPRO PR 6423 or PR 6424 series proximity transducer drivers — to form a complete eddy current measurement chain. The driver converts the raw impedance signal from the sensor probe into a calibrated voltage output, which is then fed into the EPRO MMS 6000 or MMS 3000 series machinery monitoring modules. These modules serve as the I/O layer interface, digitizing the analog displacement signal and making it available to the control layer via standard communication protocols including Modbus RTU, PROFIBUS DP, or Ethernet-based fieldbus architectures.

At the control layer, the digitized displacement data is processed by the plant DCS or safety PLC — such as systems built on the EPRO C300 controller platform or third-party DCS architectures — where shaft displacement trends, alarm thresholds, and trip setpoints are continuously evaluated. The MMG 1070/04TS sensor’s high-frequency response and sub-micron resolution ensure that even transient rotor excursions are captured with sufficient fidelity for the control system to execute protective actions within the required response time. This is particularly critical in applications where API 670 machinery protection standards govern the system design.

From a network layer perspective, the MMS 6000 monitoring rack — which houses the signal conditioning modules receiving input from the MMG 1070/04TS — communicates upstream to the plant historian and SCADA system via OPC-UA or Modbus TCP/IP. This enables real-time trending, alarm management, and long-term condition monitoring data archiving without interrupting the primary protection function. The architectural separation between the protection layer and the monitoring/reporting layer ensures that network congestion or SCADA communication faults do not compromise the integrity of the machinery protection system.

Power layer considerations are equally important in proximity system architecture. The MMG 1070/04TS and its associated driver electronics require a stable, low-noise DC power supply — typically -24 VDC — sourced from a dedicated instrumentation power distribution unit with appropriate surge protection and redundancy. In high-availability installations, dual-redundant power feeds with automatic switchover are recommended to ensure continuous sensor operation during power supply maintenance or fault conditions. The EPRO power supply modules within the MMS rack provide this regulated power distribution, maintaining sensor excitation stability across the full operating temperature range.

At the HMI layer, displacement data from the MMG 1070/04TS is visualized on operator workstations running EPRO System 1 Evolution software or equivalent condition monitoring platforms. Trend displays, orbit plots, and Bode diagrams derived from the sensor’s output allow maintenance engineers to assess rotor dynamic behavior, identify developing faults such as rotor rub, oil whirl, or bearing wear, and plan predictive maintenance interventions before unplanned shutdowns occur. The integration of the MMG 1070/04TS data stream into the plant asset management system further supports long-term reliability engineering and maintenance optimization.

In redundant architecture designs — common in critical rotating equipment such as gas turbines, steam turbines, compressors, and large pumps — multiple MMG 1070/04TS sensors are deployed in voting configurations (typically 2-out-of-3 or 1-out-of-2) to eliminate single-point failures in the protection system. Each sensor feeds an independent monitoring channel within the MMS 6000 rack, and the voting logic is executed at the module level to ensure that a single sensor failure does not cause a spurious trip or, conversely, allow a genuine fault to go undetected. This redundant sensing architecture is a fundamental requirement of functional safety standards including IEC 61511 and IEC 61508.

For system commissioning and long-term maintenance, the MMG 1070/04TS offers significant advantages in terms of interchangeability and calibration traceability. The sensor is supplied with a matched calibration certificate referenced to the specific driver and target material combination used in the application, ensuring that the complete measurement chain meets the accuracy requirements specified in the system design. Replacement sensors can be installed and verified against the original calibration data without requiring full system recalibration, minimizing maintenance downtime and reducing the risk of calibration errors during field replacement.

ZYPLC maintains availability subject to RFQ confirmation of the EPRO MMG 1070/04TS with full coverage, supporting both new system builds and replacement-in-kind maintenance programs. All units are tested prior to dispatch and supplied with original documentation to support installation, commissioning, and regulatory compliance requirements.

Product Specification Table

System Compatibility Notes

The MMG 1070/04TS achieves its full architectural value when deployed as part of a coordinated EPRO proximity monitoring system. The sensor probe is paired with the EPRO PR 6423 or PR 6424 proximity transducer driver, which provides the required oscillator excitation and signal conditioning to convert the probe’s impedance variation into a calibrated DC voltage output. This voltage is then routed to the EPRO MMS 6000 machinery monitoring system — specifically the MMS 6110 displacement monitoring module or the MMS 6120 dual-channel displacement module — where the signal is digitized, alarm-processed, and made available to the plant control network.

Within the MMS 6000 rack, the displacement channels from the MMG 1070/04TS coexist with velocity inputs from EPRO PR 9268 seismic velocity transducers and acceleration inputs from EPRO PR 9376 accelerometers, providing a comprehensive multi-parameter machinery health picture within a single monitoring rack. The rack’s MMS 6823 communication gateway module bridges the monitoring system to the plant DCS or safety PLC via PROFIBUS DP or Modbus TCP/IP, ensuring that all displacement, velocity, and acceleration data is available at the control layer for integrated machinery protection logic.

For Keyphasor reference signal acquisition — essential for phase-referenced vibration analysis and rotor speed measurement — the EPRO PR 6424/010-000 Keyphasor driver is deployed alongside the displacement measurement channels, enabling the MMS 6000 system to generate orbit plots, Bode diagrams, and polar plots from the MMG 1070/04TS displacement data. At the HMI layer, EPRO System 1 Evolution software aggregates all sensor data streams for real-time visualization, alarm management, and long-term trend analysis, completing the full signal chain from the MMG 1070/04TS probe tip to the operator workstation.

Industrial Application Notes

The EPRO MMG 1070/04TS is deployed across a wide range of heavy industrial applications where non-contact shaft displacement measurement is a fundamental requirement of the machinery protection and condition monitoring strategy.

In power generation — including gas turbine, steam turbine, and hydro turbine installations — the MMG 1070/04TS monitors radial shaft displacement at journal bearings and axial displacement at thrust bearings, providing the primary input to the turbine protection system. Trip signals derived from the sensor’s output are processed by the MMS 6000 system and transmitted to the turbine control system within milliseconds, enabling protective shutdown before bearing damage or rotor contact occurs.

In petrochemical and refinery applications, the sensor is installed on critical rotating equipment including centrifugal compressors, process pumps, and agitators operating in hazardous area classifications. The non-contact measurement principle eliminates the risk of sensor-induced mechanical interference with the rotating shaft, and the sensor’s compatibility with API 670 machinery protection standards ensures compliance with plant safety and insurance requirements.

In steel, mining, and metallurgical plants, the MMG 1070/04TS is applied to large rolling mill drives, crusher drives, and conveyor system gearboxes where shaft displacement monitoring supports both machinery protection and predictive maintenance programs. The sensor’s wide operating temperature range and robust construction make it suitable for the harsh environmental conditions — including high ambient temperature, dust, and vibration — characteristic of these industries.

In water treatment and municipal infrastructure applications, the sensor monitors large vertical pump shafts and blower units, where early detection of bearing wear or shaft misalignment prevents costly unplanned outages in critical public utility systems.

Product Compatibility FAQ

Q1: Is the EPRO MMG 1070/04TS compatible with existing MMS 3000 series monitoring racks, or does it require the MMS 6000 platform?
The MMG 1070/04TS is compatible with both the EPRO MMS 3000 and MMS 6000 monitoring platforms, provided the appropriate signal conditioning module is installed. The sensor’s output — delivered via the matched PR 6423 or PR 6424 driver — is a standard analog voltage signal that interfaces with any EPRO displacement monitoring module accepting the standard -24 VDC proximity system output. When upgrading from MMS 3000 to MMS 6000, the MMG 1070/04TS sensors and drivers can typically be retained, with only the rack-mounted monitoring modules requiring replacement, significantly reducing upgrade costs.

Q2: What calibration and commissioning steps are required when installing the MMG 1070/04TS as a replacement sensor in an existing proximity system?
Replacement installation requires verification of the gap setting between the sensor probe face and the target shaft surface, confirmation that the replacement sensor’s calibration certificate matches the driver type and target material specification of the original installation, and a static calibration check across the full gap range to verify output linearity. The EPRO System 1 Evolution software supports online calibration verification without requiring system shutdown in most configurations. ZYPLC supplies all MMG 1070/04TS units with original calibration documentation to support this process.

Q3: What warranty terms are confirmed during quotation, and how does ZYPLC support long-term spare parts availability for the MMG 1070/04TS?
can cover manufacturing defects and functional failures under normal operating conditions from the date of dispatch. In the event of a warranty claim, ZYPLC provides replacement units or repair service with priority processing to minimize impact on plant operations. For long-term spare parts planning, ZYPLC maintains ongoing stock of the MMG 1070/04TS and associated driver electronics, supporting both replacement sourcing after RFQ confirmation requirements and planned strategic spares programs for critical rotating equipment fleets.
