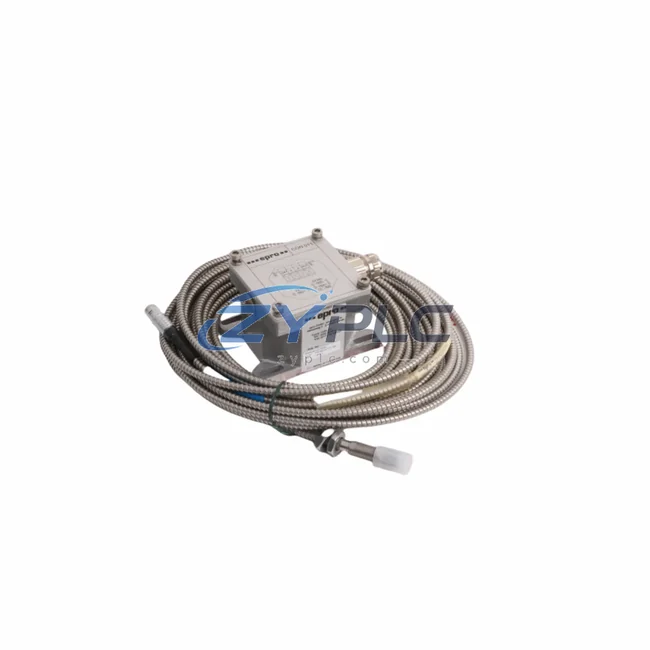

The EPRO PR6423/010-140 CON011 is a precision eddy current proximity sensor engineered for seamless integration within the PR6423 series vibration and position monitoring architecture. Designed by EPRO (an Emerson brand), this sensor operates as a critical node in the control system hierarchy, delivering non-contact displacement and vibration measurements that feed directly into condition monitoring platforms, safety shutdown systems, and predictive maintenance frameworks across heavy industrial environments.

In a layered automation architecture, the PR6423/010-140 CON011 does not function in isolation. It is the sensing front-end of a complete signal chain that spans from the physical measurement point through signal conditioning, data acquisition, network transmission, and ultimately to the operator interface and control decision layer. Understanding its role within this chain is essential for engineers designing or maintaining rotating machinery protection systems in power generation, petrochemical, mining, metallurgy, and water treatment facilities.

Product Specification Table

System Compatibility Notes

The PR6423/010-140 CON011 achieves its full diagnostic value only when deployed as part of a coordinated EPRO monitoring architecture. In a typical rotating machinery protection system, this sensor is paired with the PR6424/000-030 signal conditioner, which converts the raw eddy current output into a calibrated voltage signal suitable for downstream processing. The conditioner mounts in the MMS6000 series modular monitoring rack, where it interfaces with modules such as the MMS6220 dual-channel vibration monitor and the MMS6312 speed and phase reference module.

At the control layer, the MMS6000 rack communicates with the plant DCS or safety PLC via the A6500-UM universal module or through dedicated PROFIBUS DP gateways, ensuring that vibration trip signals, alarm states, and trend data are available to the operator in real time. The PR6426 series proximity sensors may be deployed alongside the PR6423 for complementary axial position measurement, providing a complete picture of shaft behavior within the same monitoring frame.

Power integrity is maintained through dedicated 24 VDC instrument power supplies feeding the MMS rack, with redundant power input options available on higher-tier configurations. The CON021 extension cable is commonly used in installations where the sensor-to-conditioner distance exceeds standard cable lengths, maintaining signal fidelity across longer cable runs without impedance mismatch. Terminal blocks and cable glands rated for the installation zone complete the field wiring layer, ensuring that the sensor signal arrives at the conditioner without degradation.

For HMI integration, the processed vibration and position data is typically displayed on EPRO A6600 series display units or forwarded to a SCADA platform via OPC-DA/UA servers embedded in the plant network. This multi-layer architecture — sensor, conditioner, monitor rack, network gateway, and HMI — ensures that the PR6423/010-140 CON011 contributes not just a measurement, but a fully contextualized data point within the plant’s condition monitoring strategy.

Industrial Application Notes

In power generation facilities, the PR6423/010-140 CON011 is routinely installed on steam turbine bearing housings to monitor shaft radial vibration in accordance with ISO 7919 and API 670 standards. The sensor’s non-contact measurement principle eliminates mechanical wear at the sensing point, ensuring continuous, maintenance-free operation across extended turbine run cycles.

In petrochemical and refinery environments, this sensor is deployed on compressor trains, pump sets, and gearboxes where early detection of imbalance, misalignment, or bearing degradation is critical to process continuity. Its ATEX/IECEx certification makes it suitable for installation in classified hazardous areas without additional protective enclosures.

In mining and metallurgy applications, the PR6423 series sensors are integrated into crusher drive monitoring systems and mill bearing protection frameworks, where the harsh operating environment demands robust sensor construction and reliable signal output under high vibration and temperature conditions.

For water treatment and municipal infrastructure projects, the sensor supports pump and blower condition monitoring programs, enabling maintenance teams to transition from time-based to condition-based maintenance schedules, reducing downtime and extending asset service life.

Across all these applications, the provided with every PR6423/010-140 CON011 unit ensures that procurement teams and maintenance engineers can plan their spare parts inventory with confidence, knowing that each sensor has been functionally tested and verified before dispatch.

Product Compatibility FAQ

Q1: Is the PR6423/010-140 CON011 compatible with existing MMS6000 series monitoring racks without hardware modification?
Yes. The PR6423/010-140 CON011 is designed to interface directly with the PR6424 signal conditioner, which is a standard input module within the MMS6000 series rack. No hardware modification is required provided the conditioner is correctly configured for the sensor’s nominal gap voltage and sensitivity (typically 8 mV/µm). Engineers should verify the extension cable impedance matches the conditioner’s input specification before commissioning.

Q2: Can this sensor be used in a redundant monitoring architecture, and how does it integrate with safety shutdown systems?
Yes. Redundant sensor configurations are supported by deploying dual PR6423 sensors on the same measurement plane, each feeding an independent PR6424 conditioner channel within the MMS6000 rack. The MMS6220 dual-channel vibration monitor supports voting logic (1oo2 or 2oo2) for safety-critical trip functions. The trip relay outputs can be wired directly to the plant’s Safety Instrumented System (SIS) or emergency shutdown (ESD) panel, ensuring that the vibration protection layer meets SIL requirements as defined in IEC 61511.

Q3: What is covered under the, and what support is available for long-term maintenance?
The covers manufacturing defects, calibration drift beyond specification, and connector integrity failures under normal operating conditions. Each unit is functionally tested prior to dispatch. For long-term maintenance, we recommend maintaining a minimum of one spare sensor and one spare PR6424 conditioner per monitored machine train. Our technical team provides pre-sales configuration support, installation guidance, and post-sales troubleshooting assistance to ensure system continuity throughout the warranty period and beyond.
