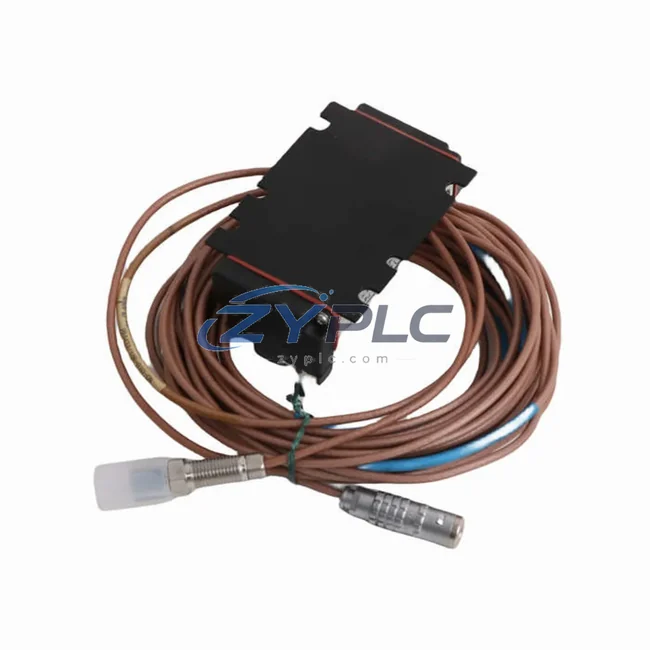

Epro PR6423/10R-141 CON031 Eddy Current Sensor for PR6423

Epro PR6423/10R-141 CON031 Eddy Current Sensor for PR6423: Compatibility and Replacement Notes

The Epro PR6423/10R-141 CON031 is a precision eddy current displacement sensor engineered for seamless integration within the PR6423 series architecture. Designed for continuous shaft vibration and axial displacement monitoring in rotating machinery, this sensor does not operate as a standalone instrument — it functions as a critical node within a layered industrial control system. When deployed alongside the full Epro MMS6000 machinery monitoring platform, the PR6423/10R-141 CON031 contributes to a coherent signal chain that spans from the physical measurement layer through to the control and safety shutdown layer, ensuring system-wide consistency, redundancy, and long-term maintainability.

In modern turbine protection and compressor monitoring architectures, the integrity of the measurement layer directly determines the reliability of every upstream decision. The PR6423/10R-141 CON031 delivers a calibrated, low-noise analog output that feeds directly into Epro CON021 or CON031 signal conditioners, which in turn interface with MMS6000 series monitoring modules such as the MMS6110 shaft vibration module or the MMS6120 axial displacement module. This signal path — from sensor tip to monitoring card — must be treated as a unified subsystem, not a collection of independent components. Proper cable routing, grounding discipline, and conditioner gain matching are all part of the architectural design that this sensor is built to support.

Product Specification Table

System Compatibility Notes

The PR6423/10R-141 CON031 is most effectively deployed as part of a coordinated measurement and protection architecture. At the I/O and measurement layer, this sensor works in tandem with the CON031 signal conditioner to deliver a conditioned analog signal that is immune to cable capacitance variation and electromagnetic interference — a critical requirement in high-voltage switchgear rooms and turbine halls. The conditioned output feeds into the MMS6000 rack system, where modules such as the MMS6110 (radial vibration), MMS6120 (axial displacement), and MMS6160 (speed and phase) process the signals in parallel, enabling multi-parameter protection logic within a single chassis.

At the control layer, the MMS6000 rack communicates with the plant DCS or safety PLC via hardwired relay outputs or fieldbus gateways. In many installations, a PROFIBUS DP gateway module bridges the MMS6000 platform to Siemens S7-300 or S7-400 series PLCs, allowing vibration trip signals to be integrated into the plant-wide emergency shutdown (ESD) logic. For facilities running redundant control architectures, dual MMS6000 racks with cross-monitoring capability can be configured, with each rack receiving independent signals from paired PR6423 sensors mounted at 90° intervals on the shaft — a standard X-Y vibration measurement configuration.

At the human-machine interface layer, vibration trend data from the MMS6000 system is typically displayed on dedicated condition monitoring workstations running Epro SETPOINT software, or forwarded to plant historians via OPC-DA/OPC-UA interfaces. Operators can monitor real-time shaft centerline plots, orbit diagrams, and trend alarms without interrupting the protection function. At the power layer, the MMS6000 rack requires a stable 24 VDC supply, often sourced from redundant PSU modules to ensure uninterrupted monitoring during power disturbances. The PR6423/10R-141 CON031, as the originating measurement node in this chain, must be correctly gapped and calibrated during commissioning to ensure that all downstream signal processing and alarm setpoints are accurate and consistent across the system lifecycle.

Industrial Application Notes

Power Generation & Turbine Protection: In gas turbine and steam turbine installations, the PR6423/10R-141 CON031 is mounted on bearing housings to monitor radial shaft vibration in real time. When vibration amplitude exceeds the API 670 alarm or danger setpoint, the MMS6000 protection system issues a trip signal to the turbine control system, initiating a controlled shutdown. This architecture is standard in combined-cycle power plants, where continuous operation and rapid fault detection are equally critical.

Petrochemical & Refinery Compressor Trains: In centrifugal compressor trains used in ethylene, ammonia, and LNG processing, axial displacement monitoring using the PR6423 series is essential for detecting thrust bearing wear before catastrophic failure. The CON031 conditioner’s integrated cable compensation ensures measurement accuracy even with long cable runs between the compressor skid and the remote MMS6000 rack in the control room.

Mining & Metallurgy: Large induced draft fans, ball mills, and conveyor drive motors in mining operations benefit from continuous vibration monitoring using eddy current sensors. The rugged construction of the PR6423/10R-141 CON031 makes it suitable for high-dust, high-vibration environments where contact-type sensors would degrade rapidly.

Water Treatment & Pumping Stations: High-speed pump shafts in water treatment facilities are monitored using PR6423 series sensors to detect imbalance, misalignment, and bearing defects early, reducing downtime and extending mean time between maintenance (MTBM) intervals.

Product Compatibility FAQ

Q1: Is the PR6423/10R-141 CON031 compatible with existing MMS6000 rack installations without hardware modification?
Yes. The PR6423/10R-141 CON031 is designed for direct integration with the MMS6000 monitoring platform. The CON031 conditioner provides a standardized output signal that is fully compatible with MMS6110, MMS6120, and MMS6160 input modules. No additional signal conditioning hardware is required, provided the cable length and target material are within the specified calibration range. During commissioning, the air-gap setting should be verified using the conditioner’s built-in DC output voltage reference to confirm linear range alignment.

Q2: Can this sensor be used in a redundant dual-channel vibration monitoring architecture?
Yes. For API 670-compliant installations requiring 2oo2 (two-out-of-two) or 1oo2 voting logic, two PR6423/10R-141 CON031 sensors can be mounted at 90° intervals (X and Y planes) on the same bearing journal. Each sensor feeds an independent MMS6000 channel, and the protection system evaluates both channels independently. This configuration provides both redundancy and directional vibration analysis capability, supporting orbit plot generation for advanced diagnostics.

Q3: What does the cover, and how is long-term spare parts availability managed?
The covers manufacturing defects, calibration drift beyond specification, and component failure under normal operating conditions from the date of shipment. For long-term maintenance planning, we recommend holding at least one spare PR6423/10R-141 CON031 assembly per critical machine train, as lead times for OEM replacements can extend to 8–16 weeks. Our inventory supply program ensures consistent stock availability, and our technical team can assist with cross-referencing compatible replacement models if the original part is discontinued.
