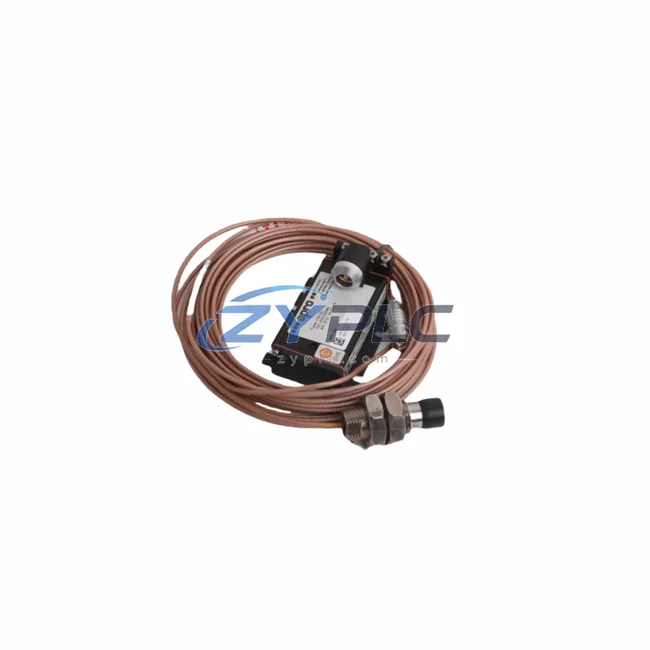

EPRO PR6424/000-130 CON021 Signal Converter for PR6400

EPRO PR6424/000-130 CON021 Signal Converter for PR6400

In modern industrial automation, the integrity of a control system depends not on any single component, but on the seamless coordination of every layer — from field sensors and signal conditioners through to the control platform, HMI, and actuator network. The EPRO PR6424/000-130 CON021 is a precision signal converter engineered specifically for integration within the EPRO PR6400 Series machinery protection and condition monitoring architecture. It occupies a critical position in the signal chain, converting raw transducer outputs into standardized signals that the control and monitoring layers can reliably process, log, and act upon.

This module is not a standalone instrument — it is a system component. Its value is realized when deployed alongside complementary EPRO hardware such as the PR6423 eddy-current transducer, the PR6424/010 extension cable assembly, the PR9268 power supply module, and the CON041 signal conditioning unit. Together, these components form a coherent measurement chain that delivers consistent, low-noise signals to the supervisory layer, whether that is a DCS, a safety PLC, or a dedicated machinery protection rack.

Product Specification Table

System Compatibility Notes

The PR6424/000-130 CON021 is designed to operate within a layered control architecture where signal fidelity at the I/O layer directly determines the quality of decisions made at the control and protection layers. In a typical deployment, the measurement chain begins at the rotating machinery with an EPRO PR6423 proximity probe, whose output is routed through a PR6424/010 extension cable to the CON021 converter. The converter conditions and scales the signal before passing it upstream to the EPRO MMS6220 vibration monitor or a compatible rack-mounted monitor card within the A6500-UM universal monitor chassis.

At the control layer, the conditioned analog signal interfaces with the plant DCS or safety PLC — often via a marshalling panel equipped with EPRO PR6426 terminal modules that provide galvanic isolation and signal distribution without introducing ground loops. For facilities operating redundant protection architectures, the CON021 supports dual-channel configurations where a secondary PR9268 power supply module ensures uninterrupted signal conditioning even during primary supply faults.

On the network and supervisory layer, the processed vibration and displacement data feeds into the plant historian and condition monitoring software, enabling predictive maintenance workflows. The CON041 signal conditioning unit can be deployed in parallel for cross-channel verification, while the MMS6312 relay output module translates threshold breaches into hardwired trip signals to the turbine control system or emergency shutdown (ESD) logic. This architecture ensures that the PR6424/000-130 CON021 is never a single point of failure — it is one node in a redundant, self-verifying protection network.

Industrial Application Notes

The PR6424/000-130 CON021 finds application across a broad range of heavy industrial sectors where rotating machinery protection is non-negotiable. In power generation facilities — including gas turbines, steam turbines, and hydro generators — the module provides the signal conditioning backbone for shaft displacement and vibration monitoring systems that must meet API 670 machinery protection standards. Any deviation in rotor dynamics is captured, conditioned, and transmitted to the protection relay within milliseconds.

In petrochemical and refinery environments, the CON021 is deployed on compressor trains, boiler feed pumps, and reactor agitators where continuous uptime is critical. Its robust signal conditioning capability ensures that even in electrically noisy environments — common near variable frequency drives and high-current bus bars — the output signal remains clean and within specification. For water treatment and municipal utilities, the module supports long-cable installations where transducer-to-converter distances may exceed standard limits, with the PR6424/010 extension cable maintaining signal integrity over the full run.

In mining and metallurgical applications, the PR6424/000-130 CON021 is integrated into mill drive monitoring systems and crusher protection panels, where the harsh vibration environment demands a converter with proven mechanical and electrical robustness. Packaging and discrete manufacturing lines also benefit from the module’s compact form factor and DIN rail compatibility, enabling integration into space-constrained control cabinets without compromising system architecture.

Product Compatibility FAQ

Q1: Is the PR6424/000-130 CON021 compatible with third-party DCS platforms, or is it limited to EPRO systems?
The CON021 outputs a standardized analog signal (typically 4–20 mA or voltage, depending on configuration) that is compatible with any DCS, safety PLC, or data acquisition system capable of accepting standard analog inputs. While it is for system integration within the EPRO PR6400 architecture — ensuring calibrated scaling and alarm threshold alignment — it can be interfaced with Siemens, ABB, Honeywell, Yokogawa, and Rockwell Automation control platforms with appropriate signal conditioning at the marshalling layer. Our engineering team can advise on interface requirements for your specific control platform.

Q2: What are the installation and commissioning requirements for this module in a redundant protection architecture?
For redundant deployments, the PR6424/000-130 CON021 should be installed in a dedicated EPRO rack or on a DIN rail within a segregated protection panel, powered by an independent 24 V DC supply — ideally the PR9268 redundant power supply module. Each channel should be individually calibrated against the connected PR6423 transducer using the EPRO calibration procedure, and the output signal verified at the DCS input card before commissioning. Cable screening must be grounded at a single point to prevent ground loops. All units supplied by ZYPLC are pre-tested and covered by a from the date of shipment.

Q3: How does ZYPLC support long-term maintenance and spare parts availability for the PR6424/000-130 CON021?
ZYPLC maintains dedicated stock of the PR6424/000-130 CON021 and associated EPRO PR6400 series components to support planned maintenance shutdowns and emergency replacements. All units are supplied with a and full traceability documentation. For facilities operating critical rotating machinery, we recommend maintaining a minimum of one spare converter per protection channel. Our technical team provides pre-shipment testing, configuration verification, and post-installation support to ensure seamless integration into your existing control architecture. Contact us at plc.sales@zyplc.com or +86 19859288691 for availability and lead times.
