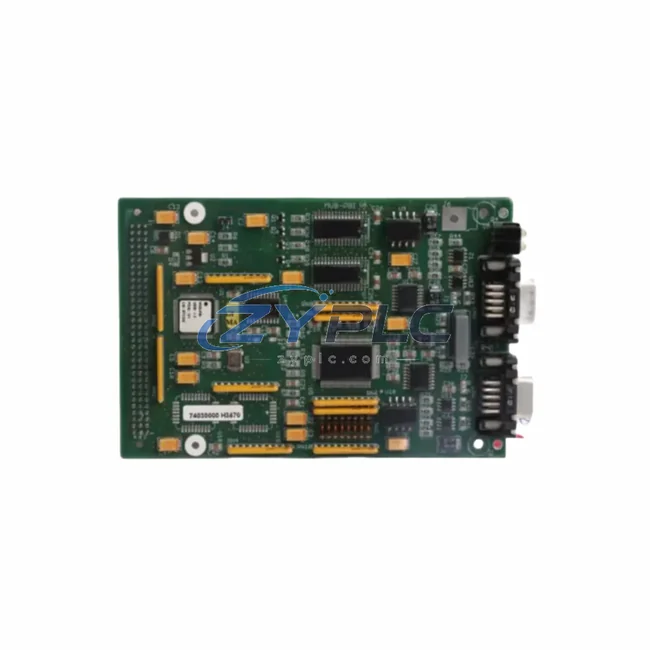

Faiveley 74030000-H3470 Control Board for Railway

Faiveley 74030000-H3470 Control Board for Railway

In modern railway automation, no single component operates in isolation. The Faiveley 74030000-H3470 Control Board is engineered as a system-compatible embedded controller designed to occupy a precise role within the layered architecture of train control systems — from traction management and HVAC regulation to door control, passenger information, and diagnostic communication. Understanding this board’s value requires examining how it integrates across the control layer, I/O layer, network layer, power layer, HMI layer, and actuation layer of a complete railway vehicle control platform.

Faiveley Transport, now part of Wabtec Corporation, has long been a benchmark supplier for onboard railway electronics. The 74030000-H3470 belongs to a family of embedded control boards used in passenger rolling stock, metro vehicles, and regional trains. Its architecture reflects the demands of EN 50155-compliant environments: wide operating temperature tolerance, vibration resistance, and deterministic real-time processing — all essential for safety-critical railway applications.

Product Specification Table

System Compatibility Notes

The 74030000-H3470 does not function as a standalone device — it is the processing core around which a complete subsystem is assembled. In a typical railway vehicle control cabinet, this board interfaces with a range of upstream and downstream components that together form a coherent, redundant, and maintainable control architecture.

At the power layer, the board receives conditioned 24 VDC from a Faiveley-compatible DC/DC power supply module, such as those found in the 74030000-series power distribution assemblies. Proper power sequencing and surge protection at this layer are prerequisites for stable board operation across the full EN 50155 voltage range.

At the I/O layer, the 74030000-H3470 connects to discrete and analog I/O expansion modules — including digital input cards for door status, temperature sensor inputs for HVAC zone monitoring, and relay output boards for actuator control. Companion modules such as the 74030000-H3471 I/O Extension Board and 74030000-H3472 Relay Output Module are commonly deployed in the same rack to extend the system’s signal handling capacity without adding a second CPU node.

At the network layer, the board participates in the train’s MVB (Multifunction Vehicle Bus) or CAN-based communication backbone. This allows it to exchange real-time data with the Train Control and Management System (TCMS), traction inverter controllers, and passenger information systems. A Faiveley MVB Gateway Module or CAN-to-MVB Bridge may be installed in adjacent rack slots to handle protocol translation between subsystems operating on different bus standards.

At the HMI layer, maintenance technicians interact with the system through a connected diagnostic terminal or portable service tool. The 74030000-H3470 supports parameter readout, fault log retrieval, and configuration upload via its serial diagnostic port — compatible with Faiveley’s proprietary service software and standard RS-232/RS-485 interfaces.

At the actuation layer, the board drives HVAC compressors, blower motors, heating elements, and door actuators through its relay and PWM outputs, or via downstream motor drive modules. In traction auxiliary applications, it may also coordinate with auxiliary inverter control boards and battery management units to manage energy flow during regenerative braking events.

Redundancy is addressed through dual-channel input monitoring and watchdog timer circuits embedded in the board’s firmware. In high-availability configurations, a 74030000-series Hot-Standby Controller Module can be paired with the H3470 to provide automatic failover without interrupting vehicle operation — a critical requirement for metro and intercity rolling stock.

Industrial Application Notes

The Faiveley 74030000-H3470 finds application across a broad spectrum of railway and transit environments:

Metro and Urban Rail: In metro vehicles, the board manages HVAC zone control across multiple cars, coordinating with roof-mounted condensing units and underfloor evaporator assemblies. Its deterministic scan cycle ensures passenger comfort setpoints are maintained even during peak load conditions and tunnel operation.

Regional and Intercity Trains: For regional EMUs and DMUs, the H3470 serves as the HVAC and auxiliary systems controller, interfacing with the main vehicle control unit via MVB. It handles heating, ventilation, air conditioning, and lighting control — all within a single rack-mounted assembly that simplifies maintenance depot procedures.

Industrial and Process Control Adaptation: Beyond railway, the board’s architecture — with its robust I/O handling, serial communication ports, and wide temperature tolerance — makes it suitable for adaptation in industrial process control panels where EN 50155-grade reliability is specified, such as in mining vehicles, port equipment, and offshore platform control systems.

Maintenance and Lifecycle Management: The 74030000-H3470 is designed for long-term serviceability. Its modular rack integration means that individual boards can be swapped during scheduled maintenance windows without disturbing adjacent modules. ZYPLC maintains stock of tested and verified units, supporting fleet operators who require rapid board replacement to minimize vehicle downtime. All units supplied by ZYPLC carry a Warranty and support terms confirmed before quote, covering functional defects and ensuring operational confidence throughout the warranty period.

Product Compatibility FAQ

Q1: Is the Faiveley 74030000-H3470 compatible with both MVB and CAN-based train control architectures?
A: Yes. The 74030000-H3470 supports multi-protocol communication, with hardware interfaces for MVB and CAN buses as well as RS-485 serial links. In mixed-protocol environments, a Faiveley MVB-CAN gateway module installed in the same rack provides seamless system integration between subsystems operating on different communication standards. This makes the board suitable for both legacy fleet upgrades and new rolling stock platforms.

Q2: Can the 74030000-H3470 be used in a redundant control architecture, and what companion modules are required?
A: The board supports redundant configurations when paired with a compatible hot-standby controller module from the 74030000 series. The primary and standby boards share I/O via a backplane bus, with automatic switchover triggered by the watchdog circuit. For full redundancy, the power supply layer should also be duplicated using a secondary 24 VDC power module with diode-OR coupling — a standard practice in safety-critical railway control cabinet design.

Q3: What does the Warranty and support terms confirmed before quote from ZYPLC cover, and how is warranty service handled for international customers?
A: ZYPLC’s Warranty and support terms confirmed before quote covers all functional defects in the supplied 74030000-H3470 board, including failures attributable to component-level faults identified under normal operating conditions as defined by EN 50155. Warranty claims are handled directly through ZYPLC’s technical support team. International customers receive advance replacement units to minimize downtime, with defective boards returned for root-cause analysis. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for warranty registration and support procedures.
