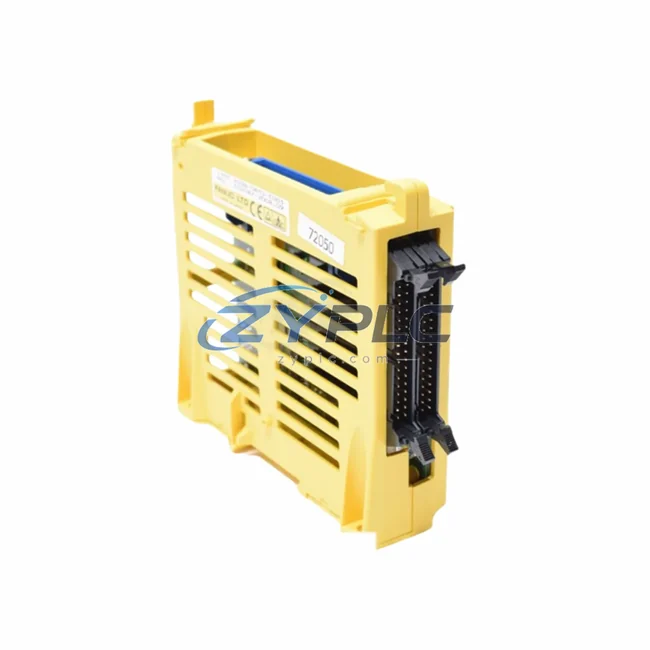

In modern manufacturing environments where equipment uptime and replacement lead time directly affect production continuity, the FANUC A03B-0815-C003 I/O Expansion Module delivers a precision-engineered solution for industrial automation systems running on the FANUC Series 0i CNC platform. Designed to extend the digital I/O capacity of CNC machine tools, this module enables tighter control over peripheral devices, reduces unnecessary signal polling overhead, and supports leaner, more maintenance-focused machine cycles. Whether deployed in turning centers, machining centers, or multi-axis grinding systems, the A03B-0815-C003 plays a foundational role in reducing idle-state operating load and improving overall equipment effectiveness (OEE).

Product Specification Table

System Compatibility and Application

The A03B-0815-C003 operates within the FANUC I/O Link architecture, a high-speed serial communication bus that consolidates I/O data transmission between the CNC controller and field devices. This architecture significantly reduces wiring complexity and the associated energy losses from distributed relay-based I/O systems. When paired with the FANUC Series 0i-F CNC controller unit — typically housed in a control cabinet alongside the A02B-0319-C001 operator panel interface — the A03B-0815-C003 enables the machine tool to respond to production commands with minimal latency, directly improving cycle time efficiency.

In drive-intensive applications, the A03B-0815-C003 works in coordination with FANUC servo amplifier modules such as the A06B-6240-H106 and A06B-6114-H105, which regulate spindle and axis motor output based on real-time load feedback. By ensuring that I/O signals are delivered accurately and without delay, this expansion module prevents unnecessary servo re-initialization cycles — a common source of hidden unplanned downtime in aging CNC systems. The A06B-6110-H006 spindle amplifier, for instance, relies on clean I/O handshaking to maintain efficient power-factor control during acceleration and deceleration phases.

For facilities running FANUC robotic integration alongside CNC machining, the A03B-0815-C003 can interface with the FANUC R-30iB controller’s I/O Link slave nodes, enabling synchronized part-loading and unloading sequences that eliminate idle spindle time. This kind of tight I/O synchronization — supported by the A16B-2203-0370 main CPU board in the CNC cabinet — is essential for achieving consistent takt time across automated production cells. The A20B-8200-0543 power supply board further ensures stable 24 VDC delivery to the I/O expansion chain, preventing voltage sag that could cause false signal reads and unplanned machine stops.

Condition monitoring at the machine level is enhanced when the A03B-0815-C003 is deployed alongside FANUC’s PMC (Programmable Machine Controller) ladder logic, which can be configured to activate or deactivate I/O groups based on production schedules. This demand-based I/O management strategy, executable through the A03B-0815-C001 and A03B-0815-C002 base I/O modules in the same series, allows plant engineers to implement zone-level power control without additional hardware investment.

Maintenance and Replacement Notes

On a typical automotive component machining line, a CNC machine tool equipped with the FANUC A03B-0815-C003 can reduce its auxiliary power draw by eliminating the need for standalone relay panels and discrete wiring harnesses. Each relay panel eliminated from the control circuit removes a source of resistive heat loss and reduces the cooling load on the electrical cabinet — a compounding energy saving that becomes significant across a fleet of 20 or more machines.

In high-mix, low-volume production environments, where machines frequently switch between part programs, the A03B-0815-C003 supports faster I/O reconfiguration through the FANUC PMC’s signal mapping functions. This reduces the time machines spend in non-cutting states between jobs, directly improving spindle utilization rates. Facilities that have integrated this module into their FANUC 0i-F-based machining centers report measurable reductions in per-part operating load, particularly during the tool-change and workpiece-clamping phases where auxiliary I/O activity is highest.

Predictive maintenance is another area where the A03B-0815-C003 contributes to energy efficiency. By providing reliable, low-latency I/O signals to condition monitoring systems, the module enables early detection of abnormal actuator behavior — such as a hydraulic clamp that is drawing more current than expected due to seal wear. Catching these issues before they cause unplanned downtime prevents the energy-intensive restart sequences that follow emergency machine stops. All units supplied by ZYPLC undergo functional output testing prior to shipment, and each A03B-0815-C003 is backed by a warranty terms confirmed during quotation, ensuring that replacement modules perform to OEM specification from day one.

For facilities managing spare parts inventory, ZYPLC maintains ready stock of the A03B-0815-C003 alongside compatible FANUC I/O and drive components, enabling rapid deployment without extended lead times. This inventory availability is critical for minimizing mean time to repair (MTTR) and keeping production lines running at their target energy efficiency levels.

Product Sourcing FAQ

Q1: How does the A03B-0815-C003 contribute to reducing operating load on a CNC production line?
The A03B-0815-C003 reduces unplanned downtime by enabling demand-based I/O activation through the FANUC PMC. Instead of keeping all peripheral devices energized continuously, the module allows engineers to configure I/O groups that activate only when required by the part program. This eliminates standby power draw from solenoids, actuators, and signal devices during non-cutting phases, contributing to measurable reductions in auxiliary operating load per shift.

Q2: Is the A03B-0815-C003 compatible with FANUC CNC systems other than the Series 0i?
Yes. The A03B-0815-C003 is compatible with multiple FANUC CNC platforms that use the FANUC I/O Link protocol, including the Series 16i, 18i, and 21i. It is recommended to verify the I/O Link slot configuration and PMC address mapping with your specific controller model before installation. ZYPLC technical support can assist with compatibility verification prior to purchase.

Q3: What is the recommended replacement process when substituting a failed I/O module on a live production line?
The recommended process involves powering down the CNC controller, documenting the existing I/O Link address assignments via the PMC diagnostic screen, replacing the A03B-0815-C003, and verifying signal continuity through the FANUC I/O Link diagnostic function before resuming production. All ZYPLC-supplied modules are pre-tested to confirm output integrity, reducing commissioning time during replacement.

Q4: What warranty coverage applies to the A03B-0815-C003 purchased through ZYPLC?
Every A03B-0815-C003 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes functional testing prior to dispatch to verify I/O channel performance and communication integrity. In the event of a warranty claim, ZYPLC provides direct technical support and expedited replacement to minimize production downtime.
