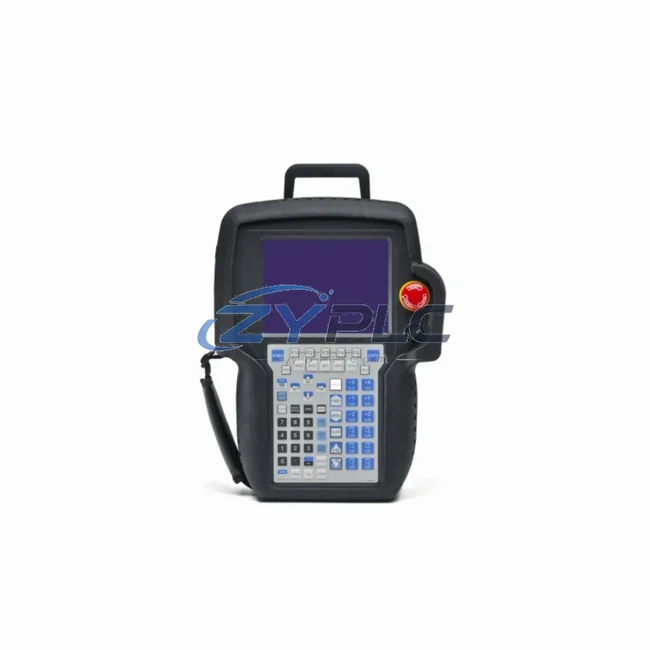

FANUC A05B-2255-C102 iPendant Teach Pendant for R-30iB Systems

FANUC A05B-2255-C102 iPendant Teach Pendant: Industrial Data Link for Smart Factory Robot Control

The FANUC A05B-2255-C102 iPendant Teach Pendant is a high-performance human-machine interface engineered for seamless integration within FANUC’s R-30iB and R-30iA robot controller ecosystems. Designed to serve as the primary operator interface node in automated production environments, this teach pendant bridges the gap between field-level robot actuators and upper-level SCADA, MES, and supervisory control systems. Its role in the industrial data chain extends far beyond simple jogging and programming — it functions as a real-time diagnostic terminal, a protocol-aware communication endpoint, and a critical link in the smart factory connectivity architecture.

In modern industrial facilities where data transparency and production traceability are non-negotiable, the A05B-2255-C102 delivers the operator visibility required to maintain uptime, reduce mean time to repair (MTTR), and support continuous improvement initiatives. Whether deployed on automotive body welding lines, precision assembly cells, palletizing stations, or material handling systems, this iPendant unit provides the tactile and visual interface layer that connects human operators to the digital nervous system of the factory floor.

Compatibility & Integration Notes

Connected Automation Data Flow

The FANUC A05B-2255-C102 sits at the intersection of operator interaction and machine intelligence. In a typical smart factory deployment, the data flow originates at the sensor and actuator layer — servo drives, torque sensors, vision systems, and end-of-arm tooling — all feeding real-time status data into the FANUC R-30iB controller. The iPendant acts as the live window into this data stream, allowing operators to monitor joint positions, I/O states, cycle times, and fault codes without interrupting production.

Upstream from the robot controller, the R-30iB communicates with plant-level systems via industrial Ethernet. When paired with the FANUC R-30iB EtherNet/IP communication board (A20B-8101-0930), the robot cell becomes a fully addressable node on the factory network, enabling the Rockwell FactoryTalk SCADA or Siemens WinCC supervisory platform to poll robot status, production counts, and alarm histories in real time. The A05B-2255-C102 pendant provides the local confirmation layer — operators can acknowledge alarms, adjust parameters, and initiate recovery sequences directly from the teach pendant interface while the SCADA system logs every event with timestamp and operator ID.

For facilities running mixed-protocol environments, the robot cell’s network data is often aggregated through an industrial edge gateway — such as the Moxa MGate MB3270 or a Hilscher netTAP NT 100 — which performs protocol conversion between the FANUC EtherNet/IP output and upstream Modbus TCP or PROFIBUS DP segments. This ensures that legacy PLCs, such as the FANUC Series 0i-MF CNC controller or third-party Mitsubishi MELSEC Q-series PLC, can receive robot status data without requiring full network infrastructure upgrades.

Remote I/O expansion within the robot cell is typically handled by FANUC I/O Link modules (A03B-0815-C001), which extend digital and analog I/O capacity to peripheral devices — grippers, conveyors, safety light curtains, and pneumatic valves — all visible and controllable through the A05B-2255-C102 pendant’s I/O monitor screen. When a fault occurs at any point in this chain, the pendant’s alarm display provides fault code, axis reference, and suggested corrective action, dramatically reducing diagnostic time on the shop floor.

For vision-guided applications, the iPendant integrates directly with FANUC iRVision camera systems, allowing operators to trigger vision calibration routines, review image capture results, and adjust offset parameters — all from the A05B-2255-C102 interface. This tight integration between the pendant, the vision system, and the robot controller eliminates the need for a separate PC-based vision terminal, simplifying the operator workstation and reducing potential points of network failure.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible systems — robots that cannot report status to the MES, PLCs that cannot share I/O data with SCADA, and HMI terminals that operate as isolated islands rather than integrated network nodes. The FANUC A05B-2255-C102 directly addresses this challenge within the FANUC robot ecosystem.

By providing a standardized, controller-native interface to the R-30iB’s full data model, the iPendant eliminates the need for custom middleware or proprietary data extraction tools. Operators and engineers can access program lists, system variables, I/O assignments, and maintenance logs through a single, unified interface. When integrated with FANUC ROBOGUIDE offline programming software, the pendant becomes part of a closed-loop digital twin workflow — programs developed in simulation are uploaded to the controller and verified on the pendant before live execution, reducing commissioning time and minimizing production risk.

For multi-robot cells or production lines with multiple FANUC controllers, the iPendant supports hot-swap connectivity, allowing a single pendant to be used across multiple R-30iB units via the controller’s pendant connection port. This reduces hardware costs and simplifies operator training, as all robots in the facility share the same interface paradigm. Combined with FANUC’s FIELD system (FANUC Intelligent Edge Link and Drive) IoT platform, data collected through the pendant interface can be pushed to cloud analytics dashboards, enabling predictive maintenance scheduling and OEE (Overall Equipment Effectiveness) tracking at the enterprise level.

Protocol unification across the production line is further supported by the R-30iB controller’s multi-network capability. A single robot cell can simultaneously communicate via EtherNet/IP to the SCADA layer, PROFINET to a safety PLC, and DeviceNet to legacy peripheral devices — with the A05B-2255-C102 pendant providing the operator with a unified view of all network states and alarm conditions. This architecture eliminates data silos, accelerates fault resolution, and supports the production line transparency required for Industry 4.0 compliance.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including pendant communication verification, display integrity check, keypad response test, and emergency stop circuit validation. Stock availability is maintained for rapid order fulfillment, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Industrial Connectivity FAQ

Q1: Is the FANUC A05B-2255-C102 compatible with both R-30iA and R-30iB controllers?
Yes. The A05B-2255-C102 iPendant is designed for use with FANUC R-30iB and R-30iA robot controllers. Compatibility with specific controller firmware versions should be confirmed against your controller’s software release. Contact ZYPLC for pre-sale compatibility verification.

Q2: Can this teach pendant be used in a SCADA-integrated robot cell?
Yes. When the R-30iB controller is equipped with an EtherNet/IP or PROFINET communication board, the robot cell — including pendant-accessible data — can be fully integrated into SCADA platforms such as Rockwell FactoryTalk, Siemens WinCC, or Ignition by Inductive Automation. The pendant provides the local operator interface while SCADA handles supervisory monitoring and data logging.

Q3: What is the communication latency between the A05B-2255-C102 pendant and the R-30iB controller?
Communication between the iPendant and the R-30iB controller occurs over FANUC’s proprietary high-speed serial bus, with typical response latency under 10ms for standard I/O monitoring and alarm display functions. This ensures real-time operator feedback during robot motion and fault conditions.

Q4: Does ZYPLC provide a warranty and pre-shipment testing for this unit?
Yes. All FANUC A05B-2255-C102 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including communication verification, display and keypad checks, and emergency stop circuit validation. Availability is confirmed via RFQ for shipment arranged after confirmation with full documentation.
