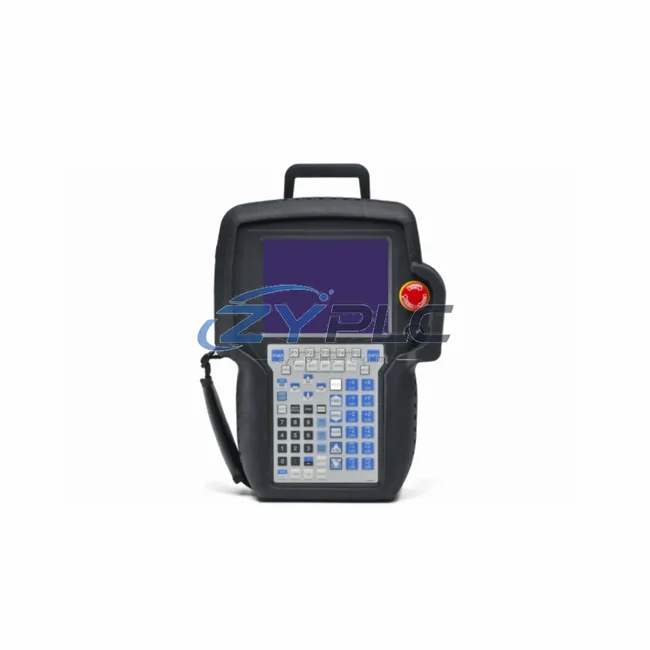

FANUC A05B-2490-0171 iPendant Teach Pendant C100 Series

FANUC A05B-2490-0171 iPendant Teach Pendant: Industrial Data Link for C100 Series Smart Factory Connectivity

The FANUC A05B-2490-0171 iPendant Teach Pendant — also referenced under part number A05B-2301-C300 and series code C100 102 202 2004-T364 — is a high-performance human-machine interface (HMI) and programming terminal engineered for FANUC C100 Series robot controllers. In modern smart factory environments, this iPendant functions as a critical node in the industrial data chain, bridging the gap between field-level robot actuators and upper-level SCADA, MES, and supervisory control systems. Its role extends far beyond simple teach-and-program operations: it serves as a real-time diagnostic terminal, a protocol-aware communication endpoint, and a gateway for live operational data flowing across the automation network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory cell, the FANUC A05B-2490-0171 iPendant sits at the intersection of robot control and plant-wide data visibility. Signal acquisition begins at the end-effector level — force sensors, vision systems, and proximity switches feed real-time process data into the FANUC R-30iB controller, where the iPendant provides the primary interface for monitoring, tuning, and fault acknowledgment. From the controller, structured data packets travel upstream through the plant Ethernet backbone, interfacing with FANUC ROBOGUIDE simulation and offline programming environments for path validation and cycle-time optimization.

At the network layer, the C100 Series controller communicates with FANUC Field Network modules — including EtherNet/IP adapters and PROFIBUS-DP slave cards — enabling seamless data exchange with Siemens S7-300/S7-400 PLCs or Allen-Bradley ControlLogix platforms acting as line supervisors. The iPendant’s alarm and I/O status screens provide operators with immediate visibility into downstream device states, including FANUC servo amplifiers (αi Series) and FANUC spindle drives, without requiring a separate HMI panel. This consolidation reduces hardware overhead and simplifies the data topology.

For remote I/O expansion, the robot cell typically integrates FANUC I/O Link modules or third-party distributed I/O racks connected via DeviceNet, extending digital and analog signal coverage to conveyor encoders, pneumatic valve banks, and safety relay modules. The iPendant’s live I/O monitor screen allows technicians to verify signal states in real time — a capability that dramatically reduces mean-time-to-repair (MTTR) during production incidents. Data from these I/O nodes is simultaneously forwarded to SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation, where historians log cycle counts, fault codes, and throughput KPIs for OEE analysis.

At the edge, FANUC FIELD system edge gateways or compatible third-party edge computing nodes aggregate robot controller data and push it to cloud MES dashboards, enabling plant managers to monitor multi-cell production lines from centralized control rooms or mobile devices. The iPendant’s role in this architecture is foundational: it is the human touchpoint that validates, corrects, and authorizes the data flowing through every layer of the automation stack.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid manufacturing environments is protocol fragmentation — robot controllers, PLCs, drives, and sensors each speaking different communication dialects, creating data silos that prevent unified visibility and coordinated control. The FANUC A05B-2490-0171 iPendant addresses this directly by serving as the operator’s window into the FANUC controller’s multi-protocol communication stack. Through the controller’s built-in EtherNet/IP or PROFIBUS-DP interfaces, data that would otherwise be locked inside the robot cell becomes accessible to plant-level SCADA and MES systems.

Remote monitoring is another area where this iPendant delivers measurable value. FANUC’s iRVision and DCS (Dual Check Safety) systems generate continuous diagnostic streams — joint torque data, position error logs, thermal status of servo amplifiers — that the iPendant surfaces in real time. When integrated with a FANUC FOCAS2 Ethernet library, these data streams can be polled by external monitoring applications, enabling predictive maintenance workflows that flag bearing wear or lubrication intervals before unplanned downtime occurs.

Production line transparency is achieved through the iPendant’s program management and variable monitoring screens, which allow engineers to inspect and modify process parameters — weld current, pick-and-place offsets, conveyor synchronization timing — without halting the production cycle. This live-edit capability, combined with password-protected access levels, ensures that only authorized personnel can alter critical motion parameters, maintaining both flexibility and process integrity. System expansion is equally straightforward: adding a new robot cell to an existing FANUC network requires only controller-level configuration changes, with the iPendant providing the interface for network address assignment, I/O mapping, and communication parameter setup — no additional engineering workstation required for routine expansion tasks.

Industrial Connectivity FAQ

Q1: What communication protocols does the FANUC A05B-2490-0171 support for SCADA integration?
The A05B-2490-0171 iPendant operates through the FANUC R-30iB / C100 Series controller, which supports EtherNet/IP, PROFIBUS-DP, DeviceNet, and FANUC’s proprietary I/O Link protocol. For SCADA integration, the FOCAS2 Ethernet library enables direct data polling from supervisory systems such as Ignition, Wonderware, or custom OPC-UA servers, providing real-time access to robot status, alarm codes, and production counters with typical cycle-level latency under 100ms.

Q2: Is the A05B-2490-0171 compatible with both R-30iA and R-30iB controllers?
The A05B-2490-0171 is primarily designed for the FANUC C100 Series and R-30iB controller family. Compatibility with R-30iA platforms depends on firmware revision and cable interface version. We recommend confirming the controller generation and software version before ordering. Our technical team can assist with cross-reference verification prior to shipment.

Q3: How does the warranty terms confirmed during quotation apply, and what does it cover?
All units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects, component failure under normal operating conditions, and functional non-conformance to FANUC specifications. Each unit undergoes pre-shipment functional testing — including display verification, button response, communication port continuity, and cable integrity checks — before dispatch. Warranty claims are processed with priority turnaround to minimize production impact.

Q4: Can the iPendant be used for network diagnostics without interrupting robot operation?
Yes. The FANUC iPendant’s I/O monitor, alarm history, and variable watch screens operate in parallel with active robot programs in AUTO mode. Technicians can observe live signal states, review fault logs, and monitor communication status without pausing production. For deeper network diagnostics — such as EtherNet/IP connection health or PROFIBUS node status — the controller’s built-in diagnostic menus are accessible directly from the iPendant interface, enabling on-the-floor troubleshooting without a separate engineering laptop.

—
