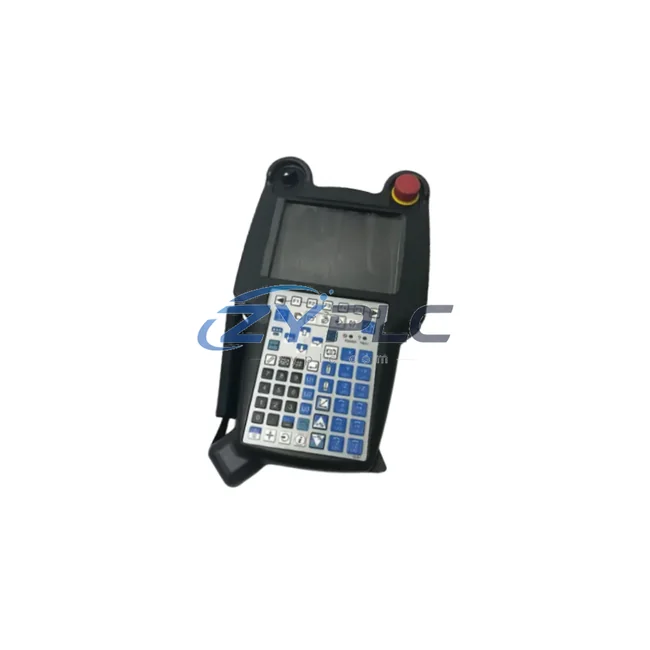

FANUC A05B-2518-C200 iPendant for R-30iB Controller Systems

FANUC A05B-2518-C200 iPendant: Industrial Robot HMI Gateway for Smart Factory Data Integration

The FANUC A05B-2518-C200 iPendant is a high-performance teach pendant and human-machine interface (HMI) designed for seamless integration with FANUC R-30iB and R-30iB Plus robot controllers. In modern smart factory environments, the iPendant serves as the critical operator interface node where real-time robot status, motion programs, alarm diagnostics, and I/O data converge — bridging the gap between field-level robotic devices and upper-level SCADA, MES, and industrial network systems.

As industrial automation evolves toward fully connected production lines, the A05B-2518-C200 plays a pivotal role in the data chain. It enables operators to monitor robot joint positions, cycle times, fault codes, and program execution states directly at the machine level, while the R-30iB controller simultaneously transmits structured data upstream via EtherNet/IP, PROFINET, or DeviceNet to SCADA platforms and PLC supervisory systems. This dual-layer communication — local HMI control plus network-level data transparency — is what makes the iPendant indispensable in Industry 4.0 deployments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory cell, the FANUC A05B-2518-C200 iPendant operates at the intersection of multiple automation layers. At the field level, the R-30iB controller — paired with this iPendant — receives discrete I/O signals from safety light curtains, proximity sensors, and pneumatic valve banks via the robot’s I/O interface board (such as the FANUC A20B-2101-0390 I/O module). These signals are processed in real time and reflected on the iPendant’s color touchscreen, giving operators immediate visibility into cell status without accessing the control cabinet.

Moving up the network stack, the R-30iB controller communicates with Siemens S7-1500 or Allen-Bradley ControlLogix PLCs over EtherNet/IP or PROFINET, exchanging robot ready signals, part-present confirmations, and production count data. The iPendant’s built-in diagnostic screens allow maintenance engineers to cross-reference robot fault codes with PLC alarm logs, dramatically reducing mean time to repair (MTTR). In welding applications, the iPendant interfaces directly with Lincoln Electric or Fronius welding power sources via the FANUC Welding Interface Unit, enabling weld parameter monitoring and arc-on time tracking from a single operator screen.

At the supervisory level, FANUC’s ROBOGUIDE simulation software and iRVision vision system feed structured data into the same Ethernet backbone that the iPendant monitors. SCADA platforms such as Ignition by Inductive Automation or Wonderware System Platform subscribe to OPC-UA data tags published by the R-30iB controller, enabling real-time dashboards that display robot utilization, cycle efficiency, and predictive maintenance alerts. Remote I/O racks — including FANUC A03B-0819-C001 distributed I/O units — extend the controller’s reach across large production cells, with all status data accessible through the iPendant’s I/O monitor screens.

For multi-robot lines, the iPendant supports FANUC’s R-30iB Dual Check Safety (DCS) architecture, where collaborative safety zones are configured and monitored directly from the pendant interface. Edge gateways such as the FANUC Field System or third-party IIoT gateways aggregate robot performance data and push it to cloud-based MES platforms, completing the data loop from field device to enterprise system — with the A05B-2518-C200 iPendant serving as the human touchpoint throughout.

Solving Data Isolation in Industrial Robot Cells

One of the most persistent challenges in industrial robot integration is data isolation — robot controllers operating as standalone islands with no structured data exchange to PLCs, SCADA systems, or MES platforms. The FANUC A05B-2518-C200 iPendant, combined with the R-30iB controller’s native fieldbus support, directly addresses this problem.

Protocol Fragmentation: Legacy robot cells often rely on hardwired discrete I/O for all inter-system communication, making it impossible to transmit rich diagnostic data upstream. The R-30iB controller’s EtherNet/IP and PROFINET adapters — configured and monitored via the iPendant — replace these point-to-point wiring schemes with structured network communication, enabling PLCs and SCADA systems to read robot state variables, fault codes, and production counters as structured data objects.

Remote Monitoring Gaps: Without a connected HMI, maintenance teams must physically access the robot cell to diagnose faults. The iPendant’s remote diagnostic capability, combined with FANUC’s FANUC FIELD system IIoT platform, allows engineers to view live robot status, alarm history, and program execution data from any networked workstation — reducing unplanned downtime and enabling predictive maintenance scheduling.

Production Line Transparency: In high-mix, low-volume manufacturing environments, production supervisors need real-time visibility into robot cycle times, part counts, and quality check results. The iPendant’s program monitoring screens, combined with SCADA integration via OPC-UA, deliver this transparency without requiring custom software development — standard data tags from the R-30iB controller map directly to SCADA historian databases.

System Scalability: As production lines expand, adding new robot cells to an existing network is straightforward with the R-30iB/iPendant platform. New controllers join the existing EtherNet/IP or PROFINET network segment, and SCADA systems automatically discover new data sources through standard network scanning — no proprietary middleware required.

All units of the FANUC A05B-2518-C200 are sourced from verified supply channels, undergo pre-shipment functional testing, and are backed by a warranty terms confirmed during quotation. Global shipping is available with full export documentation support.

Industrial Connectivity FAQ

Q1: What communication protocols does the FANUC R-30iB controller support when used with the A05B-2518-C200 iPendant?
The R-30iB controller natively supports EtherNet/IP, PROFINET, DeviceNet, and CC-Link fieldbus protocols. The iPendant provides the configuration and monitoring interface for all network settings, I/O assignments, and communication diagnostics. This makes it compatible with Siemens, Rockwell Automation, Mitsubishi, and Omron PLC platforms without additional protocol converters.

Q2: Can the iPendant be used for remote diagnostics without being physically connected to the robot?
Yes. The R-30iB controller supports FANUC’s web-based remote monitoring interface, accessible via standard industrial Ethernet. Maintenance engineers can view alarm logs, I/O status, and program execution data from any networked PC or HMI terminal. The iPendant itself must remain connected to the controller for full teach and playback functions, but diagnostic data is simultaneously available over the network.

Q3: How does the A05B-2518-C200 iPendant integrate with SCADA and MES systems?
The R-30iB controller publishes robot data via OPC-UA and EtherNet/IP CIP messaging, which SCADA platforms such as Ignition, Wonderware, and FactoryTalk can subscribe to directly. The iPendant’s I/O monitor and alarm screens provide the field-level view of the same data that SCADA systems display at the supervisory level, ensuring consistency between operator and management visibility layers.

Q4: What warranty and testing standards apply to the FANUC A05B-2518-C200?
Every unit is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Pre-shipment testing includes power-on verification, display function check, communication port integrity, and emergency stop circuit validation. Units are shipped with full packaging protection and export documentation. Availability is confirmed via RFQ for shipment arranged after confirmation with global logistics support.
